Aardwolf AVLP4 PRO Four Pad 1000kg Vacuum lifter

$4,979.99 USD
$4,979.99 USD
Shipping Policy Information

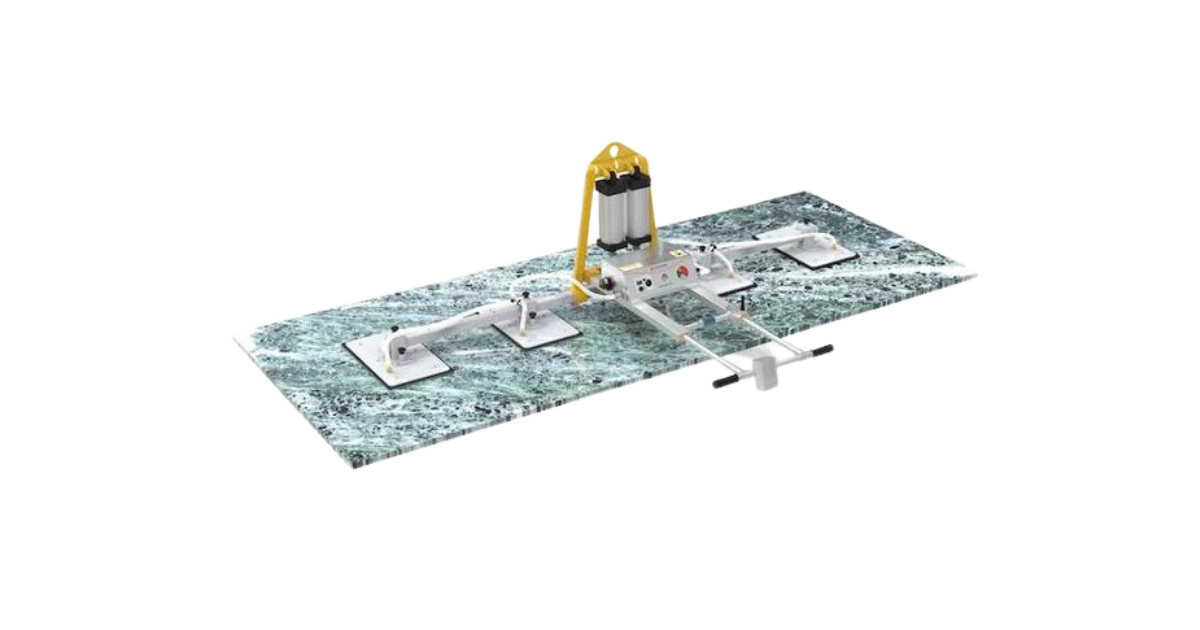

This vacuum lifter is designed to lift smooth or rough marble and granite slabs. Featuring rugged construction with the ability to lift and tilt materials. Powered by compressed air.

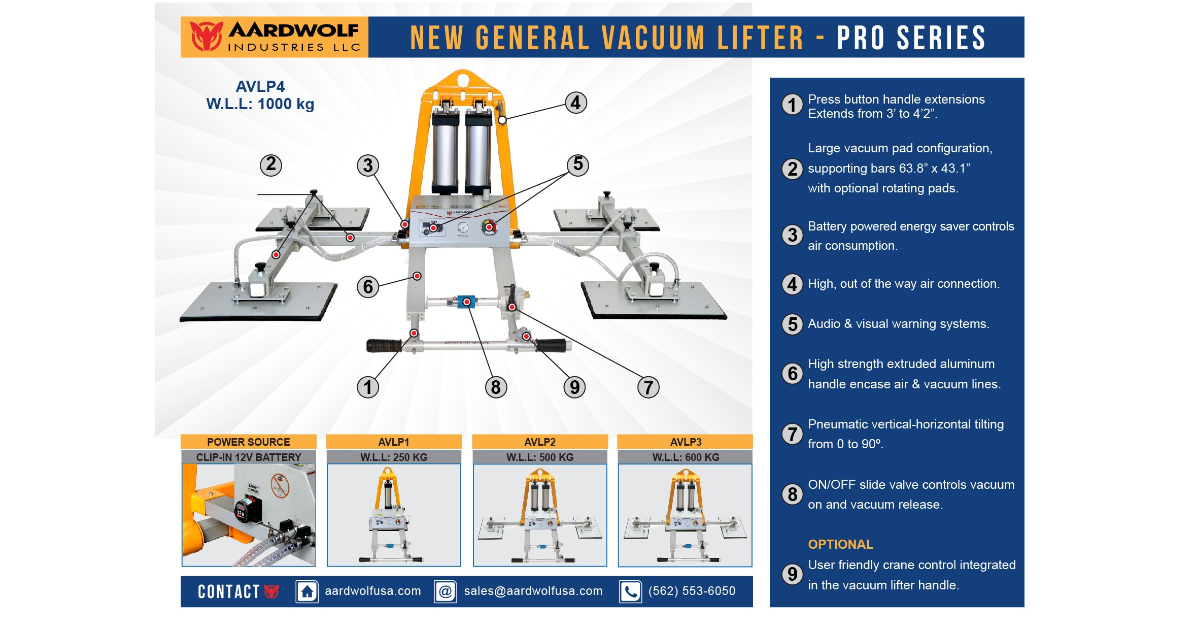

Features

  • Pneumatic vertical-horizontal tilting from 0 to 90 degrees.
  • Vacuum tank ensuring safe pickup in the event of a sudden power break to the vacuum pump.
  • Press button handle extensions extends from 76.2mm (3") to 106.68mm (4.2").
  • Battery-powered energy saver controls air consumption.

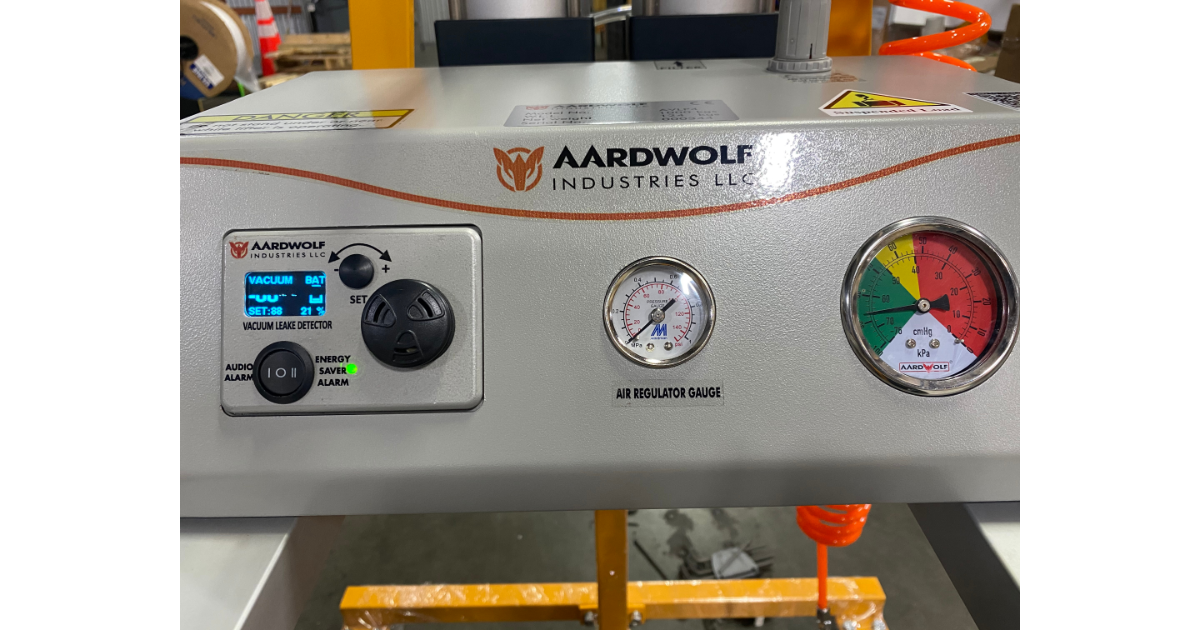

  • Acoustic and visual alarm system powered by a rechargeable 12V Li-lon battery.
  • High, out-of-the-way air connection.
  • High-strength extruded aluminum handle encase air and vacuum lines.

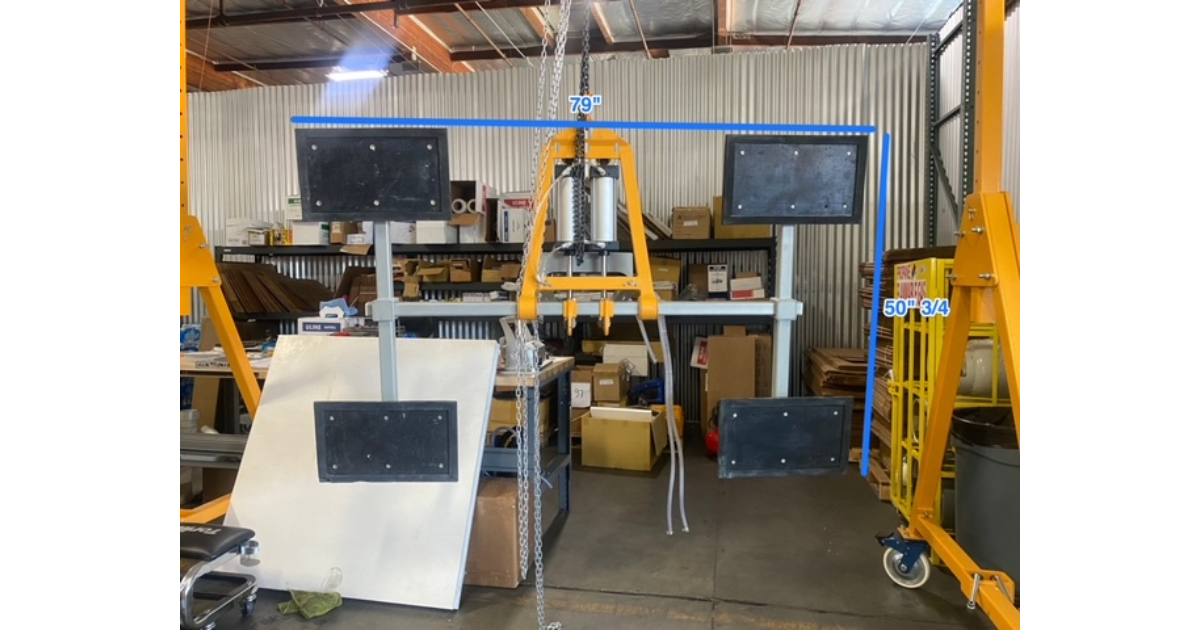

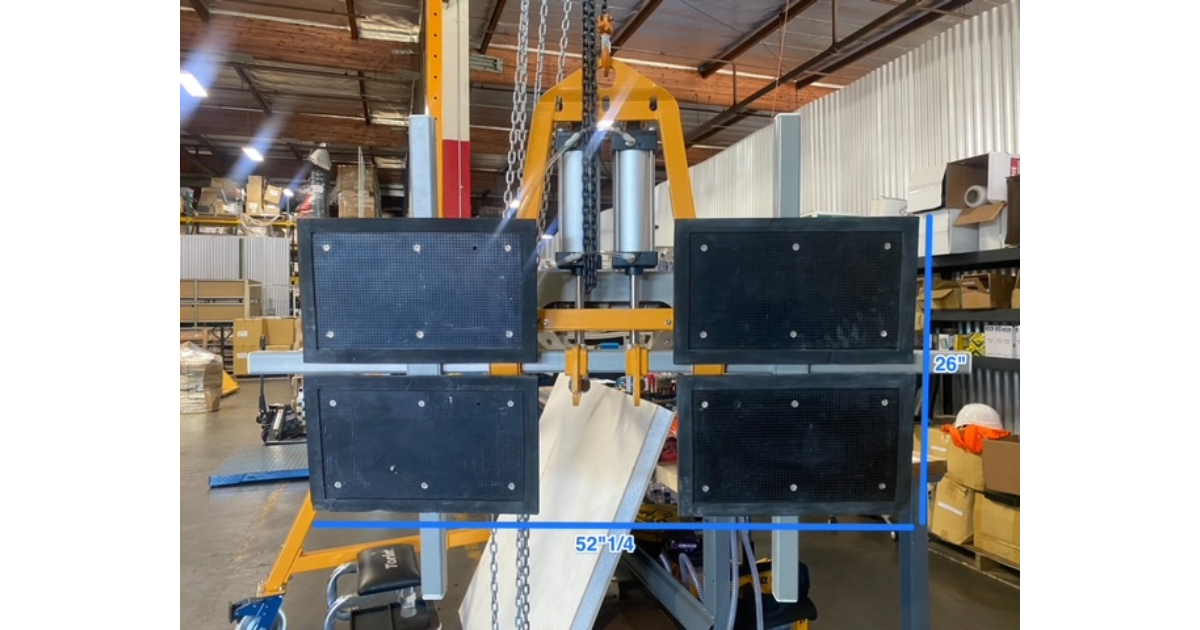

  • Larger vacuum pad configuration supporting [1620.52mm (63.8") x 1094.74mm (43.1") bars with optional rotating pads.
  • Slide valve with ON/OFF position for attaching and releasing of material.
  • User-friendly crane control integrated into the vacuum lifter handle.
  • Each pad has individual shut off valves

 Specifications:


Metric
(mm-kg)
Imperial
(inch-lb)
Number of pad 4 -
Pad size 520x320 20.5"x12.6"
Working load limit Vertical: 500
Horizontal:1000		 1102
2204
Net weight 109 240
Gross weight 150 331
Packaging dimensions 1680x430x960 66.1"x16.9"x37.8"



 Battery information for the device:
Code battery GBA 12V 2.0Ah Bosch
Type battery Lithium-ION
Voltage 12V
Current 2.0Ah
Quantity 1
Continuous operation time with mode saving pressure 2 hours
Working time with mode saving pressure 6 hours
Continuous operation time with mode audio alarm only 120 hours
Working time with mode audio alarm only 360 hours


 Battery charger:
Code battery GAL 12V-40 Bosch
Input supply voltage 220-240VAC
Output voltage 12V
Output current 4.0Ah
Quantity 1
Full charger time 0.5 hour
Weight 460 gram


 Compressed air requirement:
Air consumption 180 liters/minute
Supply air pressure 5 bars (72 psi)
