6 Ways CNC Vacuum Cups Boost Productivity in CNC Machining

CNC vacuum cups are valuable tools to streamline your workflow and squeeze more productivity from your machining processes. These innovative tools might seem easy, but they pack a powerful punch for boosting efficiency. Forget time-consuming setups and frustrating part inconsistencies. Vacuum pods offer a game-changing approach to stone fabrication, allowing you to focus on what matters most – creating high-quality parts faster. This article will give helpful information on CNC vacuum cups to achieve flawless finishes without compromising the material quality and surface.

What are CNC Vacuum Pods?

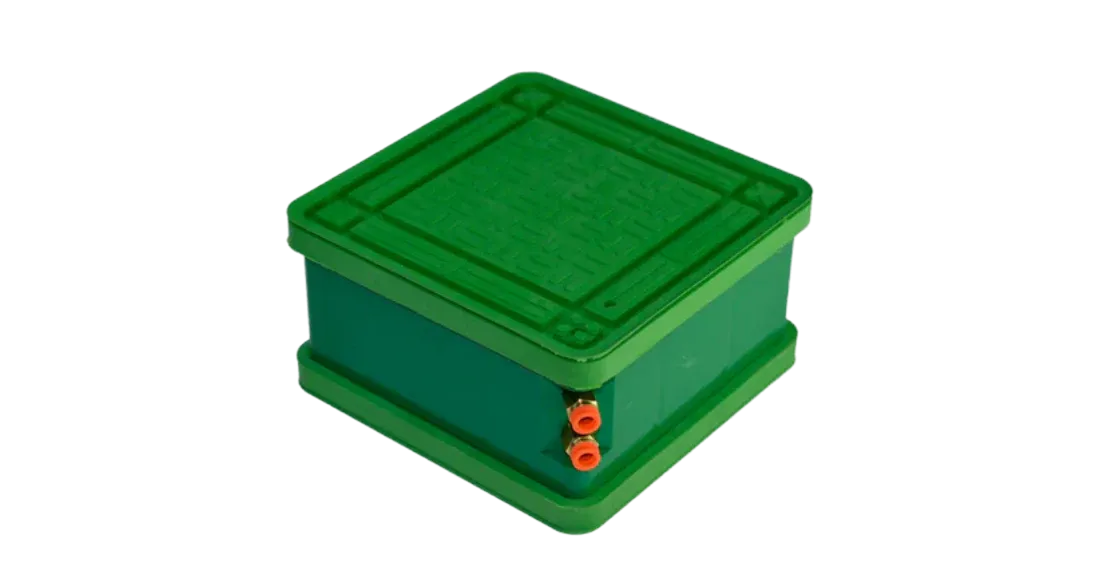

CNC vacuum pods utilize a vacuum system to hold your workpiece securely on the CNC machining table. Unlike traditional clamps that require precise positioning and can leave marks, vacuum pods offer a gentle yet secure hold, perfect for delicate materials and complex shapes. Here's a breakdown of how they work:

  • Material and Design: These pods are typically made of durable materials like aluminum or plastic and feature a porous bottom surface connecting to a vacuum pump.
  • Vacuum Force Creation: The vacuum pump removes air from the pod through the porous surface during operation. This creates a powerful suction force that firmly holds the workpiece down on the machining table.
  • Benefits of Suction Clamping: Compared to traditional clamping methods, vacuum pods offer several advantages, including:
    • Faster setup times
    • Improved surface finish on machined parts
    • Reduced risk of machining defects
    • Excellent work holding flexibility for various shapes and sizes

CNC vacuum cups, also known as vacuum pods, offer many benefits that can significantly enhance your CNC machining operation. Here are six key advantages:

Reducing Setup Time

Traditional clamping methods, like jaws or vises, often require time-consuming adjustments to secure various shapes and sizes of workpieces. Technicians must meticulously align the workpiece and tighten the clamps, adding valuable minutes to the setup process. CNC vacuum cups streamline this process significantly. Position the workpiece on the vacuum pod's surface, activate the pump, and you're ready to begin machining. It eliminates the need for manual adjustments and significantly reduces setup times.

Impact: Faster setup times translate directly to increased machine utilization. With less time spent on clamping, your CNC machine can spend more time churning out high-quality parts, boosting overall productivity.

Improving Surface Finish

Traditional clamping methods can leave unwanted marks or indentations on the workpiece due to the pressure applied by jaws or vises. These blemishes can compromise the aesthetics and functionality of the final product, potentially requiring additional finishing steps. CNC vacuum cups eliminate this problem by distributing the clamping force evenly across the entire surface of the pod. This even distribution minimizes pressure points and ensures a smoother, more consistent surface finish on the machined part.

Impact:  Reduced surface imperfections often translate into a reduction in post-machining finishing steps, such as sanding or polishing. This saves valuable time and resources and contributes to a more consistent and aesthetically pleasing final product.

Minimizing Machining Defects

Traditional clamping methods can sometimes cause vibration or distortion of the workpiece during machining, leading to inaccuracies and defects in the final product. It can occur due to uneven pressure distribution or the workpiece not being held securely enough. The even distribution of force provided by vacuum pods minimizes these issues. The vacuum creates a solid and secure hold on the workpiece, reducing vibration and distortion during machining. It allows for more precise and consistent machining, significantly reducing the risk of scrap parts and rework.

Impact: Fewer machining defects translate directly to cost savings. You reduce material waste and labor costs associated with fixing faulty parts by minimizing the number of parts that need to be scrapped or reworked. Additionally, consistent quality machining enhances your overall production efficiency and reliability.

Workholding Flexibility

CNC machining involves diverse parts in size, shape, and material composition. Traditional clamping methods require specific configurations or dedicated fixtures for each type of workpiece. It can be time-consuming and limit the versatility of your machine. CNC vacuum pods offer exceptional versatility in terms of workpiece geometry. Unlike traditional clamps requiring specific configurations for different parts, vacuum pods can hold flat surfaces, curved objects, and even delicate materials. The porous surface of the pod conforms to the shape of the workpiece, creating a secure hold regardless of its specific form.

Impact: Working with various shapes and sizes without needing specialized clamping fixtures allows for greater production flexibility. This enables you to take on more diverse projects and expand your machining capabilities, potentially opening doors to new business opportunities.

Reducing Waste

Traditional clamping methods can sometimes damage workpieces during the clamping process, leading to wasted materials. Jaws or vises might leave marks or indentations that render the part unusable. The inability to securely hold oddly shaped parts can also lead to leftover materials that wouldn't fit into the clamping configuration. Vacuum pods minimize this risk by securing workpieces without applying excessive pressure. The even distribution of force and the ability to conform to various shapes help to reduce the chance of damaging the workpiece. Additionally, the ability to hold onto oddly shaped parts reduces the need to scrape leftover materials that wouldn't fit into traditional clamping configurations.

Impact: Reducing waste translates to cost savings on materials and contributes to a more sustainable machining operation. Additionally, minimizing scrap reduces the environmental impact of your production process.

Advanced Vacuum Cup Technology

Modern CNC vacuum cups come equipped with advanced features that further enhance performance. These features include:

  • Vacuum Level Sensors: These sensors monitor the vacuum pressure, ensuring a consistent hold and alerting the operator of potential leaks.
  • Quick-Release Mechanisms: These allow for rapidly removing the workpiece after machining, minimizing downtime between jobs.
  • Material-Specific Cup Surfaces: Certain surfaces are designed for specific materials like smooth metals or textured plastics, optimizing holding efficiency.


You can unlock benefits by incorporating CNC vacuum cups into your machining operation. These innovative tools can significantly enhance your productivity and efficiency, from reduced setup times and improved surface finishes to minimized defects and increased workholding flexibility. As CNC technology continues to evolve, so does the sophistication of CNC vacuum cups. Investing in this technology can be a strategic move for any workshop or machine shop looking to optimize their CNC machining. If you are looking for professional and reliable CNC vacuum cups, consider Tait Sales & Consulting as your reliable destination.
