How to Achieve Precision with Incremental Bits for Sink Cutouts: A Step-by-Step Guide

How to Achieve Precision with Incremental Bits for Sink Cutouts: A Step-by-Step Guide

Accurate sink cutouts are essential when installing kitchens and bathrooms. The result looks better with precise cutouts, they function well, and the installation procedure is smoother and more manageable. Like in any other form of construction, the saying "Measure twice, cut once" is appropriate in the stonework. For that fit to be achieved, one should resort to incremental bits—precision drilling's hidden hero. Let's see how to cut out sinks using these specialty tools.

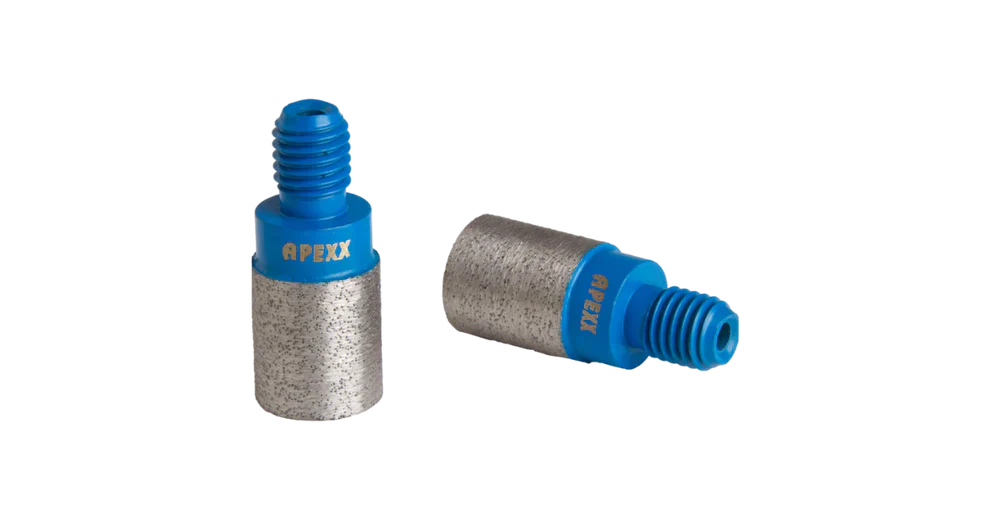

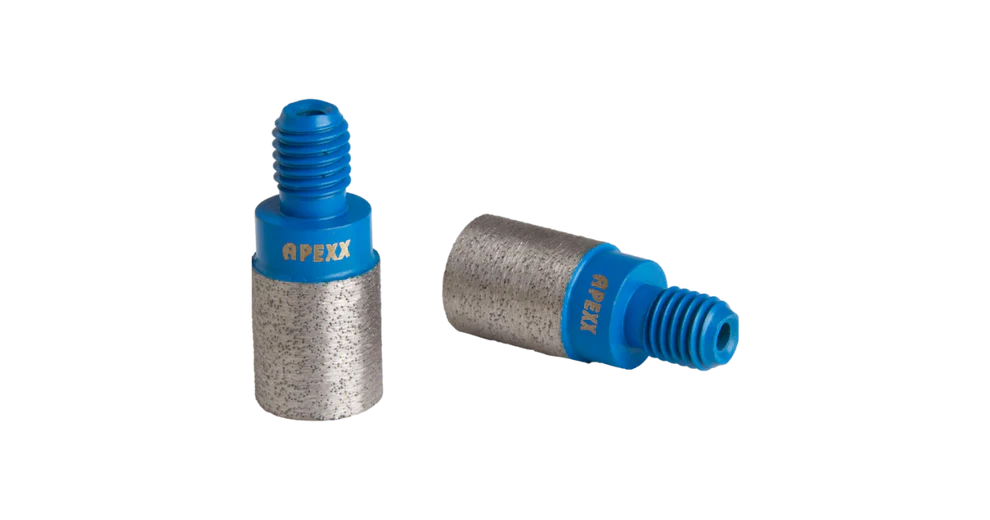

Understanding Incremental Bits

They are primarily designed diamond bits that mill out holes and shapes in stone. They create the hole in multiple passes with minimal chipping. Thus, where traditional bits can make a massive hole with a single pass, the incremental ones can do it with great accuracy and control, making them perfect for precise projects such as sink cutouts.

Why Choose Incremental Bits?

Sink cutouts are high stakes. Improperly executed cuts will make gaps, misalignments, or even harm to the material. They shine in areas where traditional bits flounder. They have the following benefits:

  • Precision: Precisely incremental bits can mill incrementally; therefore, do not chip or break the material.
  • Control: They will have a more controllable design for your drills, so you will not overshoot the marked sizes.
  • Versatility: It can be used with any material, from granite to quartz, and is ideal for any sink cutout project.

Importance of Precision in Sink Cutouts

  • Aesthetic Value: Fine cuts ensure that the sink sits correctly into the countertop, making it look beautiful. Poorly cut countertops can easily expose holes and gaps in the surface, which might affect their aesthetic value.
  • Functionality: An adequately fitted sink makes an airtight seal to prevent leaks and warpages of cabinetry and flooring under the sink.
  • Installation Ease: The exact cutouts reduce installation time and reduce the chance that an adjustment might be required after installation or during its installment.

Step-by-Step Guide to Achieve Accuracy with Incremental Bits

Step 1: Selecting the Right Incremental Bit

The first part of your journey to a perfect sink cutout is making the right incremental bit. Several extra ones are designed for different applications.

  • Flat Bottom Bits: These are perfect for making flat-bottomed cutouts, which are ideal for undermount sinks.
  • Core Bits: These are excellent for drilling large holes, such as sink drain installations.
  • Multi-Size Bits: They come in diverse sizes and are helpful for more than one type of sink.

Consider your distinct sink and its material when picking the right bit.

Step 2: Designing the Material

To cut a sink, you need a proper stone or mixed material. Here are a few suggestions:

  • Material Thickness: It should be thick enough to bear the sinks, mainly when they are heavy.
  • Stability: Choose one that can support drilling stress. Quartz and granite are famous for being resistant enough.

Prepare the workspace before you begin working. Remove all the things that may distract you and ensure that the area for work is safe. Clean unnecessary tools and debris and confirm that all materials are available.

Step 3: Marking the Cutout

The first rule for a practical cutout is the accurate marking of the cutting line. Follow these steps:

  • Gather Tools: Measuring tape, pencil or marker, and straight edge or square.
  • Measure Twice: Double-check your dimensions for the sink to include edges or seams.
  • Mark the Cutout: Use the straight edge to draft the material. Keep your lines visible and clear.

Be careful for this step; marking accuracy will solve to cutting accuracy.

Step 4: Setting Up the Drill

Proper drilling setting is essential for good performance. Here's how:

  • Select the Right Machine: Whether it’s a radial arm machine, or a CNC Router ensure that it has the right RPM for the material intended to be cut.
  • Secure the Bit: Your selected incremental bit should then be appropriately mounted to your machine; ensure it is well-aligned.
  • Check for Safety: Wear safety goggles and hearing safety before starting. Also, ensure your workspace is free from hazards.

So, now you are well-equipped with the incremental bit and safety precautions in place, so you can begin working.

Step 5: Drilling the Cutout

Drilling with increment bits needs a very stable hand and technique.

  • Start Slowly: With the radial arm machines you will need to follow a template.
  • Lower the bit: As you follow the template slowly lower the bit ⅛” to ¼” increments to mill the stone.
  • Check Your Progress: Occasionally, pull the bit out to wash out the hole and inspect your edge to insure the bit is not chipping the stone. If it is, reduce the depth you are cutting in each pass

Step 6: Finishing Touches

Now that the cut-out is drilled, it can be completed.

  • Smoothing Edges: Using a sanding block or polishing pad, smooth any uneven edges around the cutout. Although this improves the appearance, it also fits appropriately with the sink.
  • Final Inspection: Recheck the cutout for imperfections. A sharp cut will define a cleaner installation, so take advantage of this critical step.

Common Mistakes to Avoid

Even pros can make errors with bits. Common mistakes to avoid:

  • Inadequate Measurements: Measure twice, cut once and pay for it the other way around. Check before cutting.
  • Neglecting Material Properties: Not considering the specific properties of the material you are working with can result in chipping or cracking. Know what you are dealing with.
  • Poor Setup: If the drill is not ideally set up, poor cuts will result. Ensure your drill is well-locked and correctly aligned.
  • Rushing the Process: To complete as many projects as possible as quickly as possible, some fabricators rush through the cutting process, resulting in errors and loss of quality.
  • Not Using Proper Safety Equipment: Failure to use proper safety equipment is the reason an accident or injury may arise while cutting. Putting safety above everything else before the drilling will always be best.

Additional Tips for Success

  • Practice First: Do it for the first time with small pieces only on scrap of the same material to gain confidence and perfect your technique before cutting it into an actual item.
  • Keep Tools Clean: Regularly clean your bits and drills to maintain their cutting capabilities. Clutter in the workplace creates debris, which reduces cutting accuracy.
  • Stay Patient: Precision work takes time. Take your time with any step because running leads to mistakes, so be patient and enjoy making a perfect cutout sink.

Improve skills and quality work, and make yourself in demand in the stone fabrication industry. You will achieve this when you embrace these techniques and best practices.

Conclusion

Accuracy in sink cutouts is crucial for stone fabrication work and makes all the difference. Specialized tools increase accuracy with more control and versatility on diverse materials. These steps ensure flawless sink cutouts, making all your installations quality.

Are you ready to take your stone-cutting projects to the next level? Tait Sales & Consulting (TSC) offers a vast inventory of incremental bits and other high-quality tools designed to ensure accuracy in every cutout. Invest in your craft and see the difference quality tools can make!
