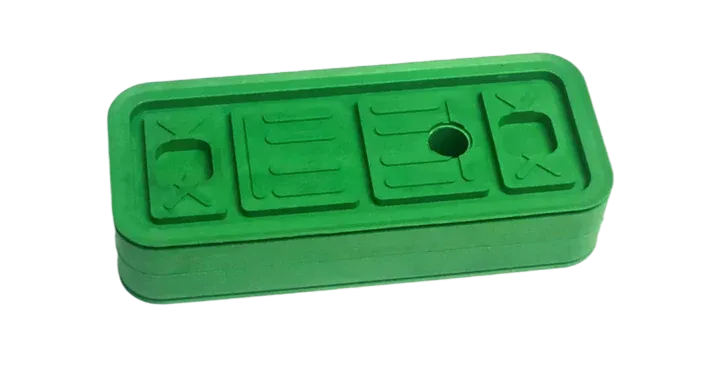

CNC Vacuum Pods: Revolutionizing Stone Fabrication Safety and Precision

In the realm of stone fabrication, prioritizing safety and precision is paramount. To achieve these goals, stone fabrication shops have turned to a revolutionary tool - CNC vacuum pods or stone vacuum cups. These remarkable devices utilize a vacuum pump and the cup or pod to firmly clamp down stone slabs, eliminating concerns about unsafe movements during precision cutting. With their adaptability and reliability, CNC vacuum pods have found applications across various industries, proving to be invaluable assets in enhancing both safety and efficiency.

In this blog, we will delve into the multifaceted world of CNC vacuum pods, exploring their functions, applications, and the transformative impact they have brought to the art of stone fabrication. Join us as we uncover the many dimensions of these versatile tools and witness how they have become a game-changer in the pursuit of safe and precise stone handling.

What are CNC Vacuum Pods?

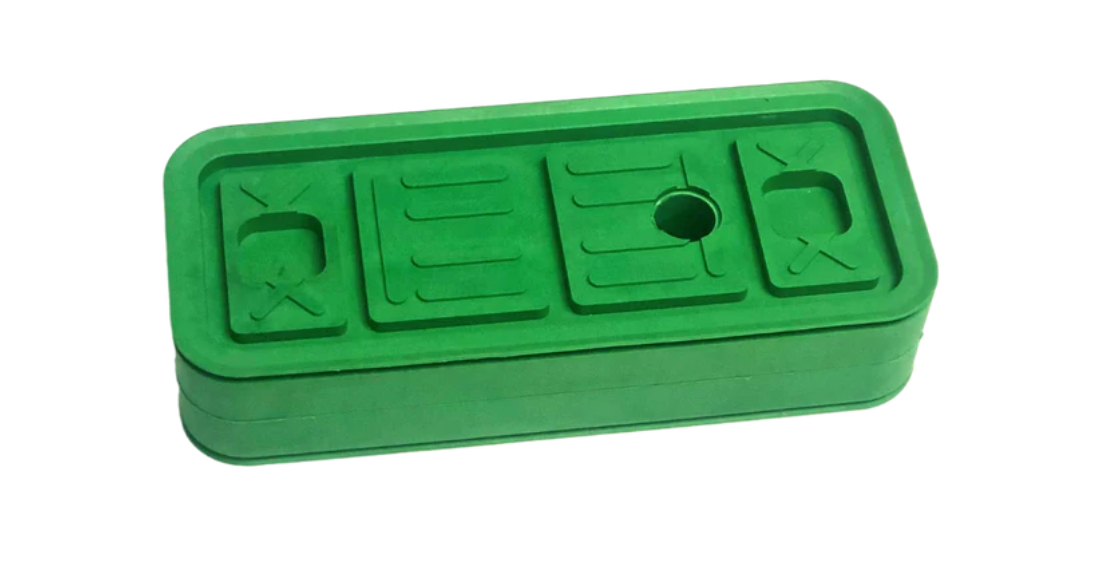

CNC vacuum pods are ingenious devices that utilize strong suction power from a vacuum pump to firmly secure stone slabs and other industrial materials during fabrication processes. These pods play a crucial role in ensuring that the stone or material stays securely in place in the work area, preventing any unsafe movements that could lead to extensive damage or pose risks to CNC tools and operators.

Even the slightest movement can have significant consequences when working with stone slabs or industrial materials. With CNC vacuum pods, the material is effectively held down with a forceful suction, providing a reliable grip that enables precise and safe machining operations. This secure hold not only safeguards the material being worked on but also protects the machinery and the operators from potential accidents and damage.

Designed with efficiency and versatility in mind, each CNC vacuum pod is engineered to accommodate specific weight limits and slab dimensions. This adaptability allows fabricators to confidently handle various materials, knowing that the CNC vacuum pods will provide a strong and stable hold throughout the fabrication process.

Understanding the Mechanics of a CNC Vacuum Pod

These pods offer a user-friendly solution for placing flat stone slabs over the work area, precisely on top of the seal, where the magic of suction occurs. Once the vacuum pump is activated, it exerts a patented force, nearly half the weight of other pods, effectively securing the stone slab in place.

Like any tool, the top portion of CNC vacuum pods undergoes natural wear and tear over time. However, replacing these worn-out parts is a breeze, taking 30 seconds to accomplish. The design of these pods emphasizes strength and durability, boasting a leak-free rubber seal, making it a standout holding tool in the fabrication industry.

Exploring the Versatility of CNC Vacuum Pods in Different Industries

While stone fabrication is the primary domain that harnesses the power of CNC vacuum pods, their utility extends far beyond. Various other industries have also discovered the immense potential of this remarkable tool. Among the industries that have found value in CNC vacuum pods are CNC routing, woodworking, stone, marble, granite manufacturing, countertop manufacturing, and even aerospace aluminum machining.

CNC vacuum pods showcase their exceptional capabilities when working with flat materials that require cutting or manufacturing designs. They open a world of possibilities, allowing users to route, trim edges, create intricate designs or engravings, and even fashion drains, holes, or sinks. The adaptability of CNC vacuum pods makes them a reliable and efficient choice for virtually any industry.

One of the key advantages of these vacuum pods is the peace of mind and enhanced safety they offer. Users can confidently operate the machinery, knowing they are shielded from the cutting area and the material being worked on remains securely in place throughout the fabrication process.

Troubleshooting CNC Vacuum Pods: 4 Common Issues and Solutions

Maintaining and repairing CNC vacuum pods is crucial to ensure they perform optimally. Failure to address issues promptly could lead to mechanism damage, project setbacks, or potential bodily harm. To uphold efficiency, it is essential to stay vigilant in tackling the following four common issues:

  • Preventing Workpiece Damage: Users sometimes encounter problems where their projects are scratched or stained. Such occurrences can be disastrous, rendering the entire project unusable. To combat this, CNC vacuum pods utilize stain-resistant rubber that leaves no marks or scratches on the projects. The vulcanized rubber ensures that the material remains untouched by any part of the pod that could potentially cause harm.
  • Height Variations in CNC Vacuum Pods: Inconsistencies in pod heights from different manufacturers can adversely impact project outcomes. To guarantee precision, all CNC vacuum pods undergo rigorous testing and certification to ensure they meet the proper measurements and size requirements before being shipped to customers.
  • Avoiding Top Detachment and Delamination: Some pods may face issues where the rubber detaches over time or during use. To combat this, the rubber is hot-vulcanized to the material, ensuring a secure and long-lasting bond that prevents detachment or wear throughout the pod's lifetime.
  • Switching Between Foam Gaskets and Rubber Seals: Customers often have preferences based on their experiences with foam gaskets or rubber seals. While both serve the same purpose, personal preferences come into play. CNC vacuum pods now have interchangeable parts according to the user's specifications to provide flexibility. The process is hassle-free, requiring no glue or chemicals—simply pull off one and replace it with the other.

By effectively addressing these common issues and implementing suitable solutions, users can maintain the optimal performance of CNC vacuum pods, ensuring smooth operations in their fabrication processes. Embracing these troubleshooting measures guarantees both efficiency and the preservation of project quality and safety.

Exploring the Key Features of CNC Vacuum Pods for Industrial Applications

There are various sizes, shapes, and heights of vacuum pods. These are the primary features that different industries find helpful with the tool.

  • 105mm clamped overall height
  • Interchangeable with 8mm rubber foam (round) vacuum seal
  • NBR rubber vacuum seal for the top and bottom
  • High-friction bottom and top grip pads for the surface
  • Convertible top and bottom plates for gripping the material
  • Anodized hard surface finish
  • Blocks are also available to change out if cracked or ruined, even if the top and bottom are still in good shape.
  • Z height tolerance and guaranteed flatness

Finding the Right Clamping Solution: Tips and Tricks for Matching Your Needs

Finding the ideal clamping solution is crucial in optimizing efficiency and minimizing effort during your projects. Different pod types cater to specific requirements, including corner, rectangle, round, and square pods. Choosing the right size and shape of the pod in alignment with the slab will ensure a secure hold on the material. Additionally, pairing the appropriate pod with a compatible CNC machine in size and height will make a significant difference in achieving precision.

Equally important is selecting the right vacuum pump for the job alongside the appropriate pod. The force required to complete the project, relative to the size and weight of the slab, determines the optimal voltage and horsepower needed from the pump. Inadequate suction power will compromise the slab's stability, undermining the entire purpose of using the pod system.

Engaging with professionals experienced in various pod types can provide valuable insights to kickstart your project. By seeking accurate knowledge in advance, you can ensure a seamless and rewarding experience when utilizing the equipment. Understanding the right clamping solution for your specific needs will save time and effort and lead to successful and satisfying outcomes. Let us guide you through matching your requirements with the perfect clamping solution for your projects, unlocking the full potential of your fabrication endeavors.

Customizing CNC Vacuum Pods: Model Selection and TSC Recommendations

TSC Fabrication Solutions are the professionals that can recommend users to the following:

  • The shape and height of the pad
  • Make and model the proper machine to use
  • Single or double-effect models
  • The top and base surface
  • The appropriate air fittings from the pump to the pod

Call TSC Fabrication Solutions Today!

If you have any questions or concerns about CNC vacuum cups and CNC vacuum pods, TSC Fabrication Solutions is here to help. Our team is dedicated to meeting all your needs in the stone fabrication industry.

Don't hesitate to get in touch with us today! You can place your order through our user-friendly webpage or reach us by phone or email. Let us provide you with the top-notch tools you need to tackle your projects and deliver exceptional results to your customers. Experience the difference of working with TSC Fabrication Solutions and take your stone fabrication endeavors to new heights. Contact us today!
