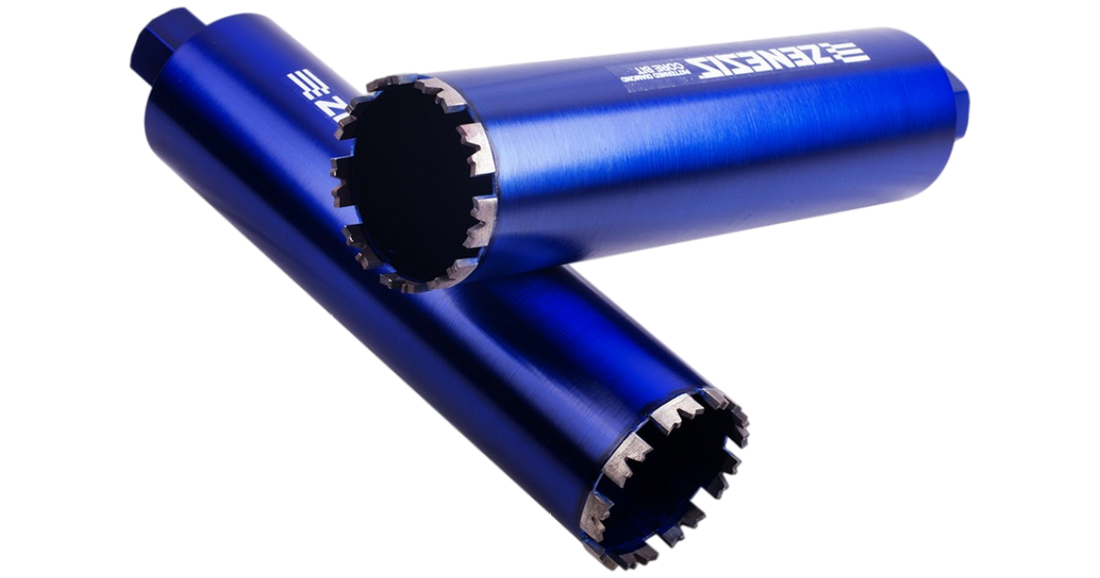

Diamond Vantage ZENESIS V Series Core Bits

Concrete Drilling: Mastering the Art of Core Bit Cutting

Concrete core bits are tools to drill holes into concrete surfaces, walls, and floors. They are typically made of high-speed or diamond-impregnated steel, which allows them to cut through tough materials like concrete.

The bits are hollow cylindrical with teeth on the cutting edge. The teeth are designed for grinding away the concrete as the bit rotates, creating a clean and precise hole. The center of the bit is hollow, which allows the core to be removed after drilling.

Concrete Core Bits are the Future of Construction

Concrete core drill bits are used in various applications in the construction and engineering industries. They come in multiple sizes, from small hand-held drill bits to large stand-mounted drill bits, and can be used with a range of drilling equipment. Their durability and precision make them essential tools in many industries.

Unlike other drill bits, concrete core drill bits are specifically designed to create precise and clean holes in concrete structures. This is important for contractors who must ensure their work meets building codes and standards. They are often used in hazardous environments like construction sites or industrial settings. Using the proper tools can help increase safety by reducing the risk of accidents and injuries.

How Concrete Core Bits are Used to Drill Through Concrete

It takes several steps to drill holes through concrete with concrete core bits. Here is a step-by-step guide to show all it entails.

  • Step 1: Ensure the area is clear from all debris and the exact location of the hole is marked off.
  • Step 2: Find the right size bit to fit the handheld drill or drill rig. It is required to know the diameter, depth, and concrete type.
  • Step 3: Connect the core bit to the handheld drill or drill rig. It connects to the motor by a threaded connection or special attachment.
  • Step 4: Begin the drilling process. Place the drill bit over the marked area for the hole. Apply a small amount of pressure in a downward position. Let the bit do most of the workload and try not to put a bind on it. The drill will slowly move into the concrete, making the precision hole.
  • Step 5: Remove the core bit from the hole once the desired depth is reached. The core will come out with the bit, and the user can use a core extractor to remove and discard it. Another specialized tool may be used, but take heed not to damage the bit.
  • Step 6: Clean up the mess. For safety reasons, the work area must always stay free from debris and dust left behind from the drilling area.

How Concrete Core Bits are Different From Other Drill Bits

Concrete core bits are the most efficient and effective way to create a precise, clean-cut hole in different applications. Here are the primary differences that separate them from the other methods used:

  1. Core bits need special equipment: Using concrete core bits requires a handheld drill or a drill rig. They have the most torque and power to get the job done. Other methods do not demand the use of special equipment for concrete drilling.
  2. Core bits form a cylindrical hole: Diamond blades and rotary hammer methods do not remove the core. Concrete core bits remove the core from the concrete surface once the cylindrical cavity is formed. This method is the primary difference, creating the most precise, clean cut with the required depth and size.
  3. Core bits work for wet and dry cutting: It depends on the application, but dry cutting is for situations where it doesn't require water or is unavailable. Wet cutting is used when it involves settling dust and keeping the heat process minimal while drilling.
  4. Core bits have diamond edges for cutting effectively: Diamond fragments are impregnated at the cutting end. It is designed to cut through the most complex surfaces of concrete. It allows the bit to last longer and makes it more efficient.

Benefits of Using Concrete Core Bits

Professional construction workers and DIYs find valuable benefits to using concrete core bits. These are the primary popular reasons that make them the most precise and reliable tools for creating cylindrical holes.

  • Precise and Accurate Drilling: Concrete core bits are designed to deliver detailed and accurate drilling, which is essential when working with concrete and other hard materials. They are equipped with diamond or carbide-cutting teeth capable of drilling through even the most rigid materials.
  • Faster Drilling Speed: Concrete core bits are faster than other drill bits when drilling through hard materials. They are designed to remove the material from the hole as they drill, which makes the process faster and more efficient.
  • Reduced Vibration: Concrete core bits are designed to reduce the vibration during drilling. This helps to reduce the risk of injury to the operator and also improves the accuracy of the drilling.
  • Longer Lifespan: Concrete core bits are made with high-quality materials designed to last longer than other drill bits. They are also easy to maintain and can be sharpened or repaired when needed.
  • Versatility: Concrete core bits can be used for various drilling applications, including drilling through concrete, masonry, asphalt, and other hard materials. They are available in different sizes and shapes, which makes them suitable for drilling holes of different sizes and shapes.
  • Cost-Effective: While concrete core bits may be more costly than other drill bits, they are more cost-effective in the long run. This is because they last longer and require less maintenance than other drill bits, saving you money over time.

Diamond Tool Coolant

Concrete core bits are designed to fit a core drill rig or drill press that operates between 500 to 2,000 RPM. The RPM is determined by the diameter of the bit.  The larger the diameter hole, the slower the RPM.

It is recommended to operate a concrete drill rig with a sufficient amount of water to flush the slurry from the hole as you drill. This water, or diamond tool coolant is recommended to keep the surface and the bit cool while drilling.

Always ensure there is no wobble to the bit while operating the drill. Apply medium pressure and allow the bit to take hold. Pull the bit back a little to let the water flush out the hole, and continue with this process until the hole is completed. When the hole is completed, remove the drill. The core will either fall out or it can be pulled out with an extractor.

How to Find the Best Concrete Core Bits for Your Project

When it comes to finding the best concrete core bits for your project, there are several factors you should consider. Here are some tips to help you make an informed decision:

  • Determine the type of material you will be drilling into: The kind of material you will be drilling into will impact the type of core bit you should use. Concrete, for example, is a dense material that requires a diamond-tipped core bit to cut through effectively.
  • Consider the hole size you need to drill: The hole size will determine the diameter of the core bit you should use. Core bits come in various sizes, so choose the appropriate size for your project.
  • Look for high-quality materials: Seek core bits made from high-quality materials like diamond or carbide. These materials are durable and provide a clean and precise cut.
  • Choose the right design: The design of the core bit is also important. Look for a core bit with a segmented design, allowing for faster drilling and better cooling.
  • Consider the brand and price: Lastly, consider the brand and price of the core bit. While you want to spend your money wisely, investing in a high-quality core bit from a reputable brand that will last for multiple projects is important.

By considering these factors, you can find the best concrete core bits for your project and ensure a successful outcome.

Contact TSC Fabrication Solutions for Information on Our Selection of Concrete Core Bits

TSC Fabrication Solutions has the concrete core bits to get the best job done on your project! If you have any questions or concerns about what bit to use for the job or related questions about the project, contact us through our website today. Our customer service team is ready to help you with any questions.
