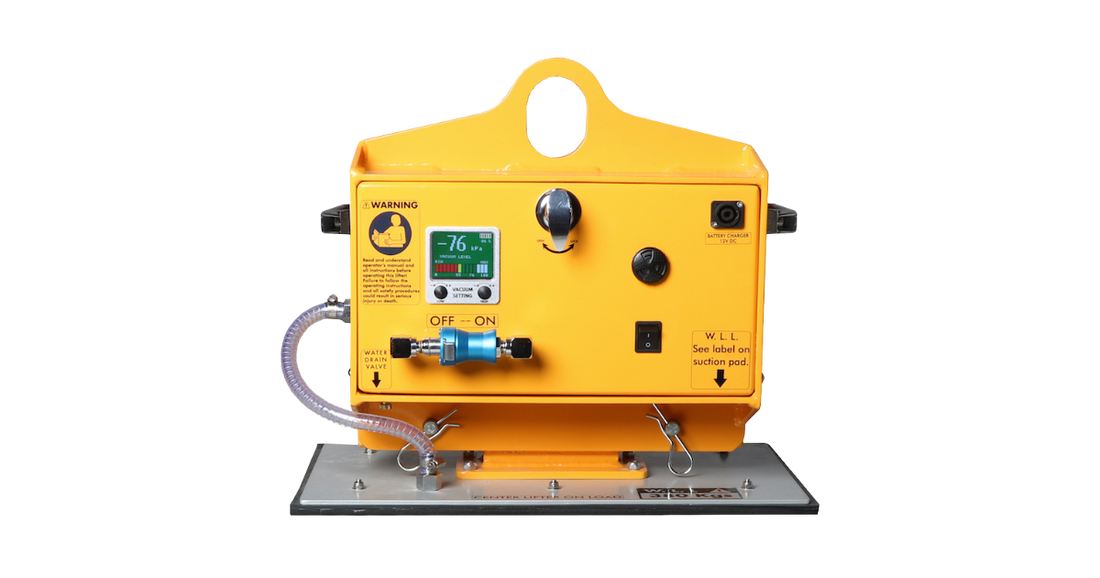

Aardwolf Vacuum Block Lifter AVBL380

How Vacuum Lifters are Revolutionizing the Stone Industry with their Versatility and Efficiency

Vacuum lifters are essential mechanical devices used in the stone industry to move heavy stone slabs or blocks, which can weigh several tons. A suction pad connects to a lifting mechanism such as a crane or hoists with a vacuum pump to keep the pad in place.

They are versatile and efficient for each project while saving time and maintaining the safety of the workers. The information below will detail the standards of pneumatic vacuum lifters and how they are used to help stonemasons grow in productivity.

What Are Vacuum Lifters and How Do they Work?

Vacuum lifters create a vacuum seal between the lifter and the stone surface, using a vacuum pump to create suction that holds the stone securely in place.

A vacuum lifter typically consists of a frame or beam that supports a series of suction cups or pads. The pads are positioned on the stone surface and activated by a control valve, creating the vacuum seal. The lifter is attached to a crane or hoist, which lifts the stone and moves it to the desired location.

Vacuum lifters come in various sizes and configurations to suit different types and sizes of stone. They are a safe and efficient way to move heavy stone slabs without the need for manual lifting or heavy machinery. However, it's important to note that vacuum lifters should only be used by trained professionals who have experience with stone handling and lifting equipment.

Importance of Vacuum Lifters

Vacuum lifters are an important tool in the stone industry for several reasons:

  1. Improved safety: Using vacuum lifters reduces the need to manually handle heavy stone slabs, which can lead to injury or strain. Vacuum lifters also reduce the risk of dropping or damaging stone slabs during transport.
  2. Increased efficiency: Vacuum lifters can significantly reduce the time and effort required to move and install stone slabs. They allow for quick and easy lifting, positioning, and placement of heavy stone slabs, saving time and labor costs.
  3. Versatility: Vacuum lifters can be used with various stone types and sizes, making them versatile tools in the stone industry. They can be used to lift and move large slabs, tiles, blocks of stone, and irregularly shaped pieces.
  4. Improved quality: Vacuum lifters can help to ensure that stone slabs are handled with care and precision, reducing the risk of damage or breakage during transport and installation. This can help improve finished stone projects' overall quality and appearance.
  5. Overall, vacuum lifters are an important investment for stone companies and professionals who work with heavy stone slabs on a regular basis. They can improve safety, efficiency, and quality in the stone industry and are an important tool for ensuring the successful completion of stone projects.

How to Use Vacuum Lifters

Handheld vacuum cup handles, also known as suction cup handles or hand-held vacuum lifters, are a type of lifting equipment used in the stone industry to transport smaller stone slabs or tiles. They are portable and easy to use, allowing workers to move stone pieces around a job site with minimal effort.

  1. Ensure the stone surface is clean and free of debris that could interfere with the vacuum seal.
  2. Position the suction cup handle on the stone surface.
  3. Press the suction cups firmly onto the stone surface, ensuring they are centered and creating a tight seal.
  4. Use the manual or battery-powered pump to create suction and securely hold the stone.
  5. Lift the stone using the handle or grip of the suction cup handle, keeping the stone level and balanced.
  6. Move the stone to the desired location, avoiding sudden movements or jolts that could cause the stone to shift or break the vacuum seal.
  7. Lower the stone onto the new surface and release the suction cup handle by releasing the vacuum seal.

Please Note: Ensure that the load is straight under the lift tube. Never bend the lift tube. If the power cuts off, a safety valve will kick in to maintain control of the load so it doesn't fall.

The Different types of Vacuum Lifters

  • Single-pad vacuum lifters: Single pads can lift up to 750 pounds and are not meant for oversized, bulky items. They are used for the horizontal handling of nonporous materials, panels, sheets, and plates. It is convenient for one person to operate and handle.
  • Dual-pad vacuum lifters: Dual pads are used for heavy lifting and can handle 500 to 1000 pounds of material. The dual pads allow for more control over oversized and bulky items. With the added control, it can handle more fragile loads like porous materials, glass, and metals that will bend with a single pad.
  • Custom vacuum lifters: Vacuum lifters are also custom designed to handle awkward and weighted materials. Most construction sites will see items weighing up to 2,000 pounds in some projects. The custom devices are built to hold up to 60,000 pounds with up to eight or more pads, but most locations will not require weight limits to that extent. With custom vacuum lifters, the choice is to switch out whichever lifter works best. For example, use the single, dual, or custom when feasible.

Choosing the Right Vacuum Lifter

Choosing the right vacuum lifter for your stone handling needs is important for ensuring safety, efficiency, and productivity. Here are some factors to consider when choosing a vacuum lifter:

  1. Weight capacity: Consider the weight of the heaviest stone slabs or blocks you need to lift, and choose a vacuum lifter with a weight capacity that can handle the load.
  2. Surface type: Consider the type of stone surface you'll be lifting and choose a vacuum lifter designed to create a secure seal on that surface. Some vacuum lifters may be better suited for rough or textured surfaces, while others are better suited for smooth surfaces.
  3. Size and shape: Consider the size and shape of the stone pieces you need to lift, and choose a vacuum lifter that can accommodate the size and shape of the stone pieces. Some vacuum lifters are designed to lift large slabs, while others may be better suited for smaller pieces or irregularly shaped stones.
  4. Portability: Consider the portability of the vacuum lifter and choose one that is easy to move around a job site, especially if you'll be working on multiple job sites.
  5. Power source: Consider the power source of the vacuum lifter and choose one compatible with the power source available on your job site. Some vacuum lifters are battery-powered, while others require an electrical power source.
  6. Safety features: Consider the vacuum lifter's safety features and choose one with built-in safety features, such as audible alarms or warning lights, to alert operators of potential hazards.
  7. Maintenance and repair: Consider the maintenance and repair requirements of the vacuum lifter and choose one that is easy to maintain and repair in case of any issues.

Contact TSC Fabrication Solutions to Set You Up with a Vacuum Lifter Today

If you are searching for a vacuum lifter to save time and injuries, and make the workload more efficient, contact TSC today for quotes on suitable lifters for the warehouse.

They can answer any questions and ease your mind on the concerns that most construction companies face on job sites. Help keep the workplace safe and operate your business efficiently with our vacuum lifters.
