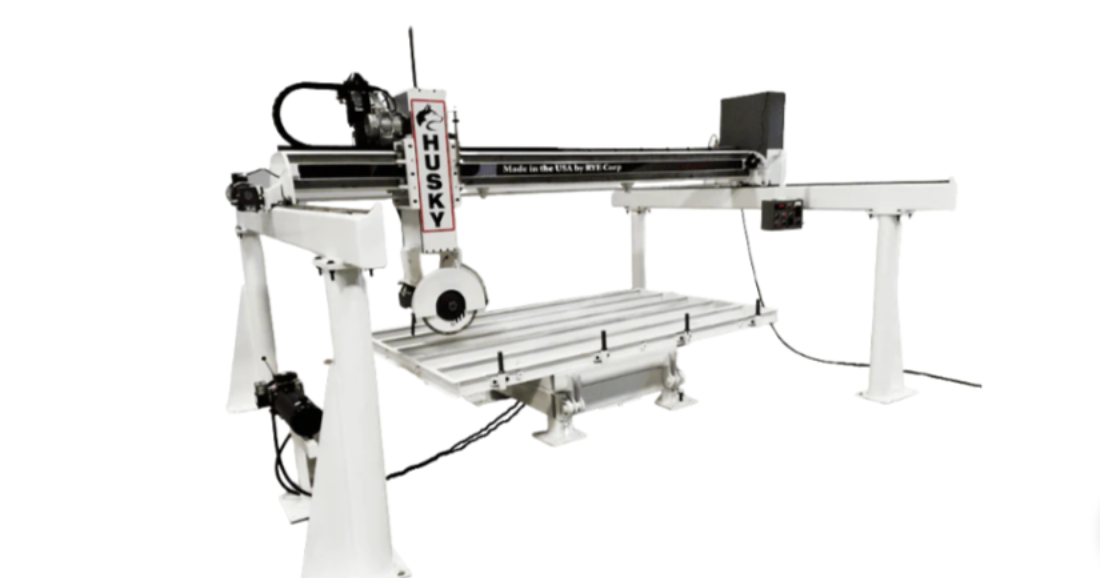

Husky Direct Drive Bridge Saw

Unlocking the Potential of a 5-Axis Bridge Saw: A Comprehensive Guide for Fabricators

This post will focus on two cutting-edge machines that play a crucial role in precision stone cutting: Manual Stone Bridge Saws and 5-axis CNC Stone Bridge  Saws. These high-tech tools are essential for achieving exceptional results when working with materials like marble, granite, ceramics, and various types of slabs. Designed for both indoor and outdoor applications, these machines are relied upon by construction companies and stone fabricators in the building and renovation industry. Join us as we explore the features, benefits, and potential applications of manual stone bridge saws and 5-axis CNC bridge stone saws and discover why they are at the forefront of stone-cutting technology.

What are Manual Stone Bridge Saws, and How Do They Work?

Manual stone bridge saws are powerful circular saws encased within a sturdy metal frame, providing convenient access for maneuvering and operating the sawing machine. These saws are typically mounted on a beam or bridge, allowing them to move back and forth along the bridge to execute precise cuts on stone slabs. The basic versions of these saws require manual guidance from the operator, who controls the motorized saw to achieve the optimal cut. However, advanced stone bridge saws are equipped with Computer Numerical Control (CNC) technology. These sophisticated machines are programmed with specific stone measurements and desired cuts, enabling precise outcomes.

It's important to note that not all stone bridge saws offer the same features, as their functionality varies depending on the specific model. When working with these saws, the stone slab is securely positioned on a wood, concrete or rubber table, designed to prevent unwanted movement during the measuring and cutting processes.

The motor powers the diamond saw, which moves along the bridge to execute the most effective cut. Some stone bridge saws are equipped with tables that can tilt, allowing for easy loading of full size slabs, while others have motorized tables to ensure easy access and movement. Once the cut is completed, the stone can be safely removed from the table, ready for further processing or installation.

Exploring the Capabilities of 5-Axis CNC Bridge Stone Saws: Operations and Applications

The 5-axis bridge saw stands out as the pinnacle of stone-cutting technology, delivering the highest quality cuts through even the most challenging stone slabs and positions. Renowned for its exceptional power, this machine excels at straight-line cutting by placing the stone slab on the table and guiding a diamond blade along the bridge to achieve precise and immaculate cuts.

Certain 5-axis CNC bridge saws specialize in working with stone, offering precise maneuverability through programmable heads. This level of precision cutting enables users to create intricate corner cuts and recesses on a wide range of profiles. Notably, these saws are commonly used to fabricate exquisite bathroom and kitchen countertops As well as architectural cutting for floor boards, window sills and keystones.

Their unparalleled versatility sets the 5-axis CNC bridge saws apart, allowing operators to cut in various directions and angles. One prime application is the cutting of sink bowls, where these saws truly shine. With the capability to cut out sink bowls in oval, round, and square shapes, these machines enable the creation of tailored and visually appealing sink designs.

Attachments are affixed to a 1/2 gas attachment, allowing the operator to add multiple tools to the diamond disc. This versatility allows for the inclusion of tools such as drill bits or routers, expanding the range of functions and possibilities achievable with these saws.

A Beginner's Guide to Buying a Stone Bridge Saw: Tips and Considerations

Investing in a stone bridge saw can be a highly beneficial decision for stone fabricators of all sizes. It enhances productivity, allows for more efficient completion of tasks, and leaves a lasting impression on customers, leading to positive references that can significantly benefit any business utilizing these machines. However, the process of purchasing such significant equipment requires careful consideration. Here are key details that potential buyers should weigh and take into account:

  • Current Location: The location and size of the equipment are crucial factors to consider. Sufficient space is required to ensure smooth movement around the machine. Accessibility to doors, compartments, power sources, and accessories is vital within the designated work area. Additionally, it's essential to remember that the machine's placement should allow for the maneuvering of a forklift to load and unload stone slabs onto the table.
  • Understanding Power Requirements: Full-sized bridge saws typically demand 220 - 240 volts from a three-phase power source. Smaller saws may require a rotary phase converter or a generator. In some cases, coordination with the power company might be necessary to convert to three-phase power, which could involve additional costs of up to $15,000.
  • Meeting the Bridge Saw Needs: Assessing the workload the bridge saw will handle is a priority. Larger saws are suitable for significant projects while keeping smaller saws for more efficient handling of smaller jobs. The machine must be capable of accommodating the size of the slabs, and consideration should be given to the required operational time to cut through multiple slabs. These factors determine the output capacity for individual jobs and the company's overall efficiency.
  • Equipping the Team for Success: Adequate training is essential for employees to operate and troubleshoot bridge saws effectively. Training sessions should cover both operational knowledge and safety protocols. Whether the machine is manual or CNC, workers must acquire proficiency in CAD/CAM programming and familiarize themselves with all relevant equipment the company may utilize. Enhancing the workforce's knowledge and skills will improve their ability to work with the equipment efficiently and ensure proper maintenance.
  • New or Used Manual Stone Bridge Saws: When considering purchasing a bridge saw, careful consideration must be given to choosing between new and used options. Opting for a new machine brings numerous advantages, including warranties and additional benefits, which ensure greater reliability and durability. This makes them a preferred choice for fabricators seeking long-term investment and peace of mind. On the other hand, used equipment offers a more cost-effective solution, particularly for those starting out in the industry. However, it is crucial to exercise caution and avoid purchasing machines older than five years in age. While used saws may initially provide convenience and cost savings, relying on their longevity over an extended period can lead to unforeseen wear and tear issues. Such complications can result in project disruptions and delays, especially during peak seasons. To make an informed decision, evaluating the business's specific needs and determining which type of new bridge saw will deliver the most significant benefits and cater to long-term growth and success is essential.

By carefully considering these factors, construction companies can make informed decisions when purchasing a Stone Bridge Saw, ensuring enhanced efficiency, productivity, and long-term success.

Where to Buy a High-Performance 5-Axis CNC Bridge Stone Saw?

Several options are available when purchasing a high-performance 5-Axis CNC Bridge Stone Saw. One reliable avenue is to explore reputable fabrication or machine companies specializing in stone slab construction tools, such as TSC Fabrication Solutions. These companies often offer a wide range of cutting-edge equipment known for their exceptional performance.

To ensure a positive buying experience, seeking out companies with a strong reputation and a knowledgeable sales department is recommended. Look for establishments that prioritize excellent customer service, as they can provide valuable guidance and support throughout the purchasing process. Choosing a reliable and reputable source increases the likelihood of acquiring high-quality equipment that meets your performance expectations.

TSC Fabrication Solutions: Your Partner in Value-added Manufacturing

At TSC Fabrication Solutions, we understand the critical role of high-quality tools in stone fabrication, especially when achieving precise cuts and impeccable finishes on ceramic, stone, granite, marble, and other materials. As a trusted B2B partner, we are committed to fully operating the stone industry by providing a comprehensive range of supplies and equipment.

Whether you require diamond saws, drill bits, routers, or any other stone tools, TSC Fabrication Solutions is your go-to source. Our dedicated team can assist you with purchasing the right manual stone bridge saws or 5-axis CNC bridge stone saws to meet your specific construction requirements. We take pride in offering top-notch customer service, ensuring your questions are answered, and any troubleshooting needs are promptly addressed.

Contact us today to discover how our expertise and extensive range of products can support all your construction needs. Experience the TSC Fabrication Solutions difference and let us help you achieve excellence in your projects.
