Aardwolf AVLP1PRO-250 Vacuum Lifter

Aardwolf AVLP1PRO-250 Vacuum Lifter

$3,993.00 USD
$4,437.00 USD $3,993.00 USD
Sale Sold out
Shipping calculated at checkout.

Part #

AVLP1PRO-250
This advanced vacuum lifter is meticulously designed to accommodate the diverse needs of lifting smooth and rough marble and granite slab surfaces, embodying a superior and rugged construction. It not only facilitates the effortless lifting of heavy materials but also provides the capability to tilt them, allowing for precise positioning and handling. The core of its operation is powered by compressed air, ensuring reliable and efficient performance across various applications. >more

This feature significantly enhances its versatility, making it an indispensable tool in environments where precision and durability are paramount, such as in workshops, construction sites, and manufacturing facilities dealing with stone materials.

Features
  • Pneumatic Tilting Mechanism: Offers vertical-horizontal tilting from 0 to 90°, powered by a pneumatic piston for smooth and precise adjustments.
  • Vacuum Tank Safety Feature: Ensures safe material pickup with a vacuum tank that maintains suction in case of a sudden power interruption to the vacuum pump.
  • Rechargeable Alarm System: An audio and visual alarm system powered by a 12V Li-ion battery activates when the vacuum level is low and ceases when the vacuum level reaches full capacity.
  • Slide Valve Control: Features a slide valve with ON/OFF positions, simplifying the process of attaching and releasing materials with ease and reliability.


 Specifications:


Metric
(mm-kg)
Imperial
(inch-lb)
Number of pad 1 -

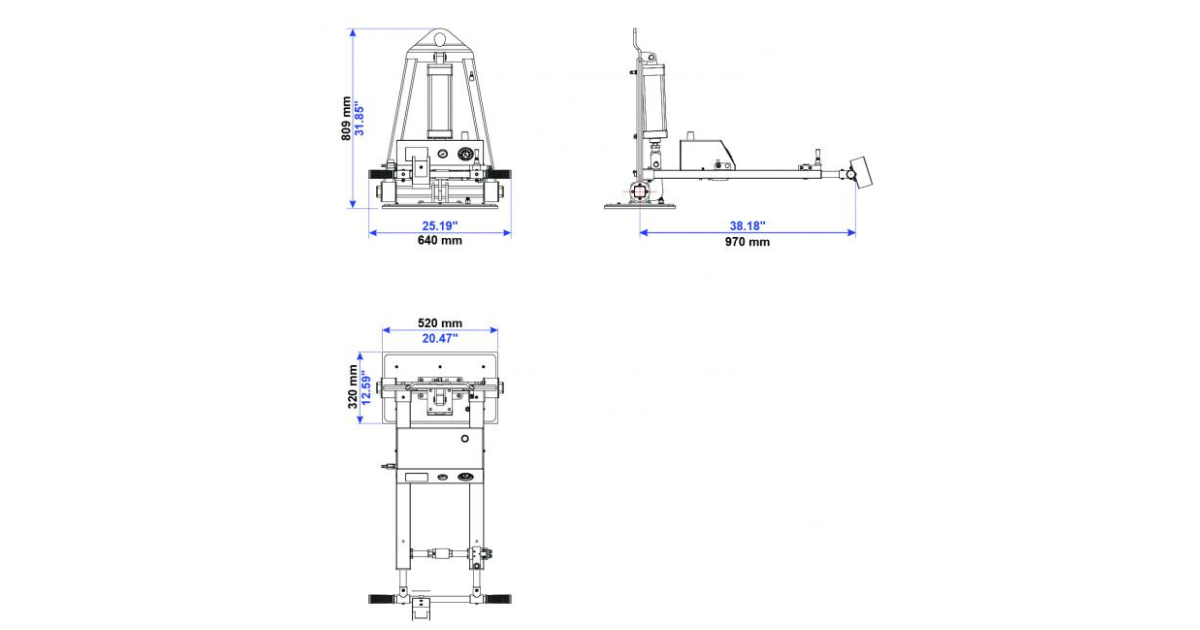

Aluminum Pad sizes 520x320 mm 19.7"x11.8"
Working load limit  Vertical:125 kg
Horizontal:250 kg		 276 lb
551 lb
Net weight 48 kg 106 lb
Gross weight 78 kg 172 lb
Packaging dimensions 1070x390x980 42.1"x15.4"x38.6"


 Battery information for the device:

Code battery GBA 12V 2.0Ah Bosch
Type battery Lithium-ION
Voltage 12V
Current 2.0Ah
Quantity 1
Continuos operation time with mode saving pressure 2 hours
Working time with mode saving pressure 6 hours
Continuos operation time with mode audio alarm only 120 hours
Working time with mode audio alarm only 360 hours



 Battery charger:

Code battery GAL 12V-40 Bosch
Input supply voltage 220-240VAC
Output voltage 12V
Output current 4.0Ah
Quantity 1
Full charger time 0.5 hour
Weight 460 gram



 Compressed air requirement:

Air consumption 180 liters/minute
Supply air pressure 5 bars (72 psi)
