MATERIAL REINFORCEMENT REIMAGINED

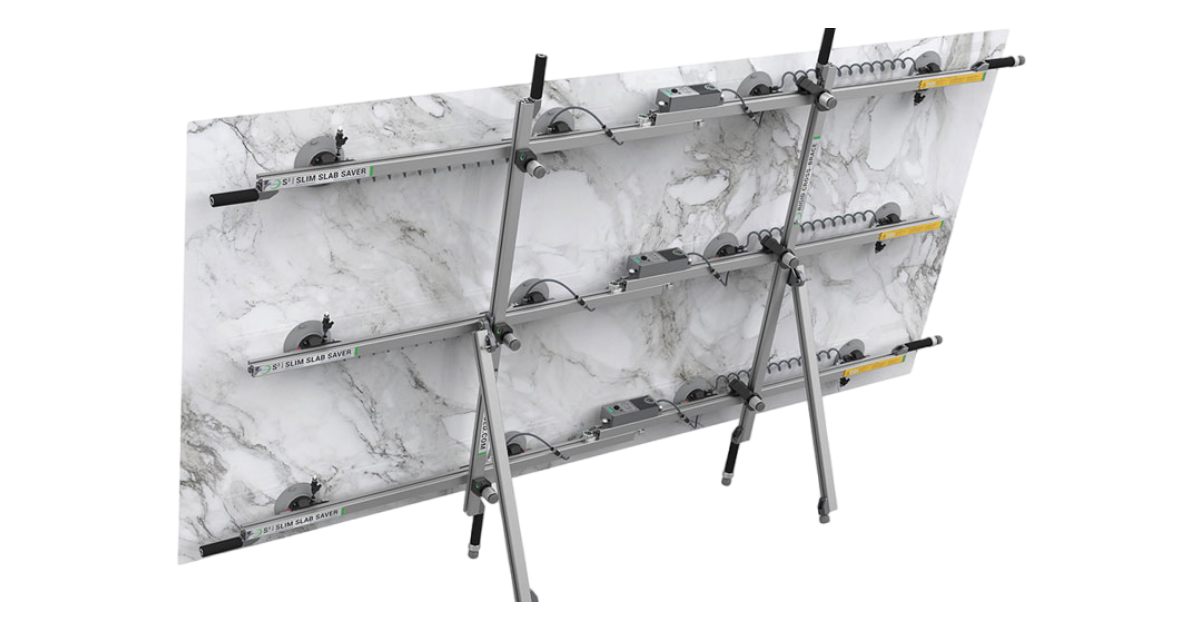

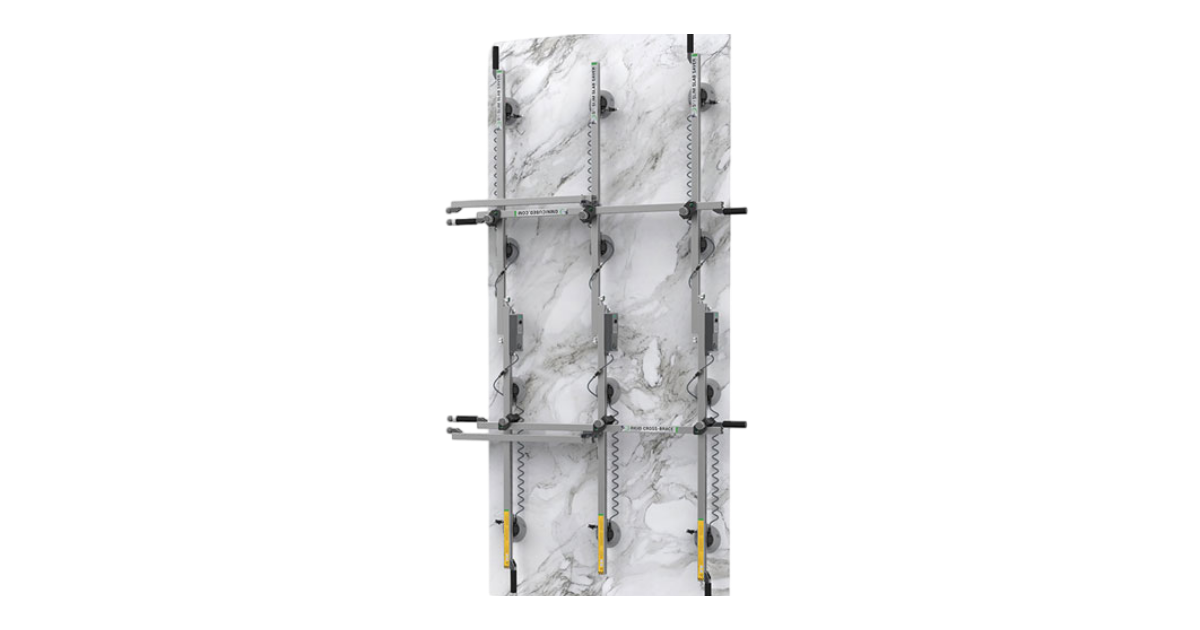

The S3 | Slim Slab Saver is a versatile, completely customizable rigid frame and reinforcement system that reduces strain and risk of injury while handling large format glass panels, tile slabs, and other fragile materials. It is an ideal solution for preventing breakage during transport and installation of glass panels, LFTM (large format thin material), gauged or thin porcelain slabs, and sintered stone such as Neolith or Lapitec. This combination of solid machined clamps and extruded rails minimizes the flexing and twisting of the material. The proprietary extruded aluminum rails are specially designed to be lightweight while retaining extreme strength and rigidity to provide reinforcement without adding a lot of weight to the material.
HIGHLIGHTS
- Pays for itself with one prevented break
- Promotes safer, more ergonomic lifting and moving to reduce strain and injury
- Ideal for glass panels, LFTM (large format thin material), gauged or thin porcelain slabs, and sintered stone such as Dekton
- A powerful yet compact vacuum pump on each adjustable rail allows installers to focus on the task at hand without having to manually maintain vacuum pressure
- Faster, safer, and more convenient than manual pressure maintenance
- Lightweight with extreme strength and rigidity
- Completely customizable system for creating rigid frames to support large panels and slabs
- Cups, clamps, and rails can be arranged in many configurations to reinforce uniquely shaped pieces
- Non-marking 6" cups feature a concave design for quick attachment, even to bowed surfaces
- High flow vacuum release valves for fast and hassle-free removal of product
- FTS (flexible triple seal) vacuum cups provide secure, reliable hold on smooth, textured or leathered materials
- Kickstand Kit accessory (included with 3-Rail models) allows upright resting of material for easy application of mortar or adhesive
- Durable, UV-resistant foam grips provide a comfortable handle for safer, more ergonomic transport and placement of materials
- Rails extend from 63-126 to accommodate large panels and full slabs
- Each adjustable rail is rated to handle up to 200 lb (90 kg)

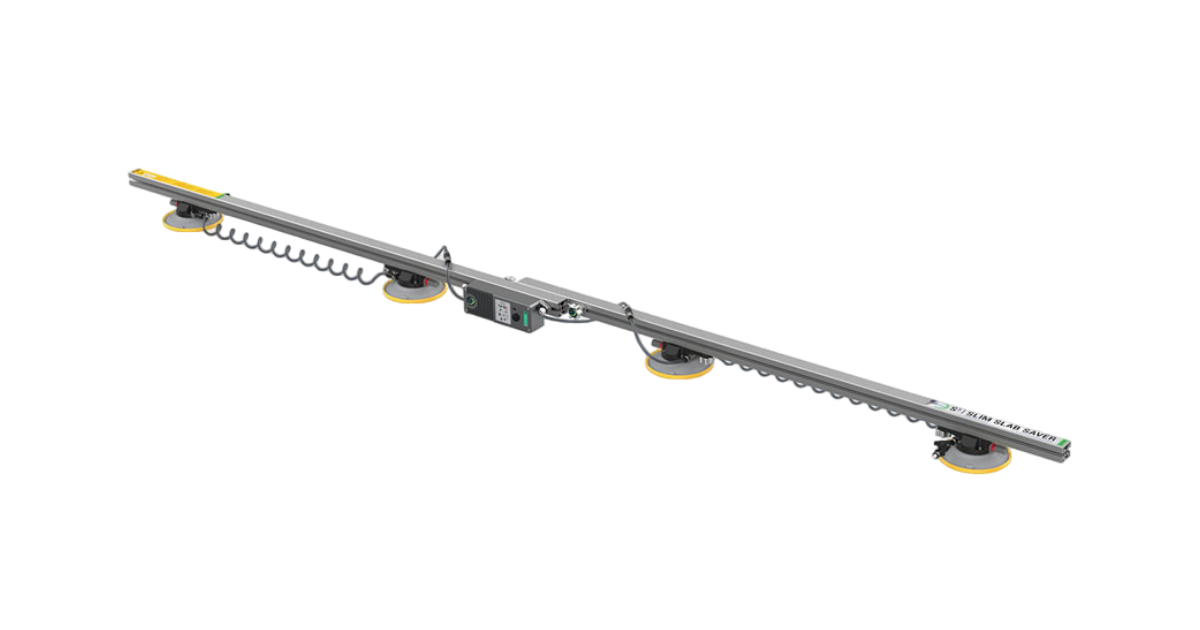

| Product Name | S3 | Slim Slab Saver 1-Rail Auto |
| Product Guide | S3 | Slim Slab Saver 1-Rail Auto Product Guide (pdf) |
| Part # | S3-1A-19 |
| Patent | Applicable Patents |
| MSRP | $1,285.00 USD, $1,799.00 CAD |
| Includes | One adjustable rail (no handles) Four 6" vacuum cups with covers One VMP750 rechargeable vacuum pump |
| Product Dimensions | Collapsed: 63" Extended: 126" |
| Product Weight | 19.5 lb |
| Package Dimensions | 72" x 9" x 9" |
| Shipping Weight | 22 lb |
| Rated Capacity | 70 lb (31 kg) per vacuum cup; 200 lb (90 kg) per rail |
| Materials | Aluminum, reinforced polymer, silicone, stainless steel, plated steel, polyurethane air tubes, lithium-ion battery pack, miscellaneous electronics |

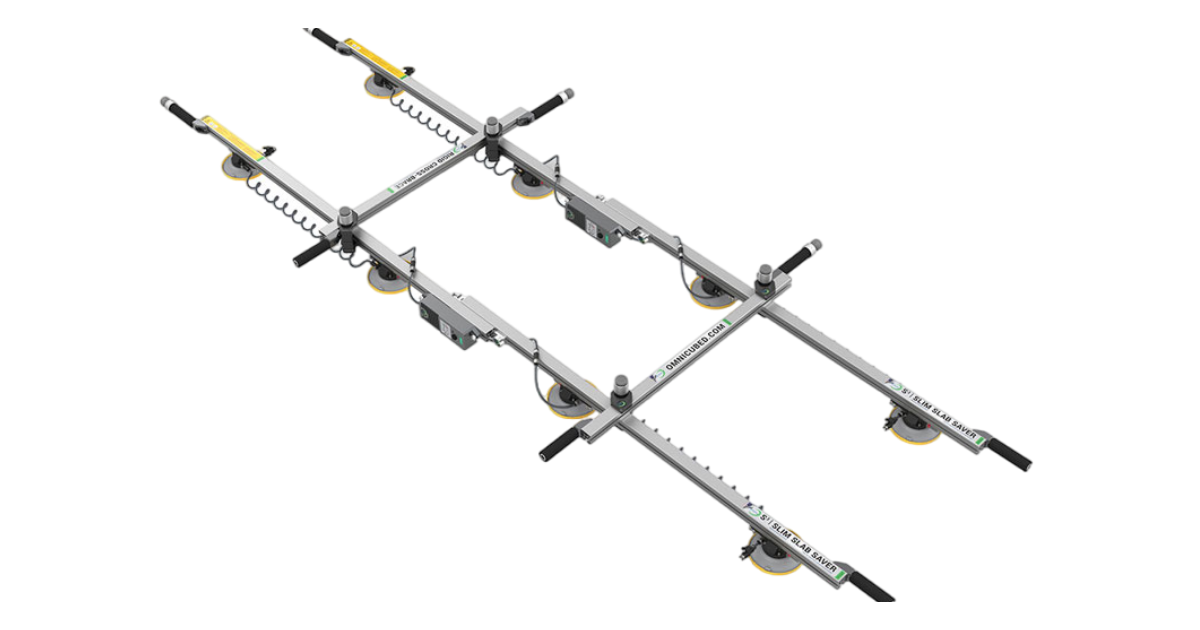

| Product Name | S3 | Slim Slab Saver 2-Rail Auto |
| Product Guide | S3 | Slim Slab Saver 2-Rail Auto Product Guide (pdf) |
| Part # | S3-2A-19 |
| MSRP | $3,550 USD, $4,970.00 CAD |
| Patent | Applicable Patents |
| Includes | Two adjustable rails Two 3' rigid cross-brace rails Eight 6" vacuum cups with covers Two regular handles Two handles with leveler legs Four rigid clamps with carrying case Two VMP750 rechargeable vacuum pumps |
| Product Dimensions | Collapsed: 63" Extended: 126" |
| Product Weight | 64 lb |
| Package Dimensions | 72" x 13" x 13" |
| Shipping Weight | 67 lb |
| Rated Capacity | 70 lb (31 kg) per vacuum cup; 200 lb (90 kg) per rail |
| Materials | Aluminum, reinforced polymer, silicone, stainless steel, plated steel, polyurethane air tubes EPDM closed-cell foam rubber grips, lithium-ion battery pack, miscellaneous electronics |

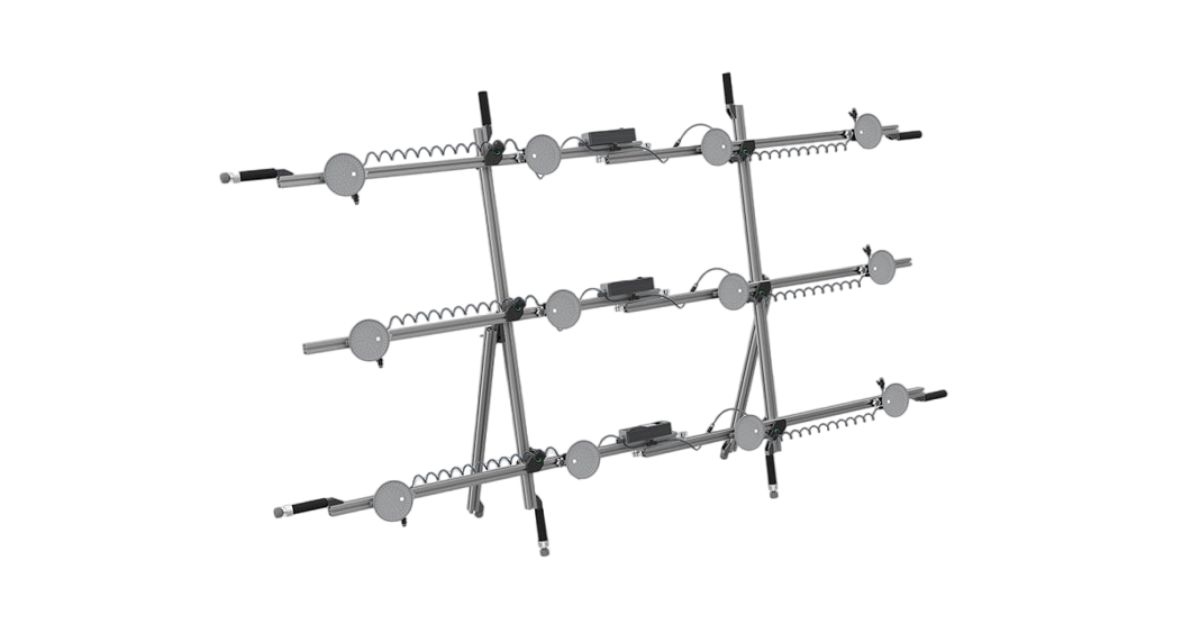

| Product Name | S3 | Slim Slab Saver 3-Rail Auto |
| Product Guide | S3 | Slim Slab Saver 3-Rail Auto Product Guide (pdf) |
| Part # | S3-3A-19 |
| MSRP | $5,950 USD, $8,330.00 CAD |
| Patent | Applicable Patents |
| Includes | Three adjustable rails Two 5' rigid cross-brace rails Two 3' rigid cross-brace rails Kickstand Kit Twelve 6" vacuum cups with covers Four regular handles Four handles with leveler legs Six rigid clamps with carrying case Three VMP750 rechargeable vacuum pumps |
| Product Dimensions | Collapsed: 63" Extended: 126" |
| Product Weight | 109 lb |
| Package Dimensions | 72" x 13" x 13" |
| Shipping Weight | 112 lb |
| Rated Capacity | 70 lb (31 kg) per vacuum cup; 200 lb (90 kg) per rail |
| Materials | Aluminum, reinforced polymer, silicone, stainless steel, plated steel, polyurethane air tubes, EPDM closed-cell foam rubber grips lithium-ion battery pack, miscellaneous electronics |
