Omni Cubed S3 | Slim Slab Saver Manual
Omni Cubed S3 | Slim Slab Saver Manual
SKU:S3-1M-19
MATERIAL REINFORCEMENT REIMAGINED

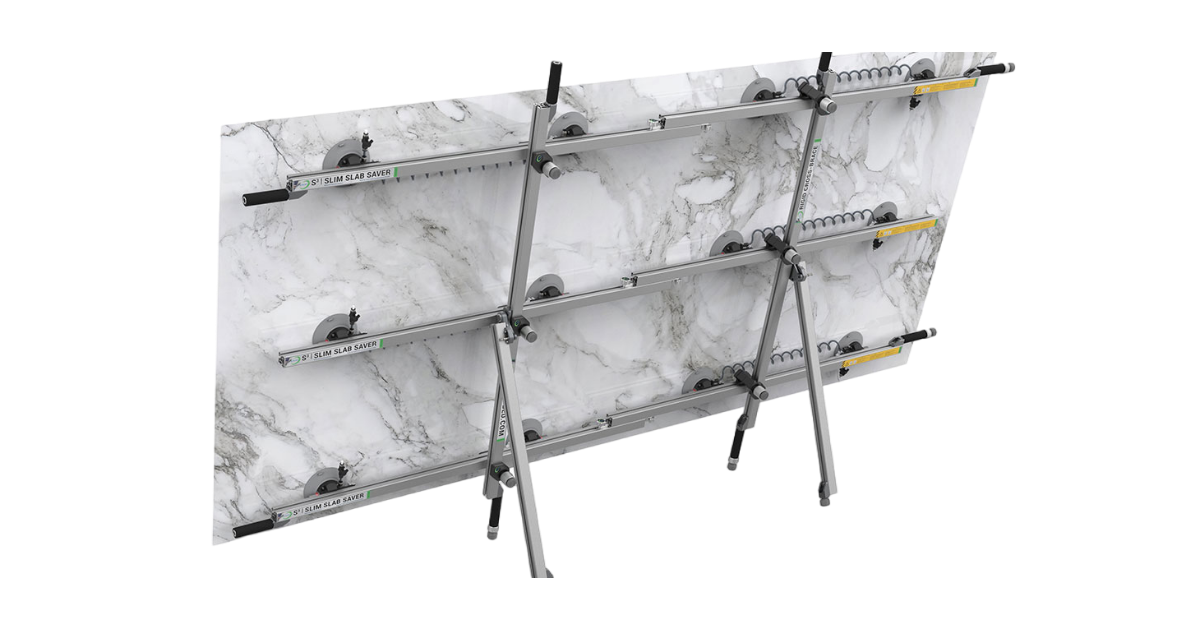

The S3 | is a versatile, completely customizable rigid frame and reinforcement system that reduces strain and risk of injury while handling large format glass panels, tile slabs, and other fragile materials. It is an ideal solution for preventing breakage during transport and installation of glass panels, LFTM (large format thin material), gauged or thin porcelain slabs, and sintered stone such as Neolith or Lapitec. This combination of solid machined clamps and extruded rails minimizes the flexing and twisting of the material. The proprietary extruded aluminum rails are specially designed to be lightweight while retaining extreme strength and rigidity to provide reinforcement without adding a lot of weight to the material.
HIGHLIGHTS
- Pays for itself with one prevented break
- Promotes safer, more ergonomic lifting and moving to reduce strain and injury
- Ideal for glass panels, LFTM (large format thin material), gauged or thin porcelain slabs, and sintered stone such as Dekton
- Lightweight with extreme strength and rigidity
- Completely customizable system for creating rigid frames to support large panels and full slabs
- Cups, clamps, and rails can be arranged in many configurations to reinforce uniquely shaped pieces
- Non-marking 6" cups feature a concave design for quick attachment, even to bowed surfaces
- High flow vacuum release valves for fast and hassle-free removal of product
- FTS™ (flexible triple seal) vacuum cups provide secure, reliable hold on smooth, textured, or leathered materials
- Kickstand Kit accessory (included with 3-Rail models) allows upright resting of material for easy application of mortar or adhesive
- Durable, UV-resistant foam grips provide a comfortable handle for safer, more ergonomic transport and placement of materials
- Rails extend from 61” - 112” (155 - 284 cm) to accommodate large panels and full slabs
- Each adjustable rail is rated to handle up to 200 lb (90 kg)
- Includes all components to easily convert to Auto system (no tools required)

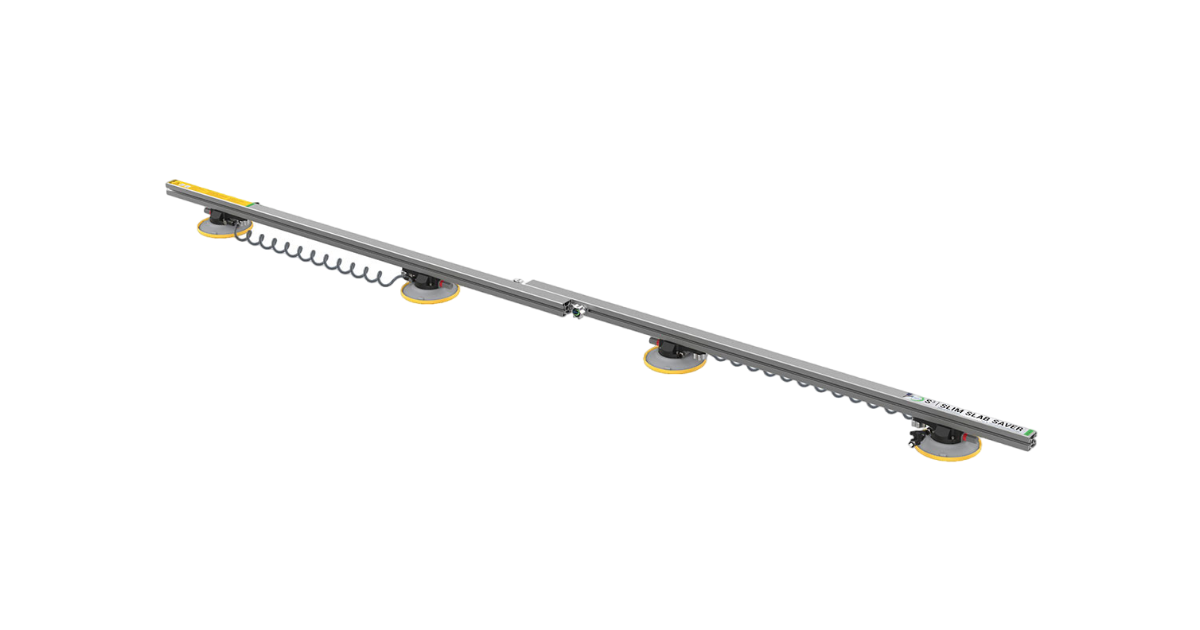

Product Name | S3 | Slim Slab Saver 1-Rail Manual |
Product Guide | S3 | Slim Slab Saver 1-Rail Manual Product Guide (pdf) |
Part # | S3-1M-19 |
MSRP | $780.00 USD, $1,092.00 CAD |
Patent | Applicable Patents |
Includes | One adjustable rail (no handles) Four 6" vacuum cups with covers |
Product Dimensions L x W x H | Collapsed: 63" Extended: 126" |
Product Weight | 18 lb |
Package Dimensions L x W x H | 72" x 9" x 9" |
Packaged Weight | 19 lb |
Rated Capacity | 70 lb (31 kg) per vacuum cup; 200 lb (90 kg) per rail |
Materials | Aluminum, reinforced polymer, silicone, stainless steel, plated steel, polyurethane air tubes, EPDM closed-cell foam rubber grips |

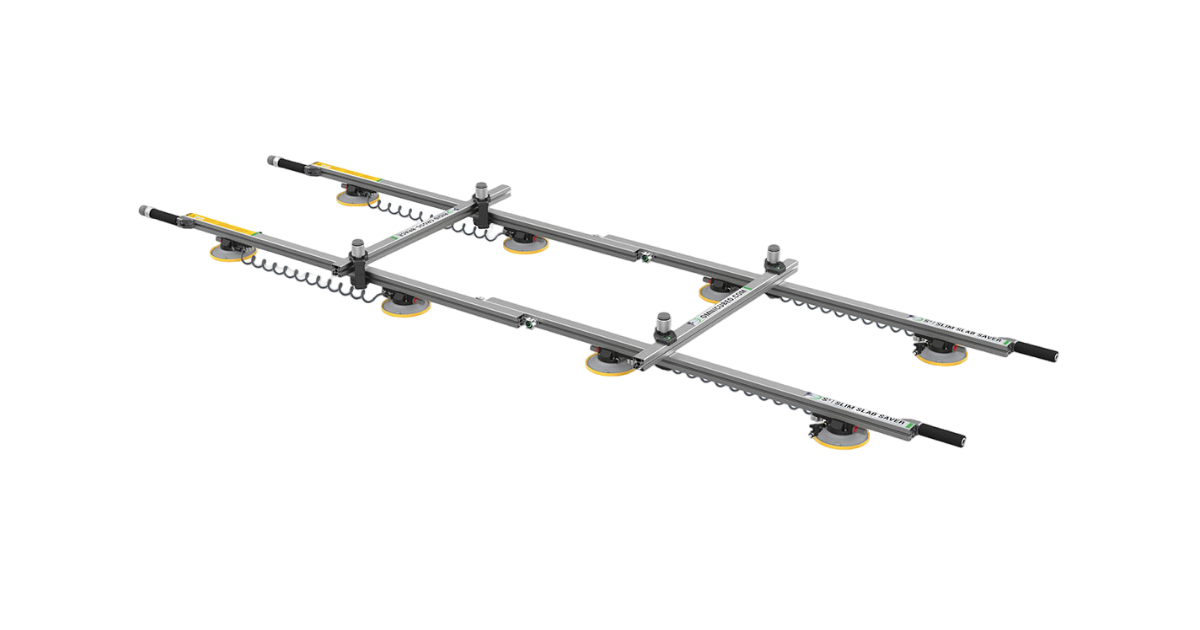

Product Name | S3 | Slim Slab Saver 2-Rail Manual |
Product Guide | S3 | Slim Slab Saver 2-Rail Manual Product Guide (pdf) |
Part # | S3-2M-19 |
MSRP | $2,525.00 USD, $3,353.00 CAD |
Patent | Applicable Patents |
Includes | Two adjustable rails Two 3' rigid cross-brace rails Eight 6" vacuum cups with covers Two regular handles Two handles with leveler legs Four rigid clamps with carrying case |
Product Dimensions L x W x H | Collapsed: 63" Extended: 126" |
Product Weight | 57 lb |
Package Dimensions L x W x H | 72" x 13" x 13" |
Packaged Weight | 60 lb |
Rated Capacity | 70 lb (31 kg) per vacuum cup; 200 lb (90 kg) per rail |
Materials | Aluminum, reinforced polymer, silicone, stainless steel, plated steel, polyurethane air tubes, EPDM closed-cell foam rubber grips |

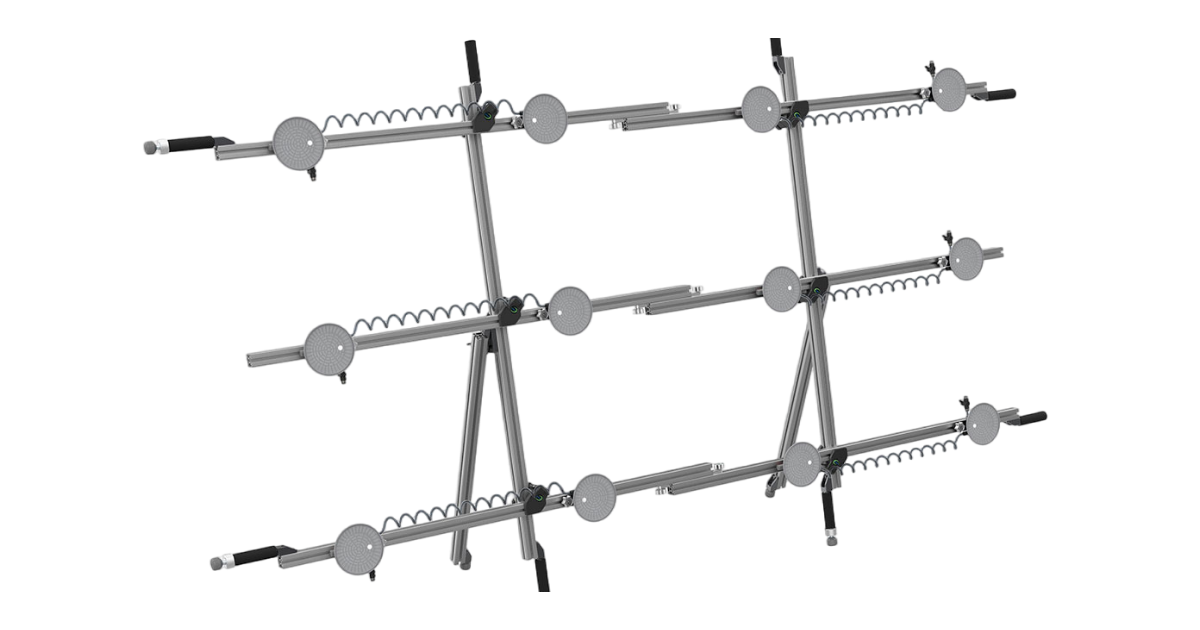

Product Name | S3 | Slim Slab Saver 3-Rail Manual |
Product Guide | S3 | Slim Slab Saver 3-Rail Manual Product Guide (pdf) |
Part # | S3-3M-19 |
MSRP | $4,350.00 USD, $6,090.00 CAD |
Patent | Applicable Patents |
Includes | Three adjustable rails Two 5' rigid cross-brace rails Two 3' rigid cross-brace rails Kickstand Kit Twelve 6" vacuum cups with covers Four regular handles Four handles with leveler legs Six rigid clamps with carrying case |
Product Dimensions L x W x H | Collapsed: 63" Extended: 126" |
Product Weight | 99 lb |
Package Dimensions L x W x H | 72" x 13" x 13" |
Packaged Weight | 102 lb |
Rated Capacity | 70 lb (31 kg) per vacuum cup; 200 lb (90 kg) per rail |
Materials | Aluminum, reinforced polymer, silicone, stainless steel, plated steel, polyurethane air tubes, EPDM closed-cell foam rubber grips |
