SUPER DUTY DOLLY

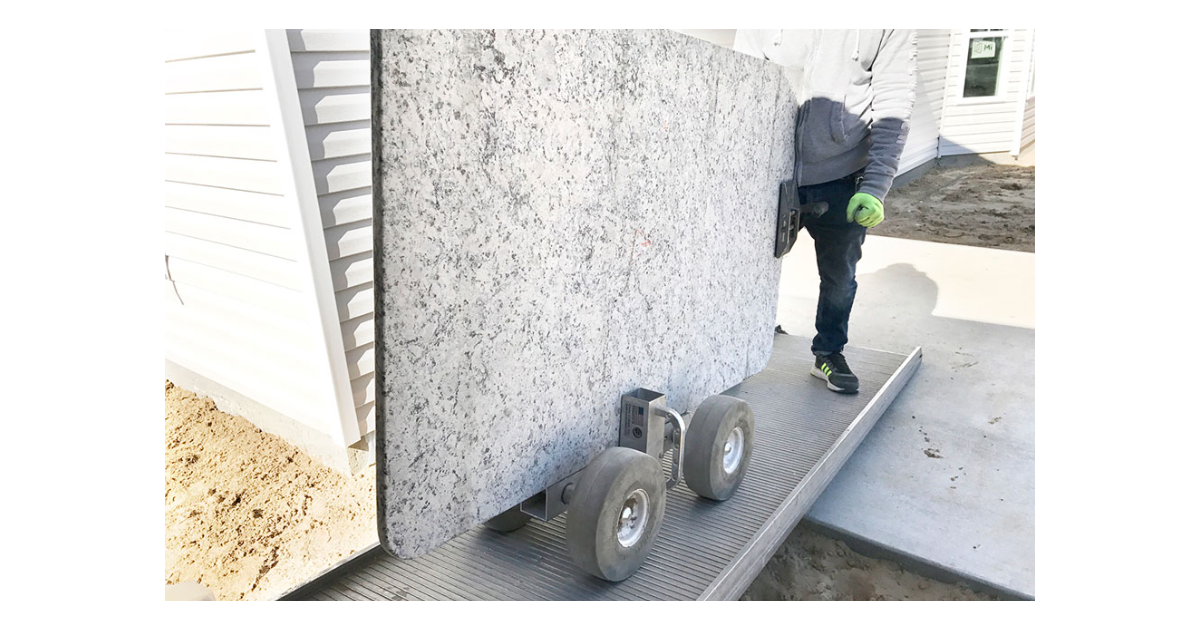

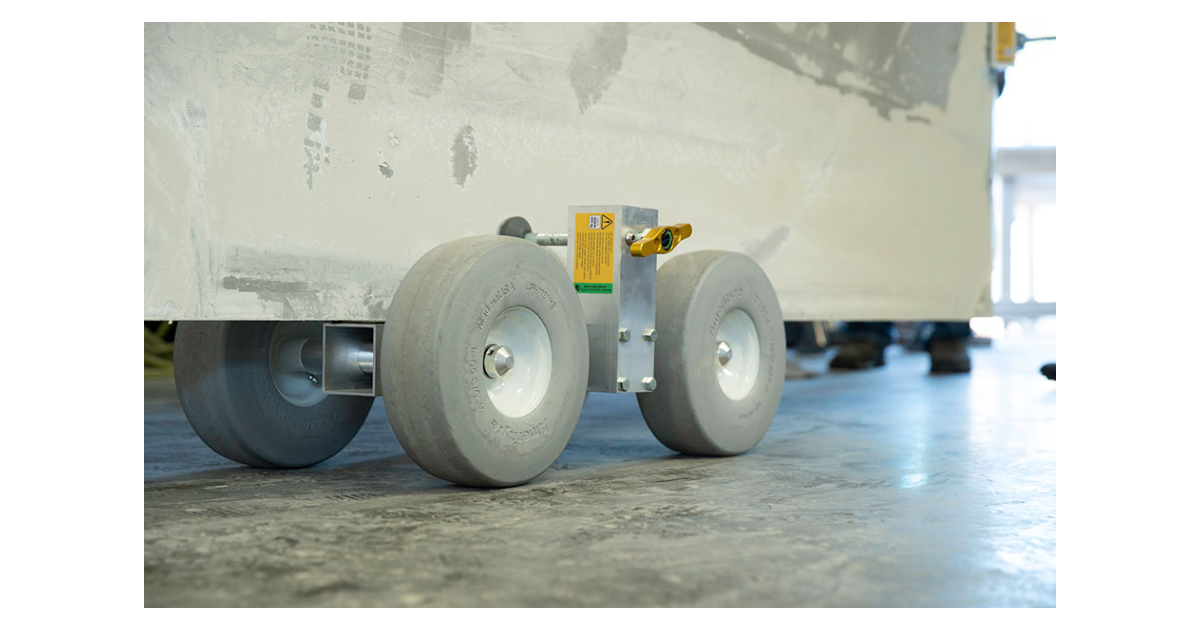

The Pro-Dolly™ HD2 allows easier transport and installation of glass panels and stone countertops. An aluminum frame makes this dolly extremely compact and lightweight, only 35 pounds, yet strong enough to accommodate a half-ton load. The dolly's low profile allows more clearance for tall pieces through doorways. This product is often used in pairs to handle extra large pieces (up to 2,000 lb). Integrated clamps hold countertops securely on the dolly, so the dolly can stay attached from the fabrication shop to final placement. The HD2 features 10" non-marking, flat-free tires with excellent shock absorption, and a rubber-lined support rail to prevent cracking or other damage to the material.
Unique to the HD2 model is an oversized clamp opening that can accommodate material with thicker edge details up to 5” (12.7 cm), such as tops with miter laminated edges.
HIGHLIGHTS
- Easily and safely transports heavy stone, glass, and wood
- Reduces strain and risk of injury
- Wide clamp opening for material with thick edge details
- Low profile provides more height clearance

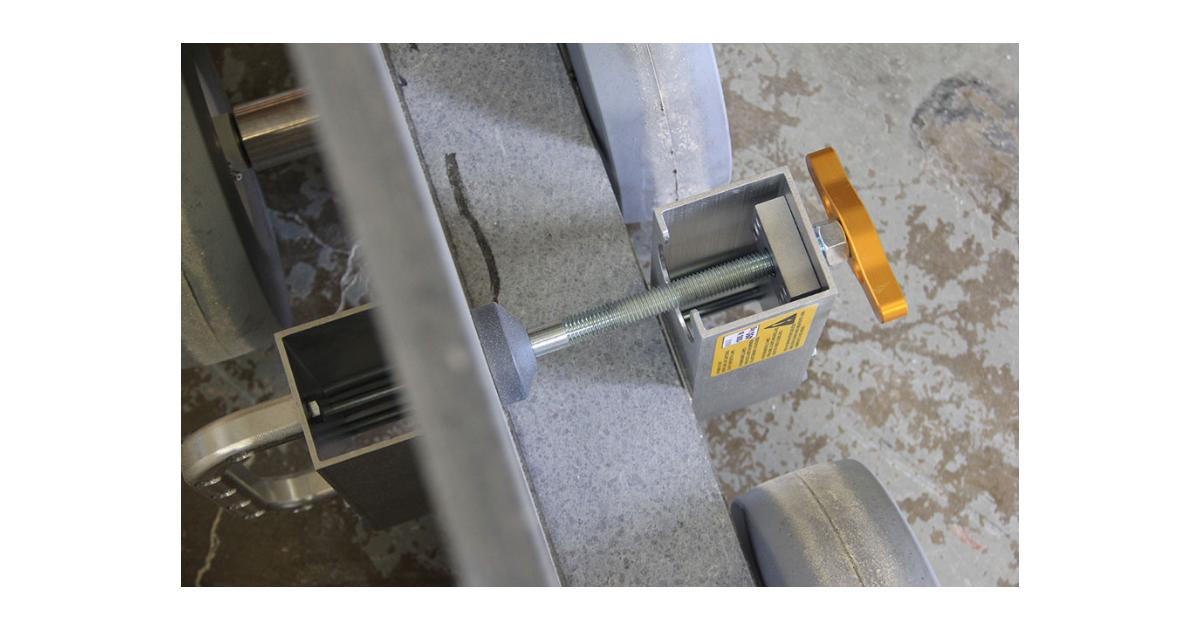

- Clamps to stone during transport and for lifting over curbs and stairs
- Extremely stable and easy to maneuver
- 1,000 lb capacity; weighs only 35 lb
- 10" non-marking, flat-free, shock-absorbing tires

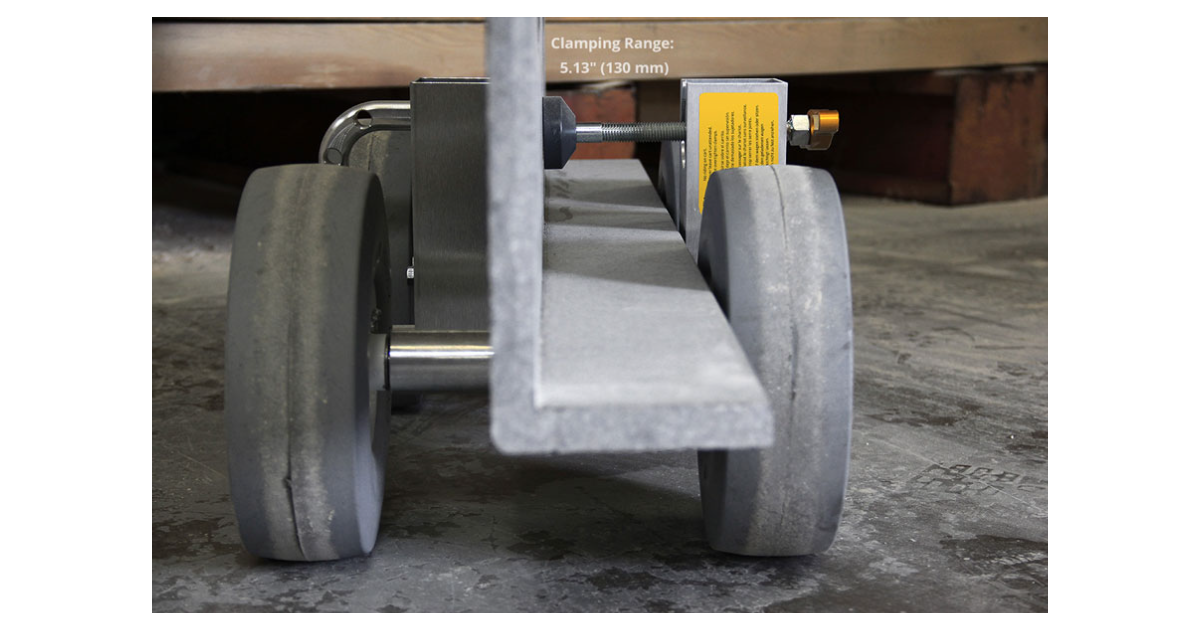

- Clamp opening: 5.13" (130 mm)
|
Product Name |
Pro-Dolly™ HD2 |
|
Product Guide |
|
|
Part # MSRP |
PDHD2 $850.00 USD |
|
Includes |
One dolly with holding clamp and carrying handle |
|
Product Dimensions |
22" x 11" x 9" |
|
Product Weight |
21.0 lbs |
|
Package Dimensions |
28" x 18" x 14" |
|
Shipping Weight |
35 lbs |
|
Load Capacity |
1000 lbs each; 2000 lbs when used in pairs |
|
Clamping Range |
Max Opening: 130 mm (5.13 in) |
|
Materials |
Square tube aluminum framework; machined billet aluminum tightening handle; zinc-plated steel clamp shafts; PVC clamping pad; hard rubber padding strips on support rails; stainless steel and zinc plated steel hardware; 10” closed-cell polyurethane tires (flat-free and non-marking) |
|
Other Specs |
6.82" from support rail surface to the ground |
