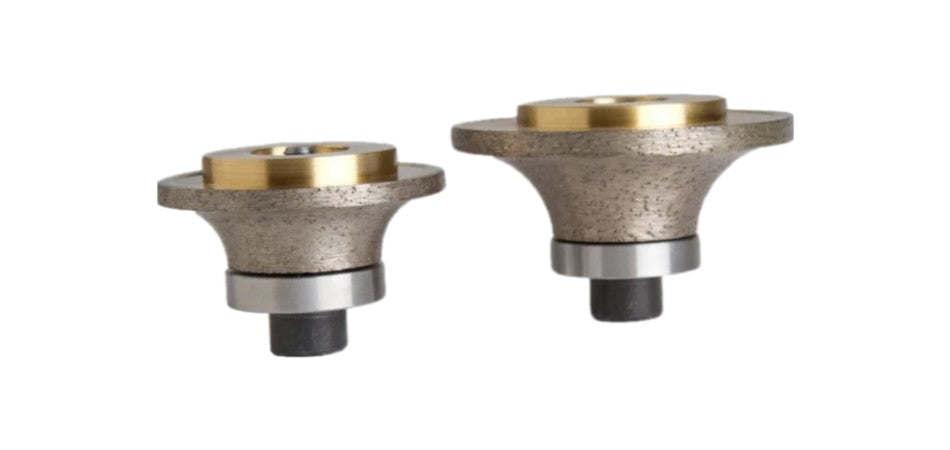

Choosing the Right Granite Router Bit: A Fabricator’s Buying Guide

Summary: Choosing the right granite router bit ensures consistent edge profiles, reduced chipping, and longer tool life. Segmented bits handle fast material removal, premium diamond-bonded bits refine finishes, and bearing-guided bits improve consistency. Matching the bit to workflow stages, material type, and maintenance practices minimizes rework and improves fabrication efficiency.



Edge work is where fabrication shows. You can have a perfect slab, clean cuts, tight seams—but if the edge profile is off, it stands out immediately.

And that’s where things tend to go wrong.

In most shops, the same issues keep showing up:

• Edge profiles are coming out slightly inconsistent

• Chipping along the profile, especially on harder stone

• Rough finishes that need extra polishing passes

• Bits are wearing out faster than expected

Now here’s the thing—this usually isn’t a machine problem. It’s a tooling mismatch.

Granite, quartz, and engineered stone don’t behave the same. Run the wrong bit, or even the right type at the wrong stage, and you’ll see it in the finish.

A properly selected Granite Router Bit changes that. Clean shaping, predictable wear, and edges that come off the machine closer to finished.

At Tait Sales, the router bit lineup is built around how fabrication actually happens. You’ve got segmented profile bits for aggressive shaping, premium diamond-bonded options for high-end finishes, and continuous-bond bits with bearings for controlled, repeatable profiles.

Options like Ocean Diamond APEXX segmented bits or Diamax Cyclone premium profiles aren’t just different on paper—they’re built for specific stages of the workflow.

The key is knowing where each one fits.

Understanding Router Bit Types: Styles & Cutting Technologies

Not all router bits do the same job. Some are built to remove material quickly. Others are designed to refine and hold a profile with consistency.

Breaking them into categories makes selection easier.

Segmented Profile Bits

Example: APEXX 45° Bevel Shape E (“Hollywood Bevel”) &  APEXX Ogee Bullnose Shape FV

These are your pre-shaping tools.

They’re designed to move material fast, especially on harder stones like granite, quartz, and quartzite. The segmented design allows for aggressive cutting without loading up the bit.

What stands out:

• Fast stock removal

• Smooth initial shaping

• Designed primarily for wet use

You’ll typically run these in the early stage—getting the profile close before moving to finishing tools.

They’re efficient, but not meant to deliver the final edge quality on their own.

Shop APEXX 45° Bevel Shape E (“Hollywood Bevel”) & APEXX Ogee Bullnose Shape FV

Premium Diamond-Bonded Bits

Example: Diamax Cyclone Shape F (Ogee Profile) & Diamax Cyclone Shape V (Full Bullnose)

This is where precision comes in.

These bits are built with 50% more diamond surface and use ISD 1700 industrial-grade diamonds. That changes how the bit performs over time.

Instead of dropping off quickly, the cutting stays consistent across longer runs.

Key characteristics:

• Higher diamond concentration

• Supports higher RPMs (up to ~8000)

• Designed for wet use

• Cleaner, more refined edge profiles

If you’re working on engineered stone or high-visibility edges, this is where the difference shows. Less rework, fewer passes, more consistent results.

Get Diamax Cyclone Shape F (Ogee Profile) & Diamax Cyclone Shape V (Full Bullnose) now.

Continuous-Bond Bits with Bearings

Example: Grizzly Shape E Bevel & Grizzly Shape F Ogee

These sit in a different category.

Instead of segmented cutting surfaces, you get a continuous diamond bond, which helps maintain profile consistency over time.

Add guide bearings to that, and you get:

• Controlled depth

• Repeatable profiles

• Reduced operator variation

They’re especially useful when consistency matters more than speed—production runs, repeated edge work, or when multiple operators are involved.

They also fit standard 7/8" setups with M10 bolts, making integration straightforward in most shops.

Buy Grizzly Shape E Bevel & Grizzly Shape F Ogee now.

Model Comparison Table: Matching Bit to Need

There’s no “one best bit” here. It depends on where you are in the process.

• Pre-shaping → segmented

• Finishing → premium bonded

• Consistency and repeat work → continuous bond with bearings

Maintenance & Care: Extend Bit Performance

Router bits don’t usually fail suddenly. Performance drops first.

Edges get rougher. Cuts slow down. Profiles lose sharpness.

A simple maintenance routine keeps that from happening too early.

After Every Use

• Rinse off the stone dust immediately

• Use compressed air or a soft brush for buildup

• Check for debris along the diamond edge

Leaving slurry on the bit is one of the fastest ways to reduce cutting efficiency.

Routine Checks

• Make sure bearings rotate freely

• Check for any wobble or resistance

• Confirm the arbor fit is tight and aligned

• Verify RPM compatibility with your machine

Small issues here turn into profile inaccuracies later.

Storage Tips

• Keep bits dry—moisture leads to corrosion

• Store separately to avoid profile damage

• Use padded trays or hanging systems

Stacking bits together might save space, but it shortens tool life.

Troubleshooting: Common Router Bit Issues & Fixes

Even with the right tools, issues show up. The key is catching them early.

Problem: Profile Inaccuracy or Chipping

Likely cause:

• Worn bit

• Using a segmented bit for finishing

• Missing or misaligned guide bearing

Fix:

• Switch to a premium bonded bit for final shaping

• Check bearing alignment

• Replace worn tools before accuracy drops further

Problem: Slow or Uneven Cutting

Cause:

• The diamond surface is clogged with debris

• Feed rate is too aggressive or inconsistent

Fix:

• Clean the bit thoroughly

• Adjust feed pressure

• Increase coolant flow if running wet

Problem: Overheating

Cause:

• Running wet-only bits dry

• Insufficient coolant flow

Fix:

• Use proper water flow during cutting

• Switch to a bit rated for dry/wet use if needed

Heat doesn’t just slow cutting—it reduces diamond life quickly.

Best Practices: Usage Tips for Efficiency & Safety

Operator Training

Good tools still depend on proper use.

• Secure slabs before routing

• Maintain a steady, consistent feed rate

• Let the bit cut—don’t force it

Forcing the cut increases wear and reduces finish quality.

Safety Measures

• Always use PPE (eye protection, hearing protection, dust control)

• Check RPM limits before operation

• Confirm compatibility with M10 or other arbor types

These are simple checks, but skipping them creates risk fast.

Workflow Efficiency

• Group bits by material and profile type

• Label clearly for quick identification

• Test profiles on scrap stone before full runs

That last step avoids costly mistakes on finished slabs.

Tait Sales & Consulting: Your Router Bit Resource

Choosing the right Granite Router Bit isn’t just about specs—it’s about matching the tool to your workflow.

Before the Sale

Tait Sales helps match:

• Material type (granite, quartz, engineered stone)

• Edge profile requirements

• Production volume

That guidance saves trial-and-error on the shop floor.

During Setup

Support includes:

• Handheld vs CNC configuration advice

• Coolant setup recommendations

• Arbor compatibility and adapters

Getting set up right from the start avoids performance issues later.

After the Purchase

You’re not left figuring things out.

• Replacement bearings available

• Regrinding services are applicable

• Direct support for troubleshooting and upgrades

That ongoing support matters, especially in high-output shops.

Conclusion: Get the Right Tool for Perfect Edges

Edge quality doesn’t come from one step. It comes from using the right tool at each stage.

• A segmented bit for shaping.

• A premium bonded bit for finishing.

• A bearing-guided bit for consistency.

That combination is what produces clean, repeatable profiles.

Tait Sales offers a router bit lineup built around that workflow—from aggressive shaping tools like APEXX to high-precision options like Diamax Cyclone and controlled-profile Grizzly bits.

If your edges aren’t coming out the way they should—or your bits aren’t lasting as long as expected—it’s usually a selection issue, not a process problem.

Explore the full granite router bit collection at Tait Sales & Consulting, LLC. Match the right tool to your material, your profile, and your production needs—and get cleaner results with less rework.
