12 Volt DS Powered Vacuum Glass Lifter (Dual System) ARGL-500DS
Product Code: ARGL-500DS
General

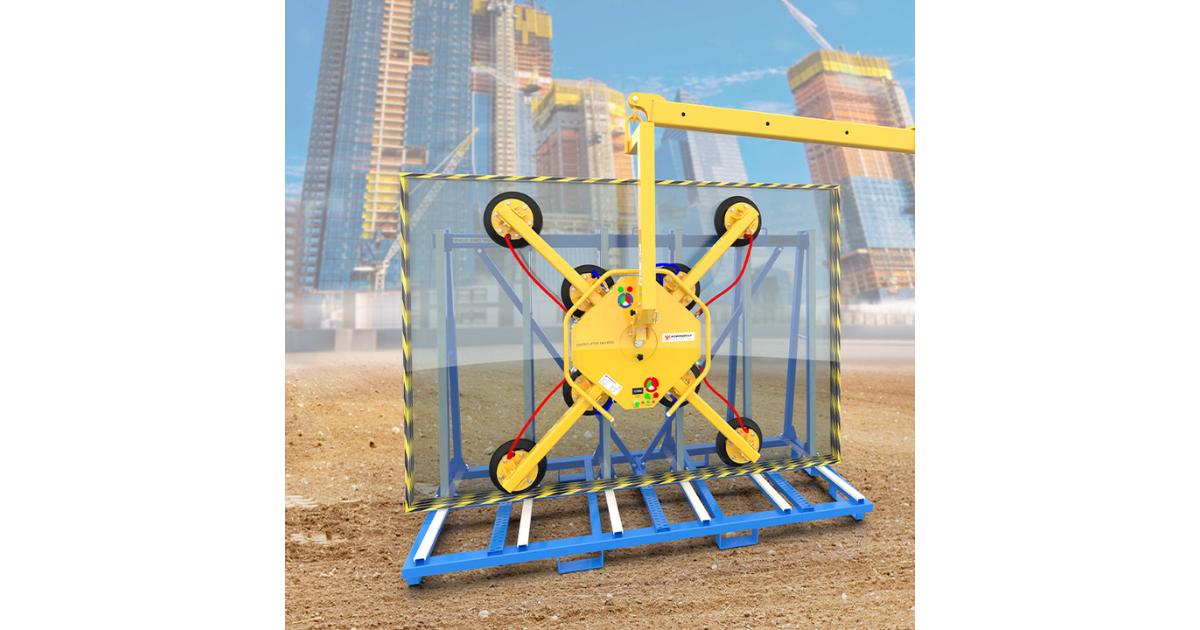

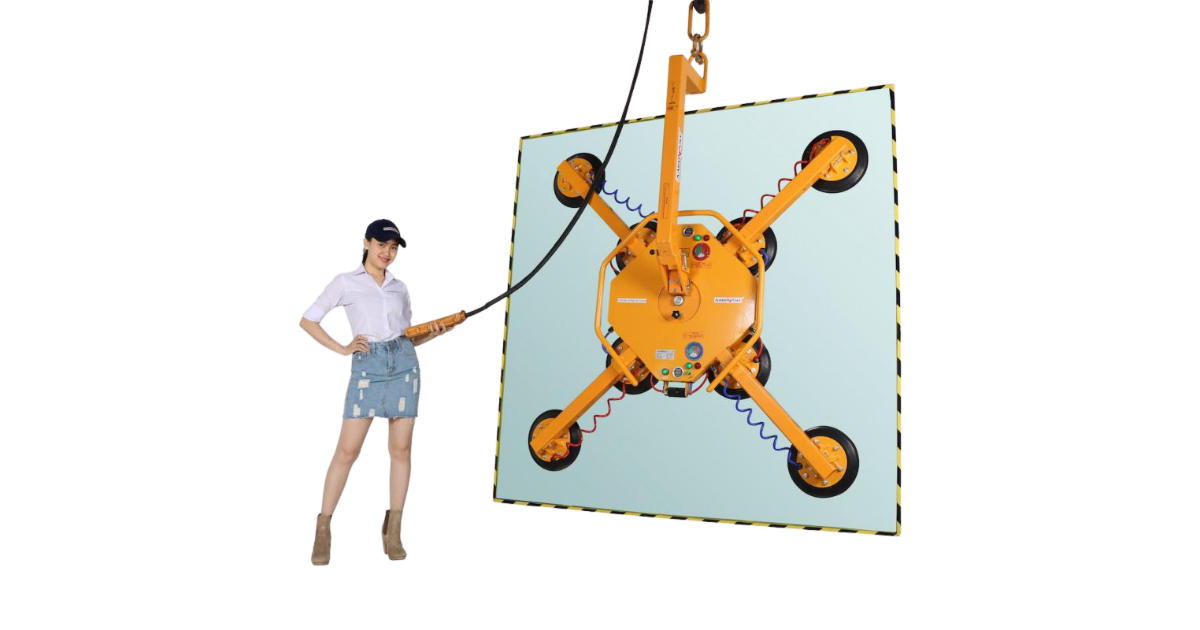

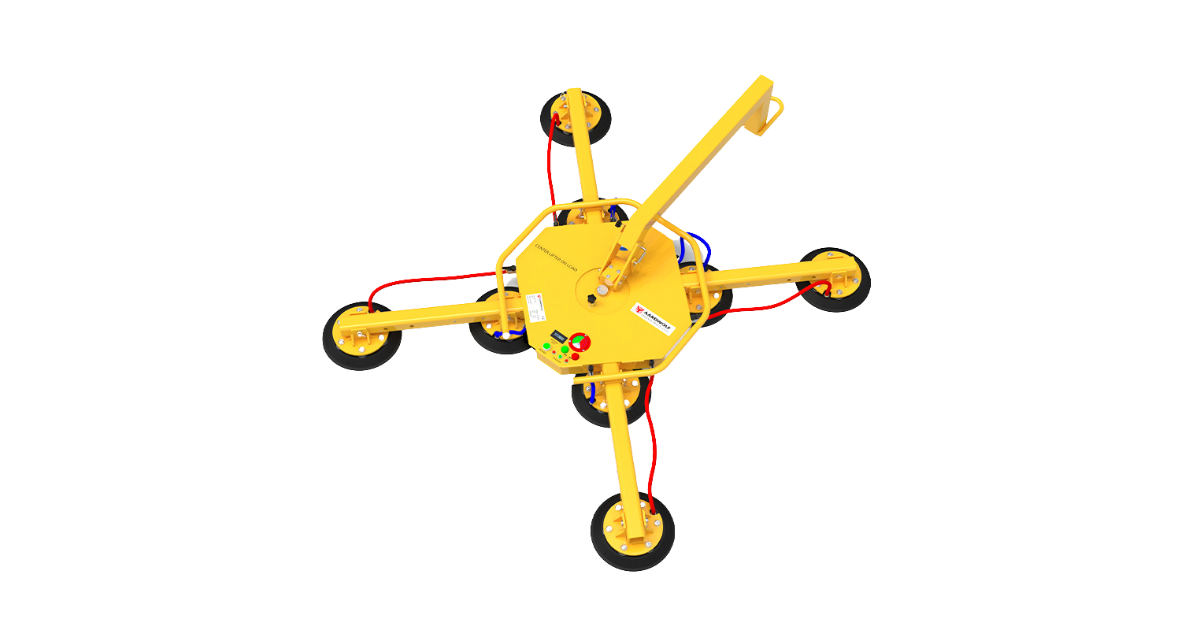

The DC Powered Vacuum Glass Lifter (Dual System) ARGL-500DS is an electrical vacuum lifter with a 4-bar tilting mechanism. Integrated with a multi-angle rotation feature, the ARGL-500DS ensures flexibility when vertically rotating and tilting large glass sheets. The ARGL-500DS is equipped with two independent vacuum circuits, which support each other in the event of a system failure to ensure user safety during the working process.
Features
- Double redundancy with a load capacity of 500 kg.
- Spring-loaded suction pads.
- 360-degree rotation with 45-degree steps.
- Four extension arms with the ability to extend and retract.
- Two independent vacuum circuits provide mutual aid in the event of a system error.
- Integrated automatic vacuum pumping system.
- Audio and visual warning system.
- 12V power supply by a high-capacity battery.
Specifications
Metric
(mm-kg)
|
Imperial
(inch-lb)
|
|
Number of pad | 8 | - |
Pad diameter | 300 | 12" |
Working load limit | Vertical: 400 Horizontal: 500 |
882 1102 |
Net weight | 81 | 179 |
Gross weight | 107 | 236 |
Packaging dimensions | 1070x970x450 | 42.1"x38.2"x17.7" |
- Battery information for the lifter
Code battery | M12B6 Milwakee |
Type of battery | Lithium-ION |
Voltage | 12V |
Current | 6.0Ah |
Quantity | 2 |
Continuous operation time | 2 hours |
Working time | 6 hours |
- Battery information for charger
Code battery charger | C12C Milwakee |
Input supply voltage | 100-240VAC |
Output voltage | 12V |
Output current | 3.0Ah |
Quantity | 2 |
Fully charger time | 2.5 hours |
Weight | 460 gram |
- Motor information
Vacuum flow rate | 32.5 liters/minute |
Motor | 12V DC-4A |
