Aardwolf 12 Volt DC Battery Powered Vacuum Glass Lifter ARGL-500DC
Aardwolf 12 Volt DC Battery Powered Vacuum Glass Lifter ARGL-500DC
Regular price
$5,400.00 USD
Regular price
$6,000.00 USD
Sale price
$5,400.00 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:ARGL-500DC
Couldn't load pickup availability

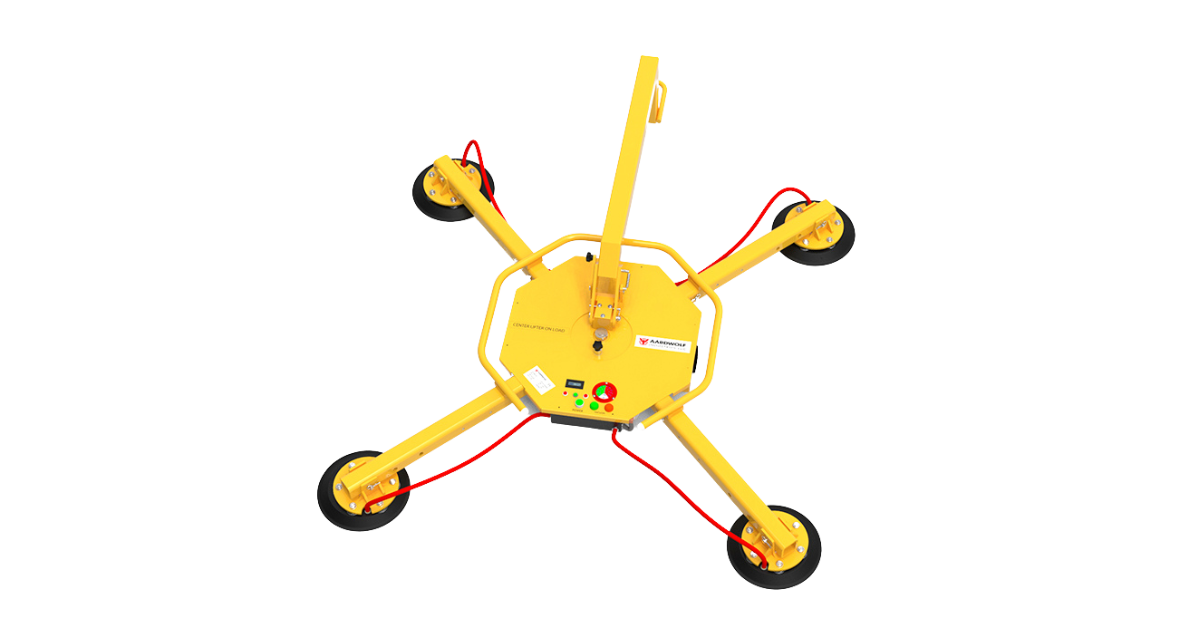

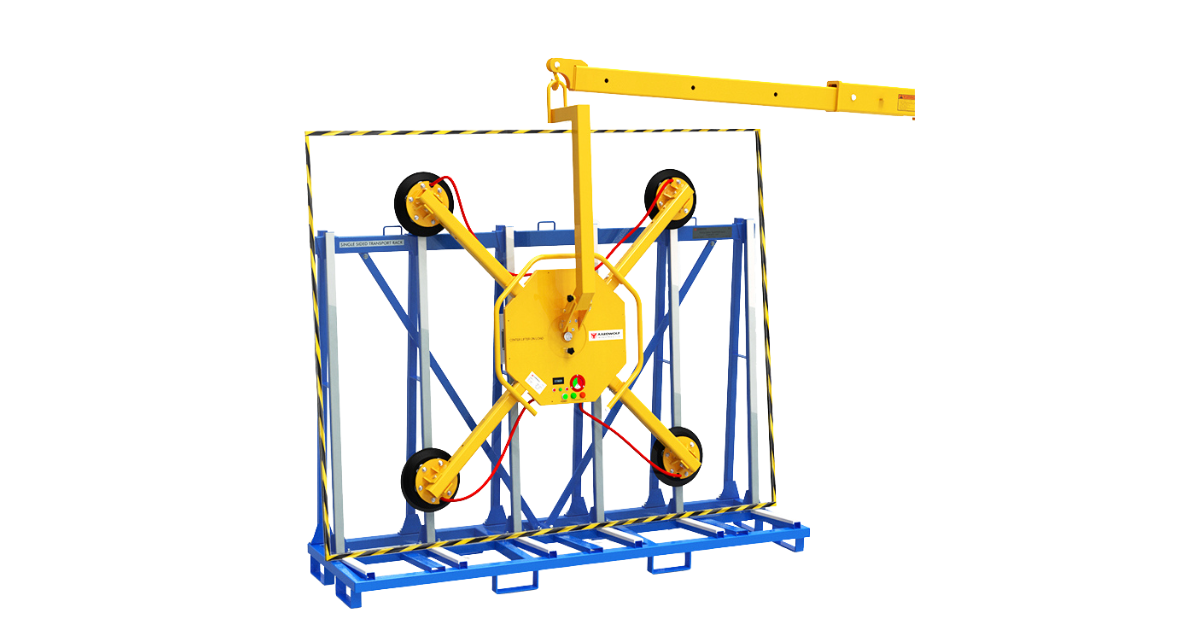

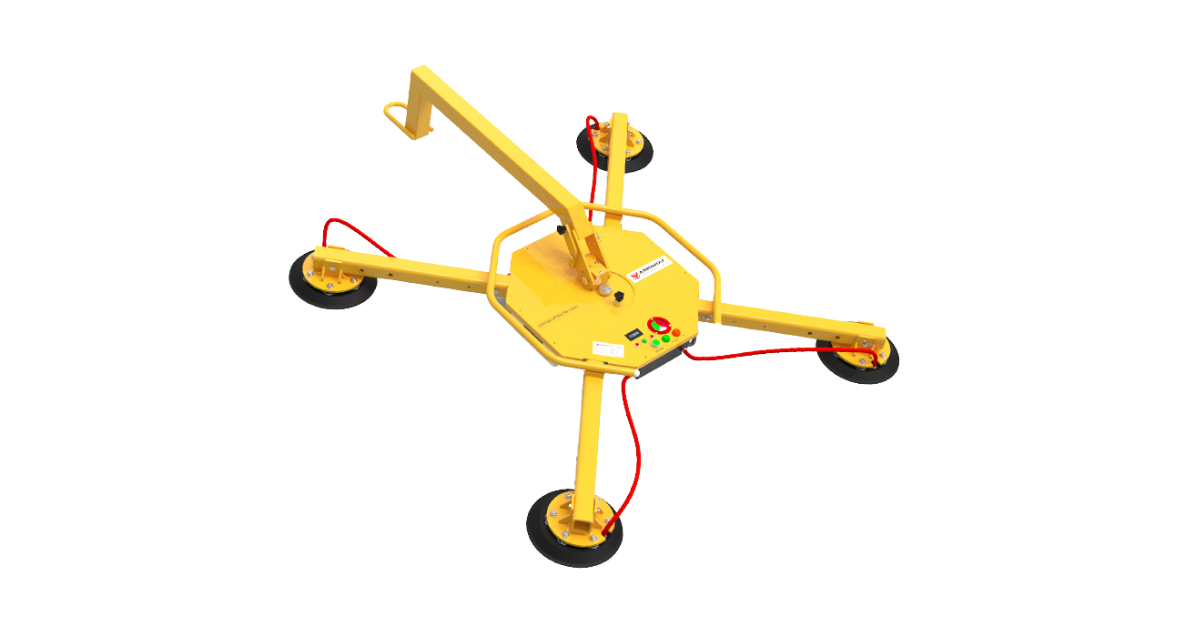

The DC Powered Vacuum Glass Lifter ARGL-500 is suitable for lifting and transporting glass elements of up to 500kg. This device can be used to install windows and large glass sheets with the aid of a forklift, counter balance crane or overhead hoist. On-board DC power systems provide cord-free operation at the job site. Movable vacuum pads and extension arms allow the DC Powered Vacuum Glass Lifter - ARGL-500 to handle glass in nearly every size and shape.
Product Code: ARGL-500DC
Features
- Spring-loaded vacuum pads.
- Manual rotation of 360° with 45° step.
- Manual tilting by 90° in 15° grid.
- Removable arm - depth minimum 150mm.
- Integrated vacuum reservoir tank.
- Integrated air pump
- Integrated instrumentation for monitoring the vacuum and the energy supply.
- Visual and audible warning devices.
- Self-contained 12-volt battery power supply with high capacity
- Extension arms allow the handling of large-sized sheets.
- Adjustable arms.
Specifications
|
Metric
(mm-kg)
|
Imperial
(inch-lb)
|
|
| Number of pad | 4 | - |
| Pad diameter | 300 | 12" |
| Working load limit | Vertical: 400 Horizontal: 500 |
882 1102 |
| Net weight | 69 | 152 |
| Gross weight | 95 | 209 |
| Packaging dimensions | 1070x970x450 | 42.1"x38.2"x17.5" |
- Battery information for the lifter
| Code battery | M12B6 Milwaukee |
| Type of battery | Lithium-ION |
| Voltage | 12V |
| Current | 6.0Ah |
| Quantity | 1 |
| Continuous operation time | 2 hours |
| Working time | 6 hours |
- Battery information for charger
| Code battery charger | C12C Milwaukee |
| Input supply voltage | 100-240VAC |
| Output voltage | 12V |
| Output current | 3.0Ah |
| Quantity | 1 |
| Fully charger time | 2.5 hours |
| Weight | 460 gram |
- Motor information
| Vacuum flow rate | 32.5 liters/minute |
| Motor | 12V DC-4A |
