Aardwolf Auto Rotate Vacuum Glass Lifter AVGLP2-AR

Name: Tait Sales & Consulting LLC
Address: Suite A, Overland Park, KS, 66223, US
Telephone: +1-913-228-0772

$7,144.00 USD

Sale Sold out

Shipping calculated at checkout.

Part #

SKU:AVGLP2-AR

Quantity

Auto Rotate Vacuum Glass Lifter AVGLP2-AR

(custom order item)

General

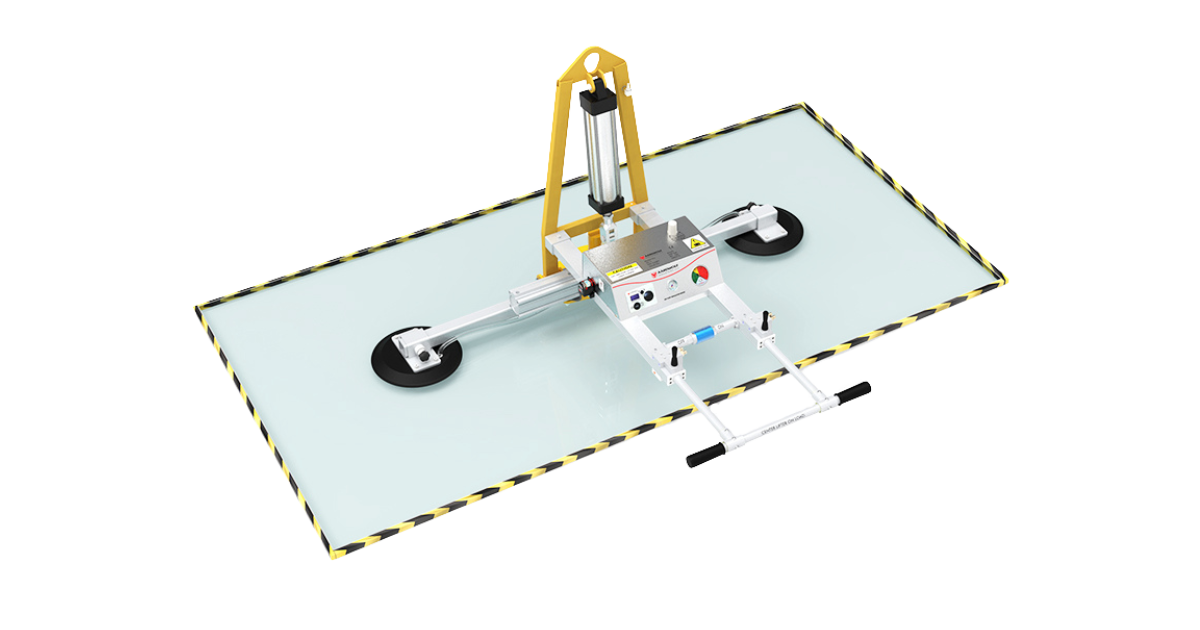

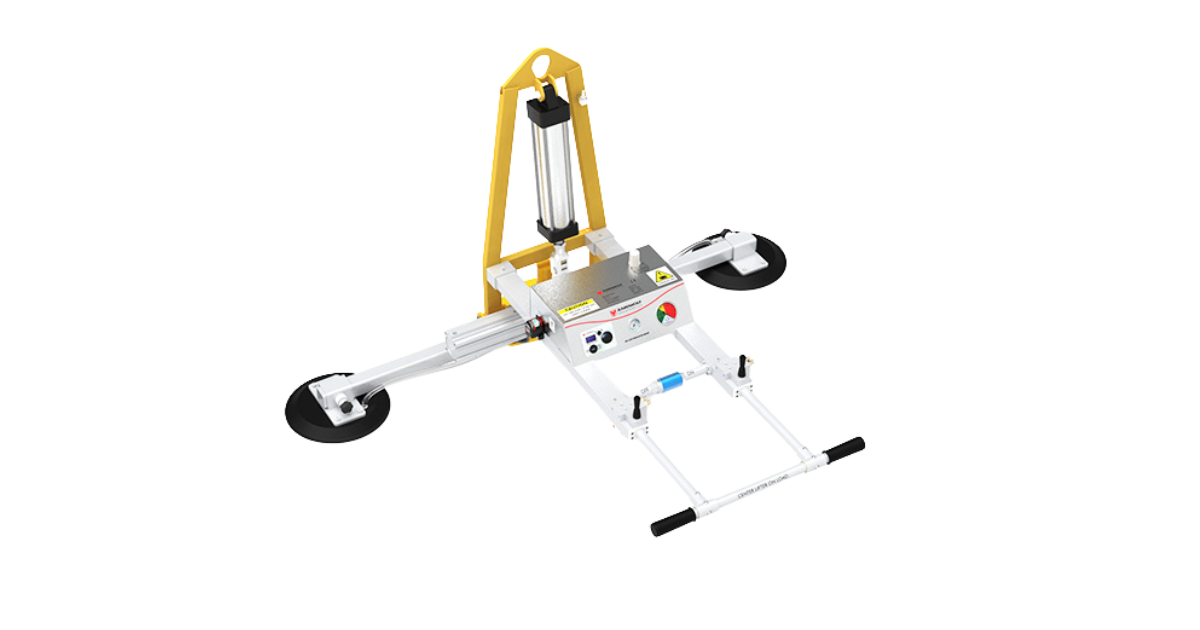

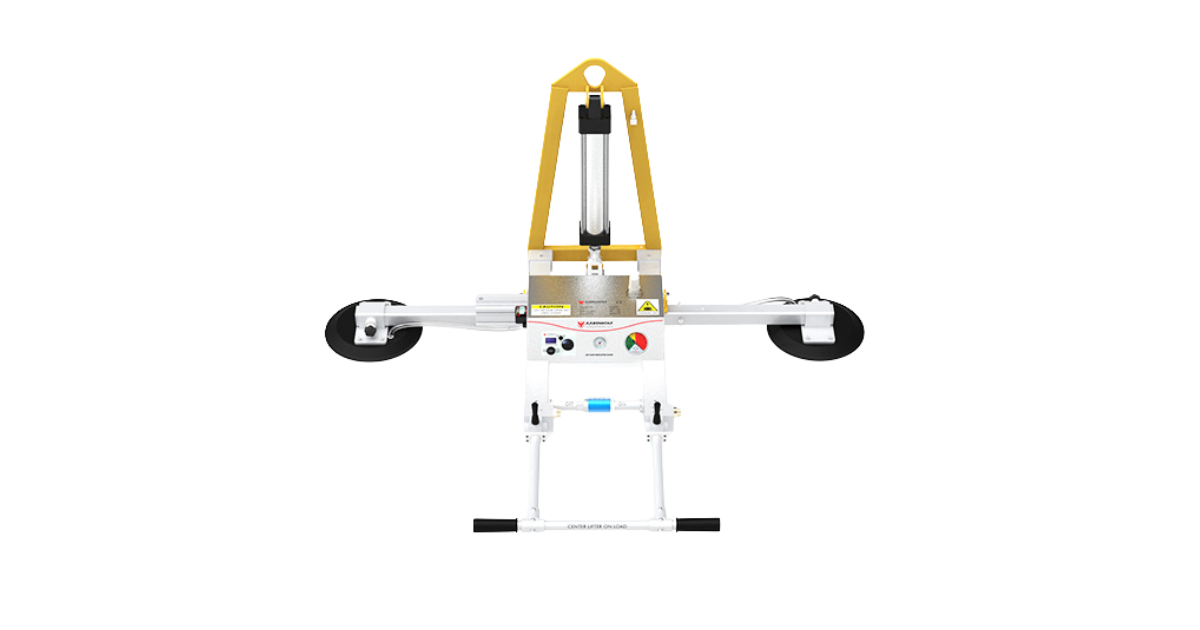

The Auto Rotate Vacuum Glass Lifter is designed to lift, tilt, and rotate the glass at wide angles. In addition, the extended bars are equipped to widen the lifting coverage area.

Features

Pneumatic vertical-horizontal tilting from 0 to 90°
90° rotation by the air cylinder
Automatic vacuum pumping if vacuum loss occurs
Audio/visual warning system
Attach/release materials using the ON/OFF slide valve

Specifications

Metric	Imperial
Number of pad	2	-
Pad diameter	Overall:300 mm Seal to seal:280 mm	11.8" 11"
Working load limit	200 kg	441 lb
Net weight	60 kg	132 lb
Packaging dimensions	L.860xW.710xH.1170 mm	33.8"x28"x46"

Battery information for the alarm system

Power supply	3.7V Lipo battery
Battery capacity	2000 mAh x 1
Standby time	720 hours
Charging cycle	1000 times
Charging time	2 hours
Non-stop working time	7 hours
6-month warranty	-
