Aardwolf AVLP2 Double Pad 500kg Vacuum lifter

Aardwolf AVLP2 Double Pad 500kg Vacuum lifter

Regular price $3,199.99 USD
Regular price Sale price $3,199.99 USD
Sale Sold out
Shipping calculated at checkout.

SKU:AVLP2

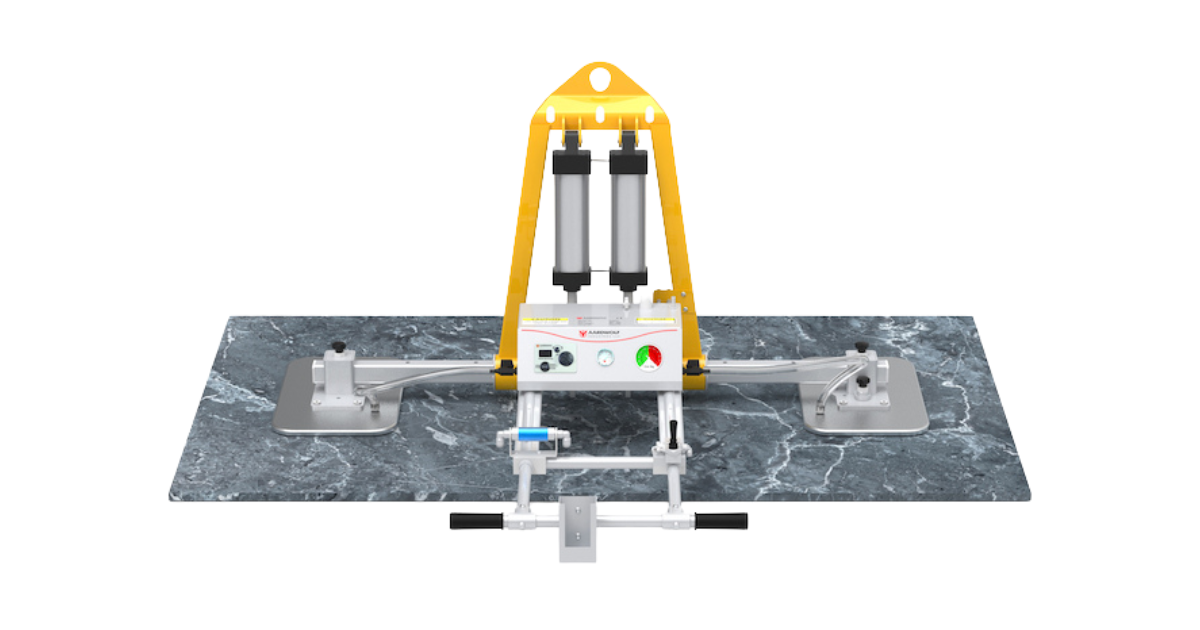

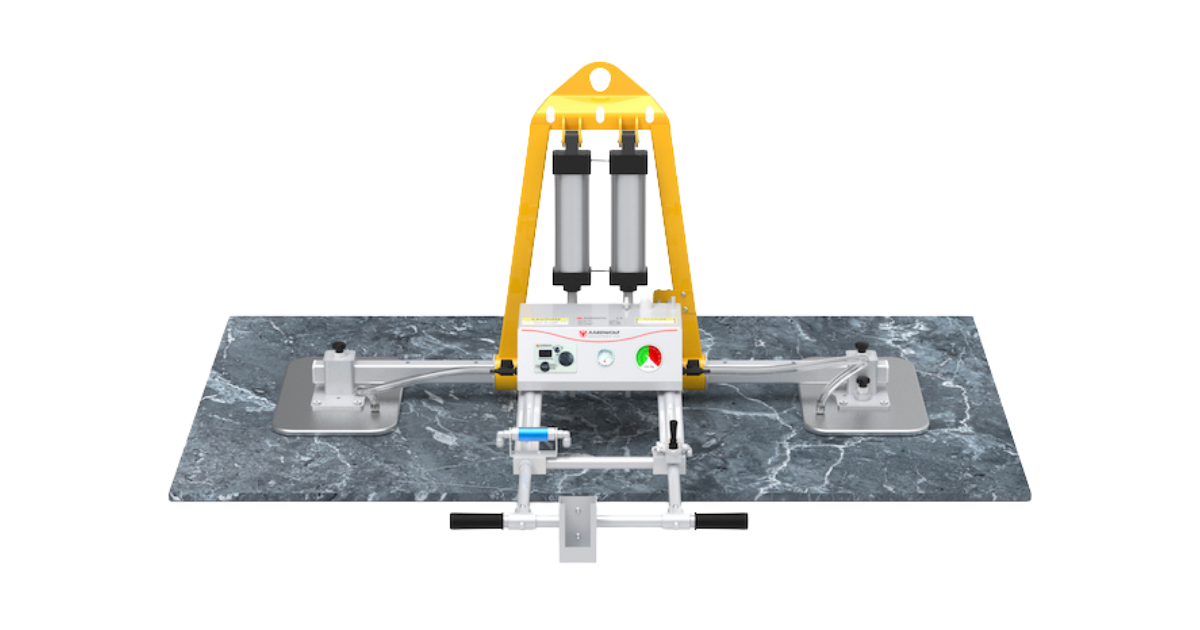

This vacuum lifter is designed to lift smooth or rough marble and granite slabs. Featuring rugged construction with the ability to lift and tilt materials. Powered by compressed air.

*Additional freight shipping fees apply

Features

  • Pneumatic vertical-horizontal tilting from 0 to 90° by a pneumatic piston.
  • Vacuum tank ensuring safe pickup in the event of a sudden power break to the vacuum pump.
  • Acoustic and visual alarm system powered by a rechargeable 12V Li-on battery.
  • Slide valve with ON/OFF position for attaching and releasing of material.
  • Comes with a 1 year warranty from the manufacturer
  • Click here for product manual

 Specifications:


Metric
(mm-kg)
Imperial
(inch-lb)
Number of pads 2 -
Pad size 520x320 20.5"x12.6"
Working load limit Vertical:250
Horizontal:500
551
1102
Net weight 71 157
Gross weight 109 240
Packaging dimensions 1480x390x960 58.3"x15.3"x37.8"



 Battery information for the device:

Code battery GBA 12V 2.0Ah Bosch
Type battery Lithium-ION
Voltage 12V
Current 2.0Ah
Quantity 1
Continuous operation time with mode saving pressure 2 hours
Working time with mode saving pressure 6 hours
Continuous operation time with mode audio alarm only 120 hours
Working time with mode audio alarm only 360 hours


 Battery charger:

Code battery GAL 12V-40 Bosch
Input supply voltage 220-240VAC
Output voltage 12V
Output current 4.0Ah
Quantity 1
Full charger time 0.5 hour
Weight 460 gram


 Compressed air requirement:

Air consumption 180 liters/minute
Supply air pressure 5 bars (72 psi)
