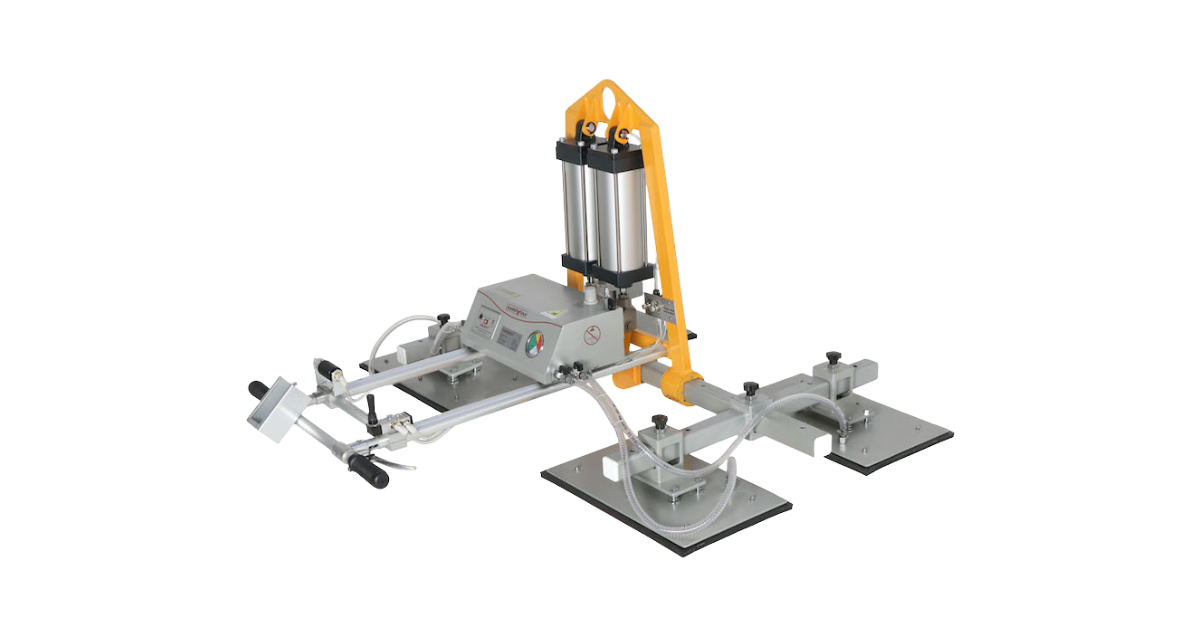

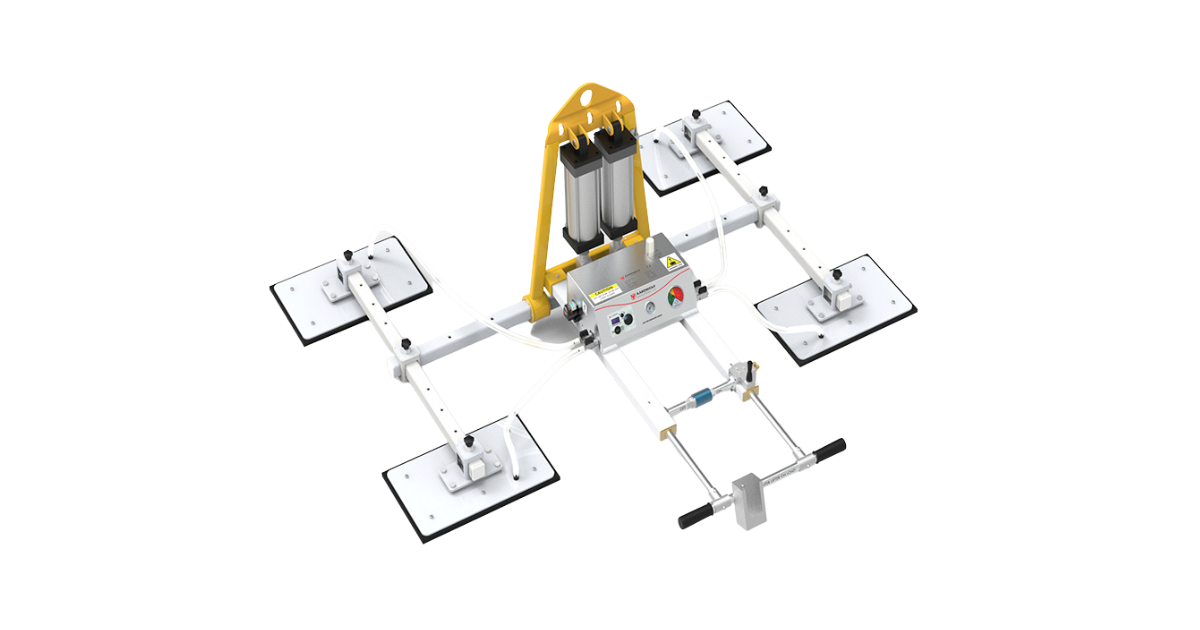

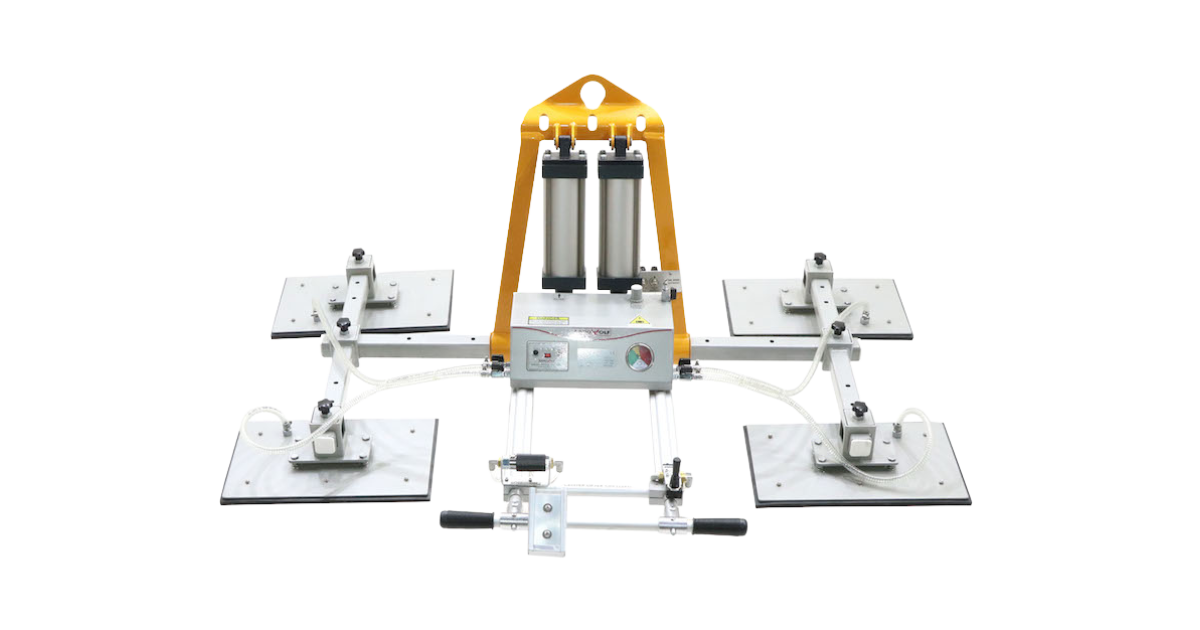

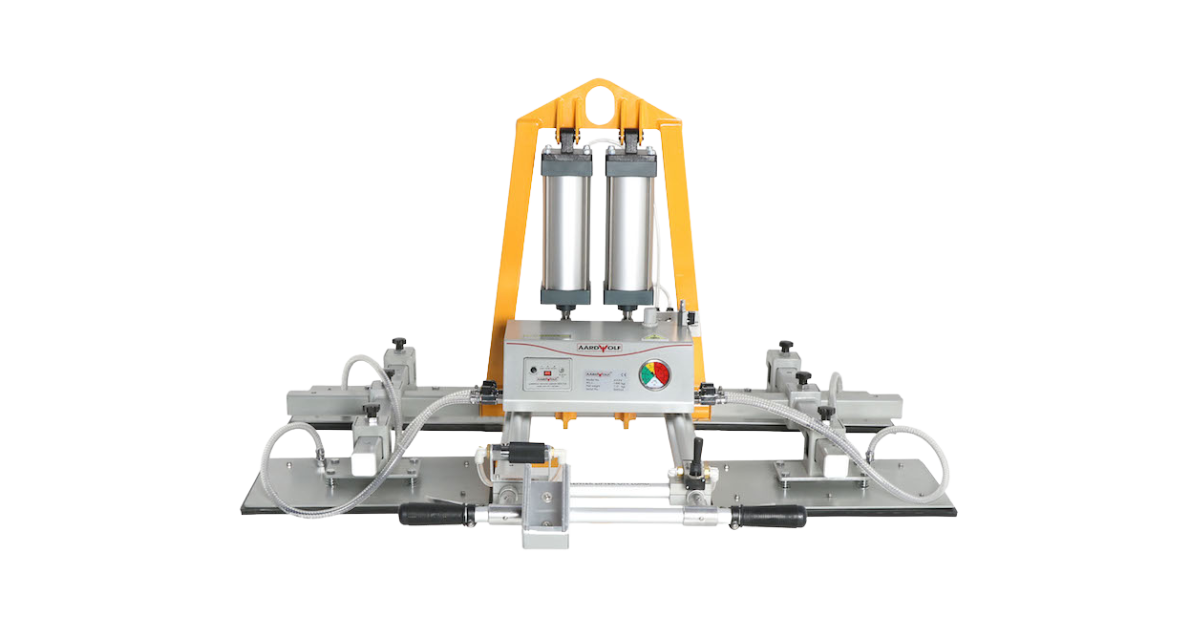

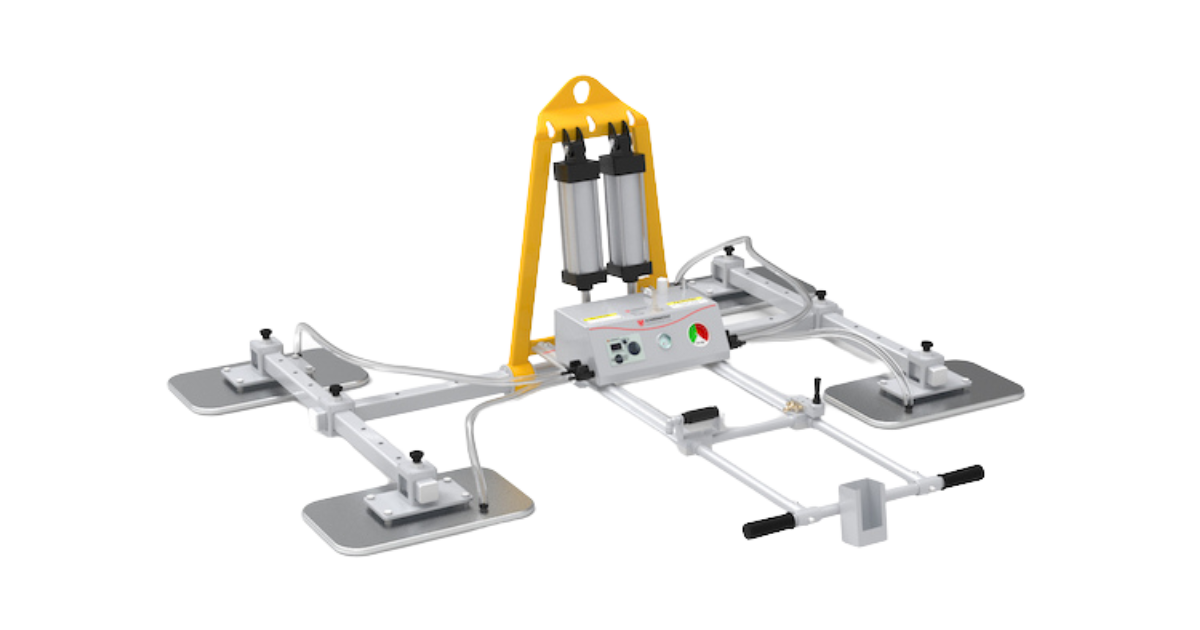

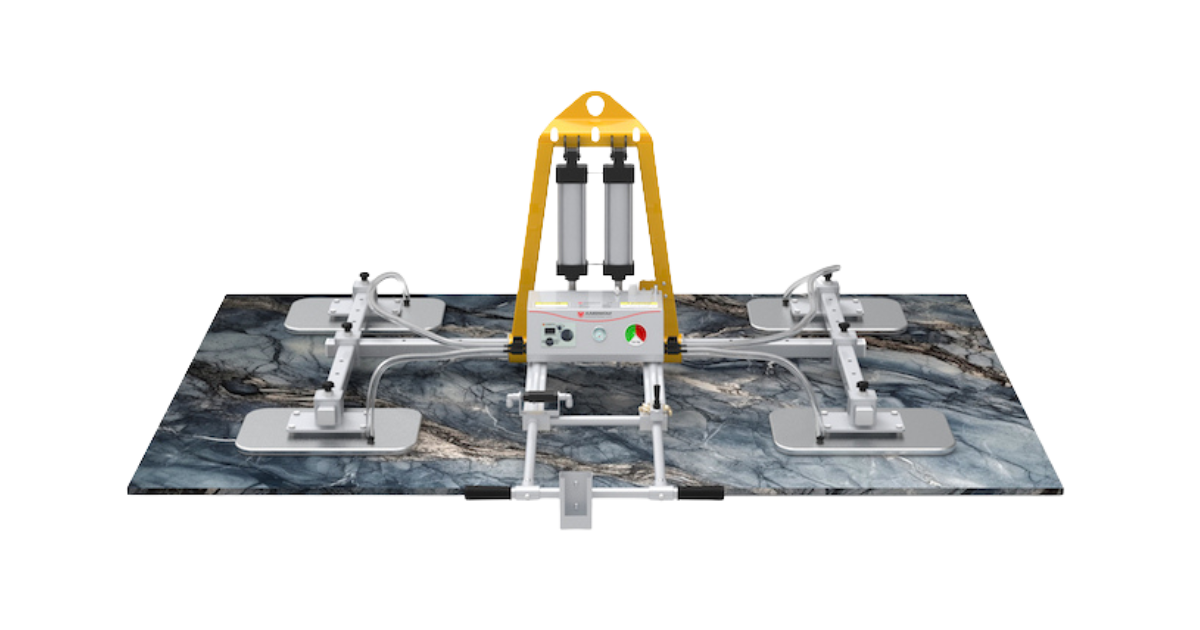

Aardwolf AVLP4 Four Pad 1000kg Vacuum lifter

Aardwolf AVLP4 Four Pad 1000kg Vacuum lifter

Regular price $3,899.99 USD
Regular price $4,320.00 USD Sale price $3,899.99 USD
Sale Sold out
Shipping calculated at checkout.

SKU:AVLP4

$100 FLAT RATE SHIPPING WITHIN THE CONTINENTAL U.S.!

This advanced vacuum lifter is meticulously designed to accommodate the diverse needs of lifting smooth and rough marble and granite slab surfaces, embodying a superior and rugged construction. It not only facilitates the effortless lifting of heavy materials but also provides the capability to tilt them, allowing for precise positioning and handling. The core of its operation is powered by compressed air, ensuring reliable and efficient performance across various applications. This feature significantly enhances its versatility, making it an indispensable tool in environments where precision and durability are paramount, such as in workshops, construction sites, and manufacturing facilities dealing with stone materials.

Features

  • Pneumatic vertical-horizontal tilting from 0 to 90 degrees.
  • Vacuum tank ensuring safe pickup in the event of a sudden power break to the vacuum pump.
  • Acoustic and visual alarm system powered by a rechargeable 3.7V battery.
  • High-strength extruded aluminum handle encase air and vacuum lines.
  • Slide valve with ON/OFF position for attaching and releasing of material.
  • This vacuum lifter is compatible with two pad sizes: 500 x 300 mm (19.7 x 11.8 in) and 520 x 320 mm (20.5 x 12.6 in). Customers can select either of these vacuum pad options based on their specific requirements.
  • Continuous air supply during the mission.

 Specifications:


Metric
(mm-kg)
Imperial
(inch-lb)
Number of pad 4 -
Pad size 520x320 20.5"x12.6"
Working load limit Vertical: 500
Horizontal:1000
1102
2204
Net weight 109 240
Gross weight 150 331
Packaging dimensions 1680x430x960 66.1"x16.9"x37.8"



 Battery information for the alarm system:

Power supply 3.7V Lipo battery
Battery capacity 2000 mAh x 1
Standby time 720 hours
Charging cycle 1000 times
Charging time 2 hours
Adapter DC 5V-1A
Non-stop working time 7 hours
6-month warranty -



 Compressed air requirement:

Air consumption 180 liters/minute (6.4 CFM)
Supply air pressure 5 bars (72 psi)
