Aardwolf Battery Handy Vacuum Lifter ABHVL-380

Aardwolf Battery Handy Vacuum Lifter ABHVL-380

$3,217.00 USD
$3,576.00 USD $3,217.00 USD
Sale Sold out
Shipping calculated at checkout.

Part #

ABHVL-380

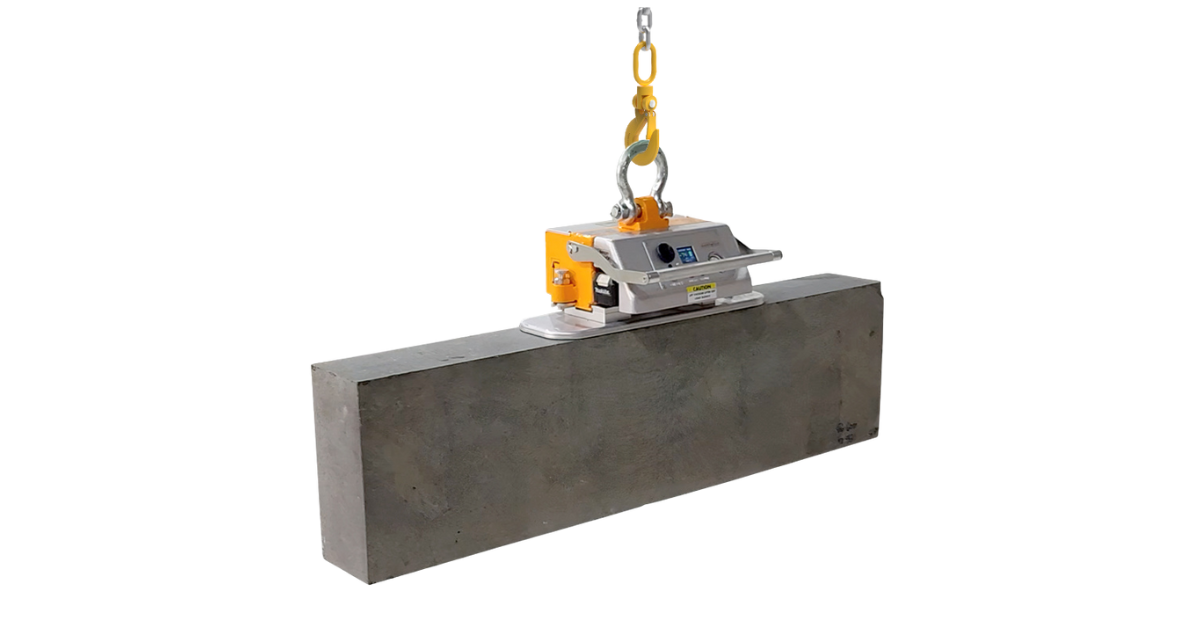

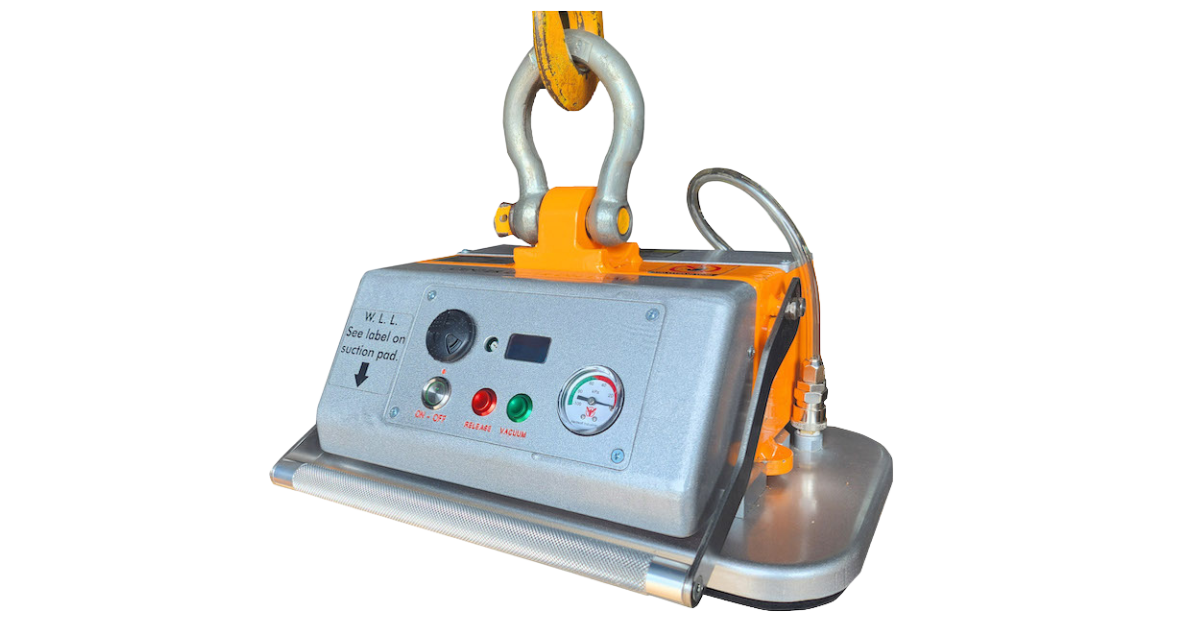

The latest Handy Vacuum Block Lifter showcases Aardwolf’s commitment to innovation in the stone industry. The upgraded model includes an integrated power battery vacuum system, removing the need for external pneumatic power with hoses. This improvement boosts the working load limit to 380 kg (838 lb) with multiple pad sizes optional, enhancing versatility and efficiency. Its user-friendly design simplifies operation, enabling a single push to lift or release the load vertically, making it an essential tool for quickly and safely handling block materials.>more

Key features

  • Work Load Limit: Up to 380 kg (838 lb) with different vacuum pad sizes.

  • Integrated Battery Vacuum System: No external pneumatic power with hoses is needed.

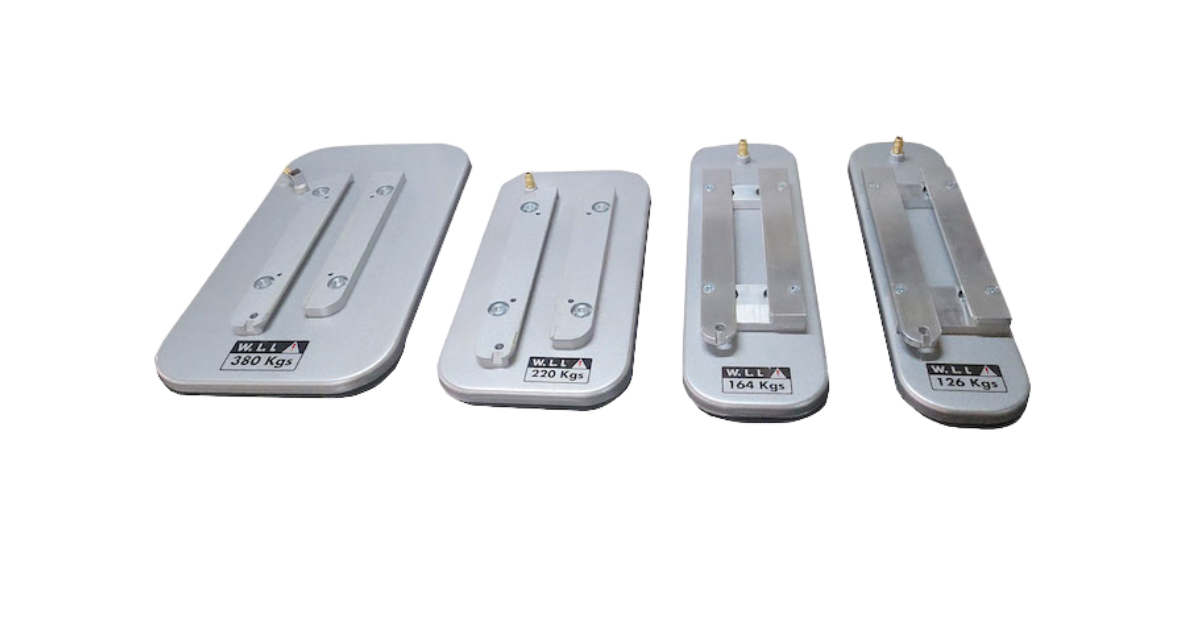

  • Versatile Pads: Includes four pad sizes for various W.L.L

  • Easy Pad Changes: Fast assembly for switching pads.

  • One-Click Operation: A single press to lift or release the load.

  • Visual Monitor and Alarm System: Ensures smooth and safe operation. Battery Backup: Prevents operational interruptions.

Specifications



Metric

Imperial

Working load limit

Pad sizes-Kg

500 x 125 mm: 126 kg

500 x 150 mm: 164 kg

420 x 220 mm: 220 kg

500 x 300 mm: 380 kg

19 3/4" x 4 7/8":   278 lb

19 3/4" x 5 7/8":   362 lb

16 1/2" x 8 5/8":   485 lb

19 3/4" x 11 3/4": 838 lb

Net weight

21 kg

46 lb

Gross weight

26 kg

57 lb

Packaging dimensions

L.550 x W.350 x H.270 mm

21 5/8" x 13 3/4" x 10 5/8"
