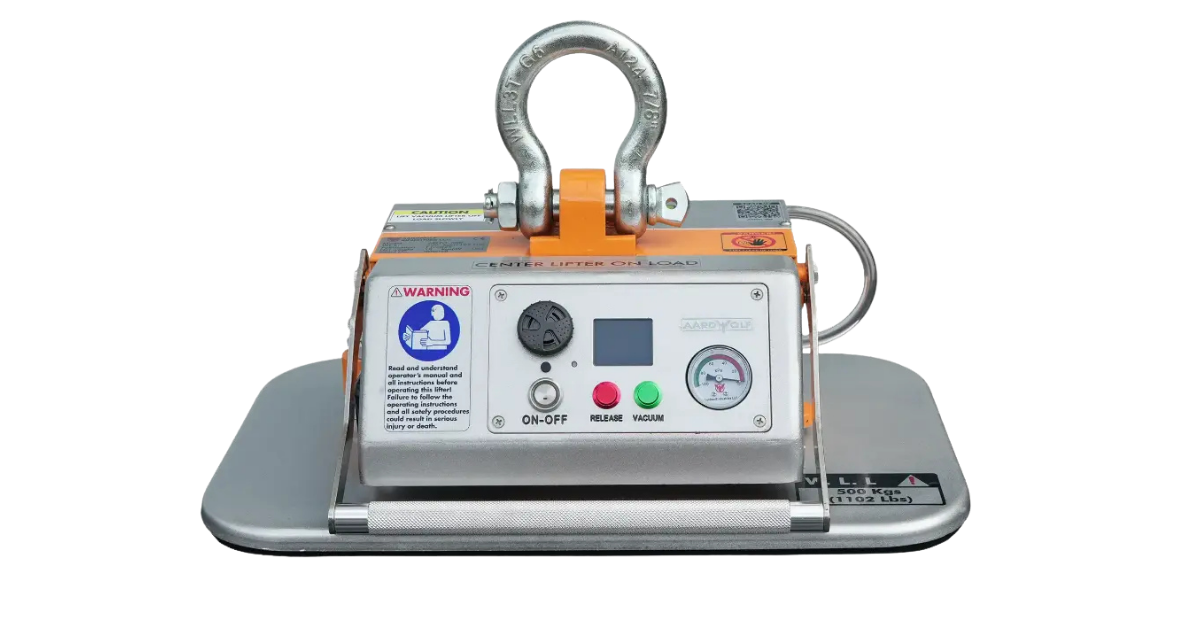

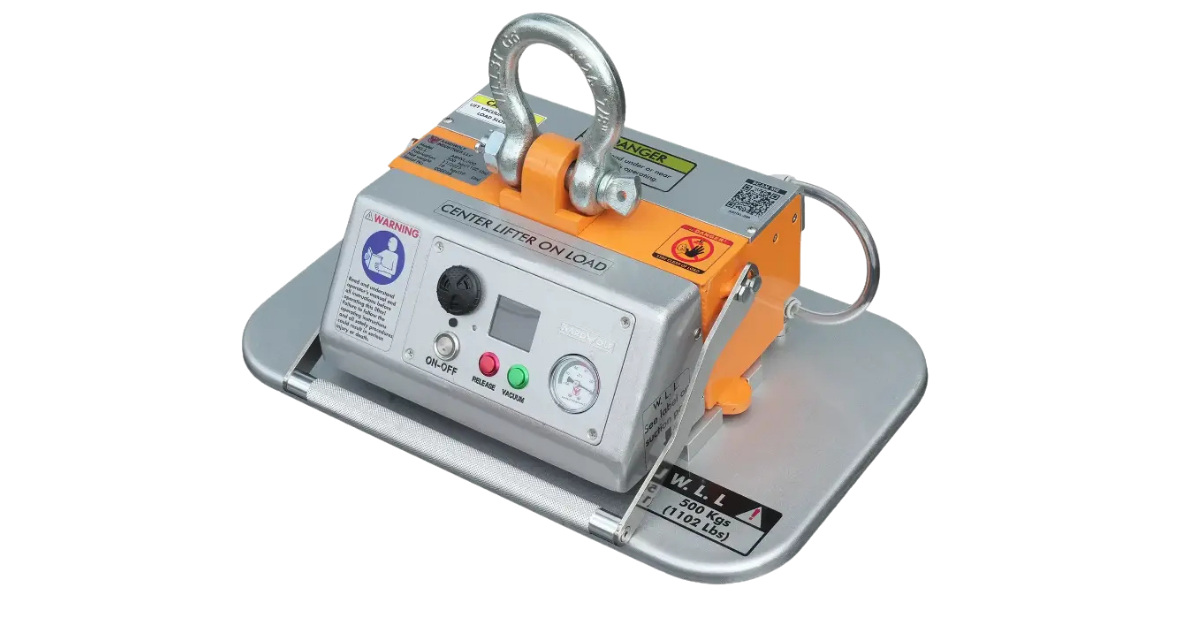

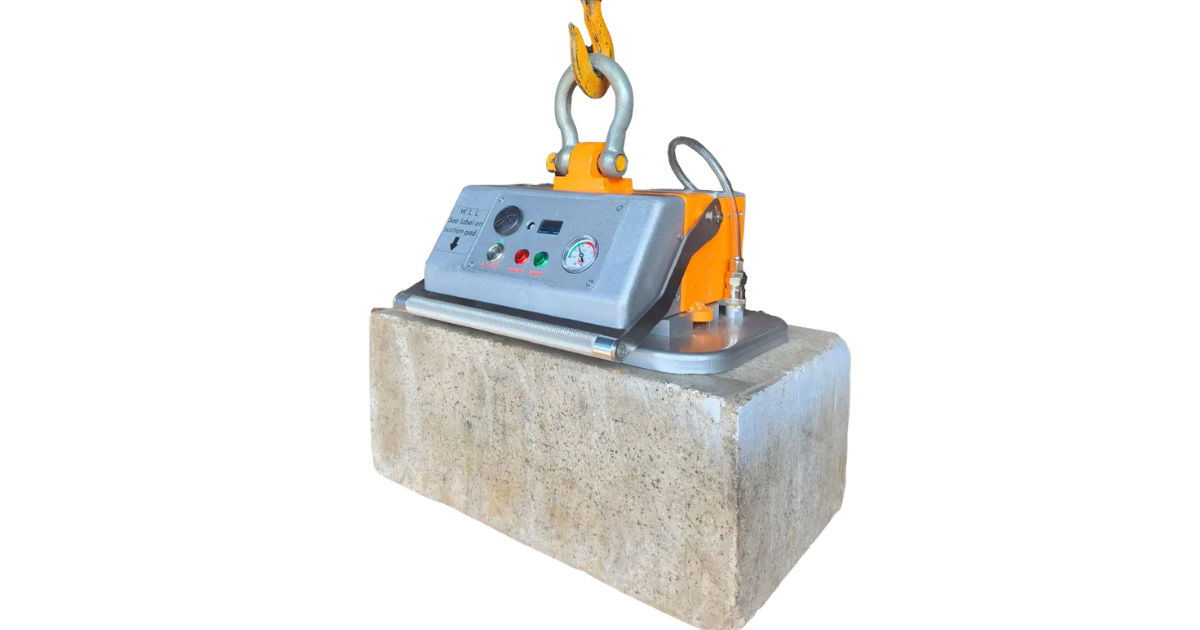

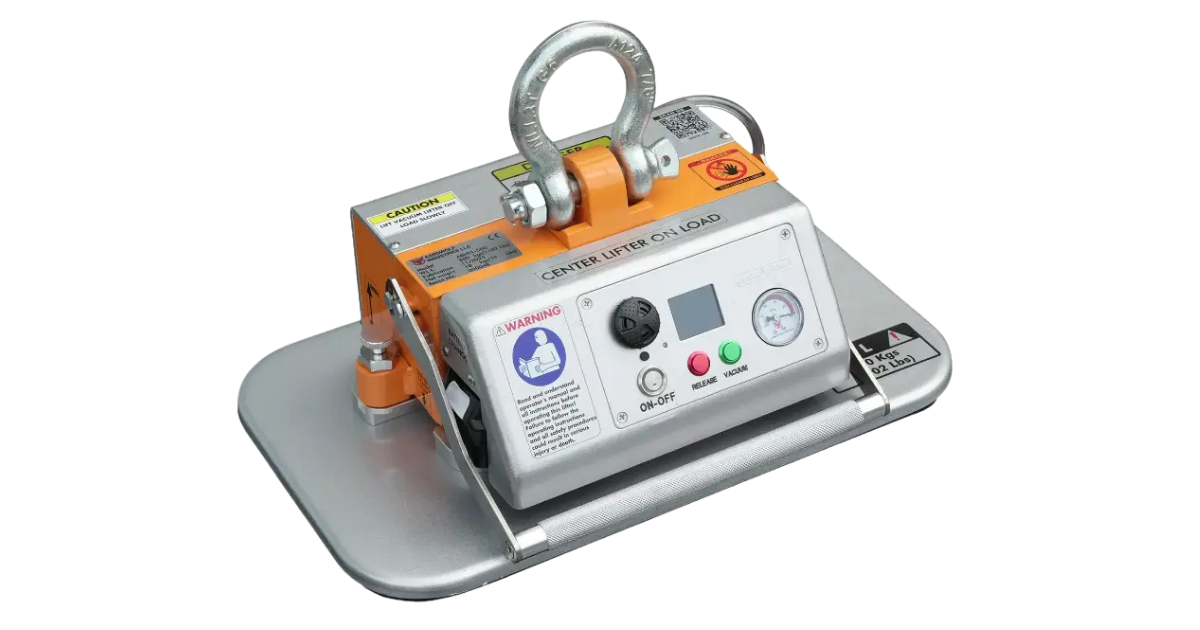

Aardwolf Battery Handy Vacuum Lifter ABHVL-500

Aardwolf Battery Handy Vacuum Lifter (ABHVL-500) - is a compact and durable lifting device designed for handling heavy stone and concrete materials. It operates on a high-performance battery-powered vacuum system that eliminates the need for external air supply.

With a lifting capacity of up to 1,100 lbs, the lifter is suitable for a variety of materials, including both smooth and rough surfaces. The quick-change battery allows continuous use throughout the workday, and the unit can be easily attached to a crane or hoist hook for flexible operation on different job sites.

TSC - Tait Sales & Consulting, is your trusted source and a Premier Authorized Aardwolf America Distributor. We supply 100% authentic Aardwolf equipment complete with full factory warranty protection.>more

Features:

• Lifting Capacity:Up to 1,100 lbs depending on pad size
• Battery-Powered Vacuum System:Generates vacuum through an integrated pump, removing the need for pneumatic hoses
• Interchangeable Pads:Available in four sizes to meet different load requirements
• One-Button Operation:Simplifies lifting and release functions.
• Visual Monitor and Alarm:Provides real-time vacuum level feedback and safety alerts.
• Battery Backup:Ensures continuous operation during power interruptions.

Specifications:
Item	Metric	Imperial
Working load limit	Pad Sizes: 500 x 125 mm: 126 kg 500 x 150 mm: 164 kg 420 x 220 mm: 220 kg 500 x 300 mm: 500 kg	Pad Sizes: 19 3/4" x 4 7/8":   278 lb 19 3/4" x 5 7/8":   362 lb 16 1/2" x 8 5/8":   485 lb 19 3/4" x 11 3/4": 1102 lb
Net weight	21 kg	46 lb
Gross weight	26 kg	57 lb
Packaging dimensions	L.550 x W.350 x H.270 mm	21 5/8" x 13 3/4" x 10 5/8"



Battery Information:
Battery capacity	12V – 6Ah
Charging time	2.5 hours (full charge)
Battery lifespan	800–1000 charge cycles
Operating time	Up to 3 hours continuous use
