Looking to move full size slabs of stone and quartz? This is the A-Frame that for slab suppliers and large fabricators that want to move and/or deliver full size slabs. Mad to be mounted on a flat bed truck.

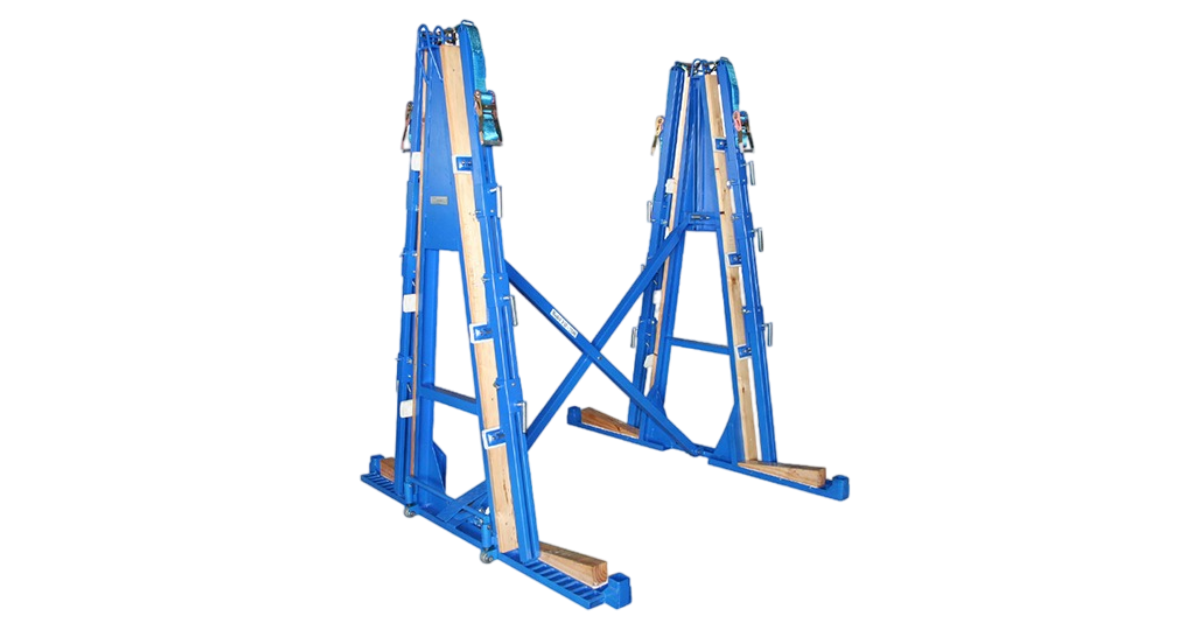

Hauling granite and marble isn't easy, and it certainly isn't safe if you dont have the right equipment. A well-made transporting frame is necessary for both the safety of the driver and other workers, as well as for the protection of the granite and marble. The sturdy Aardwolf Folding 'A' Frame, with its unique integrated vertical locking bars and ratchet locking straps, is designed to hold all material safely and securely, which eliminates risks to the operator and prevents damage to materials. The load is secured independently on each side by two vertical locking bars, which are inserted into brackets at the base of the frame and held by ratchet locking straps at the top. The unloaded frame can be folded up by the simple withdrawing of two spring-loaded pins from the cross braces and the lowering of the three wheels at one end by means of a cam lever. The lowered wheels also allow the frame to be positioned on the tray of a truck or manually moved around the factory.
Bolt holes in the base of the frame for optionally securing the Folding 'A' Frame to the vehicle
Granite is secured by rubber pads mounted on cleats, which are in turn adjustable in height along the vertical locking bars
Large hand-tightened wing nuts are used to tighten the cleats to the vertical locking bars
