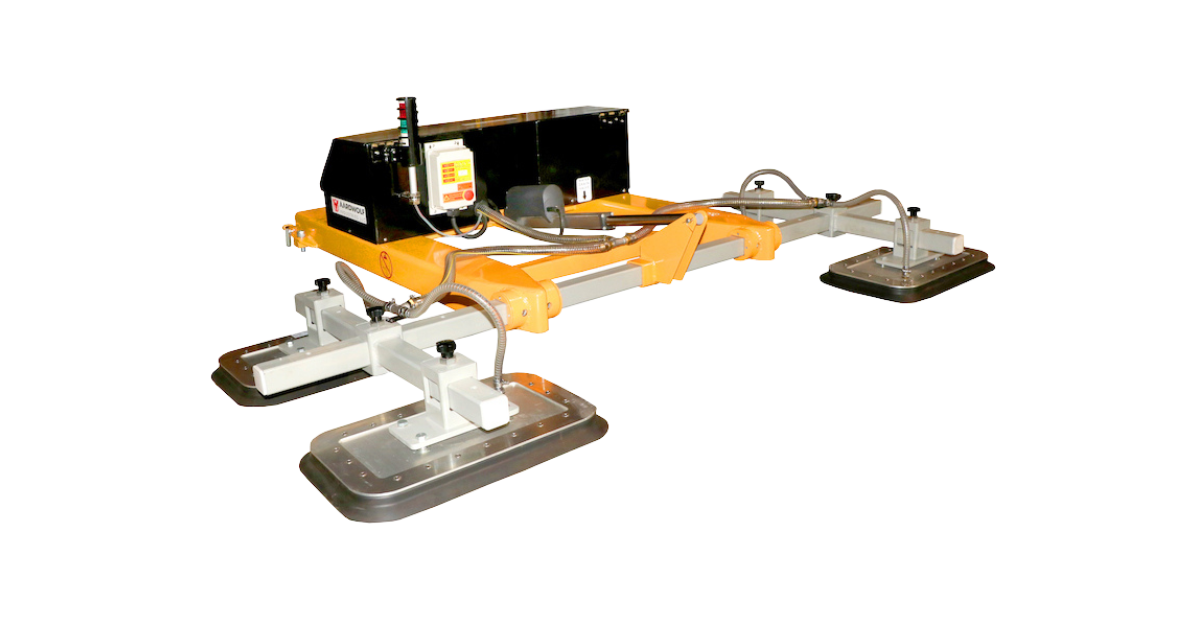

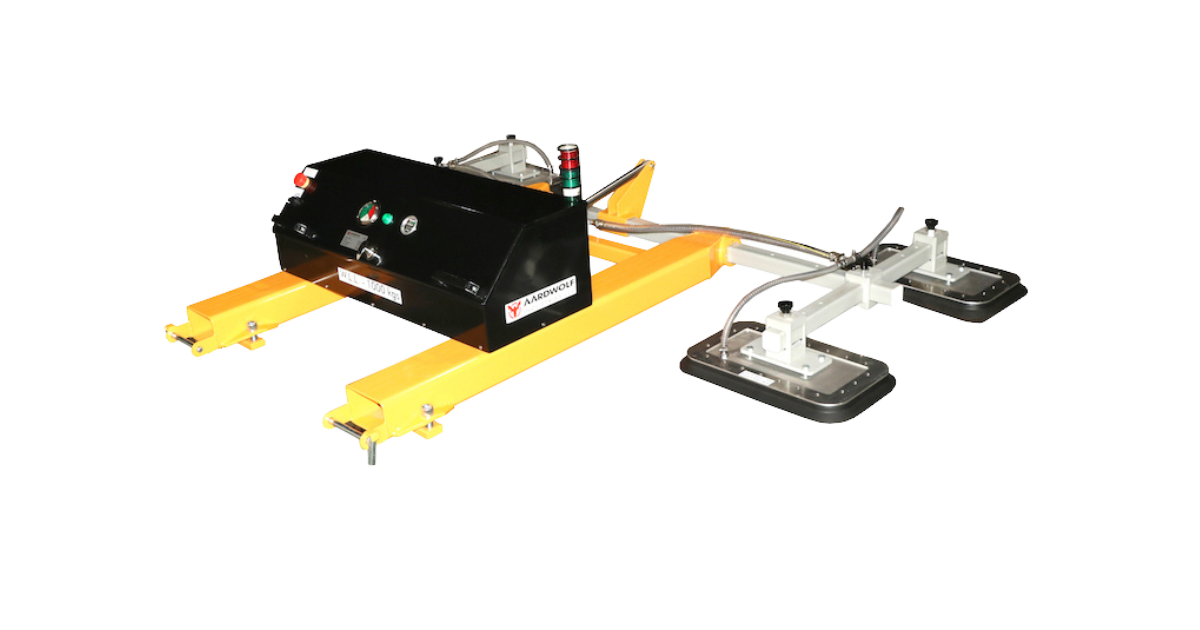

Aardwolf Fork Mounted Vacuum Lifter FMVLA

Aardwolf Fork Mounted Vacuum Lifter FMVLA

Regular price $14,550.00 USD
Regular price $16,290.00 USD Sale price $14,550.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:FMVLA

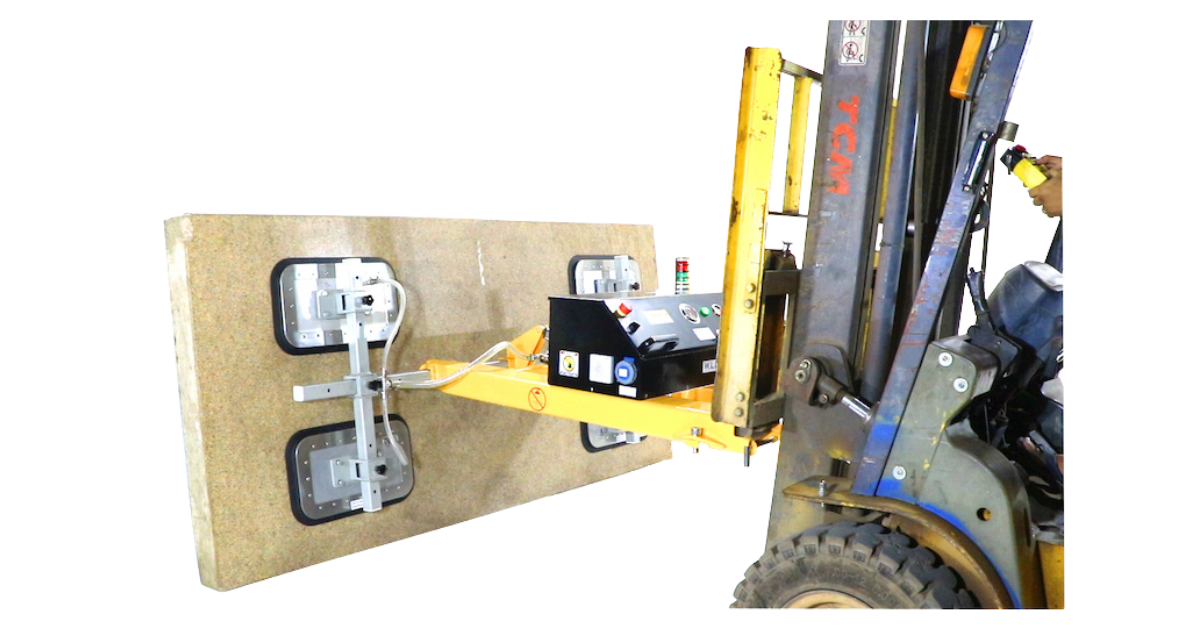

The Fork Mounted Vacuum Lifting Attachment is designed to lift and lower sheet materials. The device combines with a vacuum lifter with a fork truck and remote control for handling diversified types of sheet, plate and large panels such as glass, stone, metal, concrete, plastics, timber and laminates.

Features

  • Ability to turn 90 degrees through an electrically operated remote control.
  • Vacuum pads can be easily adjusted.
  • The pressure control system automatically activates the vacuum pump once the pressure is lower than the allowed limit.
  • Operated by an Australian Standard AS4991-2004 battery.
  • Audio/visual safety system.
  • Integrated with a forklift through a safe chain system.
  • Provides versatile lifting that is cost-effective.
  • More versatile than magnets and more productive than clamps or slings.

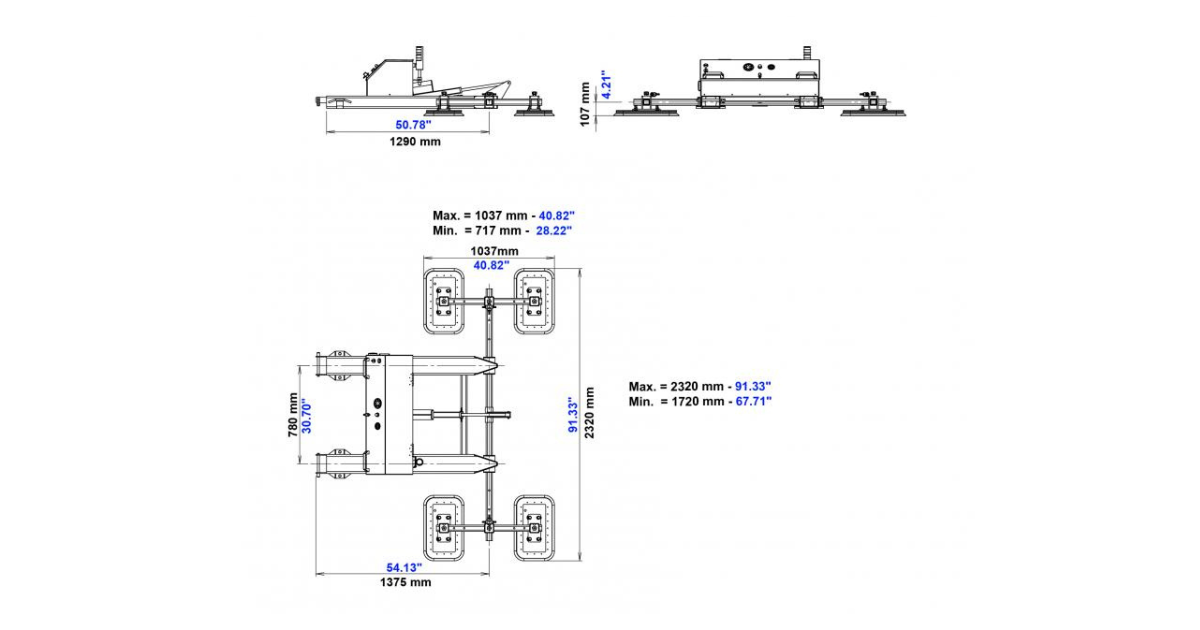

Specifications:


Metric
(mm-kg)
Imperial
(inch-lb)
Length-width of sheet material 3000 - 2000 118" - 79"
Pad sizes Pad 300
Pad 520x320
12"
20.5"x12.6"
Working load limit Vertical: 760
Horizontal: 1000
1676
2204
Net weight 275 606
Gross weight 360 1200
Packaging dimensions 2140x1650x580 84.3"x65"x22.8"



Battery information for the device:

Power supply 12V-100A battery
Charging requirements 12V-20A
Standby time >100 hours
Charging cycle 1000 times
Charging time 5 hours
Non-stop working time 3 hours
6-month warranty



Motor information for the device:

Vacuum flow rate 55.8 liters/minute
Motor 12V DC-12.8A
