Aardwolf Forklift Boom

Aardwolf Forklift Boom - All Forklift Booms are made from high-grade Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability, and safety. The Forklift Booms complement the patented range of Aardwolf lifting clamps.

TSC - Tait Sales & Consulting, is your trusted source and a Premier Authorized Aardwolf America Distributor. We supply 100% authentic Aardwolf equipment complete with full factory warranty protection.>more

Features:

• The boom extension is designed so it cannot be pulled all the way out
• The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins

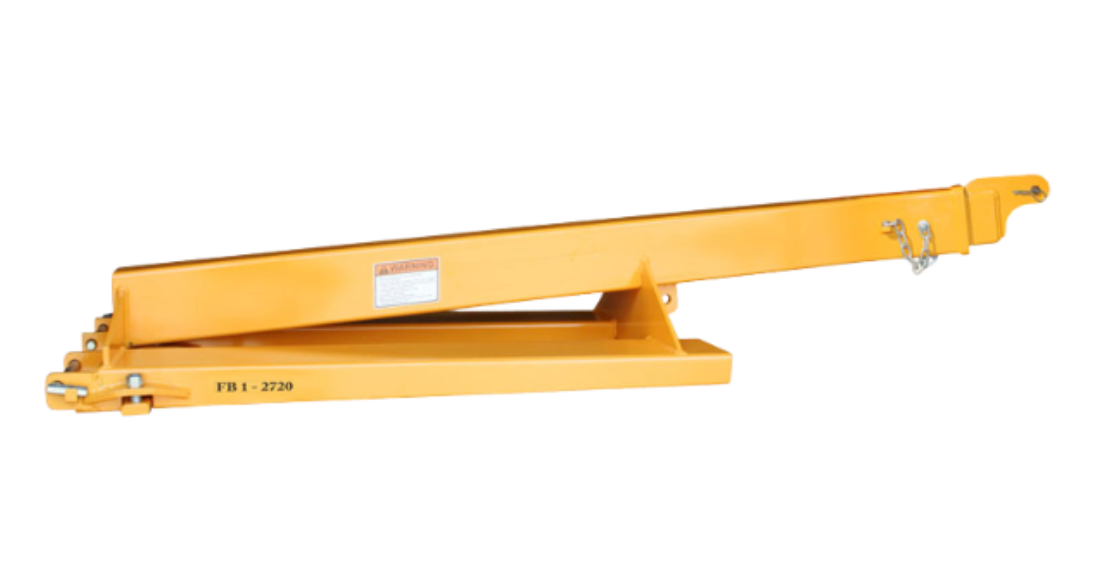

Specifications - FB1-2720 The Forklift Boom FB1-2720 is a telescoping two section rectangular tube steel boom for use on 2 ton and 2.5-ton forklift trucks. It offers versatility with maximum visibility for the driver.

	Metric  (mm-kg)	Imperial  (inch-lb)
Slip onto forks designed with fork pockets	150x58	5.9"x2.3"
Fork pockets from the center to center	366	14.4"
Manually telescopes	1610 - 2724	63.4"x107"
Increment	557	21.9"
Working load limit	Retracted: 1500 Extended: 500	3307 1102
Net weight	91	201
Gross weight	100	220
Packaging dimensions	1750x620x410	69"x24.4"x16.1"

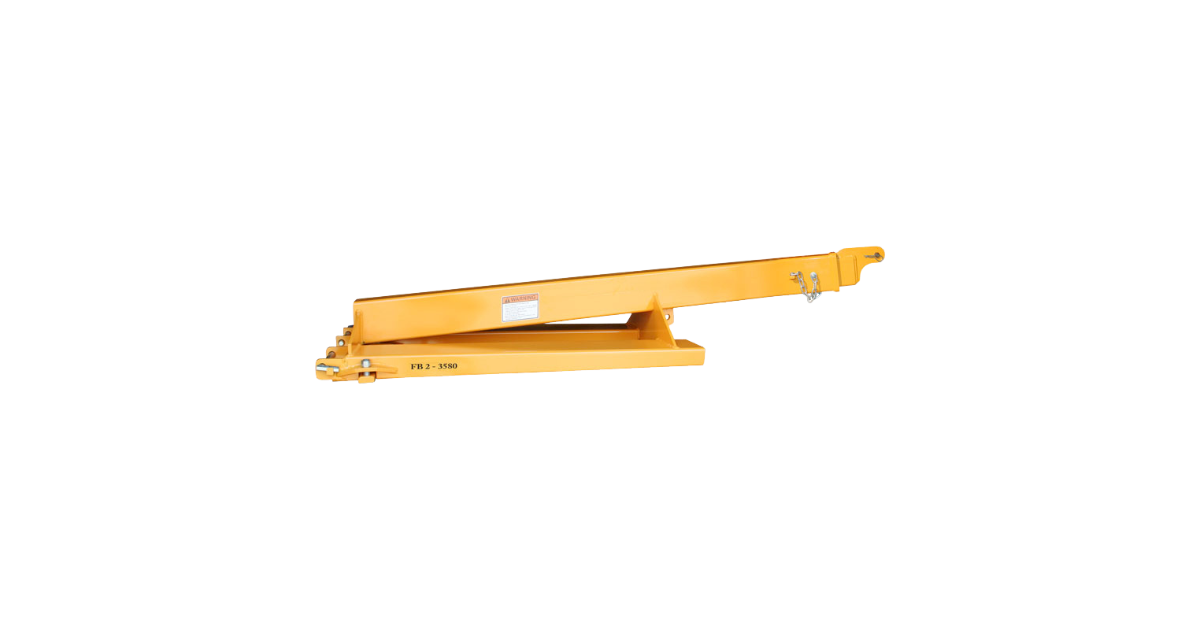

Specifications -FB2-3580 The Forklift Booms are made from high-grade Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability, and safety. The Forklift Booms complement the patented range of Aardwolf lifting clamps. The FB2-3580 is a telescoping two section rectangular tube steel boom for use on 3-tonne forklift trucks and larger. It offers versatility with maximum visibility for the driver.

	Metric  (mm-kg)	Imperial  (inch-lb)
Slip onto forks designed with fork pockets	165x65	6.5"x2.6"
Fork pockets from the center to center	377	14.8"
Manually telescopes	2107 - 3580	83''x141"
Increment	491	19.3"
Working load limit	Retracted:1500 Extended:600	3307 1322
Net weight	136	300
Gross weight	146	322
Packaging dimension	2250x630x550	88.6"x24.8"x21.7"

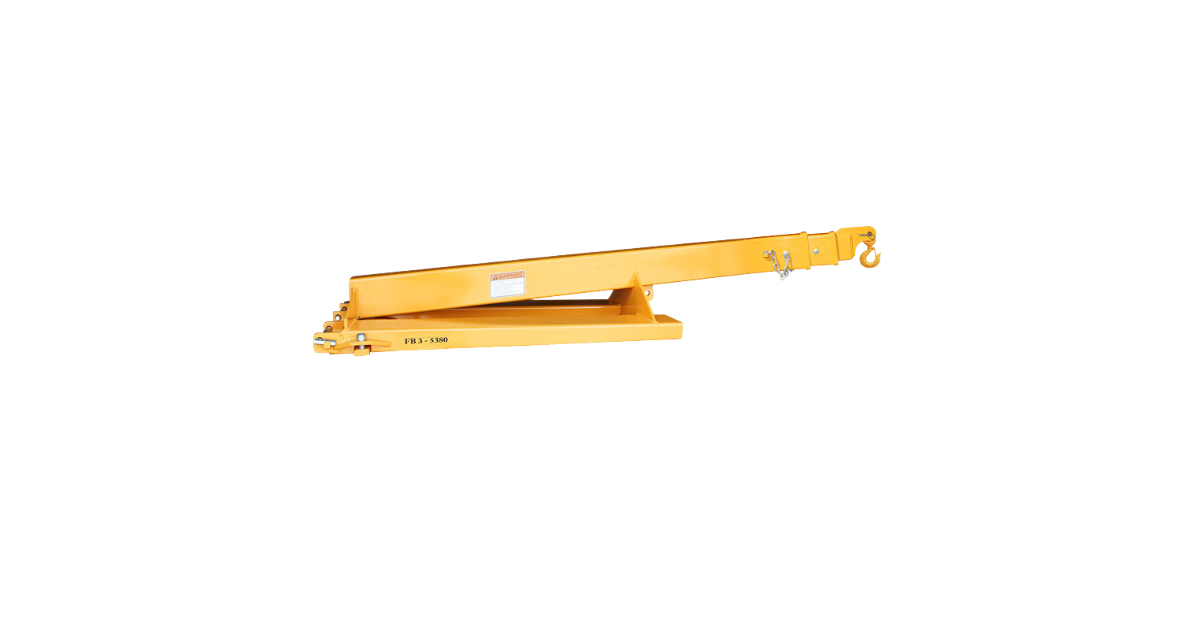

Specifications -FB3-5380 The FB3-5380 is a telescoping three-section rectangular tube steel boom for use on 3-tonne forklift trucks and larger. It offers versatility with maximum visibility for the driver.

	Metric  (mm-kg)	Imperial  (inch-lb)
Manual telescope	2196 - 5380	86.5" - 212"
Increment	796	31.3"
Slip onto fork designed with fork pocket	165x65	6.5"x2.6"
Fork pocket	377	14.8"
Working load limit	Retracted: 2400 Extended: 300	5291 661
Net weight	163	359
Gross weight	173	381
Packaging dimensions	2350x630x580	92.5"x24.8"x22.8"

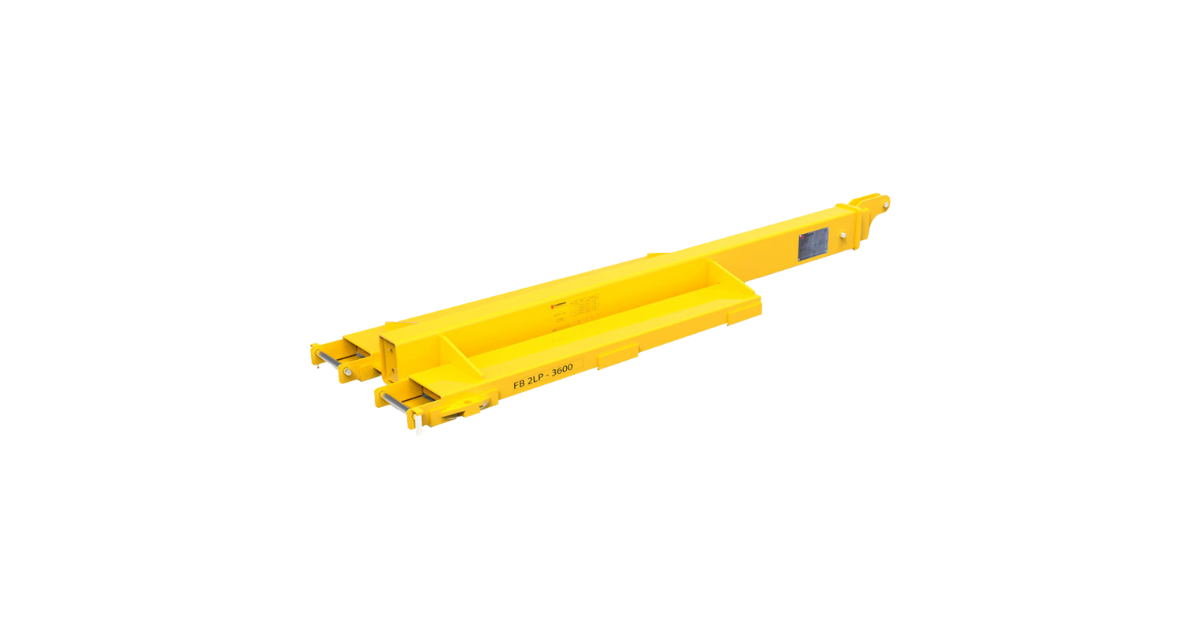

Specifications -FB2LP-3600 The Forklift Boom FB2LP-3600 has a low profile design specifically intended for unloading marble and granite sheets from closed van containers where height is a critical factor. The FB2LP-3600 is a telescoping two section rectangular tube steel boom built to comply with current safety guidelines and manufactured from heavy gauge Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability, and safety.

	Metric  (mm-kg)	Imperial  (inch-lb)
Manual telescope	2121 - 3603	84.5" - 141.9"
Increment	494	19.4"
Slip onto fork designed with fork pockets	165x65	6.5"x2.6"
Fork pockets from the center to center	377	14.8"
Working load limit	Retracted:2400 Extended:600	5291 1323
Net weight	134	295
Gross weight	144	318
Packaging dimensions	2280x640x370	89.8"x25"x14.6"

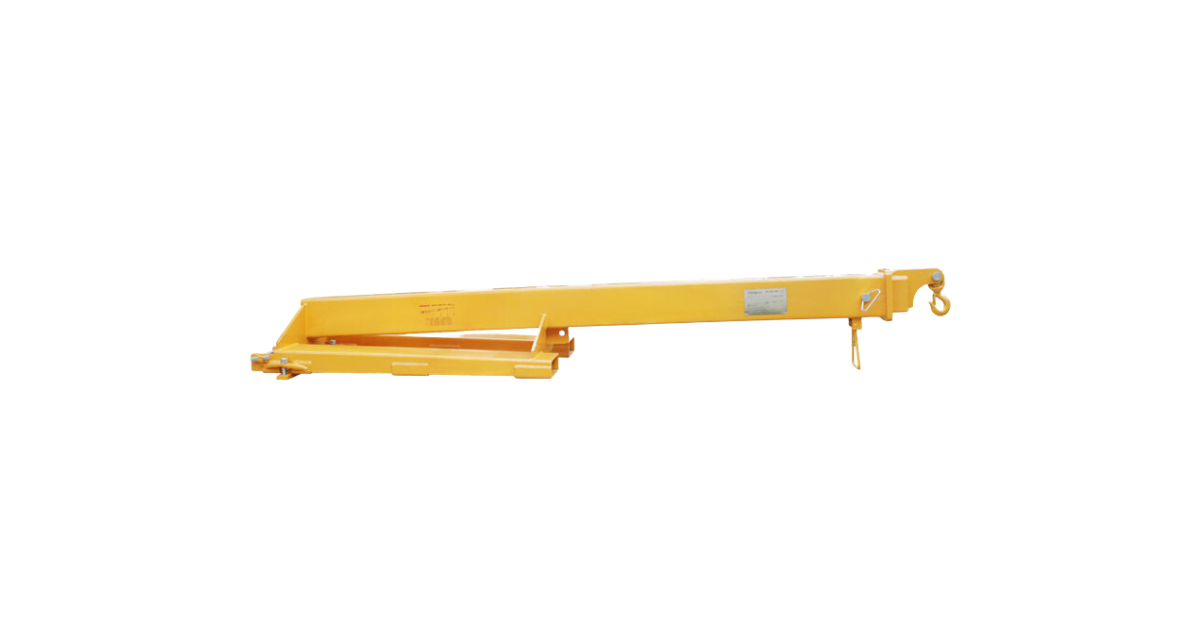

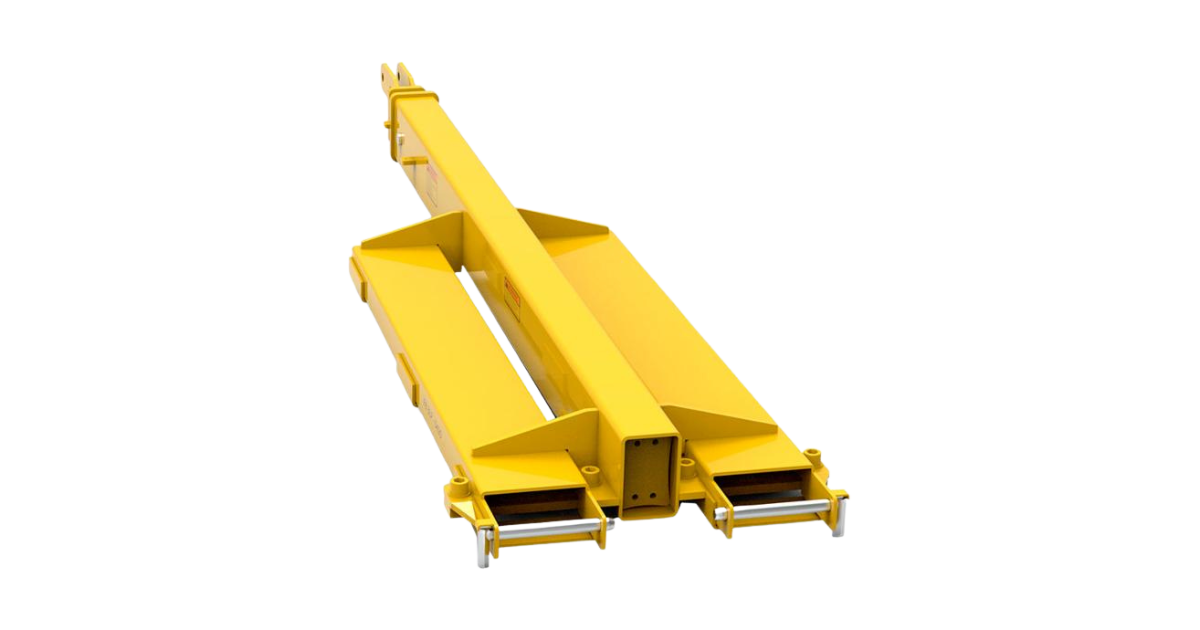

Specifications -FB4-4800 The Forklift Boom FB4-4800 is made from high-grade Australian rectangular tube steel, which ensures strength, reliability, and safety. The Forklift Boom FB4-4800 is a telescoping two section rectangular tube steel boom for use on 5 to 8-tonne forklift trucks. It offers versatility with maximum visibility for the driver.

	Metric  (mm-kg)	Imperial  (inch-lb)
Manual telescope	2800-4800	110"-189"
Increment	1000	39.4"
Slip onto fork designed with fork pockets	193x81	7.6"x3.2"
Fork pockets from the center to center	520	20.5"
Working load limit	Retracted: 3000 Extended: 1000	6614 2204
Net weight	198	437
Gross weight	210	463
Packaging dimensions	L.2850xW.820xH.580	L.112.2"xW.32"xH.22.8"

Specifications -FB3LP-5420

FB3LP-5420	Metric  (mm-kg)	Imperial  (inch-lb)
Manual telescope	2210 - 5410	87'' - 213''
Increment	800	31.5"
Slip onto fork designed with fork pocket	165 x 65	6.5''x2.6''
Fork pocket from centre to centre	377	14.8''
Working load limit	Retracted: 2400 Extended: 300	5291 661
Gross weight	172	379
Packaging dimensions	2400x640x400	94''x25''x15.7''

Note: Three alternatives for attaching the Aardwolf Lifters to the forklift boom:

• Combo Swivel, Chain, Lifting Lug. Allows flex between the boom and load. Prevents slab breakage when traversing rough terrain. It also allows the lifter to be lowered down into confined spaces, such as when lifting a short slab from a racking system.
• Forged Aluminum Swivel Shackle. A compact swivel shackle that attaches directly to the forklift boom and Aardwolf lifting clamp. Gives operators maximum lift within a shipping container.
• Bow Shackle 3.0T. General-purpose. Useful in many applications for safe and secure attachments.

 Boom lift capacities depend completely on the capacity of the forklift being used.
