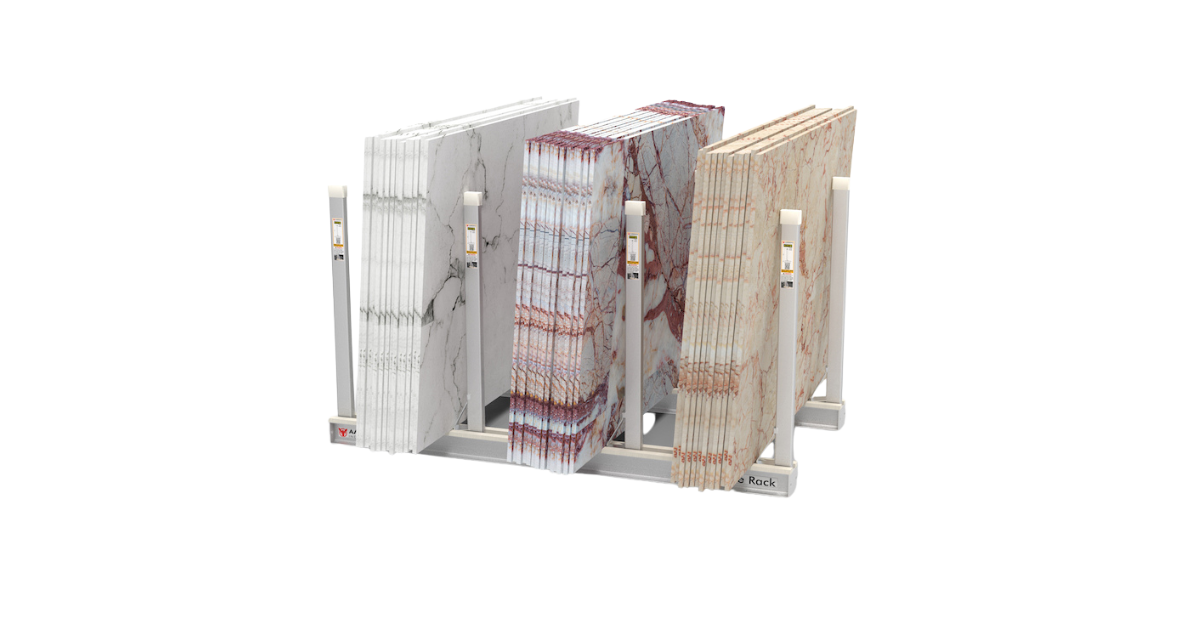

• The Aardwolf Galvanized Bundle Rack is a versatile solution for storing slabs of stone, glass, or steel in an upright position.
1 5

Aardwolf

Aardwolf Galvanized Bundle Rack

Aardwolf Galvanized Bundle Rack

$1,170.00 USD
$1,967.00 USD $1,170.00 USD
Sale Sold out
Shipping calculated at checkout.

ABR0106

Size

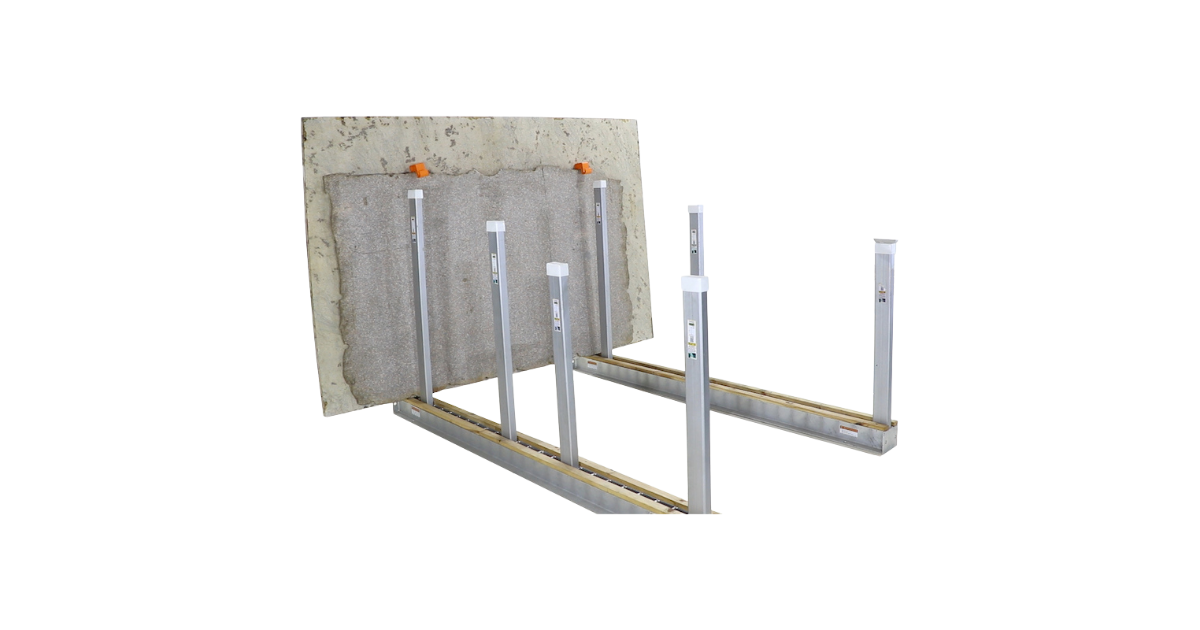

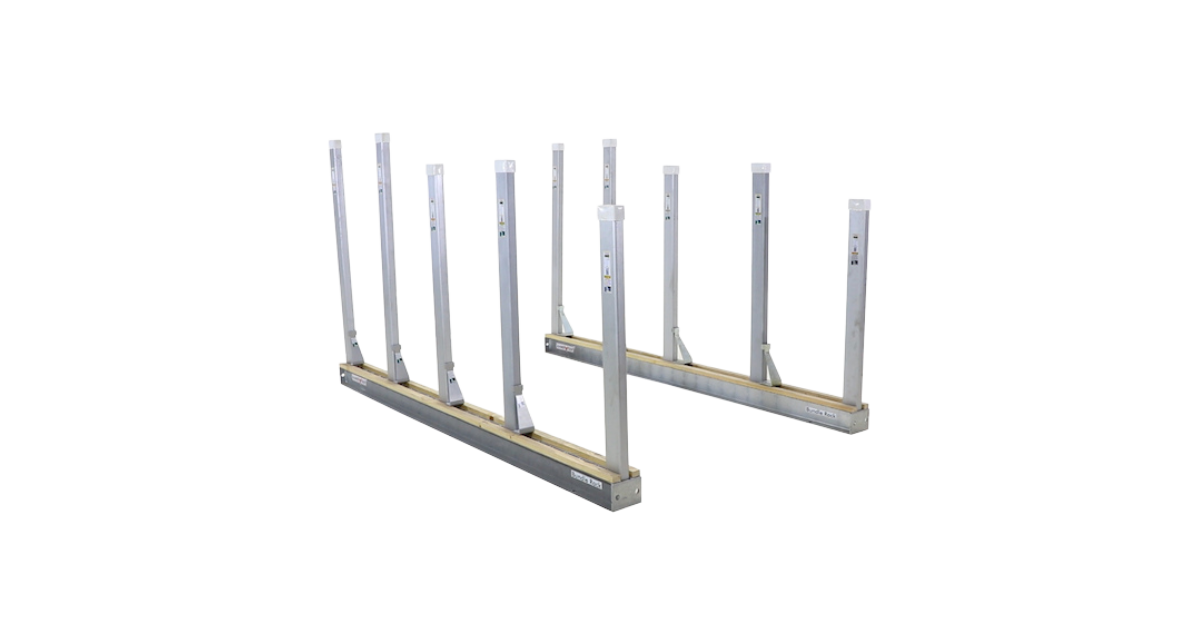

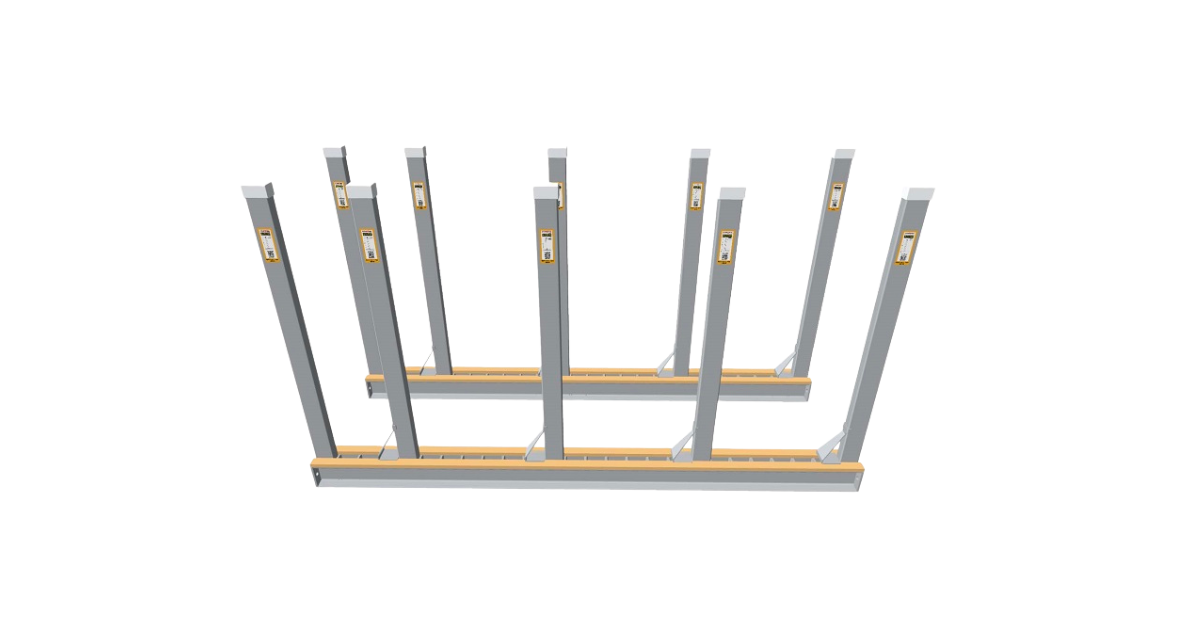

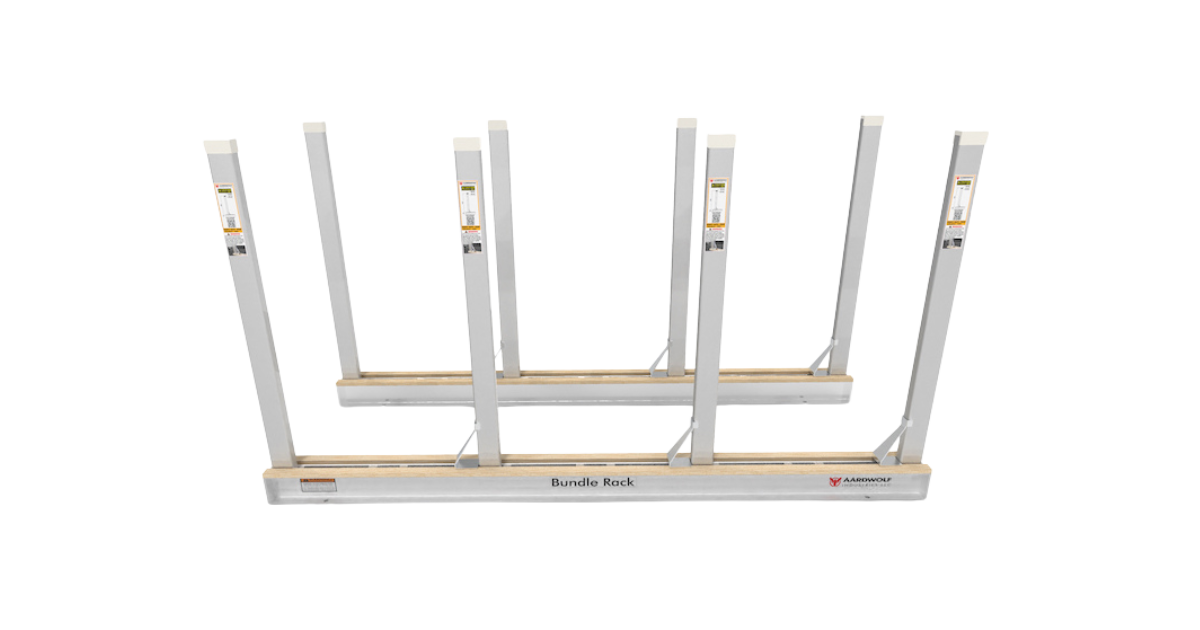

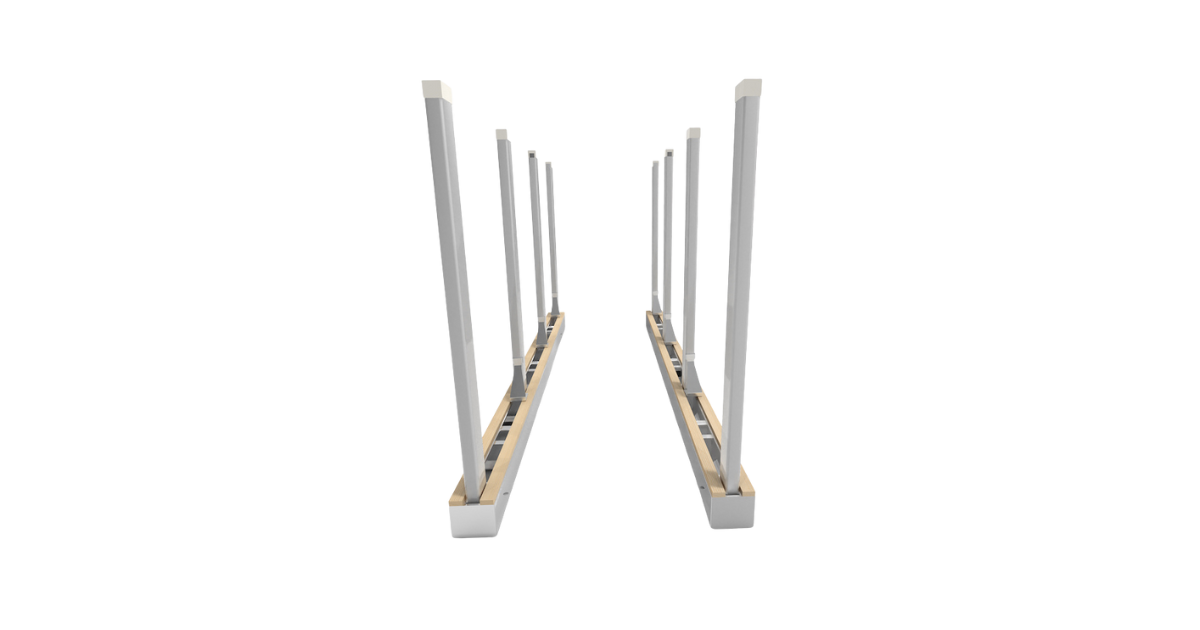

The Aardwolf Bundle Rack kit consists of a pair of galvanized steel rails 3m long, together with rectangular galvanized steel tube posts. The rectangular posts can be positioned anywhere along with the rack. All posts are manufactured from rectangular tube steel with a minimum yield strength of 345Mpa, with 5mm wall thickness, ensuring safety for the vertical storage of slab bundles.

Features

  • The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions.
  • Aardwolf has developed a simple calculator specifically to calculate the slab storage capacity. See link below.
  • Safety Posts available in 3 standard heights of 1200mm, 1400mm, 1600mm. Kits listed above include posts.
  • Additional Safety Posts sold separately.
  • Additional Post Bases sold separately.
  • Additional Base Rails sold separately.

Specifications:

Metric
(mm-kg)
Imperial
(inch-lb)
Galvanized steel rail 2925x164x165 115.1"x6.4"x6.5"
Rack height 165 6.5"
Rectangular hole 101.5x52 4"x2"
Increment 111.5 4.4"
Rectangular tube post 100x50 3.9"x2"
Posts wall thickness  5 0.2"
Rectangular rubber cap 100x50 4"x2"
Timber battens per rail 50x25 2"x1"
Net weight 77.7/PCS 171
Gross weight 78 171
Packaging dimension 2925x165x165 115"x6.5"x6.5"

To view, the Slab Rack Storage Calculator click here
This tool will help you decide how many posts and what type of posts you may require.

Warning: Do not use the Aardwolf Slab Rack Storage Calculator to calculate the storage capacity of competitors posts as they may use posts with a different profile and steel of lower yield strength.
