Aardwolf

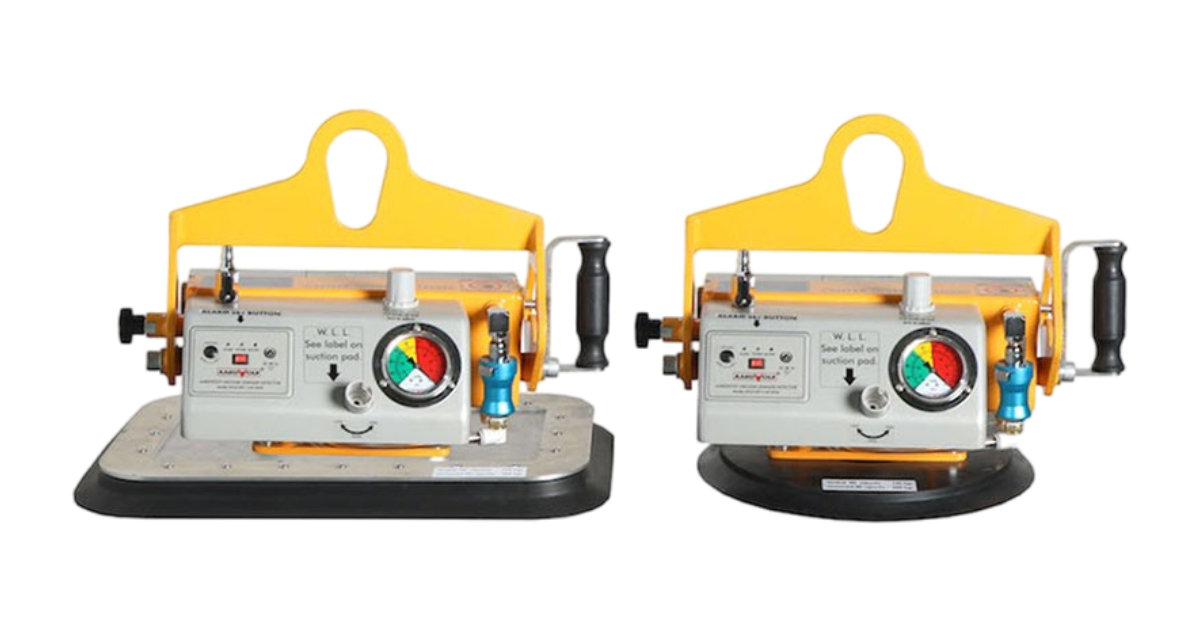

Aardwolf Hand Pump Vacuum Lifter AVLHP240/480
Aardwolf Hand Pump Vacuum Lifter AVLHP240/480
Regular price
$2,227.00 USD
Regular price
Sale price
$2,227.00 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:AVLHP240/480
Couldn't load pickup availability
The AVLHP240/480 is powered by a hand pump or venturi pump designed to be used in the factory or on the building site. It is especially suitable for the horizontal transportation of non-porous sheet materials such as steel plate, glass, aluminum plate and polished marble or granite. New optional foam pad available for more porous materials and thermal finishes.
Features
- Dust and fire resistant
- Attach/release materials with an on/off slide valve
- Acoustic/visual alarm system
- Replaceable suction pads
Specifications
|
Metric
(mm-kg)
|
Imperial
(inch-lb)
|
|
| W.L.L for 300 mm dia. Rubber pad size | Vertical: 120 Horizontal: 240 |
265 529 |
|
W.L.L for rectangular 520x320mm (Rubber pad) OPTIONAL SPECIAL ORDER |
Vertical: 225 Horizontal: 450 |
496 992 |
|
W.L.L for 520x320mm (Foam pad - Must have compressed air supply) OPTIONAL ADDITIONAL PAD SOLD SEPARATELY |
Vertical: 240 Horizontal: 480 |
529 1058 |
| Net weight of round rubber pad | 18 | 40 |
| Net weight of rectangular rubber pad | 23 | 51 |
| Gross weight round rubber pad | 26 | 57 |
| Gross weight of the rectangular rubber pad | 31 | 68 |
| Packaging dimensions | 550x380x470 | 21.6"x15"x18.5" |
Compressed Air Requirements:
Air Consumption: 180 l/min
Supply Air Pressure: 5 bar at the vacuum lifter
Battery Information For Alarm System
- Lipo Battery Capacity: 3.7V 2000mAhx1
- Standby Time: 720h
- Non Stop Working Time: 7h
- Charging Requirements:
+ Input: 220V 50-60Hz
+ Output: 5V 1A
- Charging Cycle: 1000 times
- Charging Time: 2h
Package Dimensions: L550 x W380 x H470mm
Vacuum Lifter Weight: 22.6kg
Gross Weight: 31kg
