Aardwolf

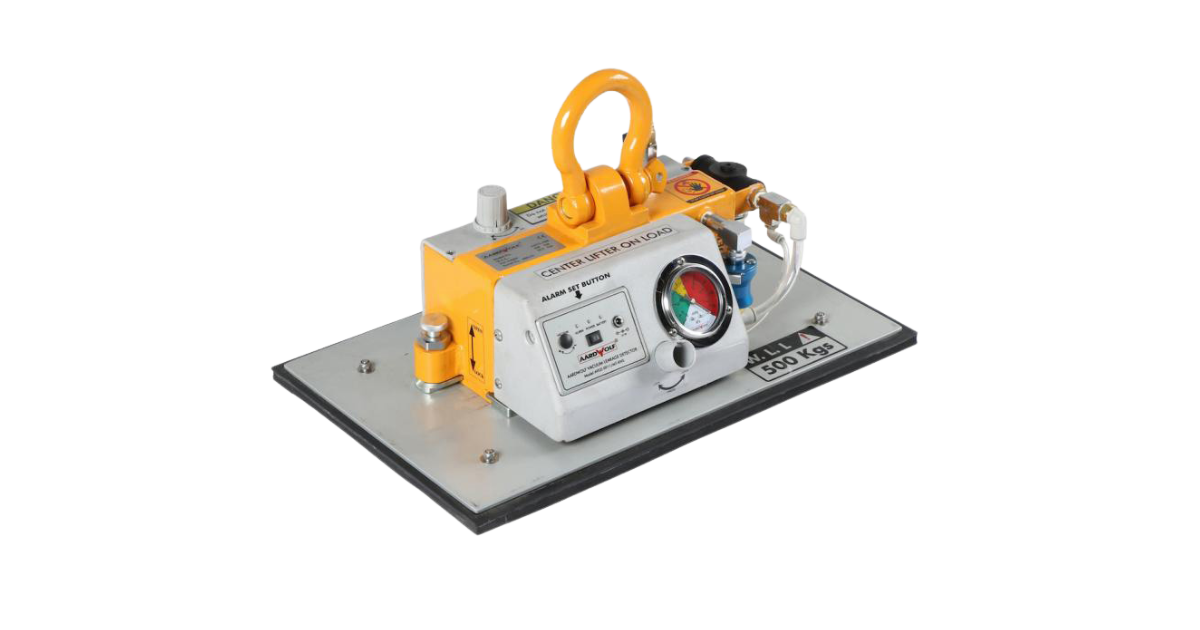

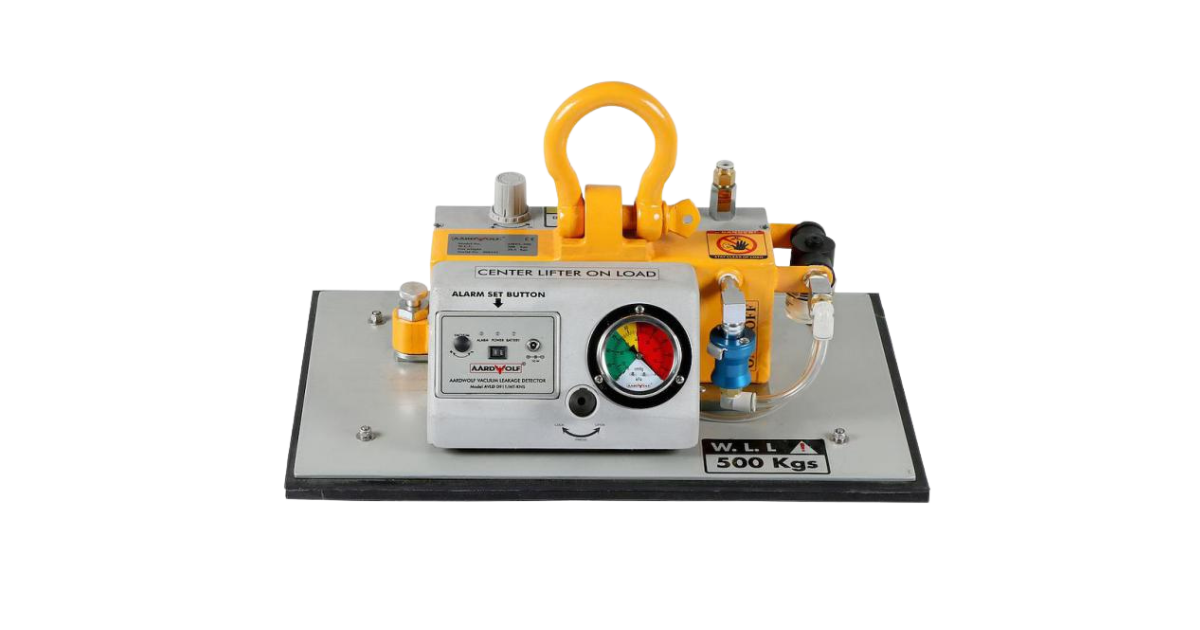

Aardwolf Handy Vacuum Lifter AHVL500

Aardwolf Handy Vacuum Lifter AHVL500

Regular price $2,100.00 USD
Regular price $2,333.00 USD Sale price $2,100.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:AHVL500

The AHVL500 is powered by a venturi vacuum generator, which needs a source of compressed air in order to function but requires no electricity. The vacuum generator has no moving parts and therefore no lubrication is required. This lifter consists of four (4) pads to make it can be replaced with different pads so that it fits with the sizes of materials.

Features

  • Adjustable vacuum pads.
  • Attach/release materials with an ON/OFF slide valve.
  • Acoustic alarm system independently powered by a small 9V rechargeable battery.
  • Vacuum gauge for a visual warning of low vacuum.


    Specifications:

    • For stone, concrete, foam pads

    Metric
    (mm-kg)
    Imperial
    (inch-lb)
    Working load limit Pad sizes-Kg
    520x125:120
    520x160:180
    520x220:280
    520x320:500

    20.5"x5":265
    20.5"x6.3":397
    20.5"x8.7":617
    20.5"x12.6":1102
    Net weight 45 100
    Gross weight 61 135
    Packaging dimensions 550x350x270 21.7"x13.7"x10.6"

    Battery information for the alarm system:

    Power supply 3.7 V Lipo battery
    Battery capacity 2000 mAh x 1
    Adapter DC 5V-1A
    Standby time 720 hours
    Charging cycle 1000 times
    Charging time 2 hours
    Non-stop working time 7 hours
    6-month warranty -

    Compressed air requirement:

    Air consumption 180 liters/minute
    Supply air pressure 5 bars (72 psi)
