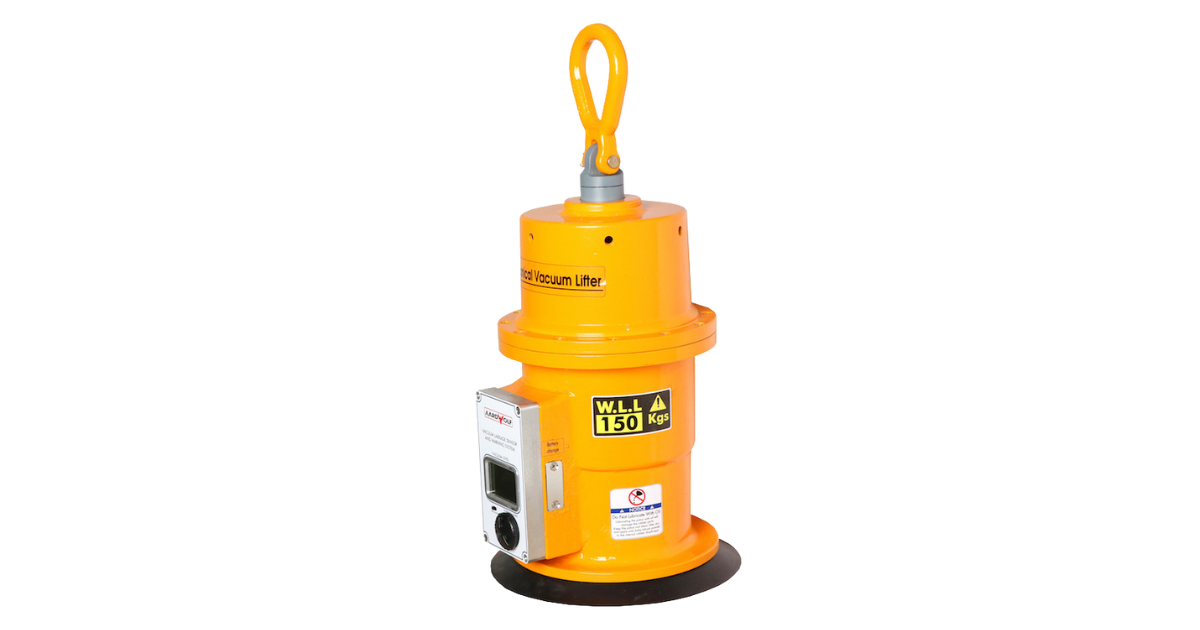

No power source required. Ideal for the horizontal handling of non-porous sheet and plate materials such as diamond sawn or polished granite, engineered stone, all types of metals, plastics and fiberglass. An automatic self-cycling valve located at the bottom of the piston controls the vacuum grip-and-release cycle.
A handle (sold separately) is manually employed by two persons for easy transportation.
Features
Self-powered and self-cycling.
Audio alarm system powered by a non-rechargeable 9V battery.
Immediately ready for operation.
Low maintenance.
Aluminum construction.
With Swivel hook
Specifications:
Metric
(mm-kg)
Imperial
(inch-lb)
Pad diameter
Seal to seal: 200
8"
Working load limit
150
331
Net weight
12
26
Gross weight
16
35
Packaging dimensions
320x320x390
12.6"x12.6"x15.3"
Specifications (With handle hook):
Metric
(mm-kg)
Imperial
(inch-lb)
Working load limit
150
331
Weight
14
31
Package weight
23
51
Packaging dimensions
830x280x570
32.7"x11"x22.4"
Battery information:
Power supply
9 V non-rechargeable
6-month warranty
-
