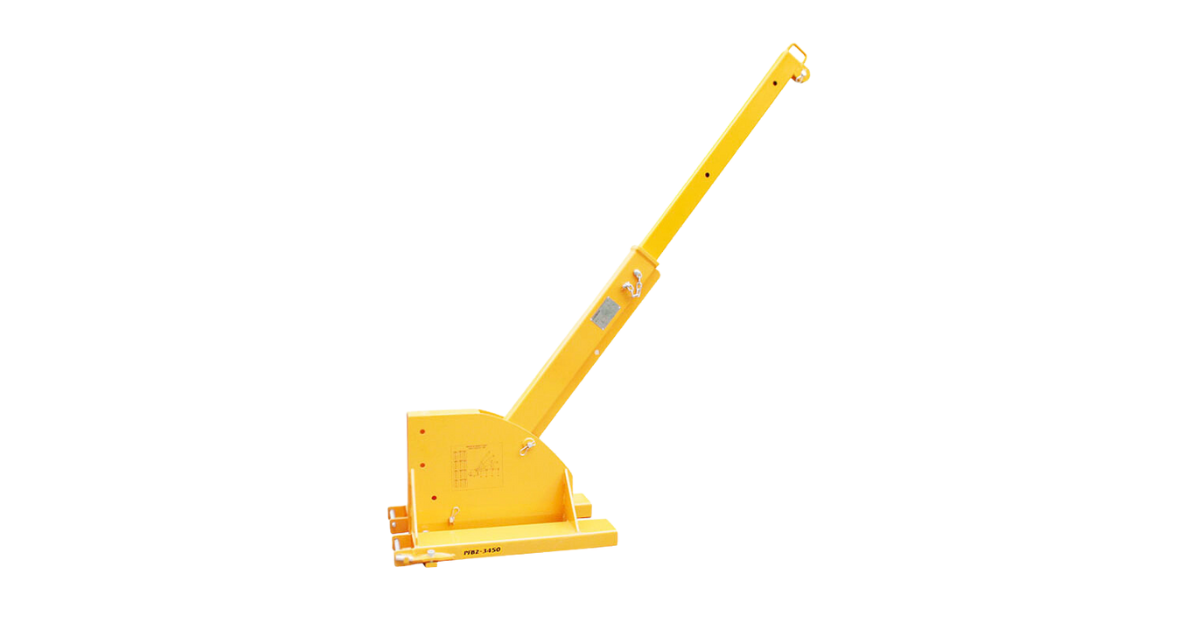

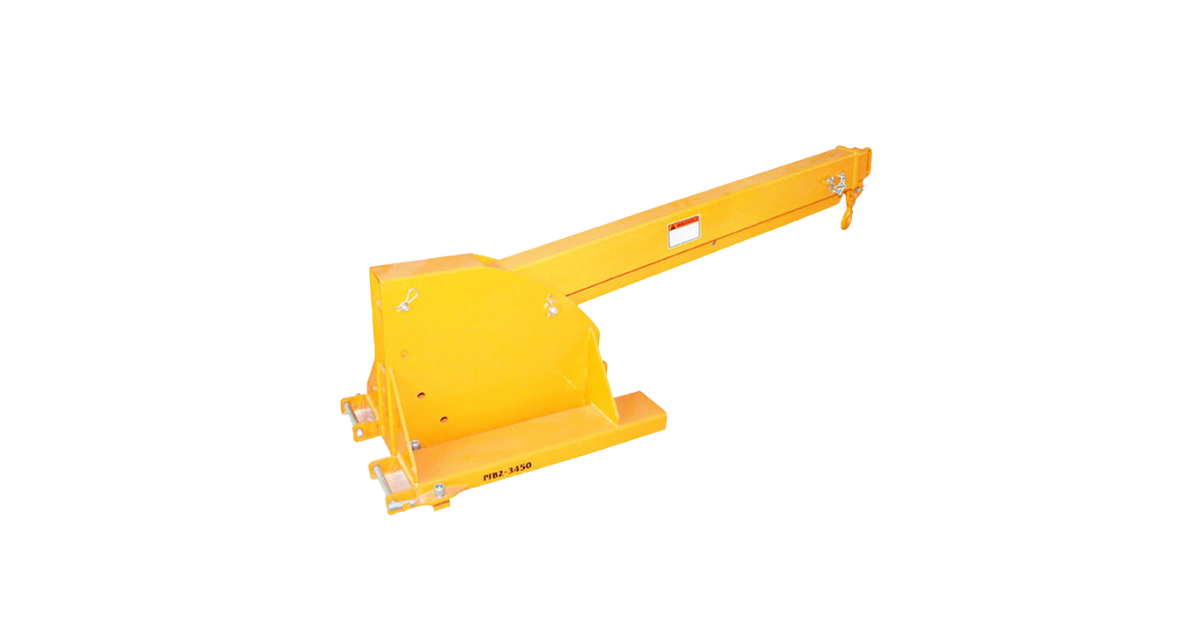

Aardwolf Pivot Forklift Boom
Aardwolf Pivot Forklift Boom
Regular price
$1,769.99 USD
Regular price
Sale price
$1,769.99 USD
Unit price
/
per
SKU:PFB1-2600
Aardwolf Pivot Forklift Boom
General
The Pivot Boom model is adjustable for height and length. The tilt facility allows the extra height to compensate for the hook and sling length lost when lifting with a jib attachment.
Features
- The boom extension is designed so that it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
- Adjusts from 0 to 52 degrees
Note: Boom lift capacities depend completely on the capacity of the forklift being used.
Specifications: PFB1-2600 |
Metric
(mm-kg)
|
Imperial
(inch-lb)
|
|
Manual telescope | 1500-2600 | 59"-102.4" |
Increment | 2-550 | .07" - 21.7"" |
Slip onto fork designed with fork pocket | 154x58 | 6.1"x2.3" |
Fork pocket | 366 | 14.4" |

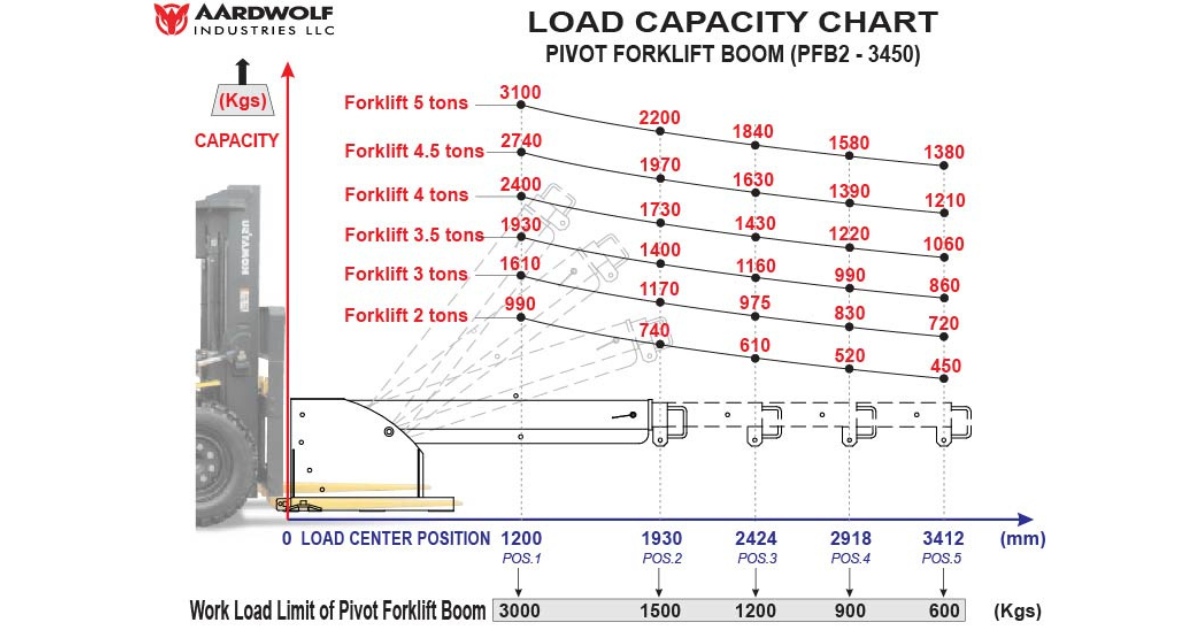

Working load limit |
Retracted: 1500 Extended: 500 |
3307 1102 |
Net weight | 150.5 | 332 |
Gross weight | 151 | 333 |
Packaging dimensions | L.1750xW.620xH.580 | L.68.9"xW.24.4"xH.22.8" |

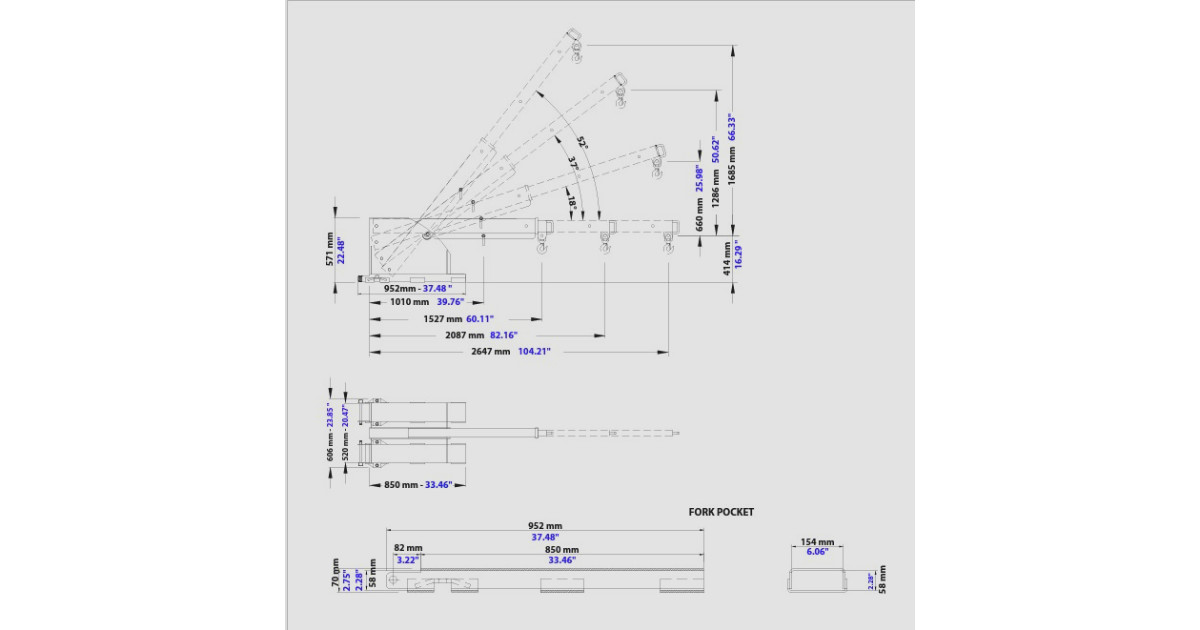

Specifications: PFB2-3450 |
Metric
(mm-kg)
|
Imperial
(inch-lb)
|
|
Manual telescope | 1930 - 3412 | 76" - 134.3" |
Increment | 494 | 19.4" |
Slip onto fork designed with fork pocket | 154x58 | 6.1"x2.3" |
Fork pocket | 366 | 14.4" |
Working load limit |
Retracted: 1500 Extended: 600 |
3307 1322 |
Net weight | 196 | 432 |
Gross weight | 206 | 454 |
Packaging dimensions | L.2250xW.620xH.730 | L.88.6"xW.24.4"xH.28.7" |
