Aardwolf

Aardwolf Pneumatic Anchor Machine

Aardwolf Pneumatic Anchor Machine

Regular price $758.99 USD
Regular price $792.99 USD Sale price $758.99 USD
Sale Sold out
Shipping calculated at checkout.

SKU:APAM

General

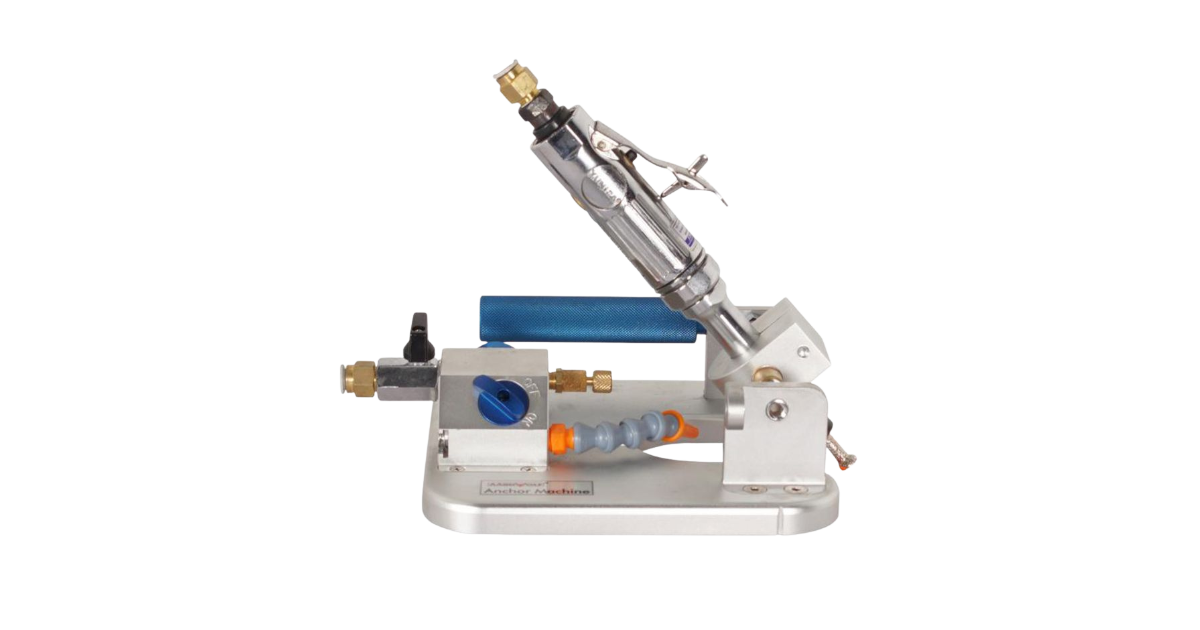

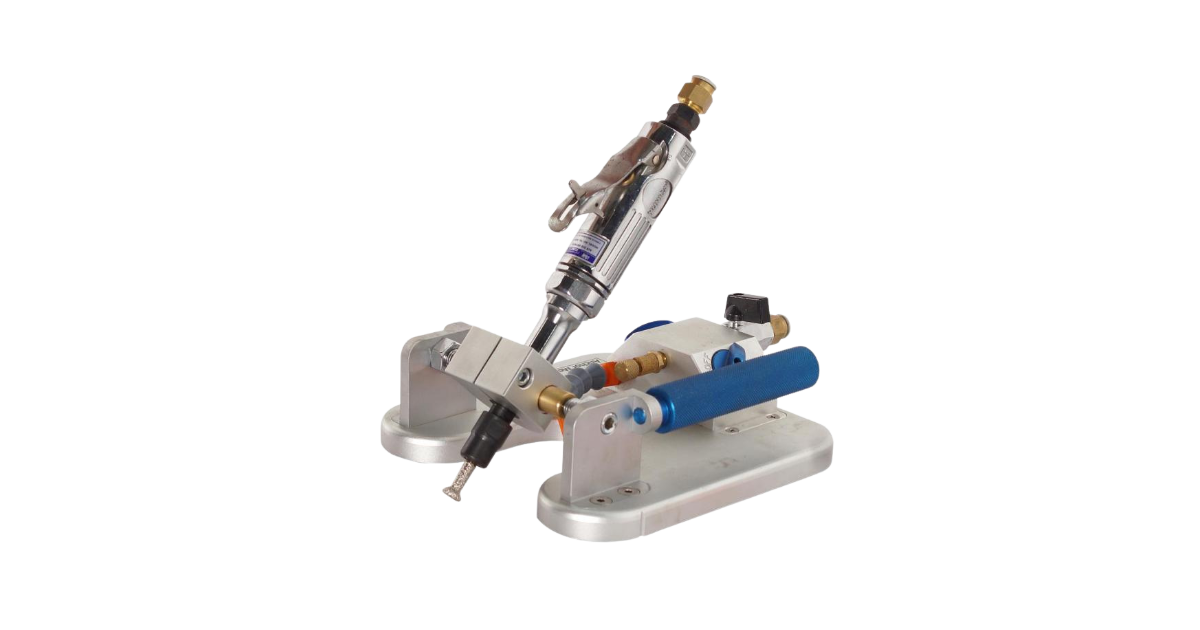

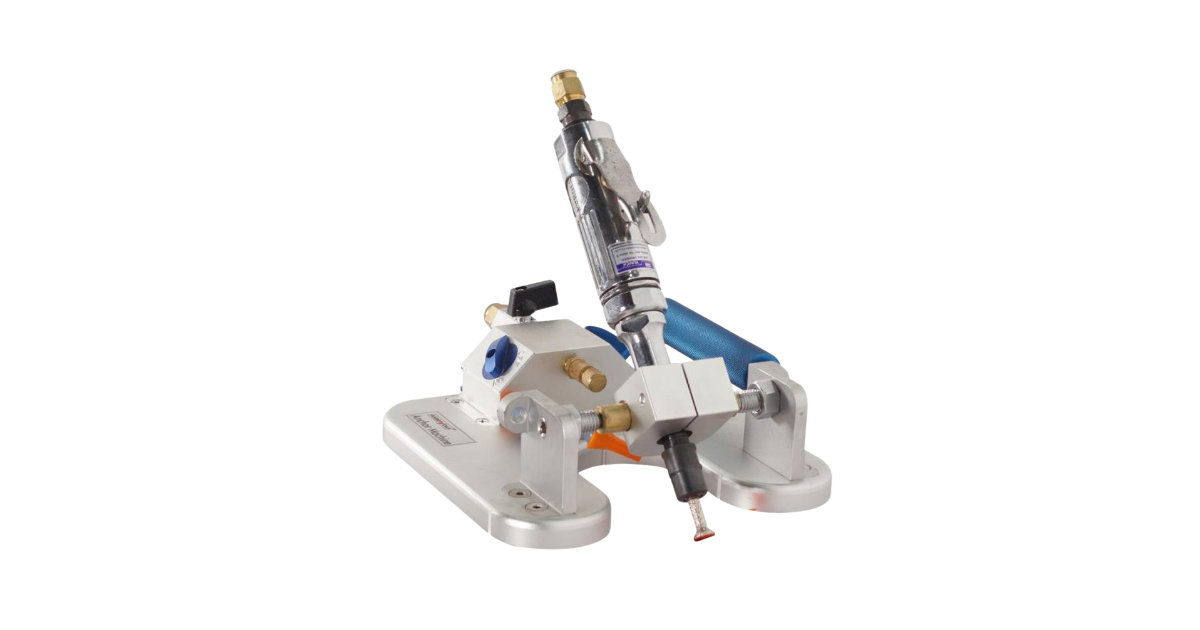

The T-31 Pneumatic Anchor Machine manufactured by Aardwolf Industries LLC features pneumatic grinders and a vacuum-powered base. It is used to cut T-slots in granite for the attachment of T-31 anchor bolts used in under-counter sink or architectural facing systems. Two separate vacuum zones on the base can be turned on or off, enabling the machine to be used near edges.

Features

  • Industrial quick-couplers for both air and water
  • Combination port that allows vacuum to be applied with compressed air via the built-in Venturi vacuum generator
  • The grinders accept any T-31 diamond bit with a 6mm or 1/4" shank
  • Water hose with ball valve and quick-coupler can be quickly detached and used to spray work area
  • Machine cuts in both push and pull directions
  • Alignment indicators on machine base
  • Machined, anodized aluminum components
  • Molded rubber vacuum base seal
  • Higher quality than WEHA and Diamond Wright Pneumatic Anchor Machines
Note: The Portable Water Supply Tank is available.



Specifications:


Metric
(mm-kg)
Imperial
(inch-lb)
Net weight 3 7lbs
Collet diameter 6 0.25"
No load speed 25,000 RPM
Water connection hose thread- 1/4" PT
Air connection 1/4" industrial series coupler plug
Vacuum base -80 kPa vacuum
