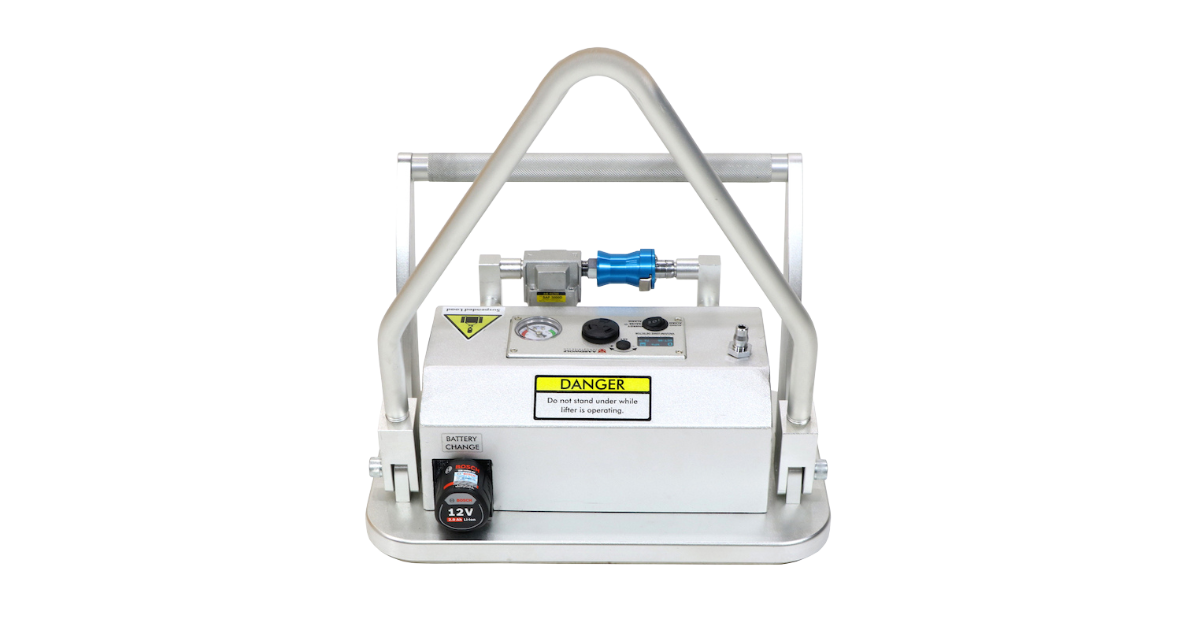

Aardwolf Small Pneumatic Vacuum Lifter SPVL-100

Aardwolf Small Pneumatic Vacuum Lifter SPVL-100

Regular price $2,362.00 USD
Regular price $2,624.00 USD Sale price $2,362.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:SPVL-100

The SPVL-100 is a small compact design vacuum lifter, which allows operators to adapt to various applications. The low weight and versatility make heavy loads easy to handle in vertical and horizontal positions, so only one person is required to handle loads. Because the load is supported by the lifting device and not by the user, this also reduces the physical stress and strain on your employees. The lifter is powered by a venturi vacuum generator, which needs a source of compressed air in order to function but requires no electricity. The vacuum generator has no moving parts and therefore no lubrication is required.

Features

  • Attach and release materials with an ON/OFF slide valve.
  • Clip-in battery operated audio alarm and energy saver.

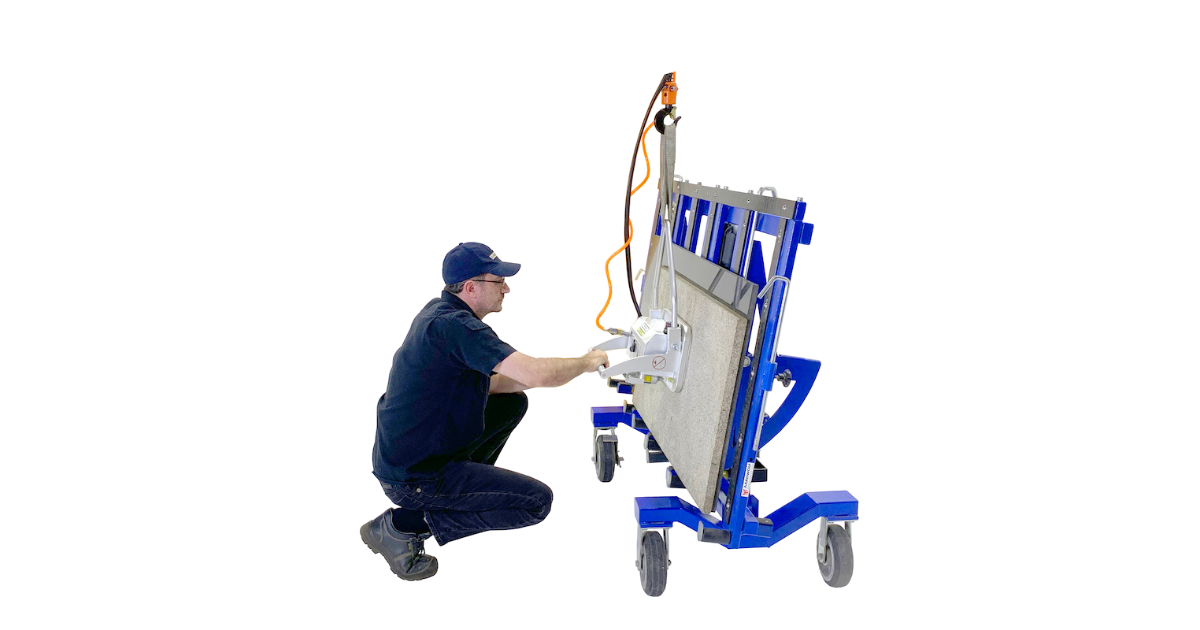

  • Work pieces can be moved vertically and horizontally.
  • Highest possible safety with both visual and audio alarms.
  • Integrated energy saver switch.
  • Operating pressure 4/6 Bar.
  • All aluminum construction including suction pad.
  • Vacuum reservoir. 1L (61.0 cubic inches).
  • Standard gaskets made of rubberized fabric and mousse suitable for smooth, flamed and bush-hammered surfaces.

Specifications

  • Working load limit: 120 kg (265 lb)
  • Net weight: 11.5 kgs, 25 lbs
  • Gross weight: 18 kg (39.7 lb)

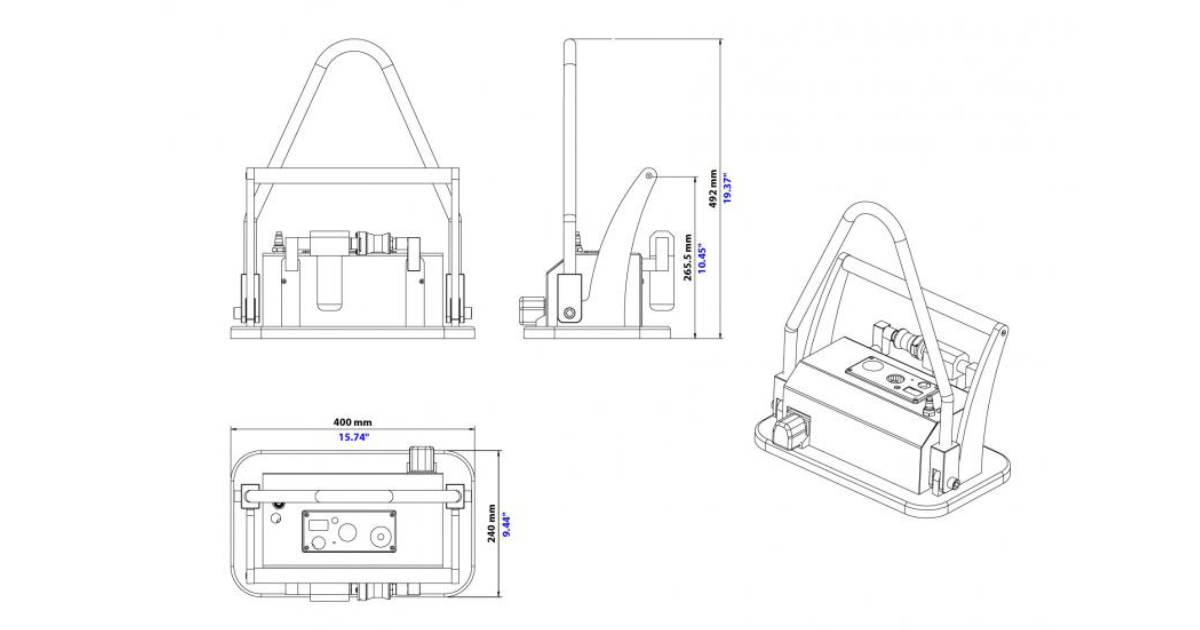

  • Packaging dimensions: L.430 x W.275 x H.560 mm (16.9" x 10.8" x 22")
