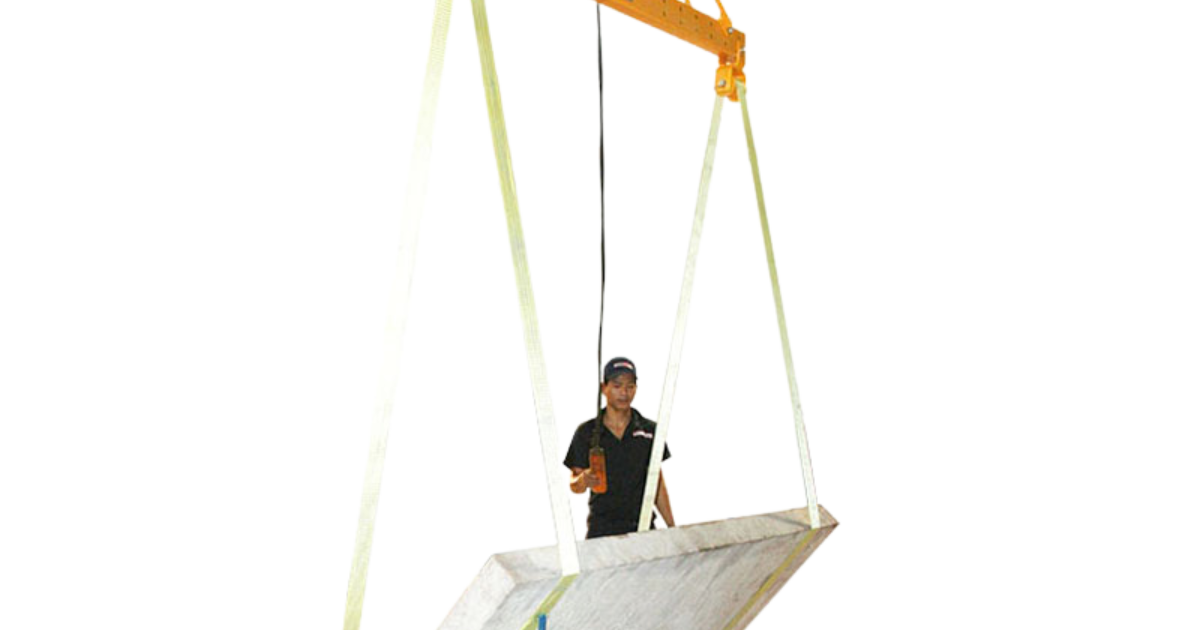

Specifically designed for the stone and glass industries. The Spreader Beam, in combination with endless slings, is an invaluable piece of equipment where the stone/glass is required to be rolled over. The slings are suspended on crowned aluminum rollers. This makes turning the load in the sling easier. The rollers will handle up to 90mm wide slings. The swivel hooks can be used in place of rollers.
Features
Adjustable lifting points.
Handle both wide and unbalanced loads.
It includes swivel hooks.

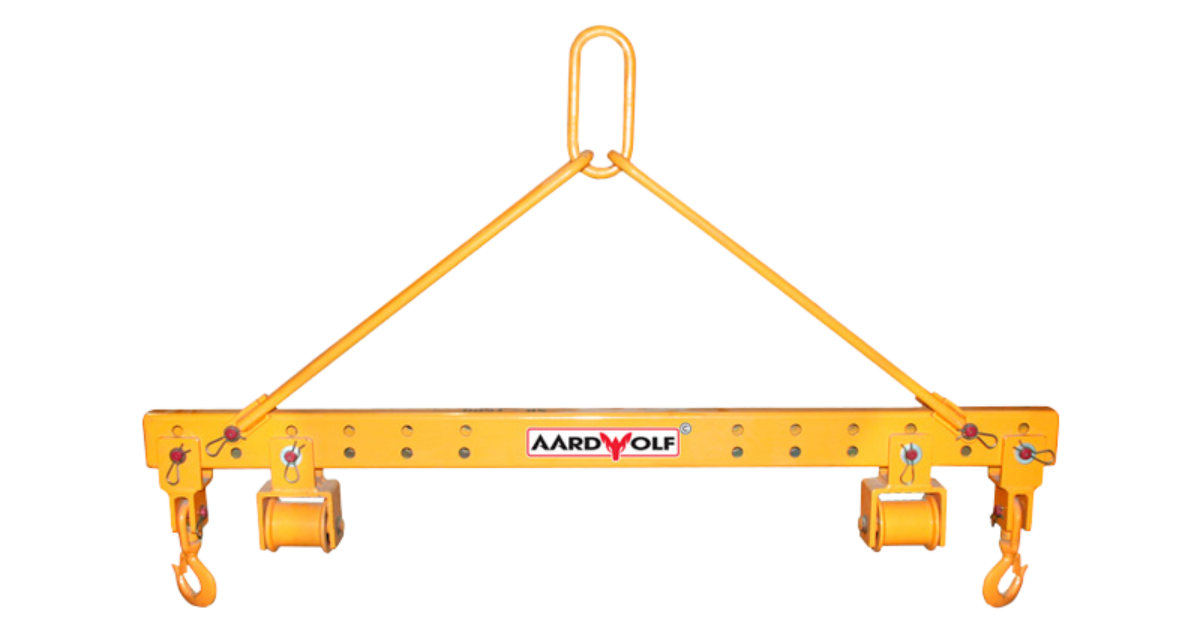

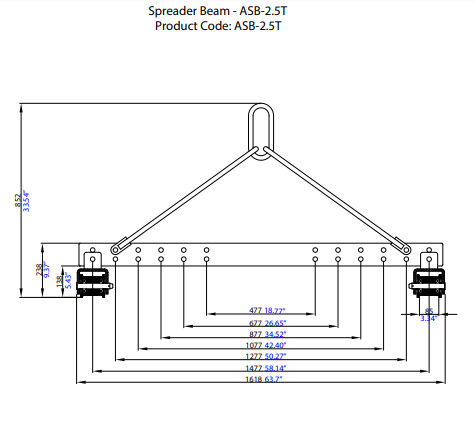

Specifications - ASB-2.5T - The overall width is 1620mm
Metric
(mm-kg)
Imperial
(inch-lb)
Working load limit
2500
5511
Net weight
46
101
Gross weight
46.2
102
Packaging dimensions
1620x120x280
63.8"x4.7"x11"

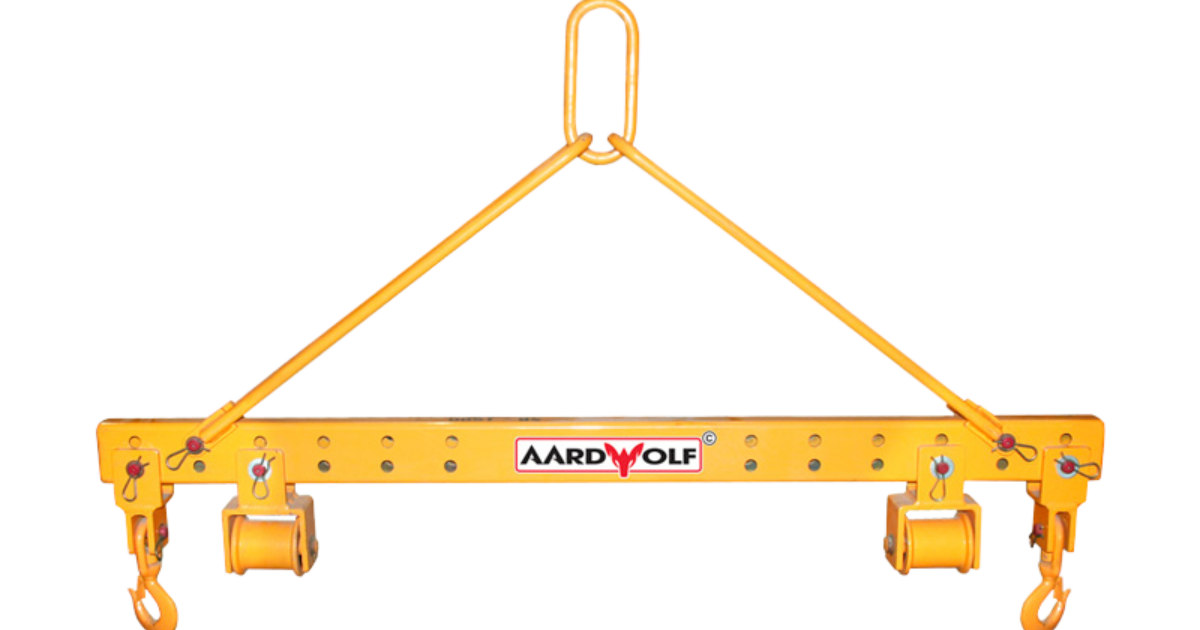

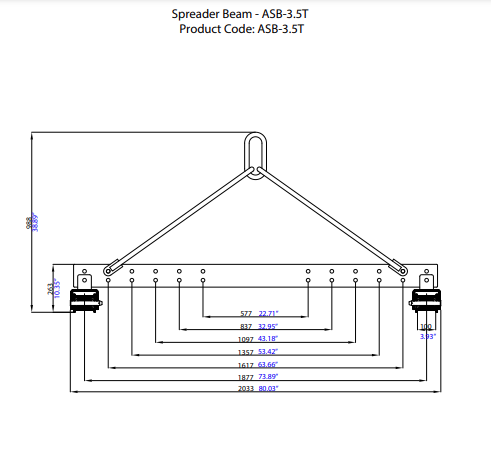

Specifications - ASB-3.5T - The overall width is 2000mm
Metric
(mm-kg)
Imperial
(inch-lb)
Working load limit
3500
7716
Net weight
73
161
Gross weight
74
163
Packaging dimensions
2020x150x280
79.5"x5.9"x11"

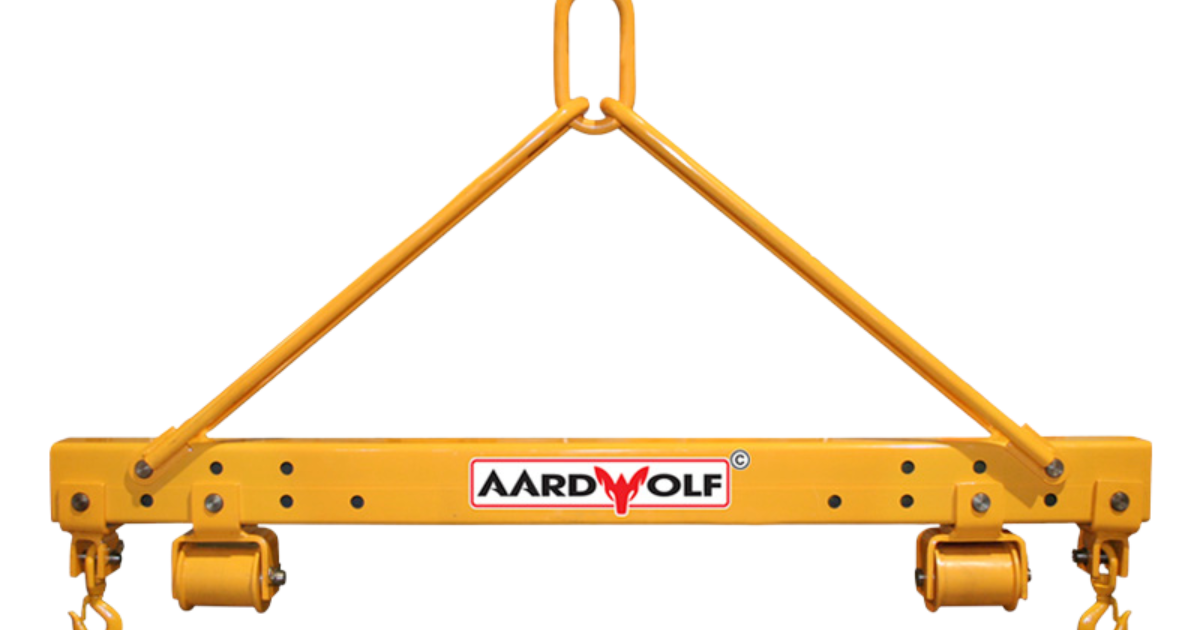

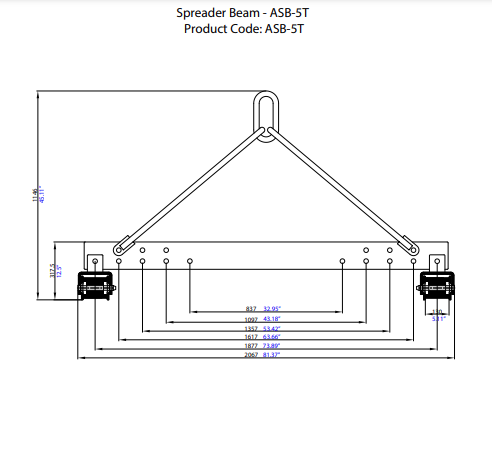

Specifications - ASB-5T - The overall width is2000mm
