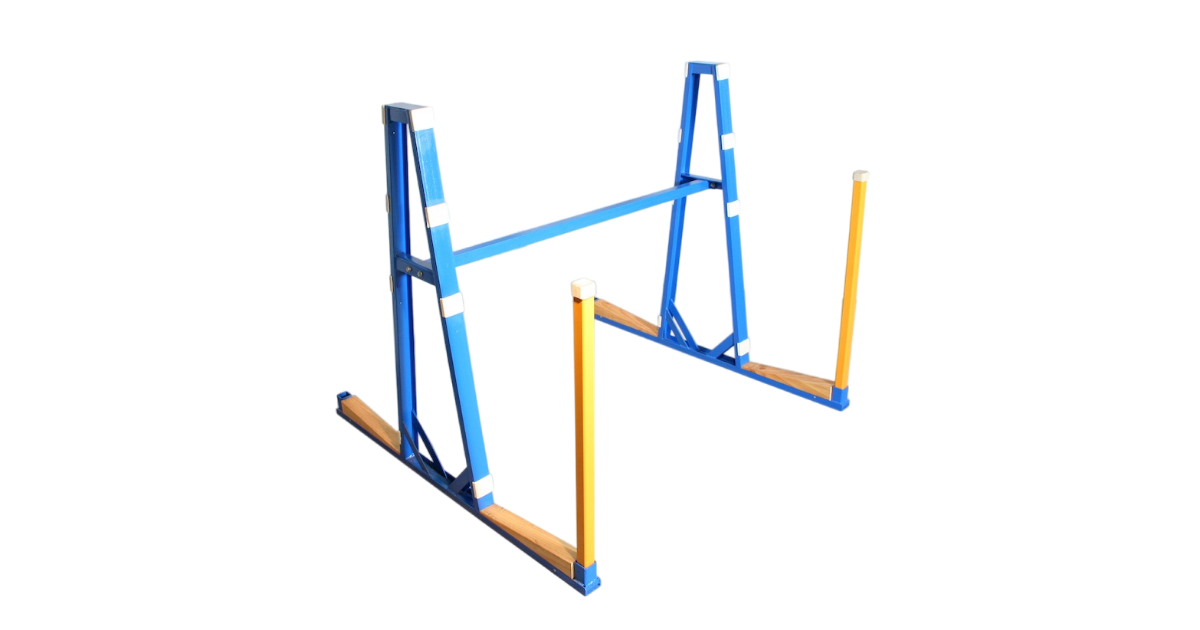

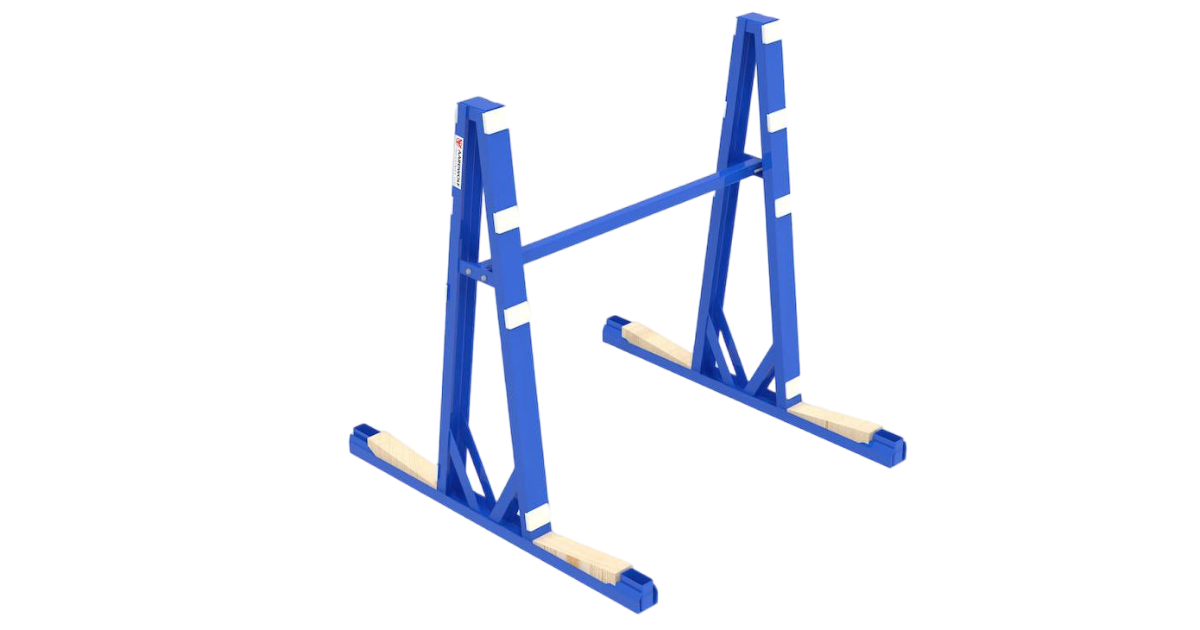

Aardwolf Storage "A" Frame Plus SAF03 (Posts Sold Separately)

Aardwolf Storage "A" Frame Plus SAF03 - is designed for the unpacking of slabs from wooden crates. Large angled lacquered wooden gluts fitted in the base channel create a bias so that slabs fall towards the frame. Safety posts (sold separately) at the rail ends protect workers in case of mishaps where the slabs tip away from the frame. In many jurisdictions safety A frames are a requirement of work safe policies and insurance policies when unloading crates containing large slabs. The A frame Includes protective timber on the base rails and rubber cushioning material on the face of the uprights. Steel cross member and fasteners included.

TSC - Tait Sales & Consulting, is your trusted source and a Premier Authorized Aardwolf America Distributor. We supply 100% authentic Aardwolf equipment complete with full factory warranty protection.>more

Features:

• Wooden gluts in the base channel
• Rubber pads on the face of the vertical frame
• Store slabs on both sides
• Safety posts sold separately. They are not included.
• 15,000 lbs. per side load limit



Specifications:
	Metric (mm-kg)	Imperial (inch-lb)
Option: 1 type of safety post	Slab rack strong post: 50x50x5 - 1200 High	- -
Constructed	Channel: 100 Angle steel: 50	4" 2"
Width of slab storage base area on each side	557	21.9"
Net weight	102.5	226
Gross weight	103	227
Package dimension	1840x230x1830	72.4"x9"x72"
