Aardwolf

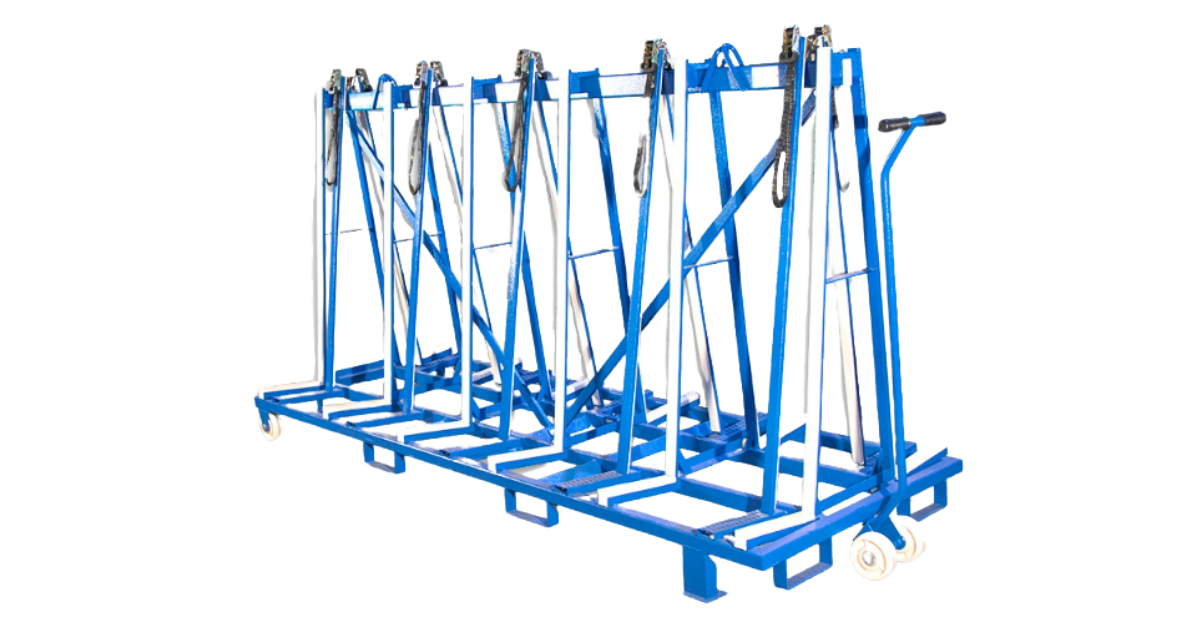

Aardwolf Transport (10ft Long) Rack TF3050

Aardwolf Transport (10ft Long) Rack TF3050

Regular price $2,149.00 USD
Regular price $2,388.00 USD Sale price $2,149.00 USD
Sale Sold out
Shipping calculated at checkout.

Part #

SKU:TF3050

The Transport Frame TF3050 is designed for transporting porcelain slabs and other long, low to medium height slabs. The Transport Frame TF3050 are powder-coated finish (or galvanized finished upon request) to provide a long-lasting structure. They are equipped with locking bars together with ratchet straps to securely hold loads with transporting loads. Loaded frames can be moved around a factory or work site manually by one man. The fully loaded frame can be loaded on and offloaded from trucks by forklift.

Features

  • Frames are delivered with bolts pre-installed.

  • Frames are easily assembled.

  • Sturdy structure, designed to eliminate any risk of the slab tipping over.

  • Slabs are placed on special rubber profiles and secured with 6 locking bars together with ratchet straps to retain materials.

  • The frame features 2 hooking points to be picked up by an overhead crane.

  • Two diagonal stays create a very strong, ridged design.

  • Built-in forklift receivers on two long sides for lifting by forklift.

  • The base and uprights come with replaceable white rubber to prevent marking and scratches.

  • Counter-lever handle with wheels, allow the frame to be moved manually even when loaded.

  • Counter-lever handle is used to jack uploaded frame and lower support legs when wheels are not required.

  • Powder-coated finish, which ensures an aesthetic feature as well as the durability of the product.

Option: Frames can be hot galvanized finished upon request.

Note: Support legs should always be lowered when a loaded frame is being transported on a truck.

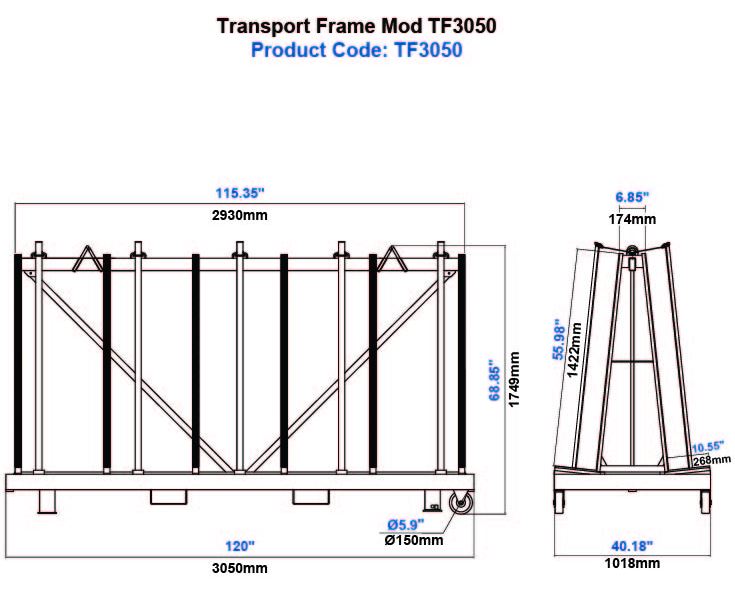

Specifications:


Metric
(mm-kg)
Imperial
(inch-lb)

Width of slab storage base area on each side

268

10.6"

Length

3050

120"

Straps with each side

5

-

Working load limit per side

1250

2756

Total working load limit

2500

5511

Net weight

239

527

Gross weight

245

540

Packaging dimension

3050x1120x430

120"x44"x16.9"
