Aardwolf

Aardwolf Vacuum Block Lifter AVBL380

Name: Tait Sales & Consulting LLC
Address: Suite A, Overland Park, KS, 66223, US
Telephone: +1-913-228-0772

$4,374.00 USD

~~$5,103.00 USD~~ $4,374.00 USD

Sale Sold out

Shipping calculated at checkout.

Part #

SKU:AVBL380

Quantity

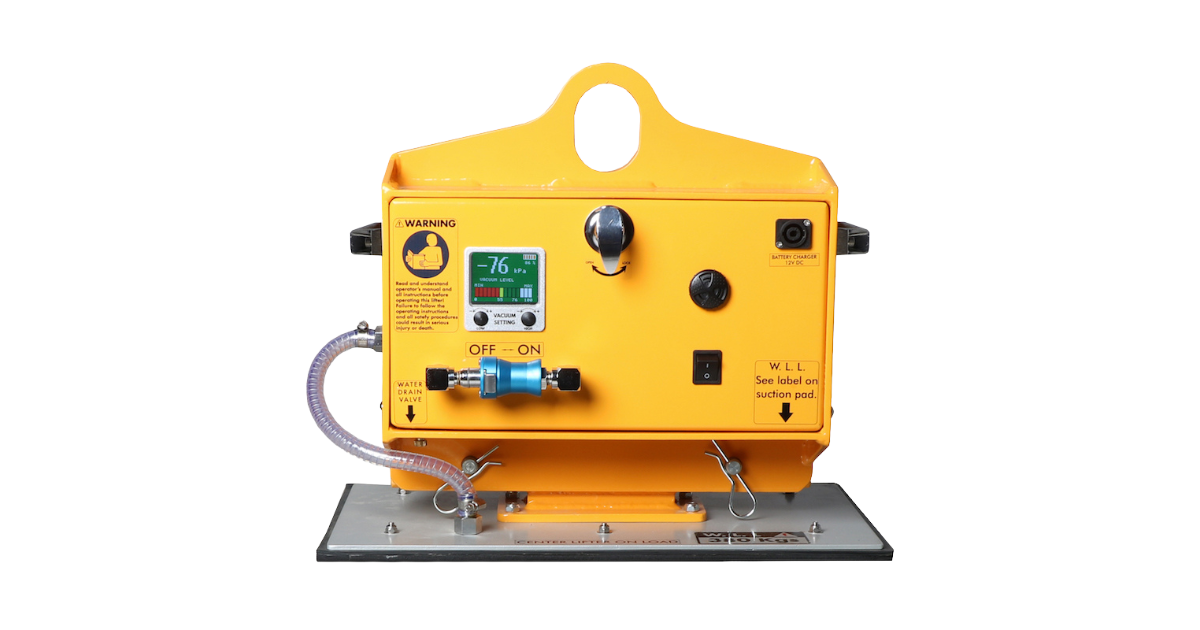

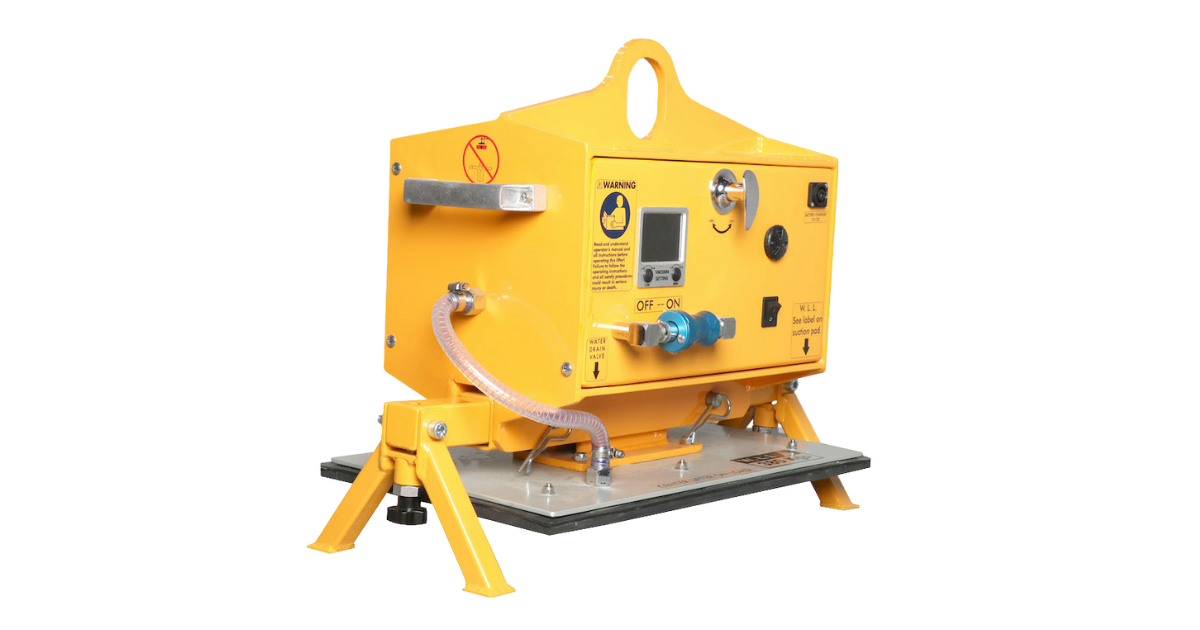

20.5Vacuum Block Lifter AVBL380

General

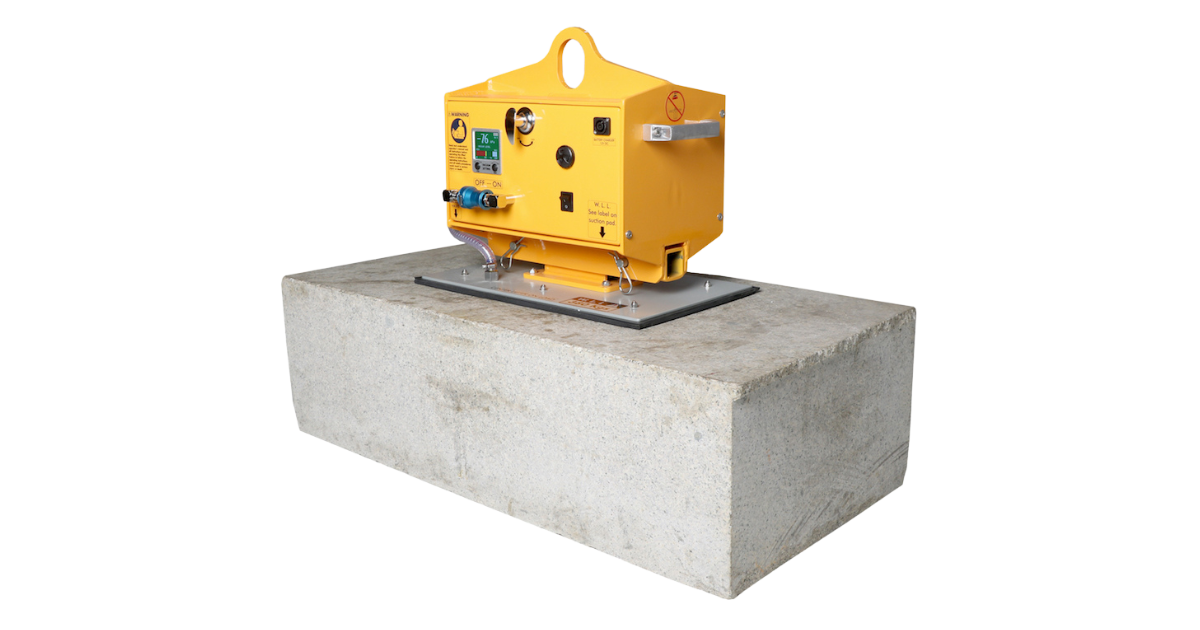

A powerful battery-operated vacuum lifting device for laying marble and granite slabs, concrete and similar. Robust and compact, the Vacuum Block Lifter AVBL380 can be suspended on all types of lifting equipment by means of load hooks, chains, cables, etc.

Features

Equipped with a chargeable 12V battery which operates the vacuum pump. Both are contained inside the unit.
110v charger for charging the onboard 12V battery is included.
520x320 (20.5"x15") is the standard size suction pad, and is included with the machine
Different suction pads are available, by special order, for alternative uses (see table below)
ON/OFF slide valve.
Audio/visual safety system: flashlight, vacuum gauge, vacuum storage tank.
Long working hours.
Battery charge indicator.
Manually operated valve for vacuum.

Specifications - AVBL380

	Metric (mm-kg)	Imperial (inch-lb)
Working load limit	Pad sizes: Kg 520 x 125: 120 520 x 160: 150 520 x 220: 240 520 x 320: 380	Pad Sizes: lbs 20.5" x 5": 265 20.5" x 6.3": 331 20.5" x 8.7": 529 20.5" x 15": 838
Net weight	55	121
Gross weight	68	150
Packaging dimensions	585x385x530	23"x15"x20.9"

Battery information for the device:

Battery capacity	12V-24A
Standby time	720 hours
Charging cycle	1000 times
Charging time	8 hours
Charging Adapter	110/120 DC to 12V-3A
Non-stop working time	5 hours
6-month warranty	-
