Aardwolf Vacuum Glass Lifter AVGLP4-400

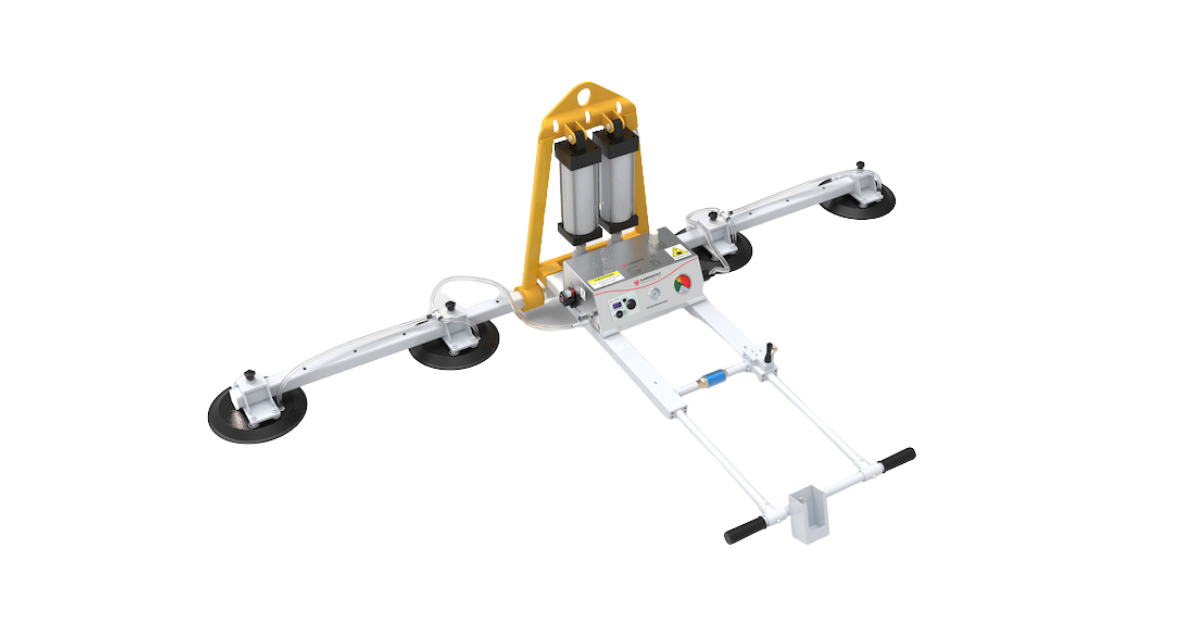

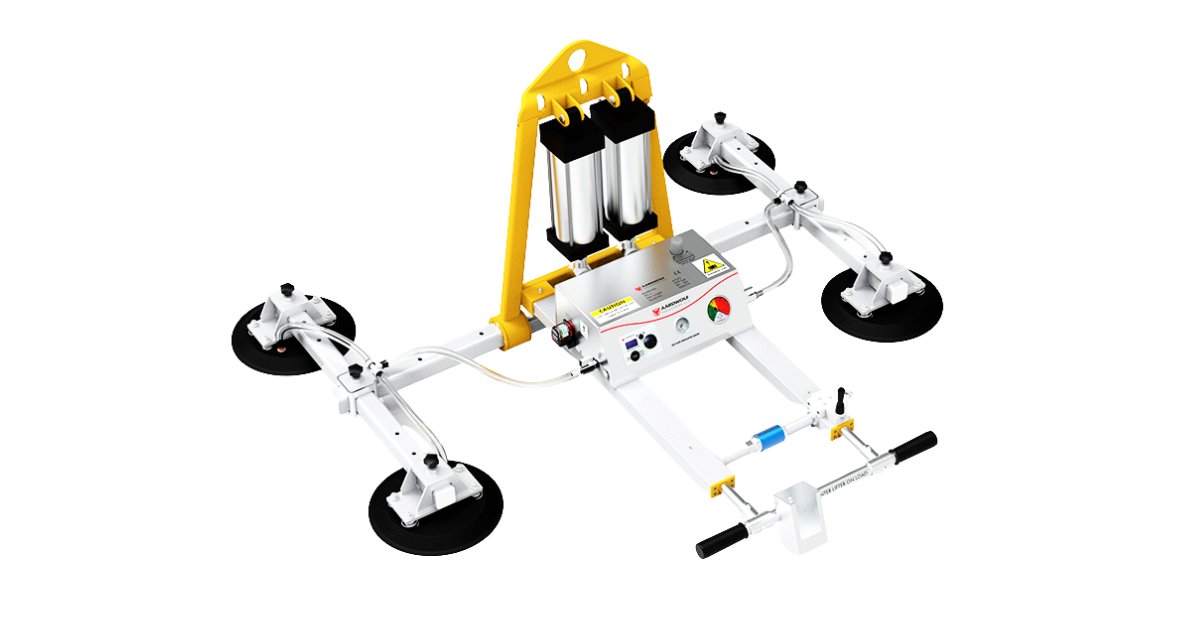

Aardwolf Vacuum Glass Lifter AVGLP4-400
Regular price
$4,599.99 USD
Regular price
Sale price
$4,599.99 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:AVGLP4
Couldn't load pickup availability
Vacuum Glass Lifter 4 Pad
General

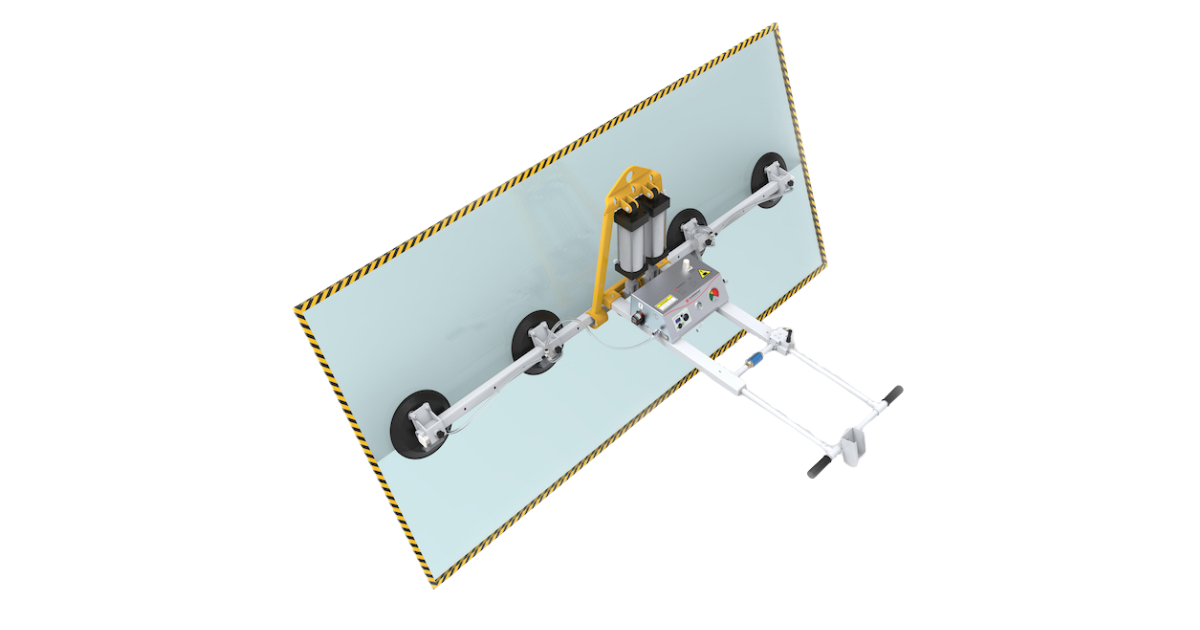

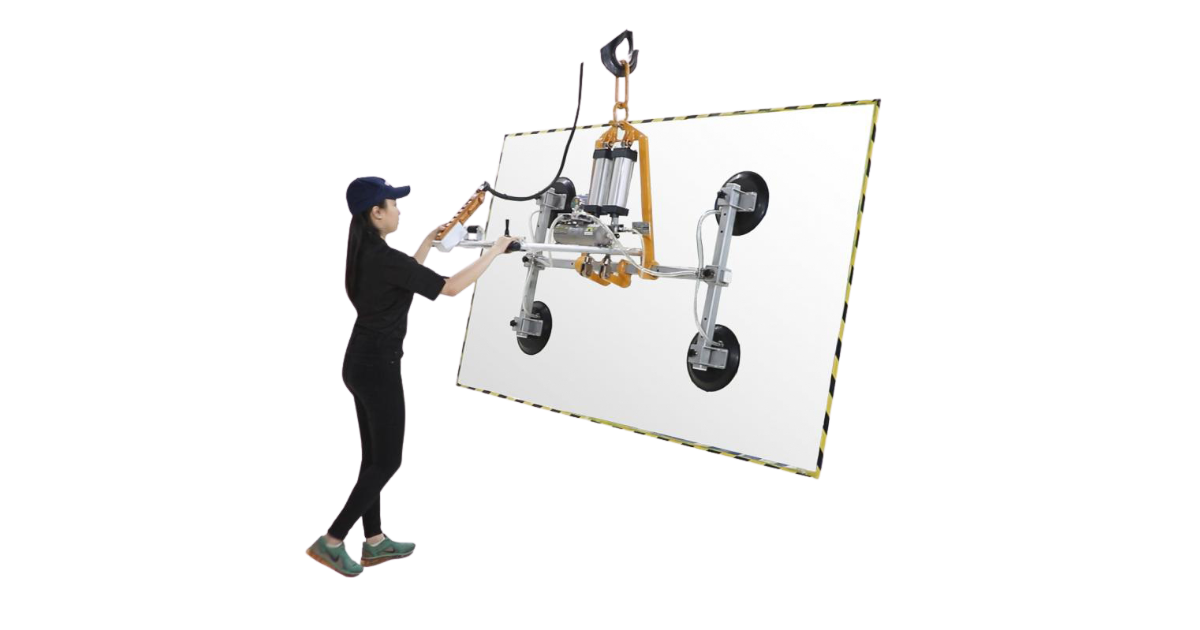

Pneumatically powered, the Vacuum Glass Lifter AVGLP4-400 is able to lift glass panels, even panels with a rough surface with a weight of up to 500kg. It features rugged construction with the added ability to lift and tilt the panel materials.
Features

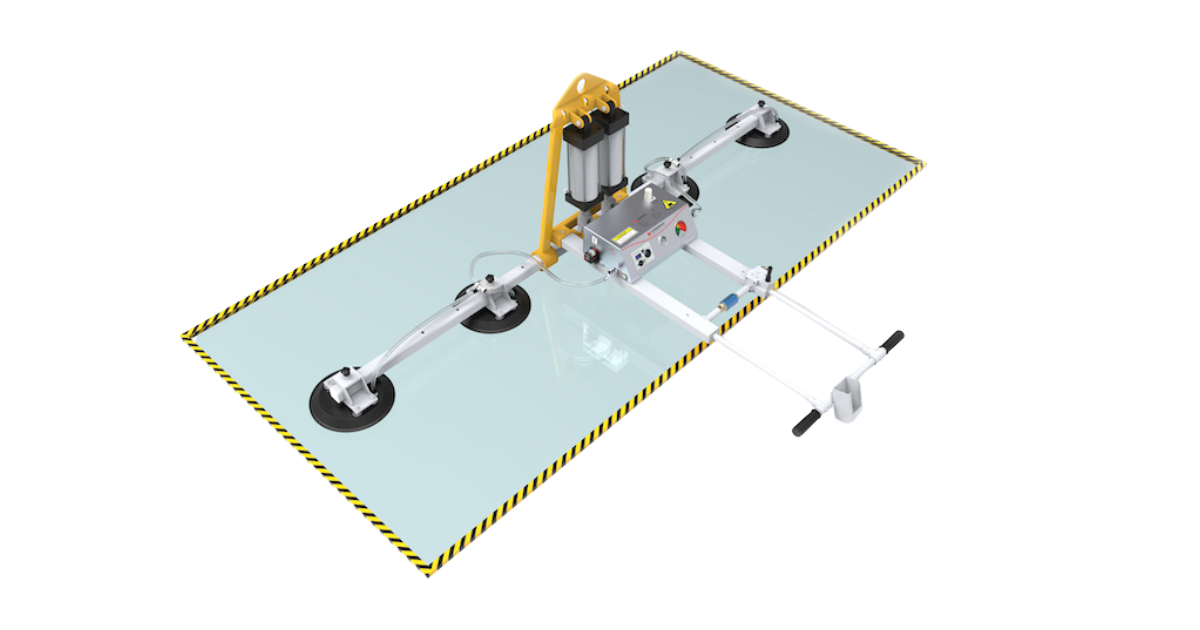

- Pneumatic vertical-horizontal tilting from 0 to 90°.
- Stainless steel vacuum tank ensures safety in the event of an unexpected power outage.
- Automatic vacuum pumping if vacuum loss occurs.
- Acoustic and visual alarm system.
- Attach/release material with an ON/OFF slide valve.
Specifications - AVGLP4-400 |
|
Metric
(mm-kg)
|
Imperial
(inch-lb)
|
|
| Number of pad | 4 | - |
| Pad diameter | Seal to seal: 280 | 11" |
| Working load limit | Vertical: 200 Horizontal: 400 |
441 882 |
| Net weight | 79 | 174 |
| Packaging dimensions | 1480x380x960 | 58.2"x15"x37.8" |
Battery information for the alarm system (AVGLP4-400): |
| Power supply | 3.7V Lipo battery |
| Battery capacity | 2000 mAh x 1 |
| Standby time | 720 hours |
| Charging cycle | 1000 times |
| Charging time | 2 hours |
| Non-stop working time | 7 hours |
| 6-month warranty | - |
Compressed air requirement (AVGLP4-400): |
| Air consumption | 180 liters/minute |
| Supply air pressure | 5 bars (72 psi) |
Specifications - AVGLP4-400L |
|
Metric
(mm-kg)
|
Imperial
(inch-lb)
|
|
| Number of pad | 4 | - |
| Pad diameter | Seal to seal: 300 | 11.8" |
| Working load limit | Vertical: 200 Horizontal: 400 |
441 882 |
| Net weight | - | - |
| Packaging dimensions | - | - |
Battery information for the lifter (AVGLP4-400L): |
| Code battery | GBA 12V 2.0Ah Bosch |
| Type battery | Lithium-ION |
| Voltage | 12V |
| Current | 2.0Ah |
| Quantity | 1 |
| Continuous operation time with mode saving pressure | 2 hours |
| Working time with mode saving pressure | 6 hours |
| Continuous operation time with mode audio alarm only | 120 hours |
| Working time with mode audio alarm only | 360 hours |
Battery charger (AVGLP4-400L): |
| Code battery | GAL 12V-40 Bosch |
| Input supply voltage | 220-240VAC |
| Output voltage | 12V |
| Output current | 4.0Ah |
| Quantity | 1 |
| Full charger time | 0.5 hour |
| Weight | 460 gram |
Compressed air requirement (AVGLP4-400L): |
| Air consumption | 180 liters/minute |
| Supply air pressure | 5 bars (72 psi) |
