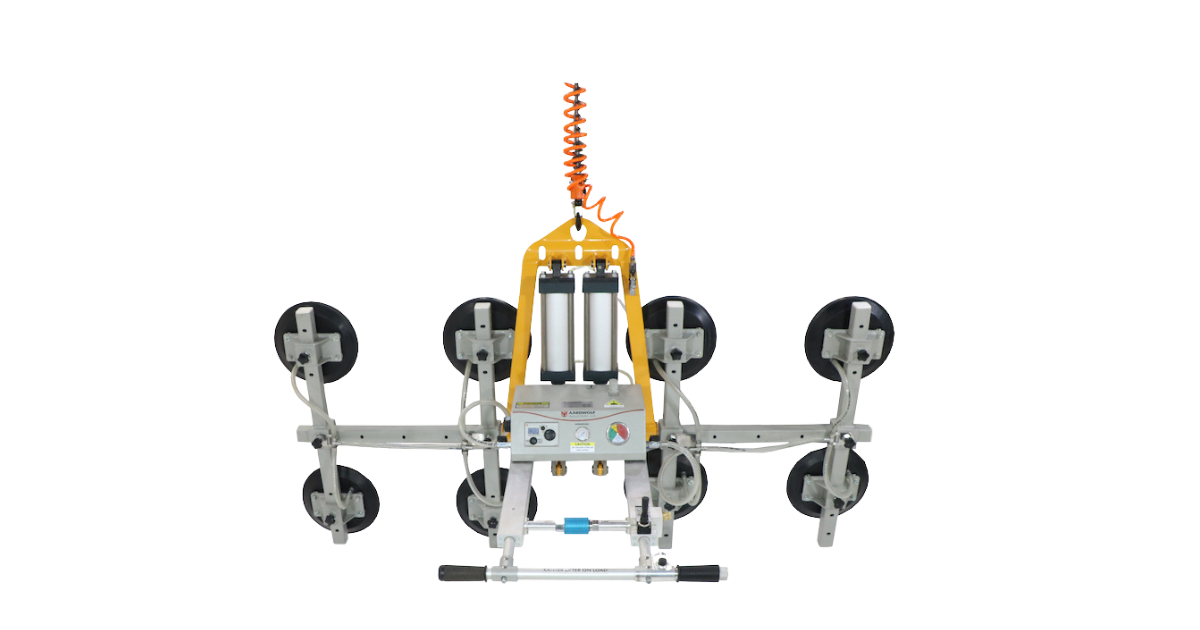

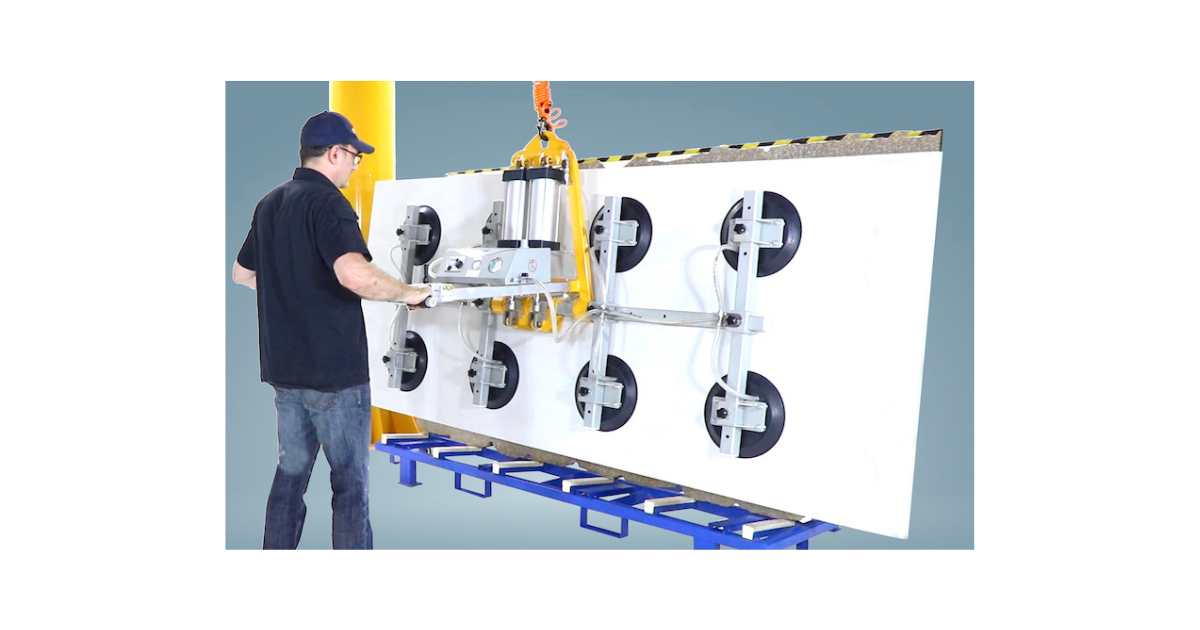

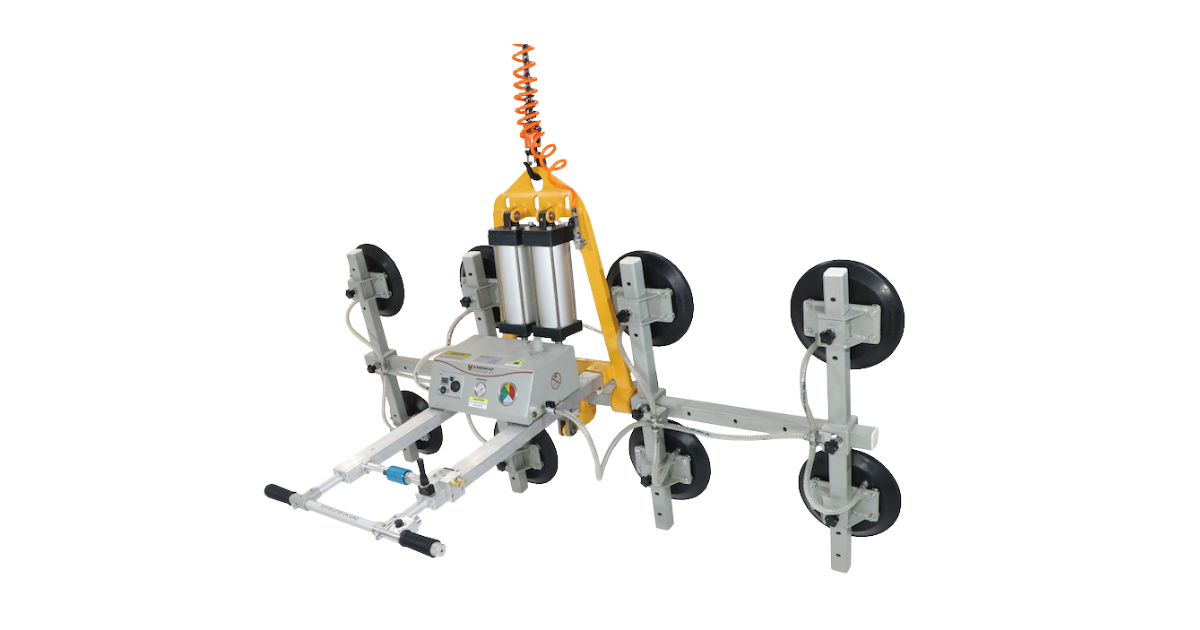

This vacuum lifter is suitable for lifting porcelain and glass sheets in large sizes. Features rugged construction with the added ability to lift and tilt the slab materials.
Features
Pneumatic vertical-horizontal tilting from 0 to 90°.
Automatic vacuum pumping if vacuum loss occurs.
Acoustic and visual alarm system.
Attach/release material with an ON/OFF slide valve.
Specifications:
Metric
(mm-kg)
Imperial
(inch-lb)
Number of pads
8
-
Pad diameter
seal to seal:300
12"
Working load limit
Vertical: 400 Horizontal: 800
882 1764
Net weight
108
238
Gross weight
135
298
Packaging dimensions
2050x430x960
80.7"x17"x37.8"
Battery information for the device:
Code battery
GBA 12V 2.0Ah Bosch
Type battery
Lithium-ION
Voltage
12V
Current
2.0Ah
Quantity
1
Continuous operation time with mode saving pressure
2 hours
Working time with mode saving pressure
6 hours
Continuous operation time with mode audio alarm only
120 hours
Working time with mode audio alarm only
360 hours
Battery charger:
Code battery
GAL 12V-40 Bosch
Input supply voltage
220-240VAC
Output voltage
12V
Output current
4.0Ah
Quantity
1
Full charger time
0.5 hour
Weight
460 gram
Compressed air requirement:
Air consumption
180 liters/minute
Supply air pressure
5 bars (72 psi)
