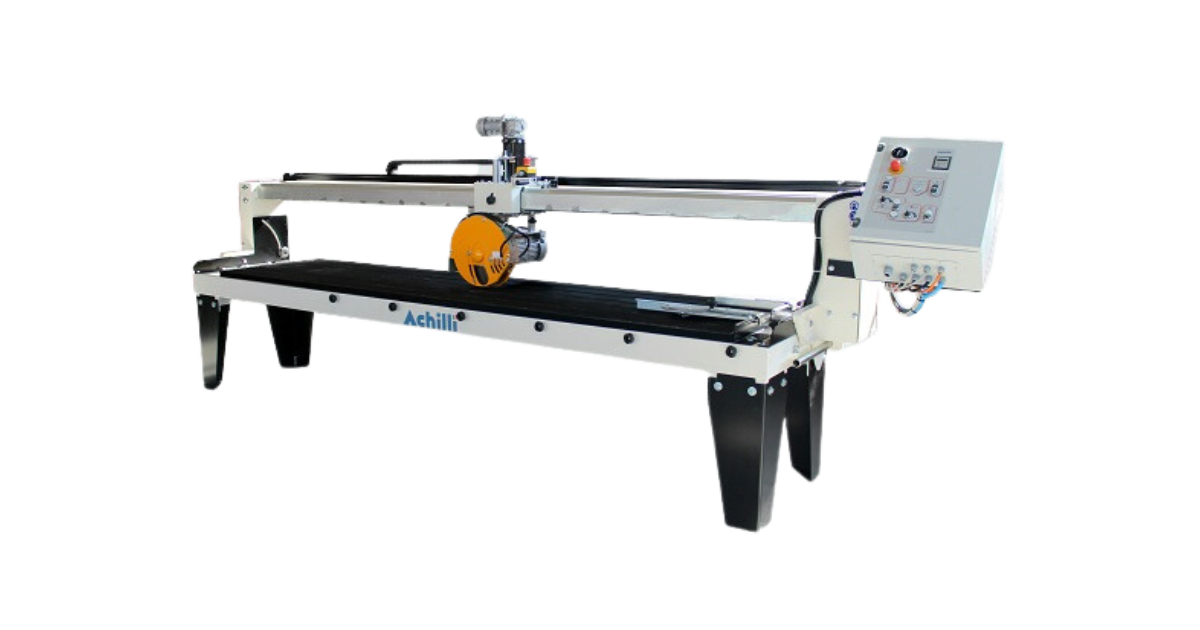

AFR-A Motorized Bench Saw

Request Quote In Cart

STONE CUTTING SAW WITH VARIABLE SPEED FOR STONE AND CERAMIC

Compact, essential and sturdy bench saw with fixed bridge; the bridge tilts and the water tank with built-in recycling pump makes it the perfect saw for the stone fabricator. It is equipped with 1 or 2 side extension tables to enlarge the working surface and facilitate the positioning of the slabs.... >moreADVANTAGES

Fully equipped and motorized saw AFR-A suitable for small and large stone fabricating shops:

  • Available with several useful cutting lengths;
  • Motorized head feed with variable speed in both directions.
  • Available in 7HP or HT Model in 5.5HP
  • 3400 RPM for Standard, 1700 Rpm for HT Model
  • Maximum cutting precision guaranteed by a special beam design;
  • Bridge tilts for 45 degree miter cuts
  • Suitable for ceramic and sintered material slabs;
  • Other sizes available by special order.  Contact us for Info.
  • AFR-A HT is special order and could have an extended lead time
            Technical Details AFR-A AFR-A HT (Special Order)
            Useful cut 1000–1500–2000-2500–3000–3300-3500 mm

            (3’3” - 4’11” – 6’6” – 8’2” – 9’10” – 10’10” – 11”5’)

            1000–1500–2000-2500–3000–3300-3500 mm

            (3’3” - 4’11” – 6’6” – 8’2” – 9’10” – 10’10” – 11”5’)
            Diamond blade diameter 250-300-350 mm (10”–12”–14”) 400-450-500 mm (16”–18”–20”)
            Blade bore size 25.4 mm (1") 25.4 mm (1")
            Max Depth of Cut 3.9" 6.9"
            Motor power 5kW = 7HP  (3ph.)  4kW = 5.5HP  (3ph.)
            Main motor rotation speed 2800 rpm a 50Hz – 3400 rpm a 60Hz 1400 rpm a 50Hz – 1700 rpm a 60Hz
            Standard voltage/ frequency

            400V-50/60Hz  /230V-60Hz  3ph.

            400V-50/60Hz  /230V-60Hz  3ph.
