Achilli

Achilli AFR-C Manual Bench Saw

Achilli AFR-C Manual Bench Saw

Regular price $11,438.00 USD
Regular price Sale price $11,438.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:MF20CMCE51

AFR C Manual Bench Saw

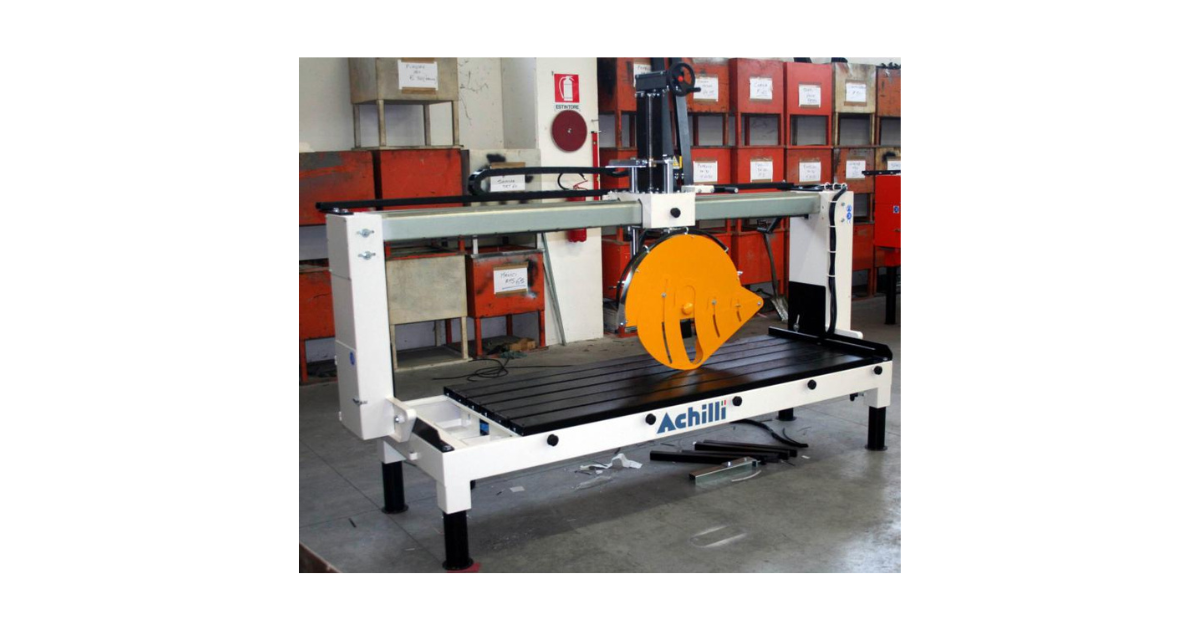

BRIDGE SAW WITH FIXED BRIDGE AND MANUAL HEAD FEED

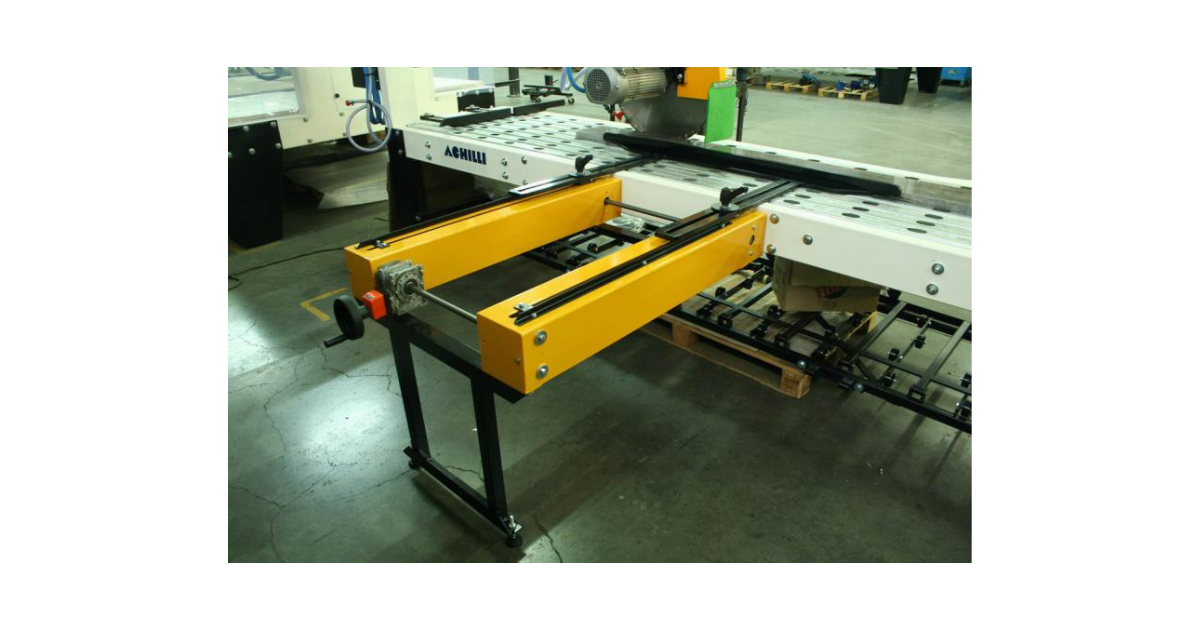

Compact, essential and sturdy saw with fixed bridge and manual head feed for marble and granite slabs; the bridge tilts and the water tank with built-in recycling pump makes it the perfect for small and large stone fabricating shops. It is equipped with 1 or 2 side extension tables to enlarge the working surface and facilitate the positioning of the slabs...... >moreADVANTAGES

Fully equipped and manual bench saw with fixed bridge AFR-C for cutting stone slabs:

  • Available with several useful cutting lengths;
  • Manual head feed by hand crank.
  • Available in 3HP, 4HP or HT Model in 5.5HP
  • 3400 RPM for Standard, 1700 Rpm for HT Model
  • Maximum cutting precision guaranteed by a special beam design;
  • Sturdy and compact structure to work any kinds of slabs;

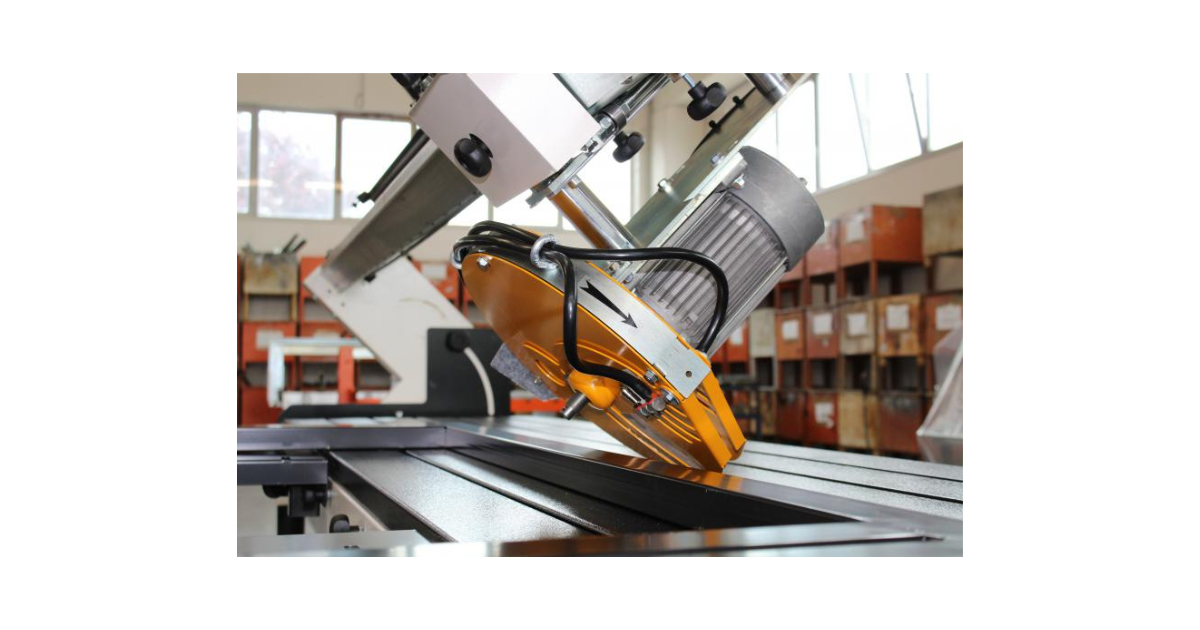

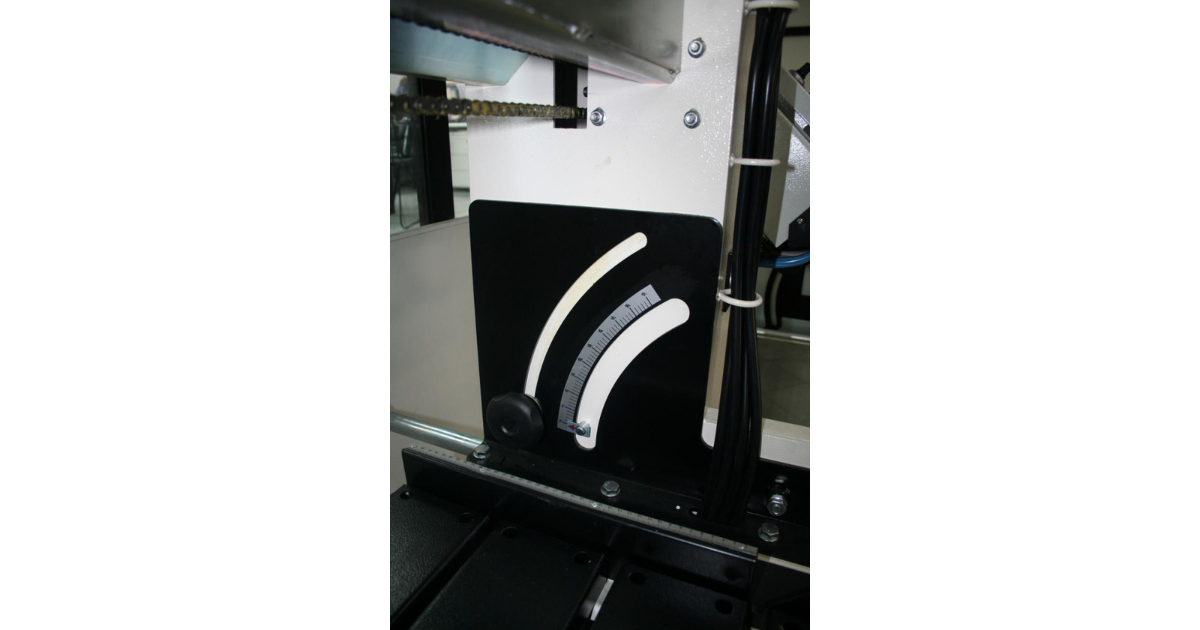

  • Bridge tilts for 45 degree miter cuts

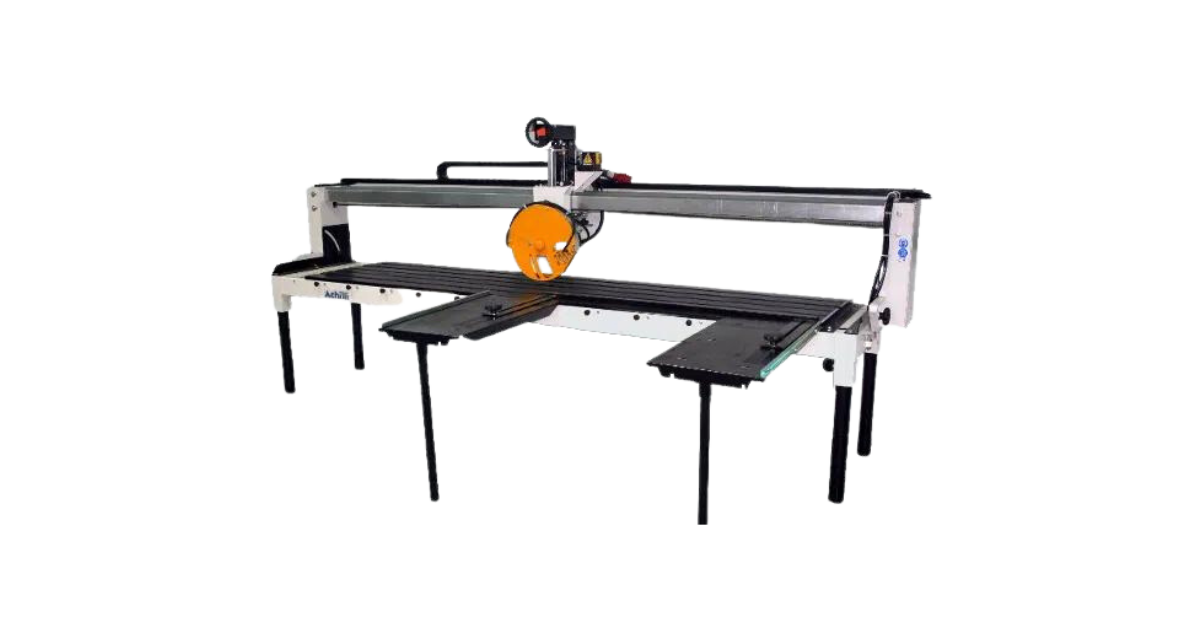

  • 2 tables are included with models shown
  • Other sizes available by special order.  Contact us for Info.
    Technical Details AFR-C AFR-C HT
    Useful cut

    1500–2000-2500–3000–3300-3500 mm

    (4’11” – 6’6” – 8’2” – 9’10” – 10’10” – 11”5’)

    1500–2000-2500–3000–3300-3500 mm

    (4’11” – 6’6” – 8’2” – 9’10” – 10’10” – 11”5’)

    Diamond blade diameter 250-300-350 mm (10”–12”–14”)  400-450-500 mm (16”–18”–20”)
    Blade bore size 25.4 mm (1") 25.4 mm (1")
    Motor power 3kW = 4HP  (3ph.) or 3HP (1ph) 4kW = 5.5HP  (3ph.)
    Motor rotation speed 2800 rpm a 50Hz – 3400 rpm a 60Hz 1400 rpm a 50Hz – 1700 rpm a 60Hz
    Standard voltage/ frequency 400V-50/60Hz  /230V-60Hz  3ph. 400V-50/60Hz  /230V-60Hz  3ph.
