Achilli

Achilli AMS Portable Bench Saw for Tile

Achilli AMS Portable Bench Saw for Tile

$3,401.00 USD
$3,401.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

Part #

EI10MPL01

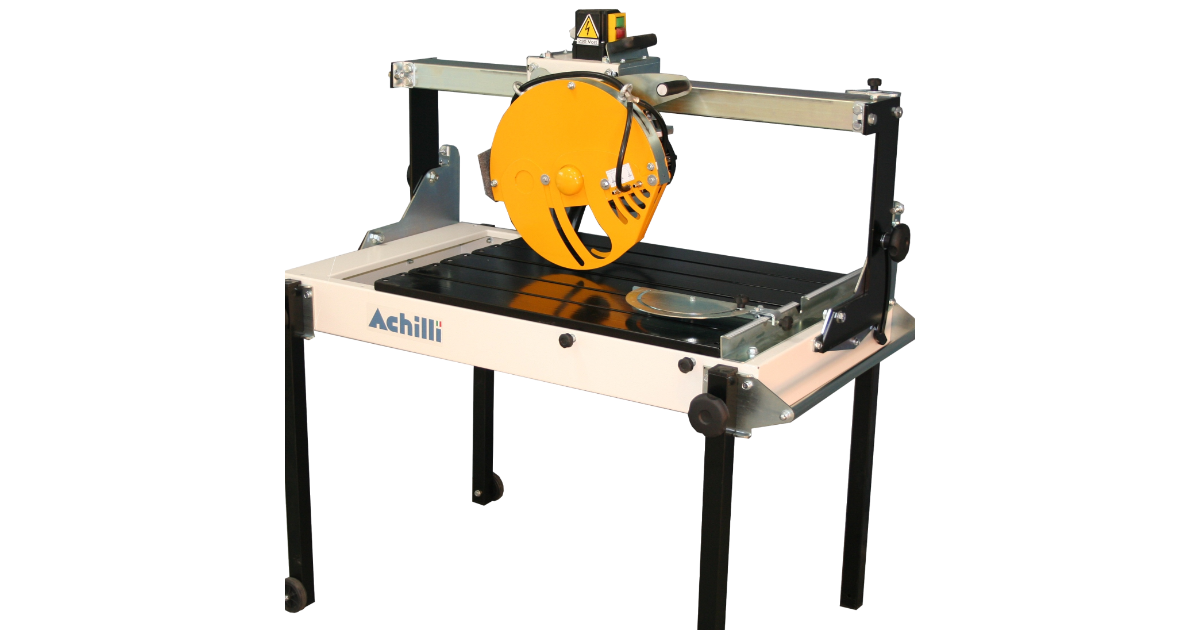

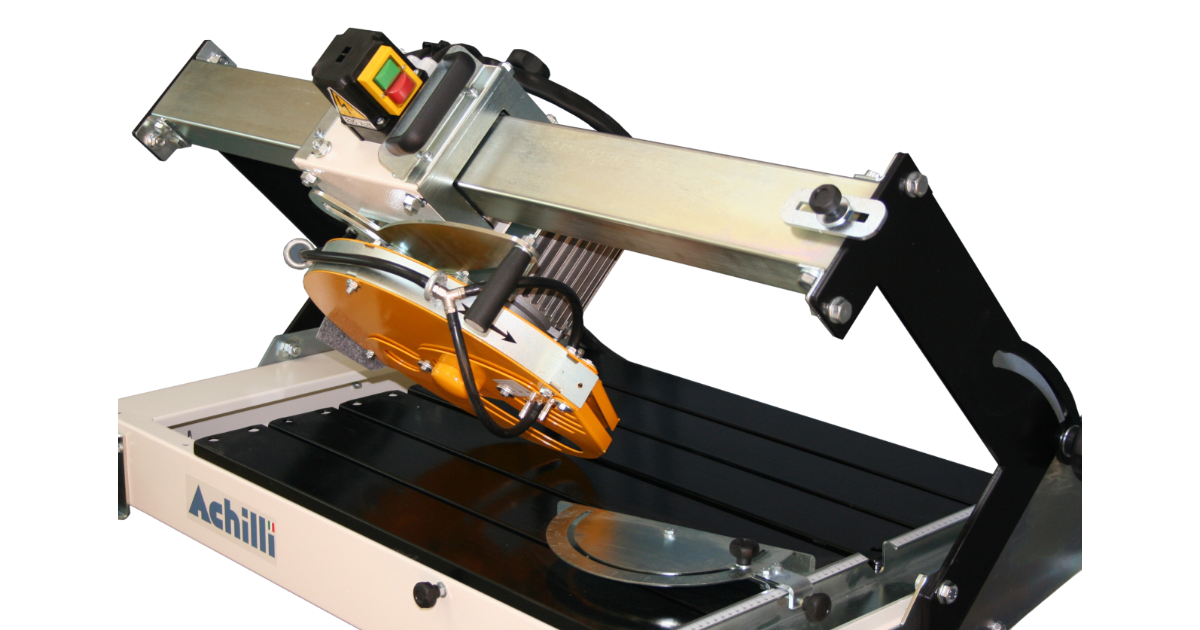

Our Portable bench saw with sliding head for tiles and building materials is ideal for use in construction sites. This saw is designed for cutting bricks, natural stone, marble, granite and ceramic tiles... >moreADVANTAGES AMS bench saw will cut tiles, stones and building materials with pin point accuracy: Worktable is made of galvanized steel rails, with transportation handle and adjustable squaring bar; Worktable width of either 25.5in. (650mm) or 21in. (530mm) at customer’s choice; Self-contained water recycling tray and pump; Folding legs for easy transport.
  • AMS-HT is available by Special order and has an extended lead time
  • Works great as a portable site saw
  • Available accessories include a side extension table, pair of wheels and a battery-powered laser-ask for quote

Specifications

AMS AMS-HT (Special Order)
Useful cut

600-800-1000-1300 mm
(2’- 2’7” – 3’3” – 4’3”)

600-800-1000-1300 mm
(2’- 2’7” – 3’3” – 4’3”)
Diamond blade diameter 250-300-350 mm (10”–12”–14”) 400-450-500 mm (16”–18”–20”)
Max Depth of Cut 3.9" 6.9"
Blade bore size 25,4 mm (1") 25,4 mm (1")
Motor power 2kW = 2.7HP (1ph) 3.6 kW = 5HP (3ph)
Motor power (optional) 2.2kW = 3HP (1F) / 2.9kW=4HP (3ph) 2.2 Kw = 3HP (1ph)
Motor rotation speed 2800rpm 50Hz – 3400rpm 60Hz 1400 rpm 50Hz – 1700 rpm 60Hz
Standard voltage/ frequency 230V-50Hz 400V-50Hz
