Achilli

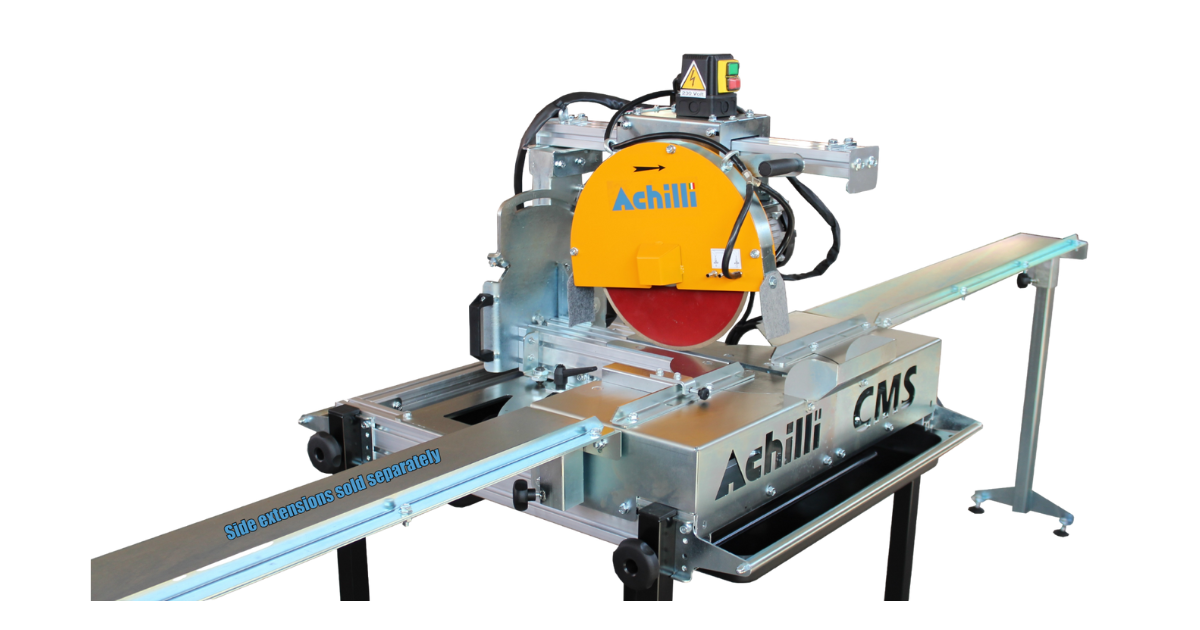

Achilli CMS Compound Miter Saw
Achilli CMS Compound Miter Saw
Regular price
$3,292.00 USD
Regular price
$3,292.00 USD
Sale price
$3,292.00 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:MSCSMM01
Couldn't load pickup availability
Wet cut sliding compound miter saw for straight, bevel, plunge and miter cuts in all directions, great for backsplash... >more
ADVANTAGESSliding compound miter saw for angle cutting in all directions:
- Structure made of galvanized steel for a long lasting dependability;
- Removable water tank made of ABS crash and consumption proof. It’s easy to clean and studied to separate the sludge from the recycling water. Built-in recycling pump included to cool the disk during cutting

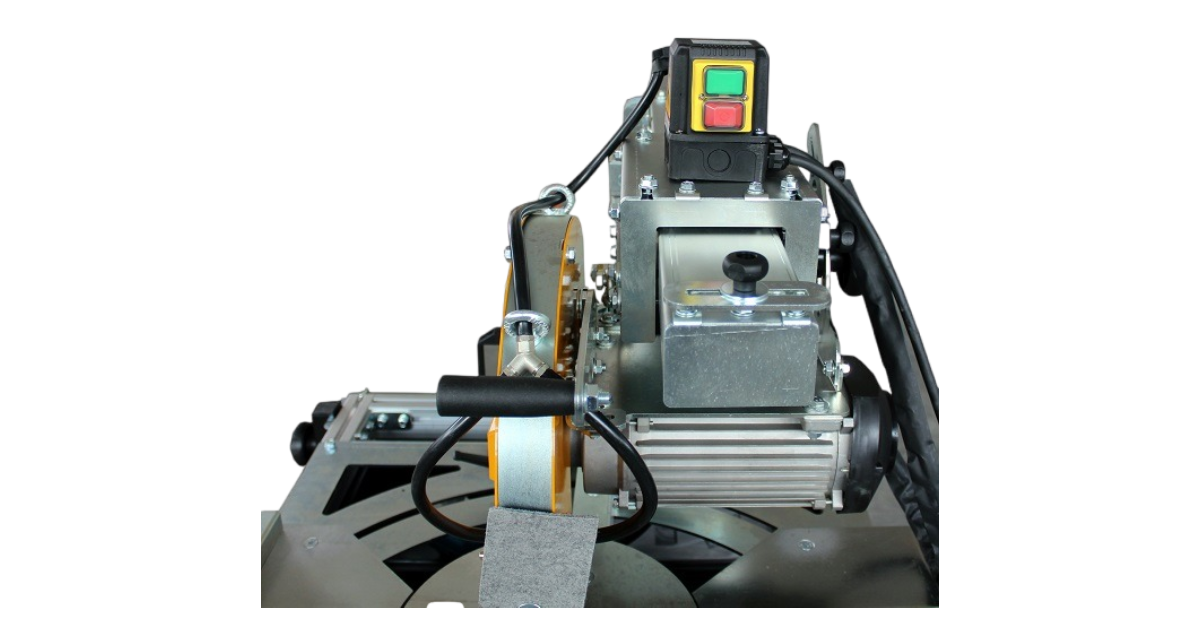

- Swiveling head assembly from ±45 to 0 degree with positive locks at ±45, ±22.5 and 0 degree.
- Maximum Depth of cut is 105mm or 4.13"
- Manual cutting depth adjustment by plunge mechanism.

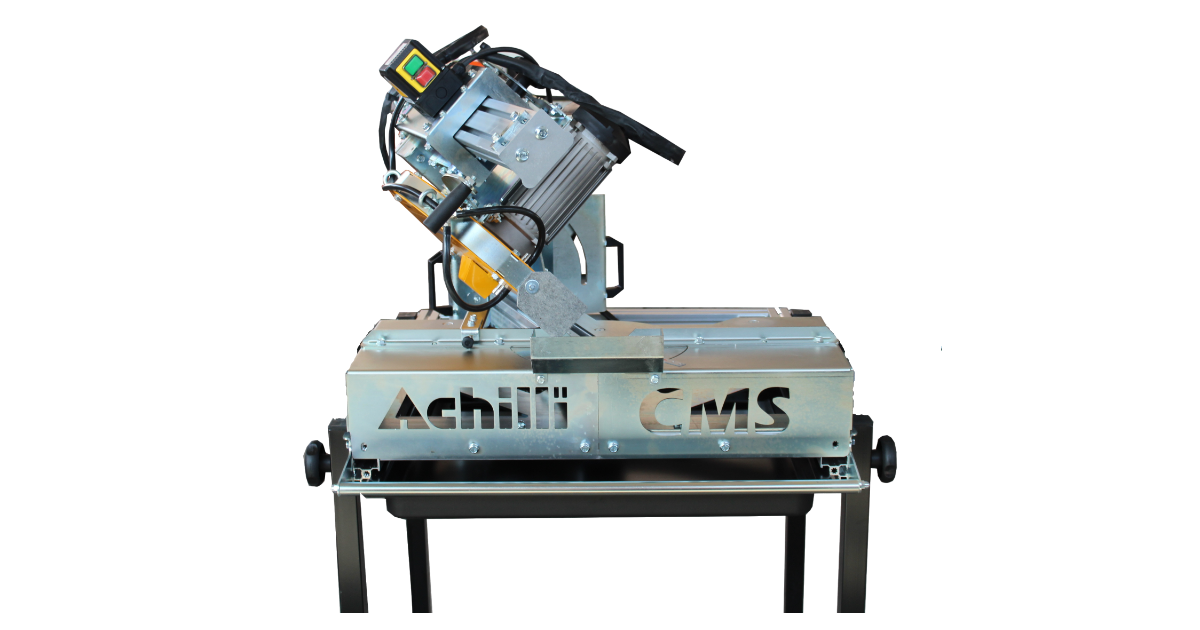

- Manual head tilt for inclined cuts from 90 to 45 degree
- Also known as portable site saw, bench saw, backsplash saw
- Side extensions tables available, sold separately
Specifications
| Useful Cut | 280 MM (11”) |
|---|---|
| Diamond blade diameter | 250-300-350 mm (10”–12”–14”) |
| Blade bore size | 25.4 mm (1") |
| Motor power | 3HP 1ph (also in 1.5HP 1ph) |
| Motor rotation speed | 2800rpm 50Hz – 3400rpm 60Hz |
| Standard voltage/ frequency | 230V-50/60Hz (also in 115V-60/60Hz) |
