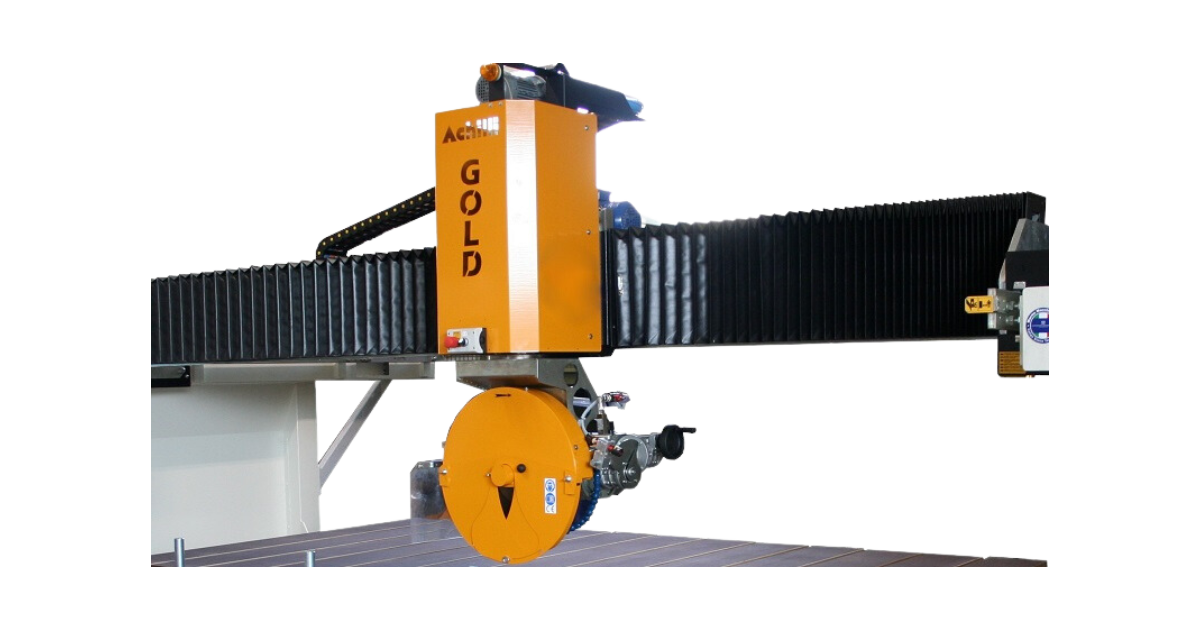

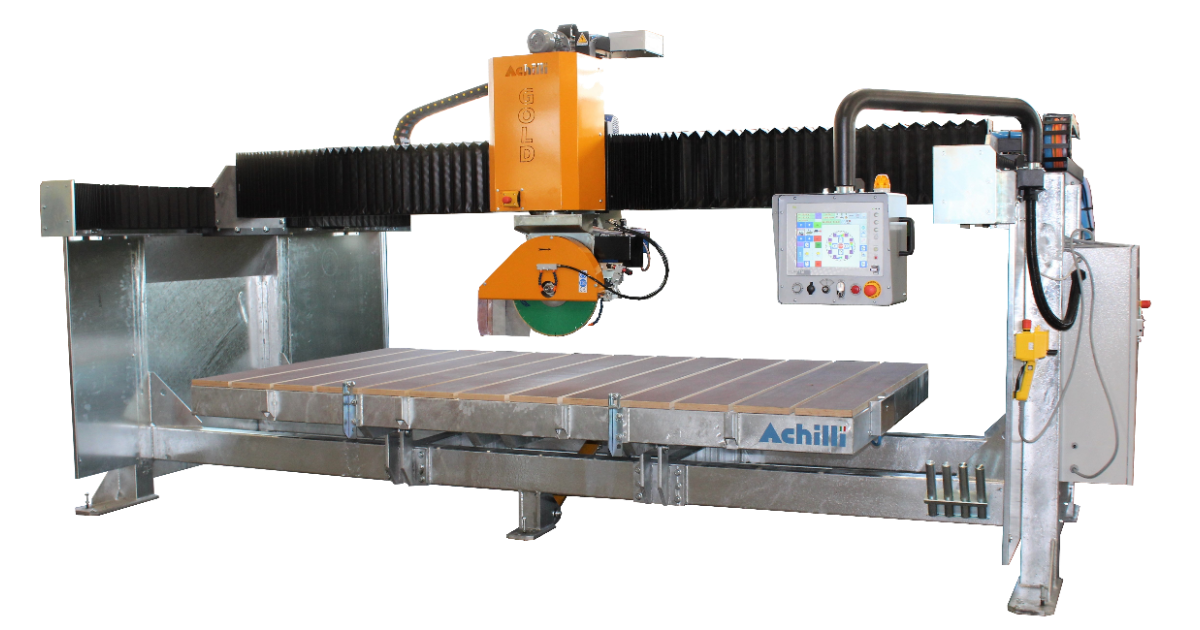

Achilli GOLD Monoblock CNC Bridge Saw-Contact for Quote

Achilli GOLD Monoblock CNC Bridge Saw-Contact for Quote

Regular price $0.01 USD
Regular price Sale price $0.01 USD
Sale Sold out
Shipping calculated at checkout.

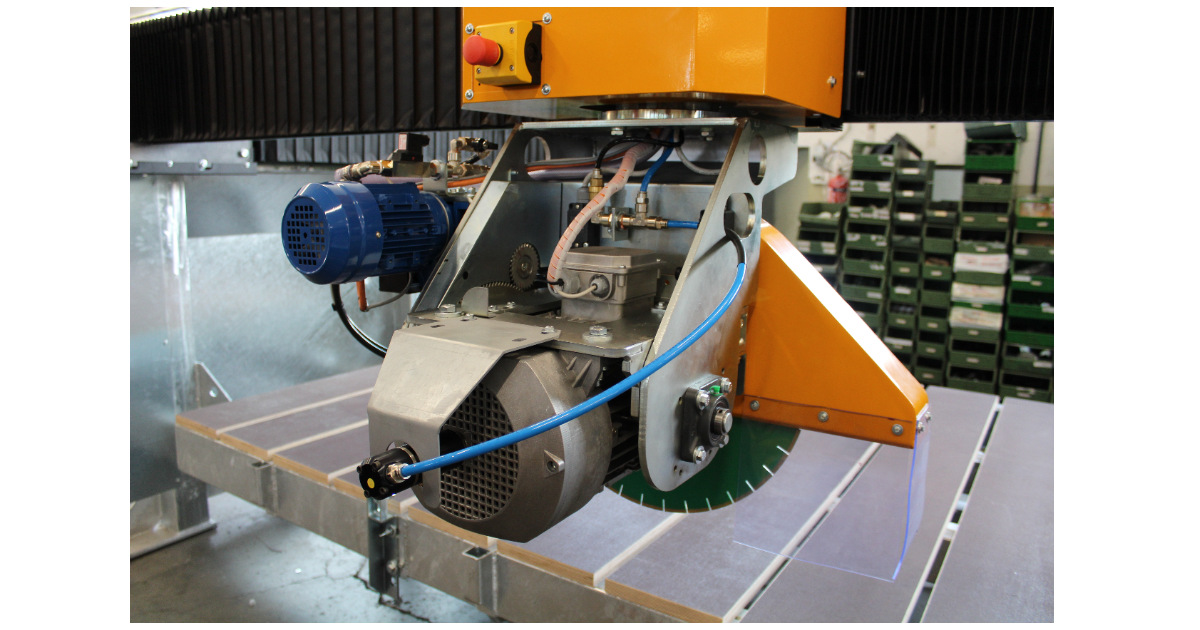

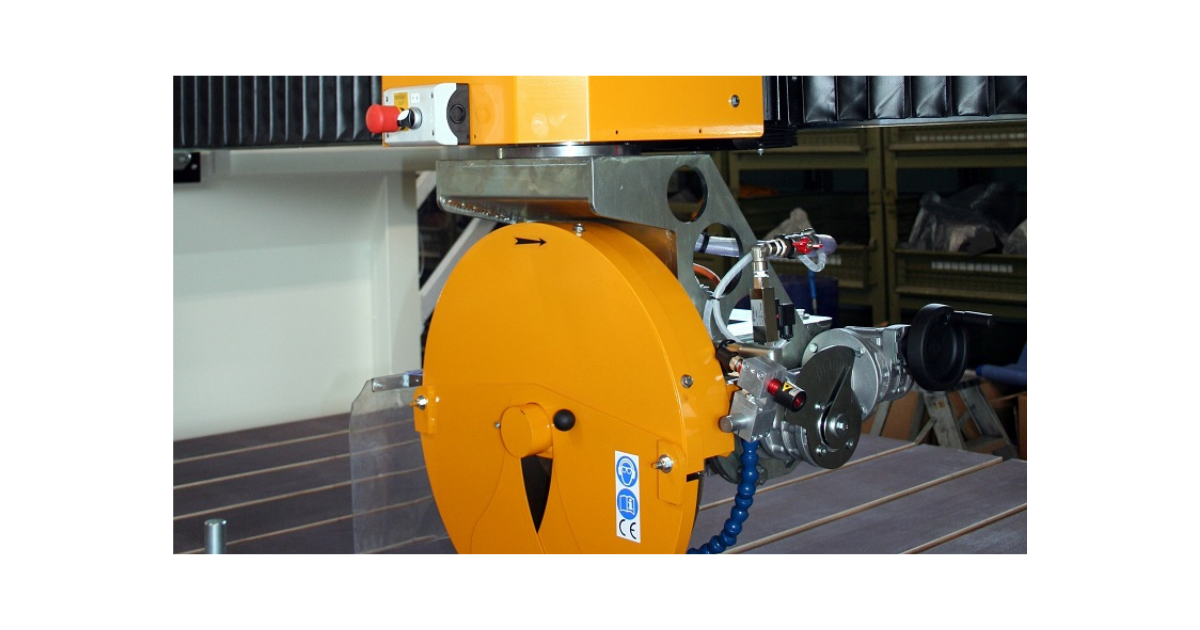

Monoblock bridge saw with automatic head rotation to perform straight cuts in all directions. Manual or automatic head tilt from 90° to 0° for tilted and horizontal cutting with special connection for mounting core drills. High precision head motion on linear guides with recirculating ball slides. >moreADVANTAGES

GOLD is the new generation 4 or 5 axis bridge saw for cutting stone slabs:

  • Customizable according to customer requirements;
  • Monoblock structure for easy installation (does not require foundation);
  • Automatic head rotation;
  • Precision Stone Cutting: extremely accurate and consistent stone sawing.

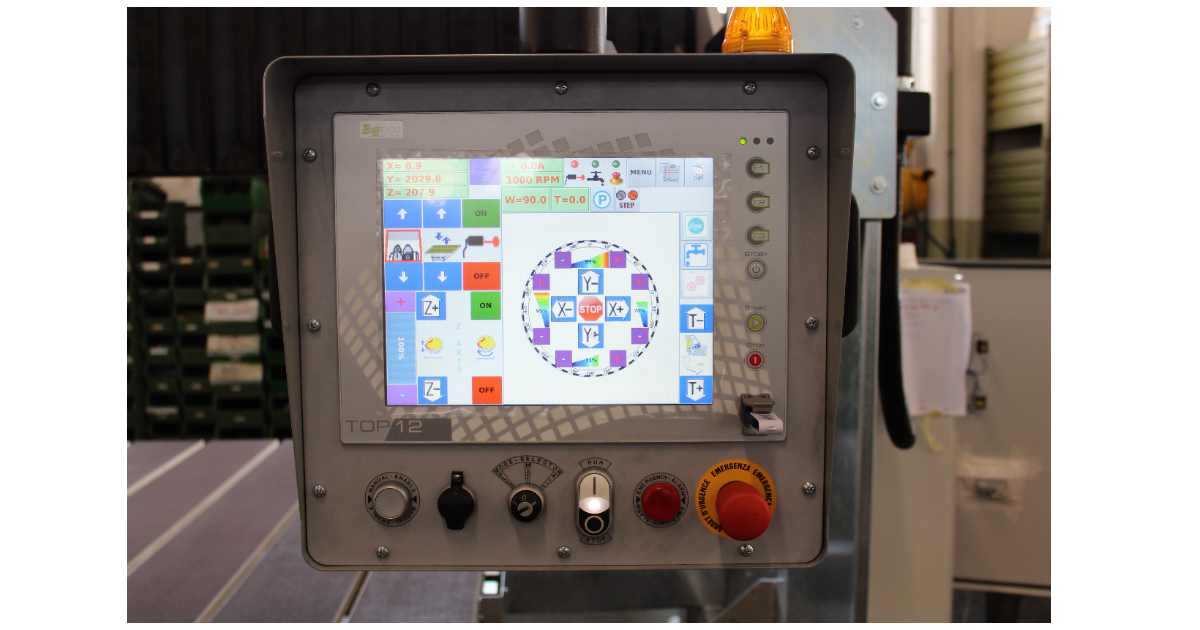

  • Simple to Operate: GOLD is capable of fully automatic operation or can be operated in a semi-automatic mode to give the operator full control of sawing operations;

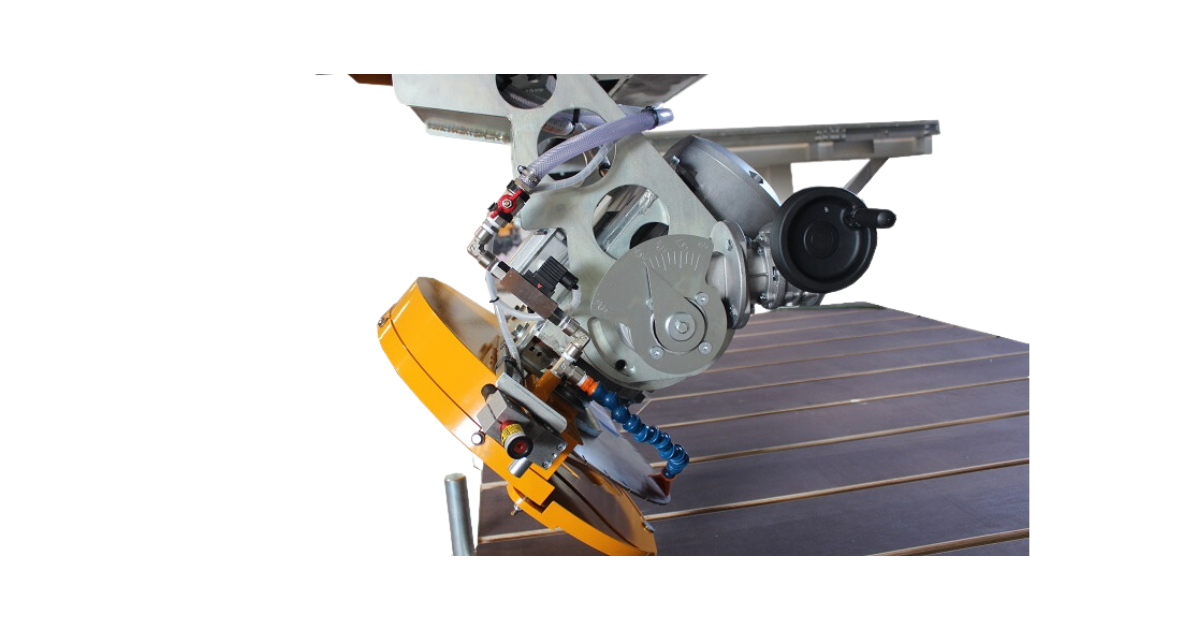

  • Manual or CNC controlled head tilt from 90 to 0 degrees;
  • 1/2” gas connection for mounting core drills and perform an automatic drilling cycle to easily cut corners and remove the tension from the sintered material plates;
  • Perform sink cutouts with ease.
  • Pre-loaded parametric figures such as hexagon, octagon, kitchen top, trapezium, polygon, etc.
  • Profiling environment of the CNC to create artistic frames and decorations.

              Technical Details Specifications
              X axis travel 3900 mm (12'8")
              Y axis travel 2350 mm (7'8")
              Z axis travel 330 mm (13")
              Worktable dimensions 4800x2200 mm (11'5"" x 7'2")
              Diamond blade diameter 350-525 mm (14" to 20")
              Blade bore size 50 mm
              Head tilt 90° - 0°
              Head rotation 0°- 360°
              Main motor power 11kW = 15HP
              Main motor rotation speed 800 - 3000 rpm
              Standard voltage/ frequency 3ph. 400V-50/60Hz  230V-60Hz
