Achilli

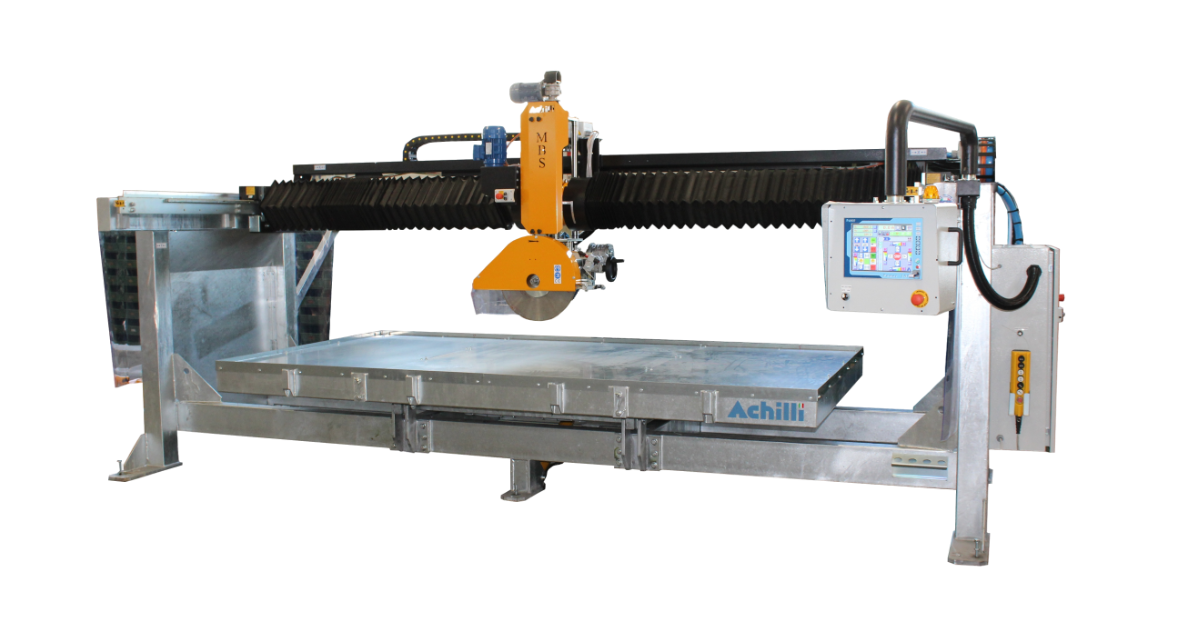

Achilli MBS TS Monoblock CNC Bridge Saw-Contact for Quote

Achilli MBS TS Monoblock CNC Bridge Saw-Contact for Quote

Regular price $0.01 USD
Regular price Sale price $0.01 USD
Sale Sold out
Shipping calculated at checkout.

SKU:MBS-TS

CNC BRIDGE SAW FOR INTERPOLATED ANGLE CUTTING IN ALL DIRECTIONS

MBS TS is our best-selling bridge saw; the perfect combination of simplicity, flexibility and durability. The installation is easy and does not require foundation. The machine is equipped with a compressed, rectified and chromed “active beam” guaranteeing the utmost accuracy. The rotation of the head allows to perform interpolated angle cutting in all directions.... >moreADVANTAGES

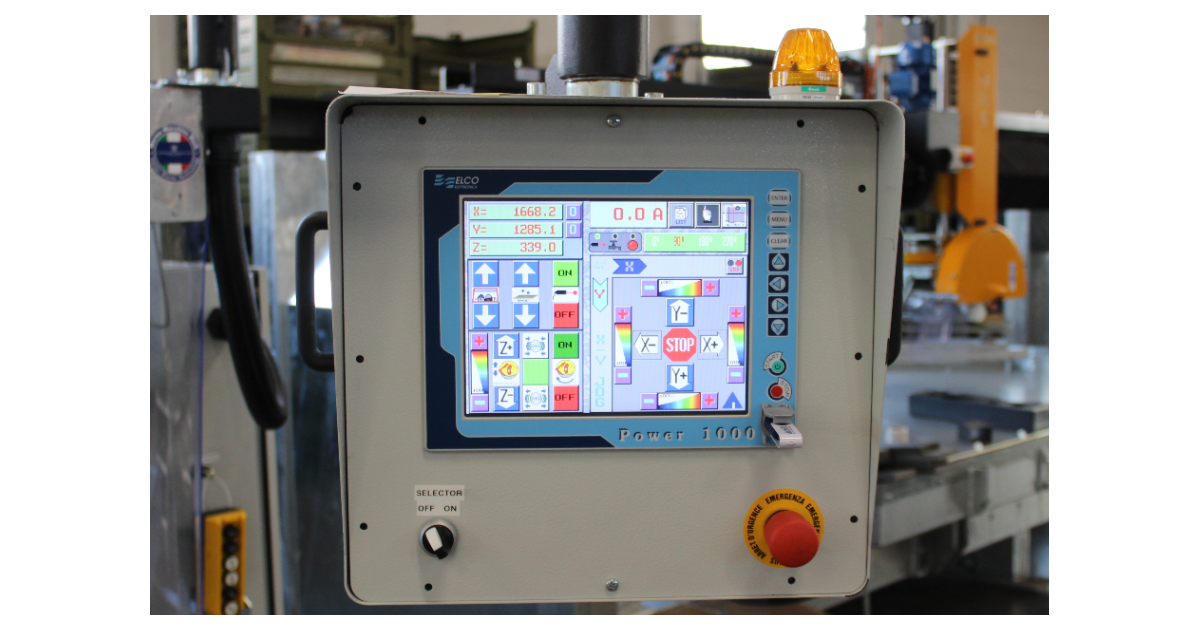

MBS TS is our historical monoblock bridge saw with CNC axis control unit for cuts programming:

  • Fully customizable according to customer requirements;
  • Monoblock structure for easy installation;
  • The perfect cutting precision is guaranteed by the special design of the beam;

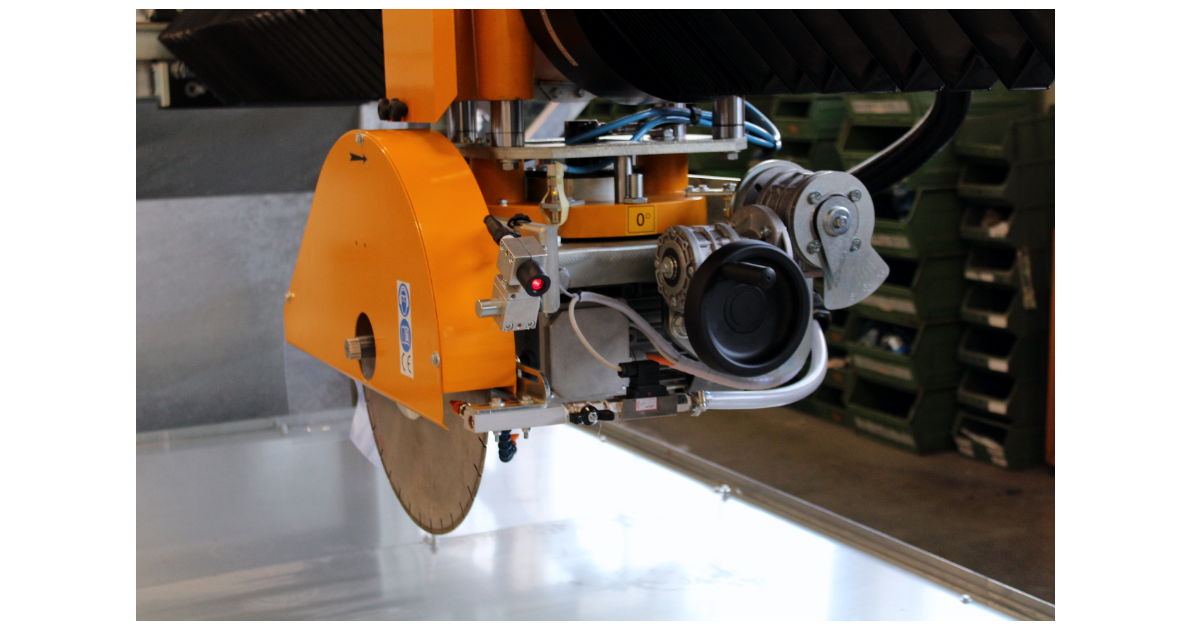

  • Manual or automatic head rotation to perform interpolated angle cutting in all directions.
  • Miter cut capable
  • Tilting table for loading and unloading slabs
                Technical Details Specifications
                X axis travel 3500mm (11’5”)
                Y axis travel 2250mm (7’2”)
                Z axis travel 350mm (13'8")
                Worktable dimensions 4600x2200mm (15.1'x7’2”)
                Max. diamond blade diameter 400mm (16")
                Blade bore size 50 mm (2”)
                Head tilt 90° - 45°
                Head rotation 0°- 90°- 180°- 270° / 0°- 360°
                Main motor power 15kW = 20HP
                Main motor rotation speed 1400 rpm 50Hz – 1700 rpm 60Hz
                Main motor variable speed (optional) 800 - 3000 rpm
                Standard voltage/ frequency 400V-50/60Hz  / 230V-60Hz  3ph.
