Achilli TAG Portable Bench Saw
Achilli TAG Portable Bench Saw
Regular price
$3,208.00 USD
Regular price
Sale price
$3,208.00 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:EC13MPLAL01
Couldn't load pickup availability

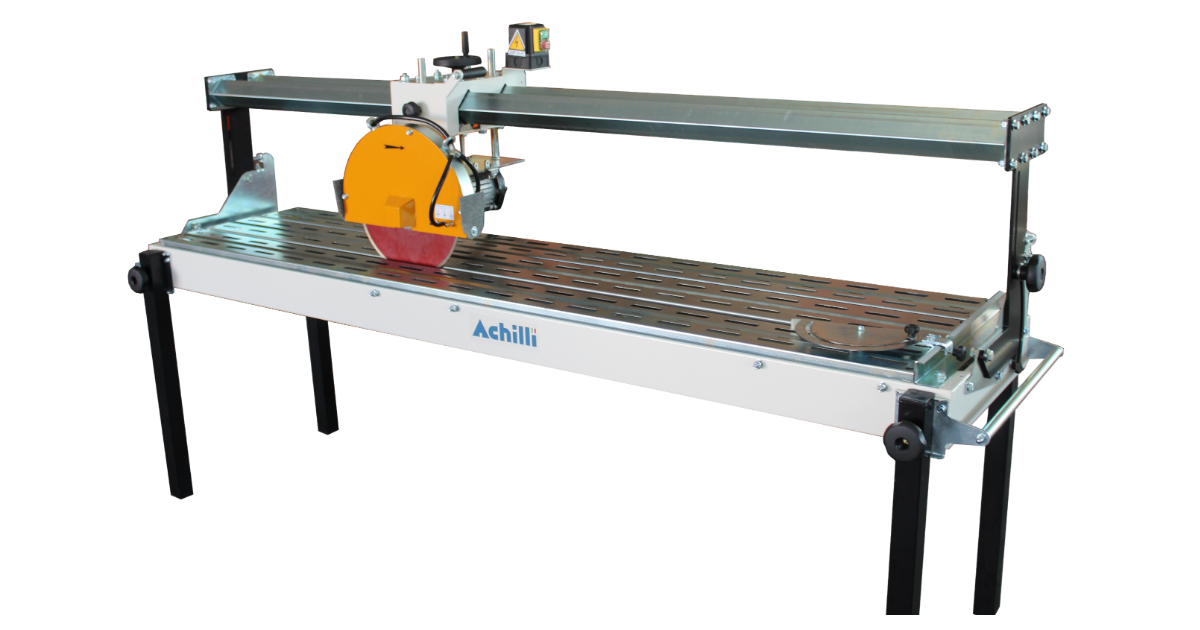

Our TAG Portable Saw for stone and building materials has a sliding head for tiles, stone slabs, and building materials. Strong and versatile, this model is ideal for use on construction sites... >more

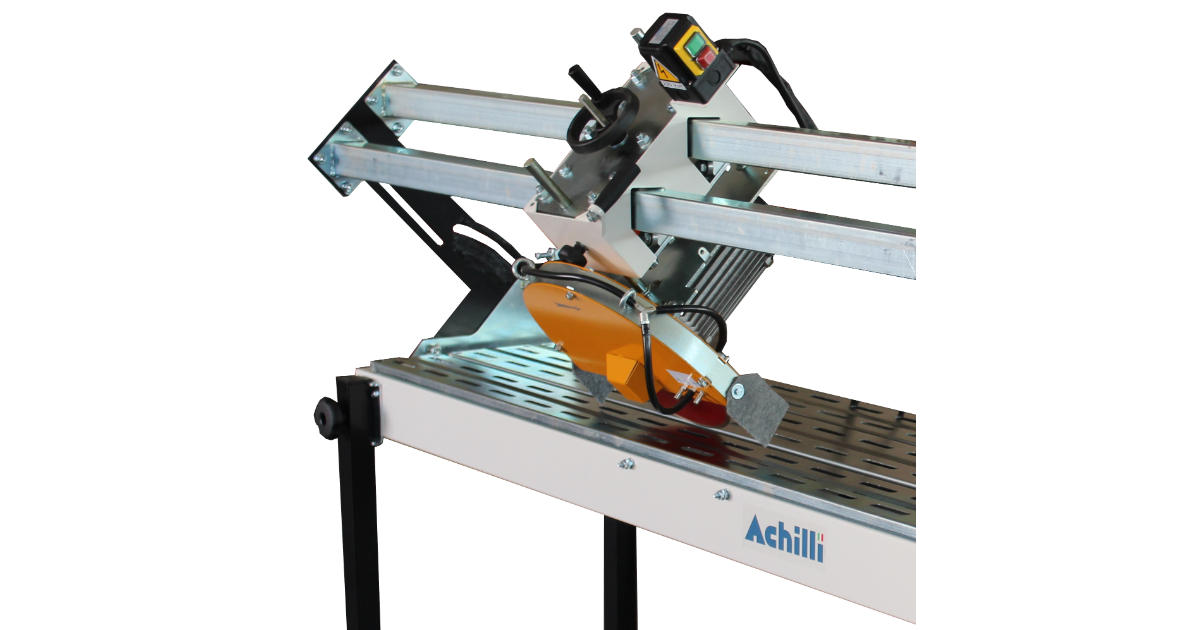

Built with an onboard water tank reservoir to include a recycling pump which feeds water up through the blade housing. This is then channeled to the blade from both sides, keeping it cool during use. Height adjustment of the cutting head is controlled by a manual hand crank. The height adjustment feature allows easy plunge cuts and step cutting operations as well, and the entire beam tilts for precision miter cutting. The TAG series are equipped with a soft on/off button next to the blade. This portable bench saw with sliding head for tiles, stone slabs and building materials. Strong and versatile this model is ideal for use in construction sites.
ADVANTAGES
- Sturdy portable bench saw to cut tiles, stones and building materials:
- Worktable made of galvanized steel rails, with transportation handle and adjustable squaring bar;

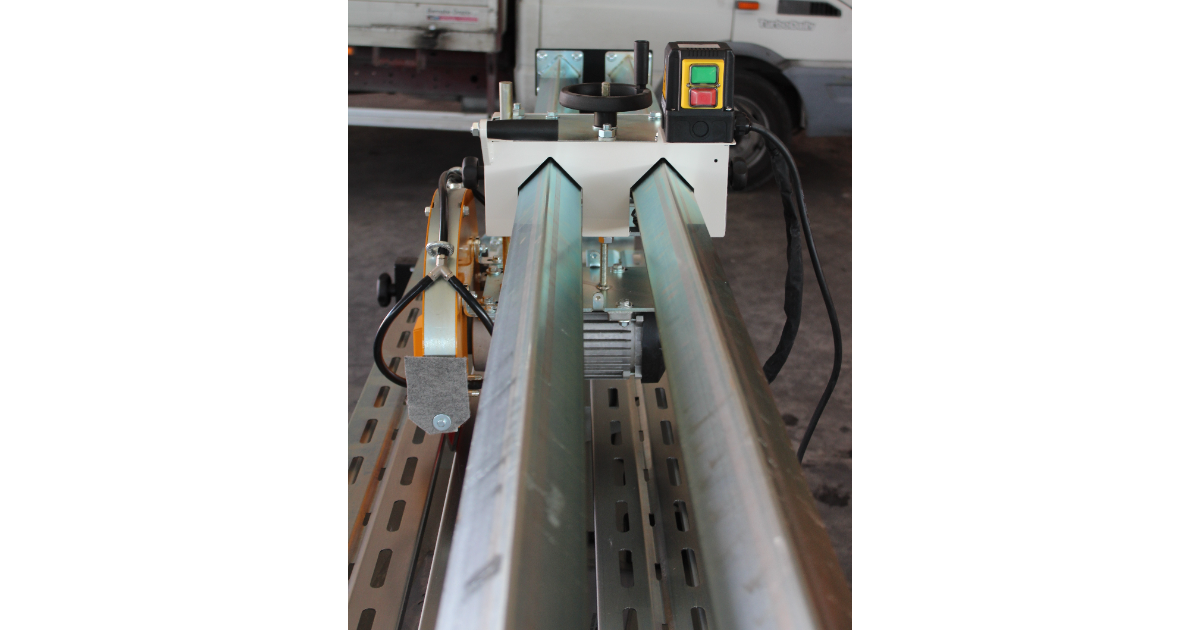

- Double rhomboid beam for high resistance and precision
- Self-contained water recycling tray and pump
- Folding legs for easy transport.
TECHNICAL DETAILS
| TAG | |
| Useful cut |
600-800-1000-1300-1500-2000 mm (2’- 2’7” – 3’3” – 4’3” – 4’11” – 6’6”) |
| Max Depth of Cut | 3.9" |
| Blade diameter | 250-300-350 mm (10”–12”–14”) |
| Bore size | 25,4 mm (1") |
| Motor power | 2.2kW = 3HP (1phase) |
| Motor power (optional) | 3kW=4HP (3phase) |
| Motor rotation speed | 2800rpm 50Hz – 3400rpm 60Hz |
| Standard voltage/ frequency | 230V-50Hz |
