Achilli

Achilli TFM Mini Bridge Saw

Achilli TFM Mini Bridge Saw

SKU:MBTFM30HT21

Request Quote In Cart

Contact us for a personalized price quote

STONE SAW WITH FIXED BRIDGE FOR STONE, QUARTZ AND CERAMIC SLABS

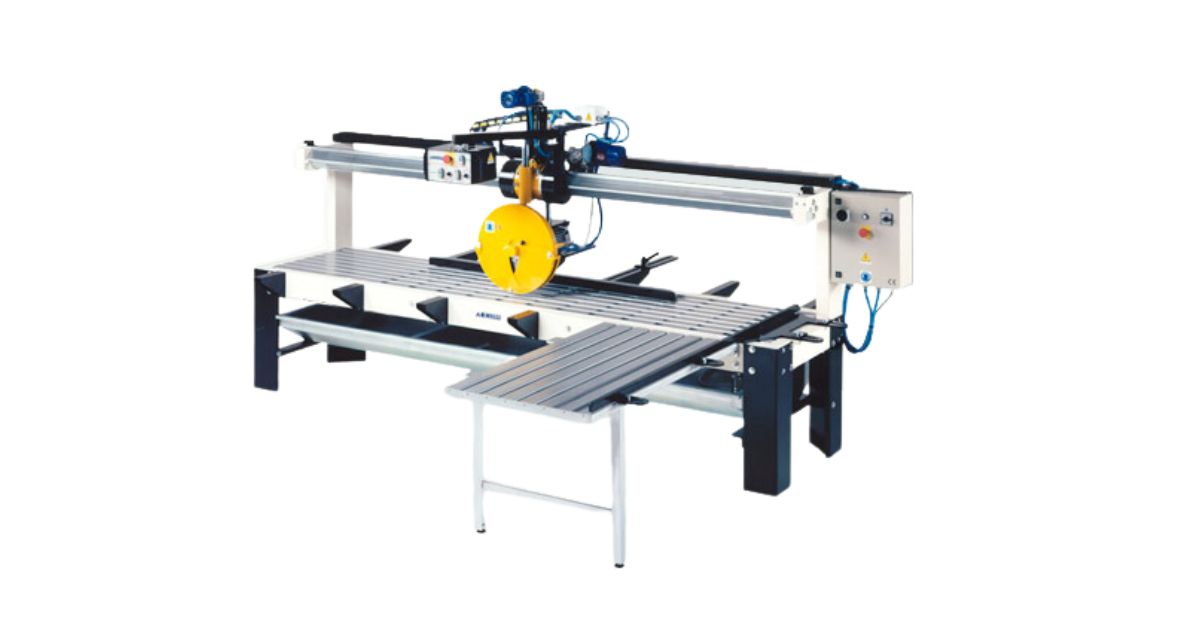

Monoblock saw with fixed bridge for stone and sintered material slabs equipped with a compressed, rectified and chromed “active beam” guaranteeing the utmost accuracy. The worktable extensions widen the worktable facilitating the positioning of large slabs and the head feed is motorized with variable speed adjustment in both directions. A special optional device permits to carry out parallel cuts........ >moreADVANTAGES

TFM is an extremely sturdy bridge saw, suitable to cut thick stone slabs:

  • Customizable according to customer requirements;

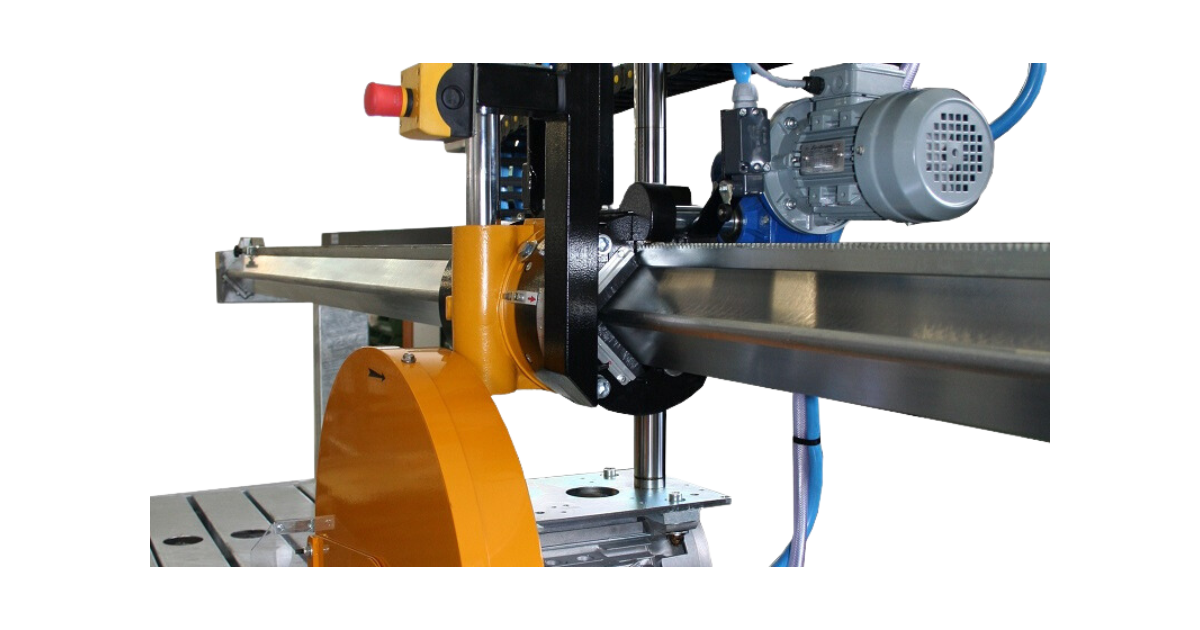

  • Equipped with a special design beam providing the utmost accuracy;
  • Optional PLC control unit for step-cut programming;
  • Extremely accurate cutting on stone, ceramic, quartz and sintered materials;

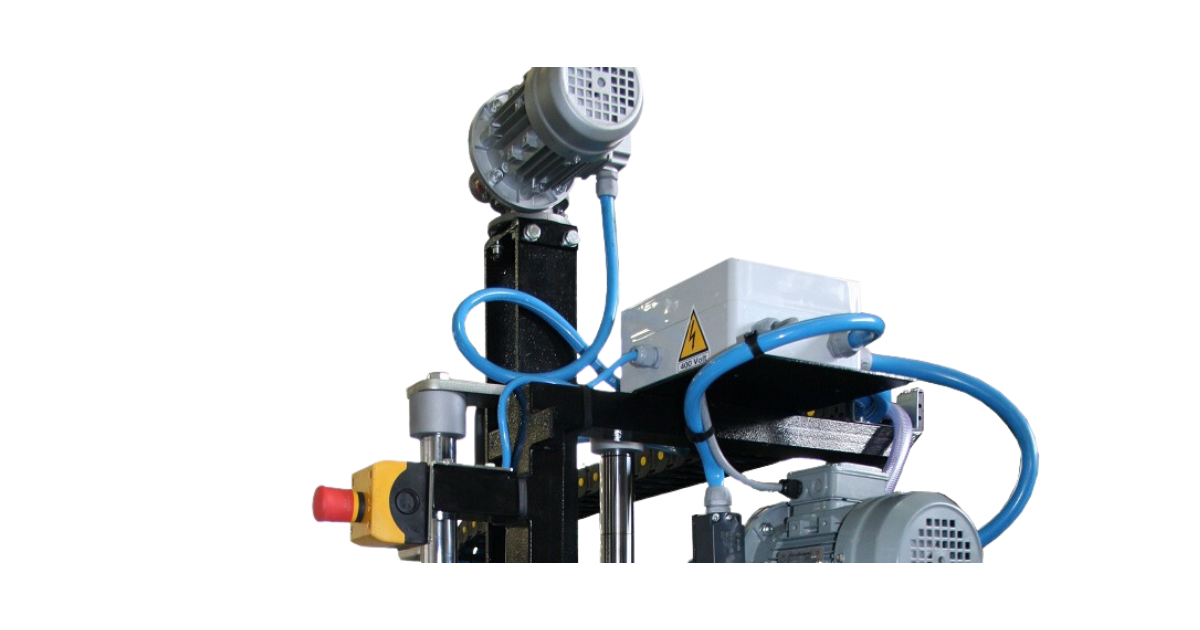

  • Motorized head motion with variable speed on X axis in both directions.
        Technical Details Specifications
        X axis travel 3100mm (10’2”) or 3500mm (11’5”)
        Z axis travel 380 mm

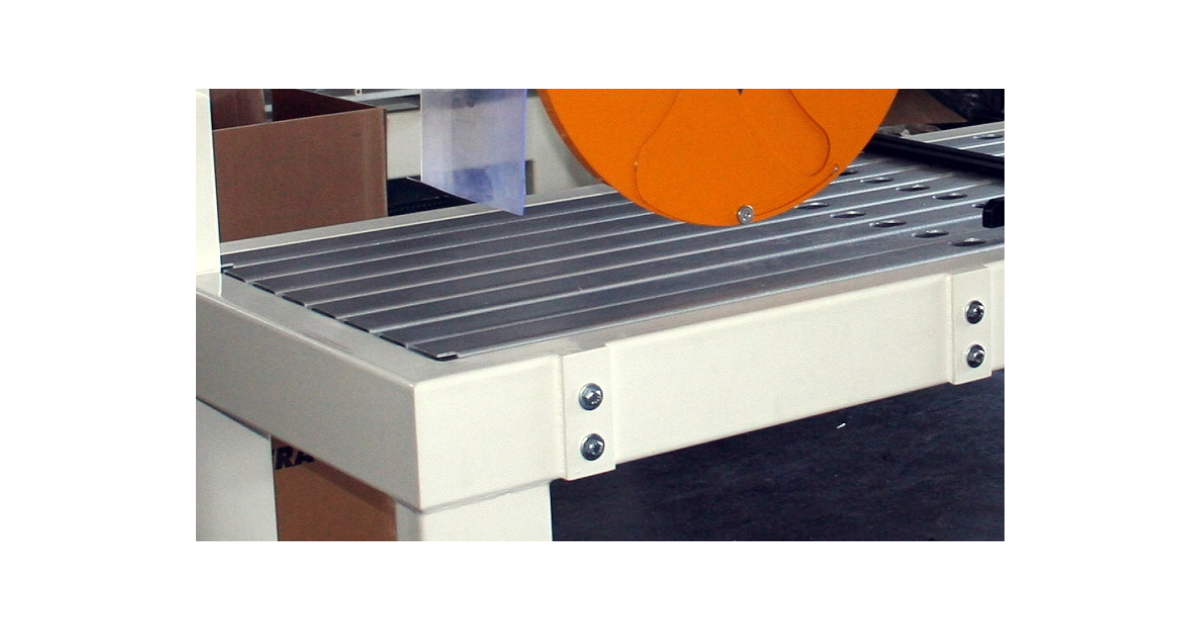

        Worktable dimensions 3695×900 mm

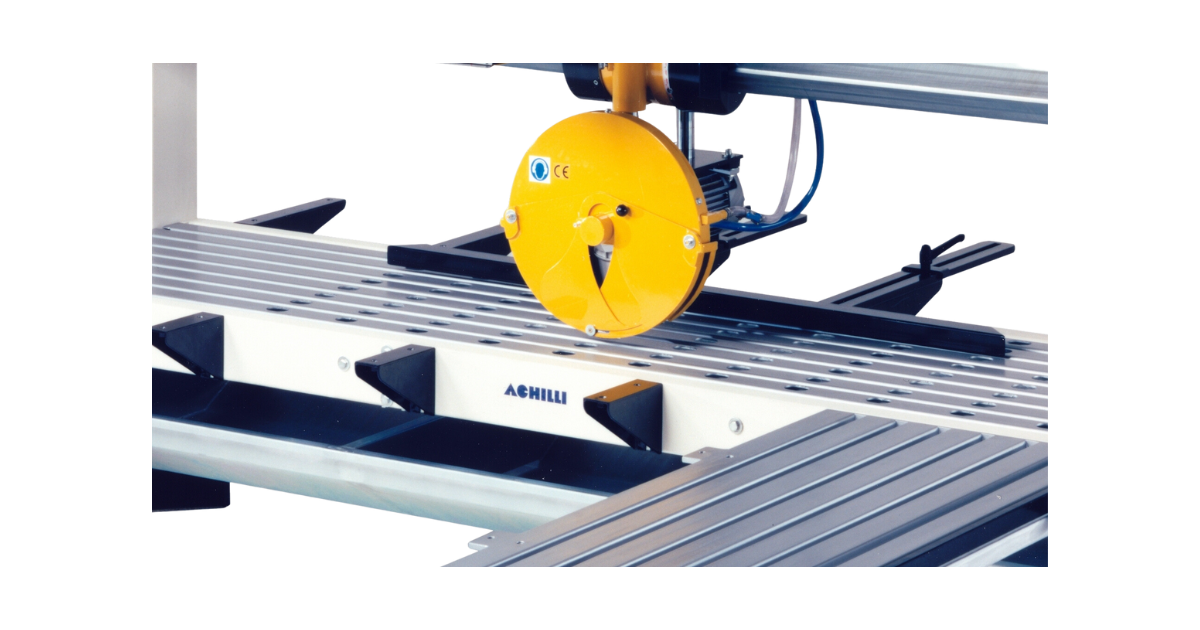

        Diamond blade diameter 300-400 mm (12"-16") or 400-625 mm (16"-25")
        Blade bore size 50 mm
        Motor power 7.5kW = 10HP / 11kW = 15 HP (3ph.)
        Main motor rotation speed 1400 rpm 50Hz – 1700 rpm 60Hz
        Standard voltage/ frequency

        400V-50/60Hz /230V-60Hz  3ph.
