Achilli TSA Portable Track Saw 3HP

Achilli TSA Portable Track Saw 3HP

Regular price $2,574.00 USD
Regular price Sale price $2,574.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:MOTSAM11

product

***Rails sold separately from saw***

Our Achilli Track Saw is the ultimate in on site straight rip saws, with an easily managed weight and the portability of a collapsing triple segment rail you can make professional cuts right there on the slab... >more ADVANTAGES

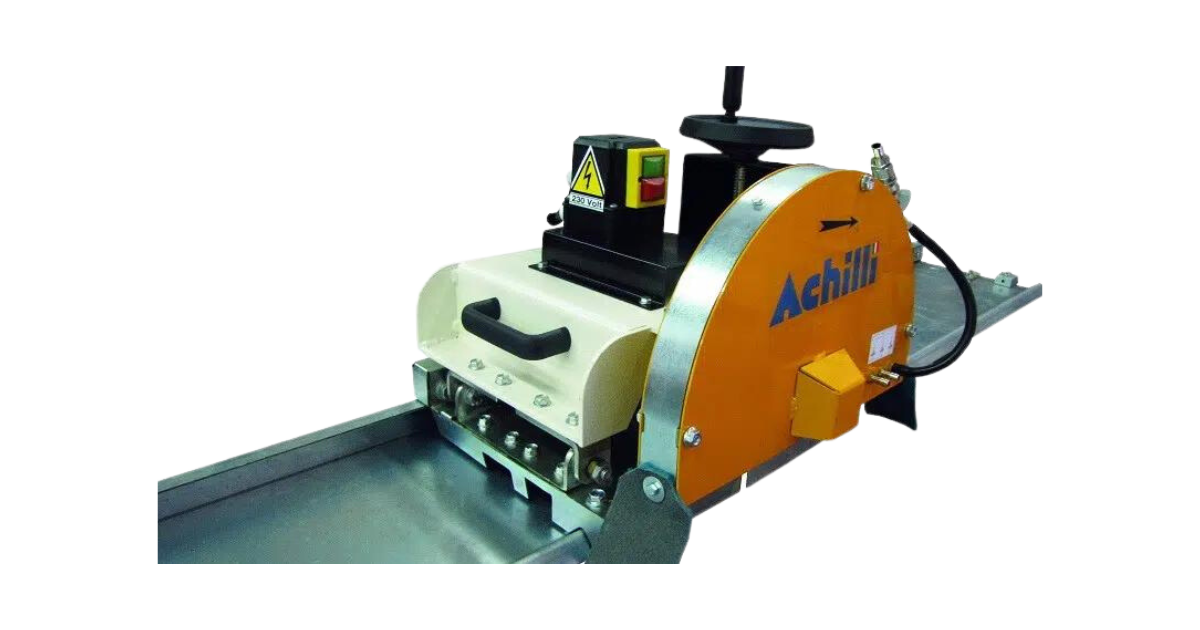

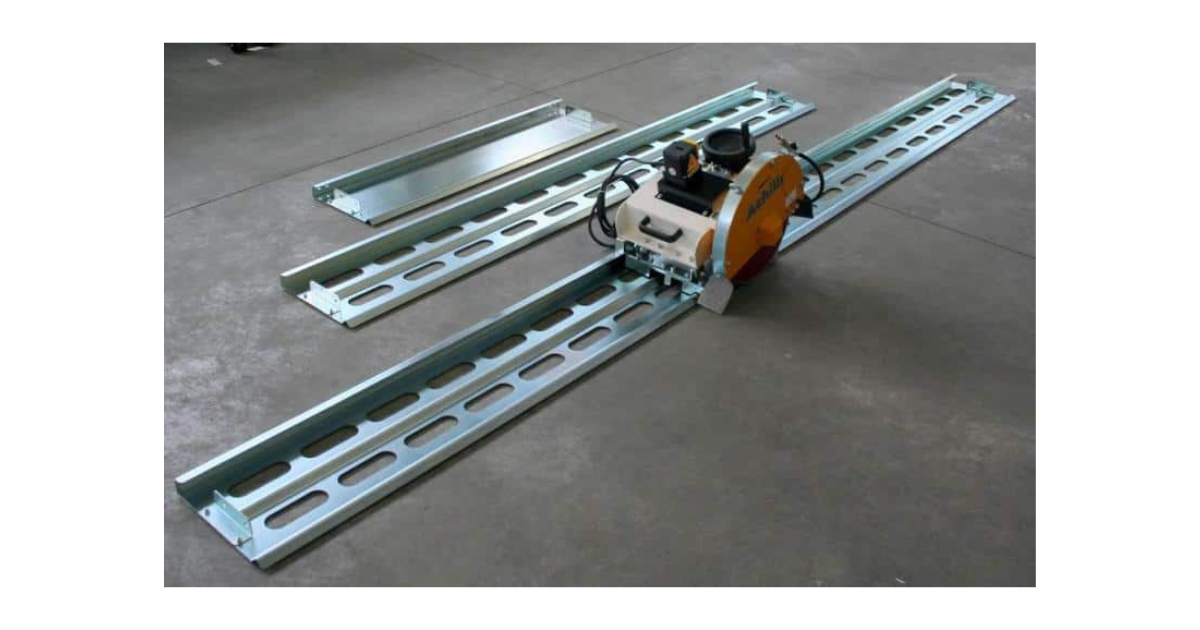

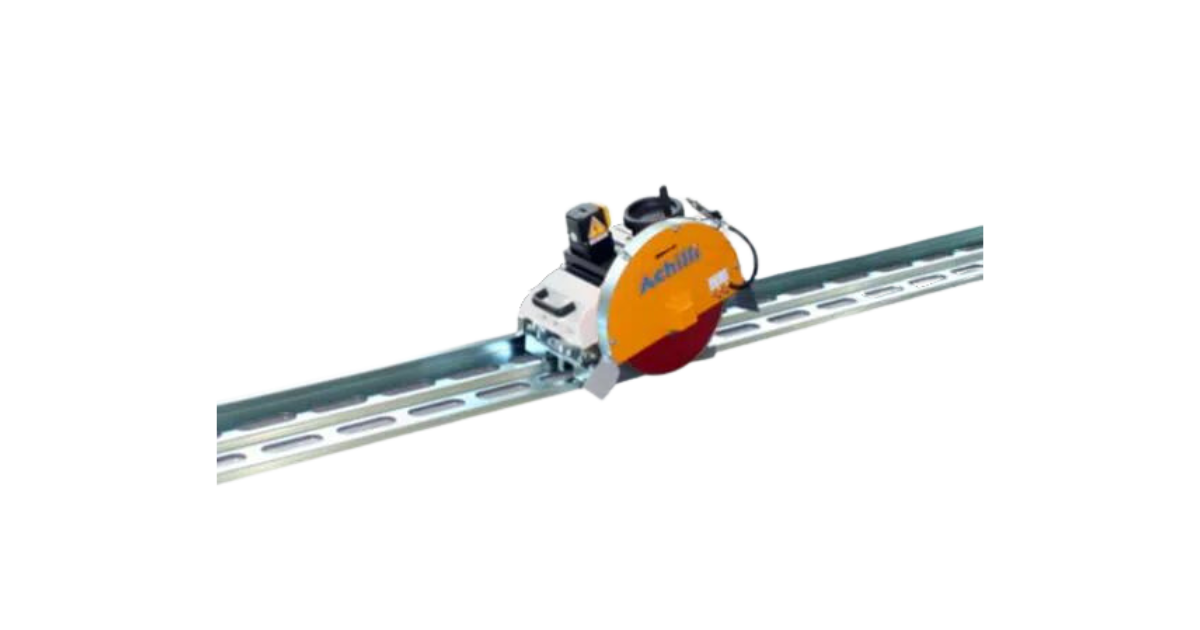

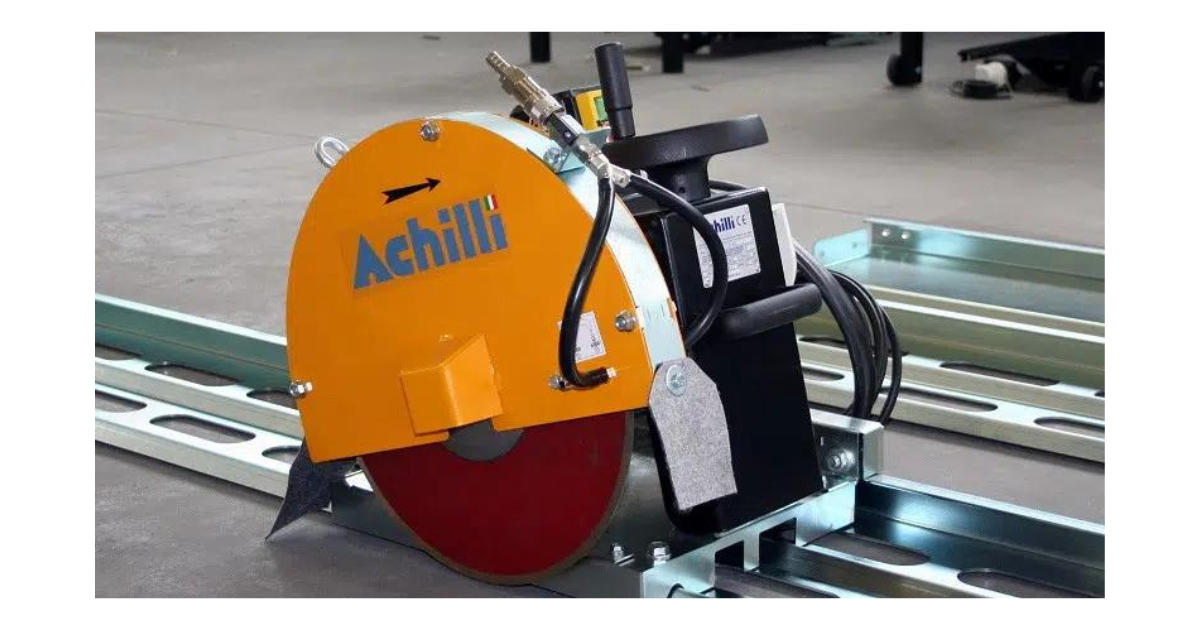

Innovative portable track saw on mobile rail TSA:

  • Sturdy and compact frame easy to transport and assemble on site, steel frame, sandblasted and painted with epoxy-powder finish (galvanized upon request);
  • Allows to cut large slabs with a small investment;
  • Easy one-hand water disconnect included;

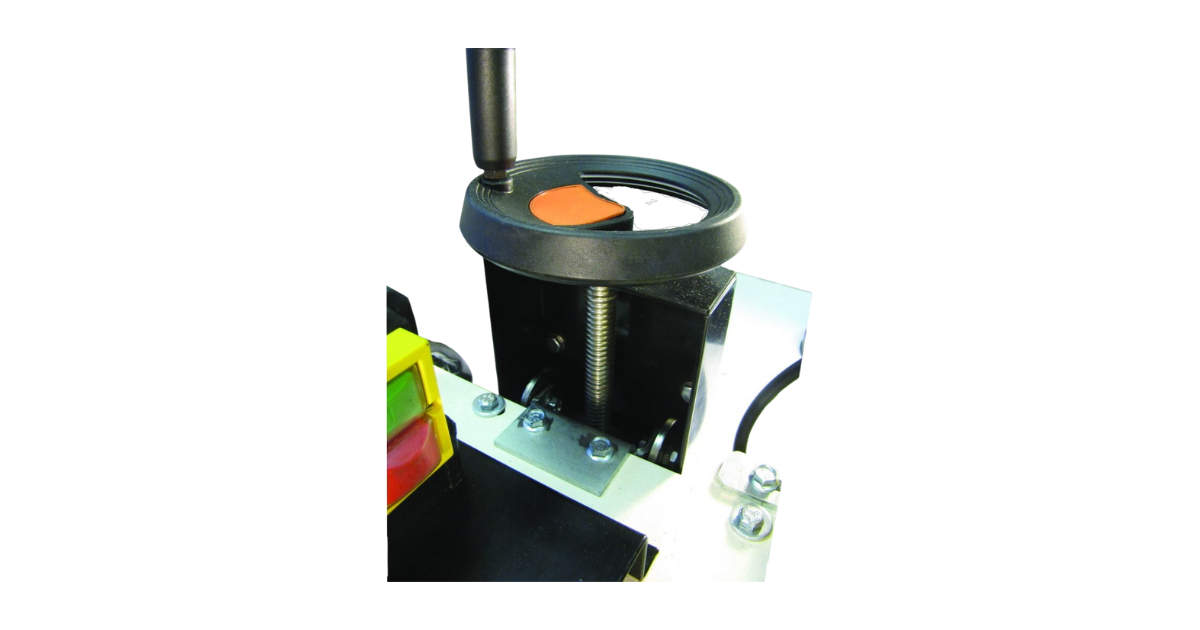

  • Head travels on 6 bearings 1.25in. (32mm) in diameter and manual cutting depth is adjusted by a hand wheel;

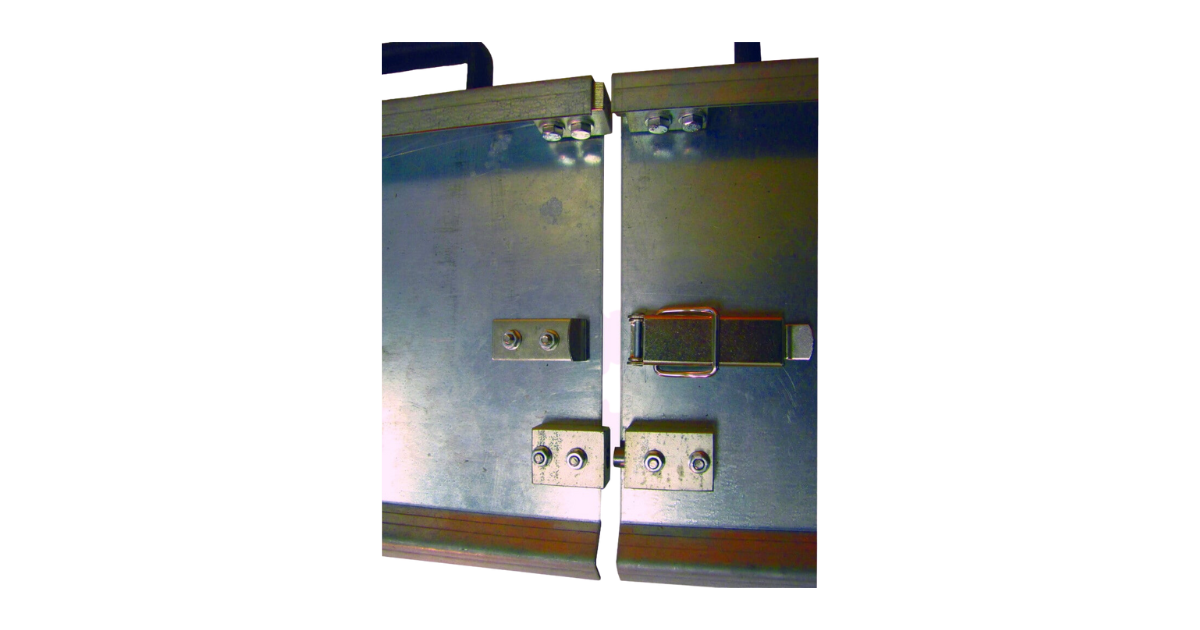

  • Different rail sizes available:
    • 3 x 4ft. (1250mm) with fasteners to create a 12' rail
    • 1 x 4ft. (1250mm)
    • 1 x 8ft. (2500mm)
    • 1 x 13ft. (4000mm)

    Specifications

    Rail Length

    1250 mm / 2500 mm / 4000 mm

    Diamond blade diameter 300-350 mm
    Blade bore size 25,4 mm (1")
    Max. cutting depth 40 mm
    Main motor power 2.2kW = 3HP 1ph
    Main motor rotation speed 1400 o 2800 rpm 50Hz – 1700 o 3400 rpm 60Hz
    Standard voltage/ frequency 230V-50/60Hz
