Achilli Universal 1-Phase Floor Grinder LM30-VE and LM30-CE

Achilli Universal 1-Phase Floor Grinder LM30-VE and LM30-CE

$3,921.00 USD
$3,921.00 USD
Sale Sold out
Shipping calculated at checkout.

PALM30CEF03

Product

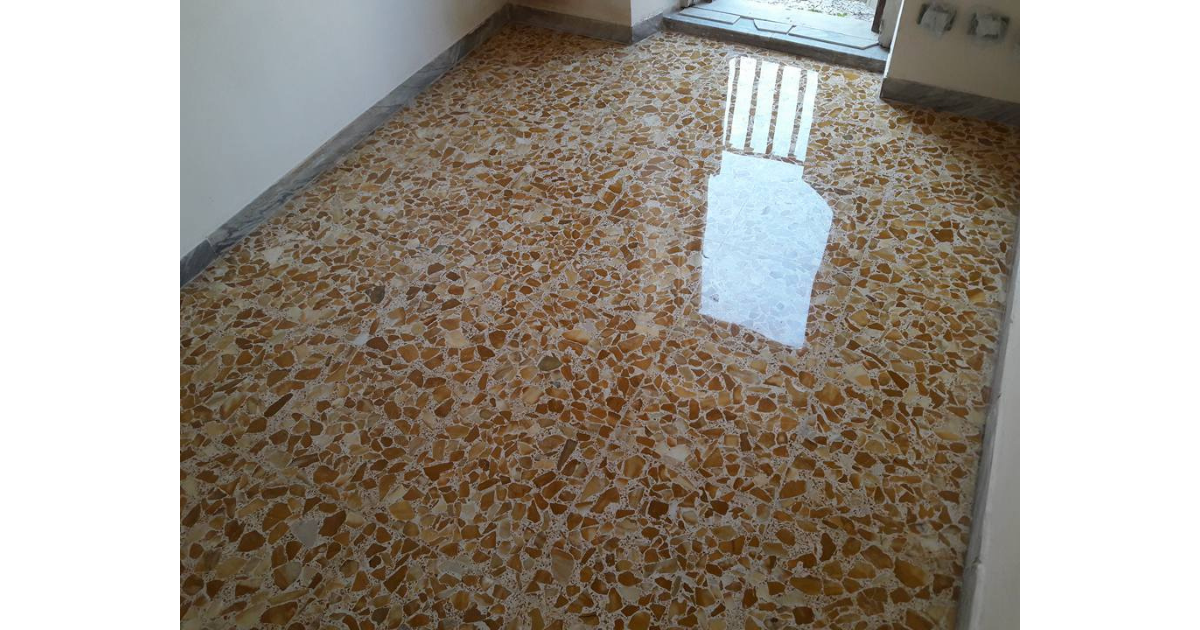

Universal single phase floor grinding and polishing machine for stone floors. The VE model is variable speed, while the CE model is single speed. This floor grinder is perfect to work marble, terrazzo, concrete, granite and any kind of stone... >more

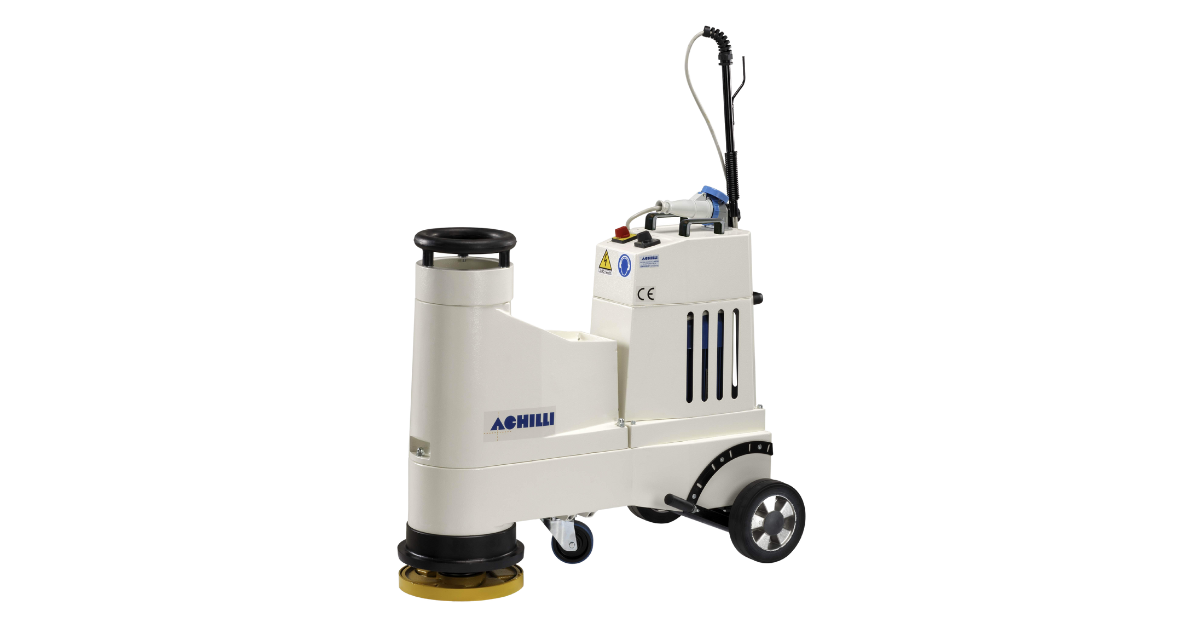

The LM30-VE is our best selling floor grinder, the most popular model for professional floor grinder operators, both in Italy and across the globe.

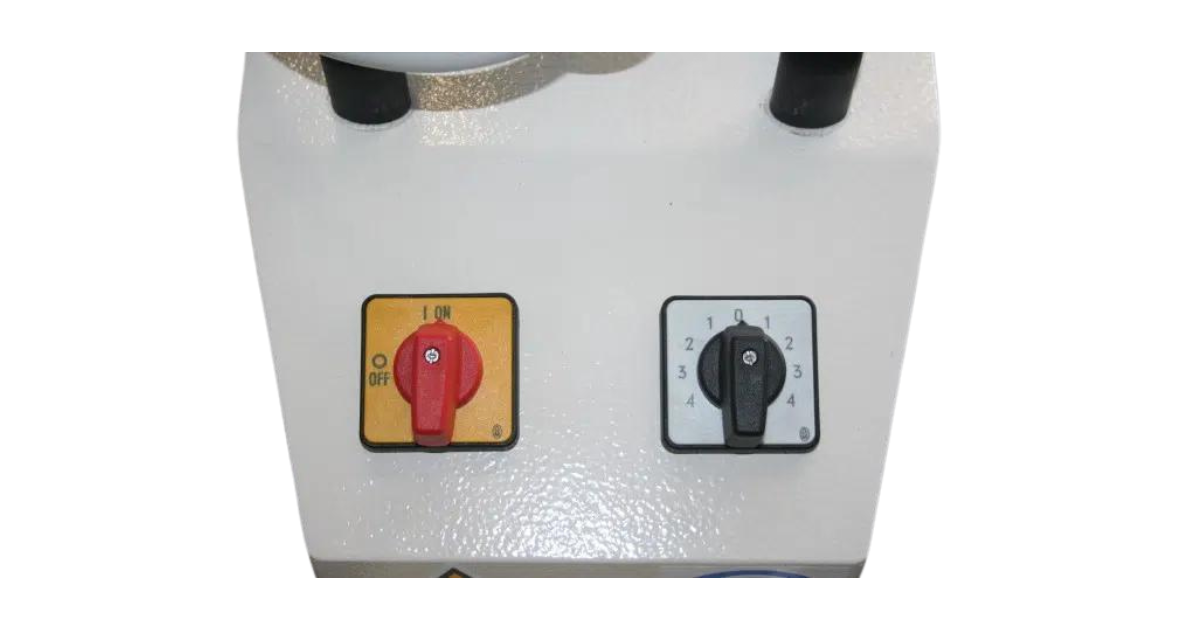

  • Toggle between four different speeds to choose the best option for any floor.
  • Machine level adjustment by eccentric wheel axis.
  • Easy grip handles and pivoting wheels for effortless movements.
  • Sturdy and compact structure. Aluminum tank with epoxy powder finish.
  • Three-phase motor driven by a frequency inverter to improve machine output. Available with 2.2kW-3HP motor or with a powerful motor 3kW-4HP.

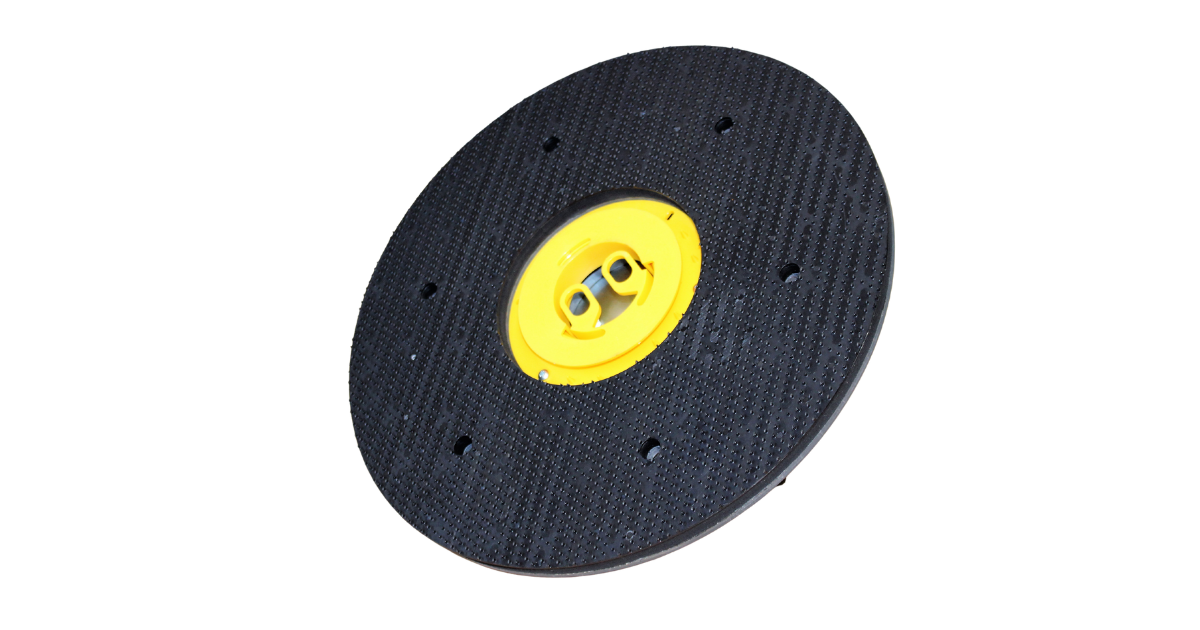

  • Frankfurt holding plate included. Prismatic or Comma type available by special order

Specifications for LM30-VE:

TITLE DETAIL
Power 2.2Kw – 3HP / 3kW – 4HP
Voltage
 230V (monophase)
Motor rpm
 1400 rpm
Abrasive holding plate 300 mm / 11.8"
Plate rpm and peripheral speed
 1 - 150 rpm – 141 m/min (463 ft/min)
2 - 351 rpm – 330 m/min (1083 ft/min)
3 - 439 rpm – 413 m/min (1355 ft/min)
4 - 527 rpm – 496 m/min (1627 ft/min)
Water tank capacity
 26 L / 6.8 Gal
Size
 500x995x1300mm (19.7" x 39.17" x 51.2")
Net weight 221 lbs
Gross weight 265 lbs

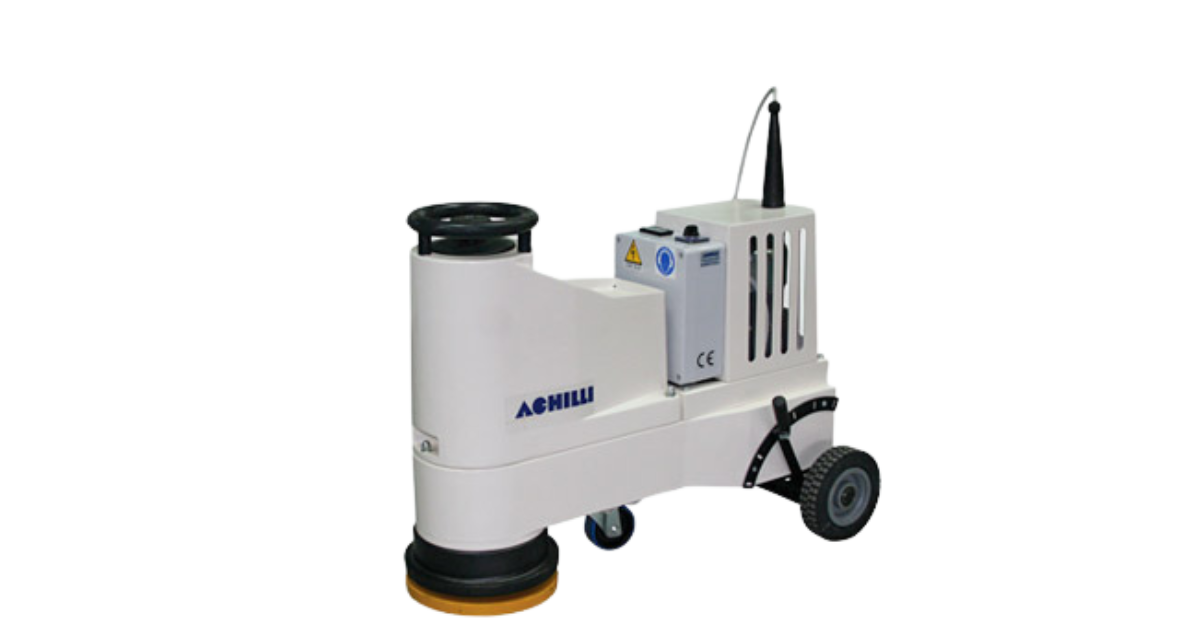

LM30-CE is a simple and powerful floor grinder, it is the most used single-phase model.

  • Aluminum tank with epoxy powder finish.
  • Machine level adjustment by eccentric wheel axis.

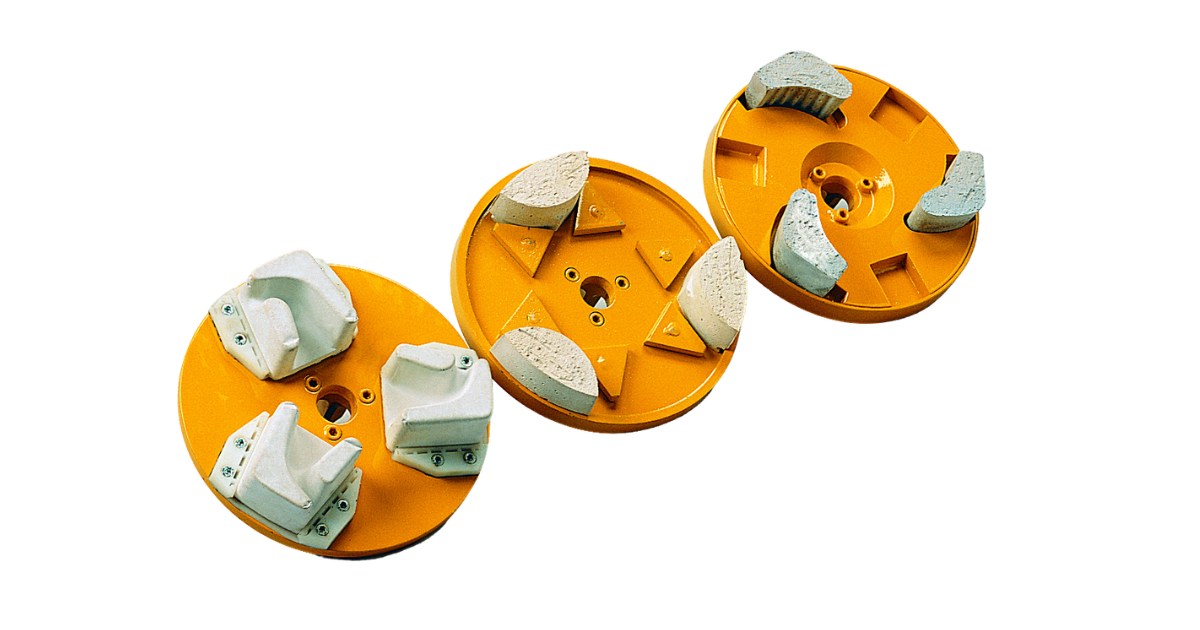

  • Optional planetary head or 6-head bush hammer plate available by special order

Specifications for LM30-CE:

TITLE DETAIL
Power 2.2Kw – 3HP
Voltage
 230V (115V by special order)
Motor rpm
 1400 rpm (Single Speed)
Abrasive holding plate 300 mm / 11.8"
Plate rpm and peripheral speed
 440 rpm – 415 m/min (1362 ft/min)
Water tank capacity
 26 L / 6.8 Gal
Size
 500x995x945mm (19.7" x 39.17" x 37.2")
Net weight 199 lbs
Gross weight 243 lbs
