Alpha

Alpha Black Belt Rail Saw BBS-012

$3,045.00 USD

Sale Sold out

Shipping calculated at checkout.

Part #

SKU:BBS-012

Quantity

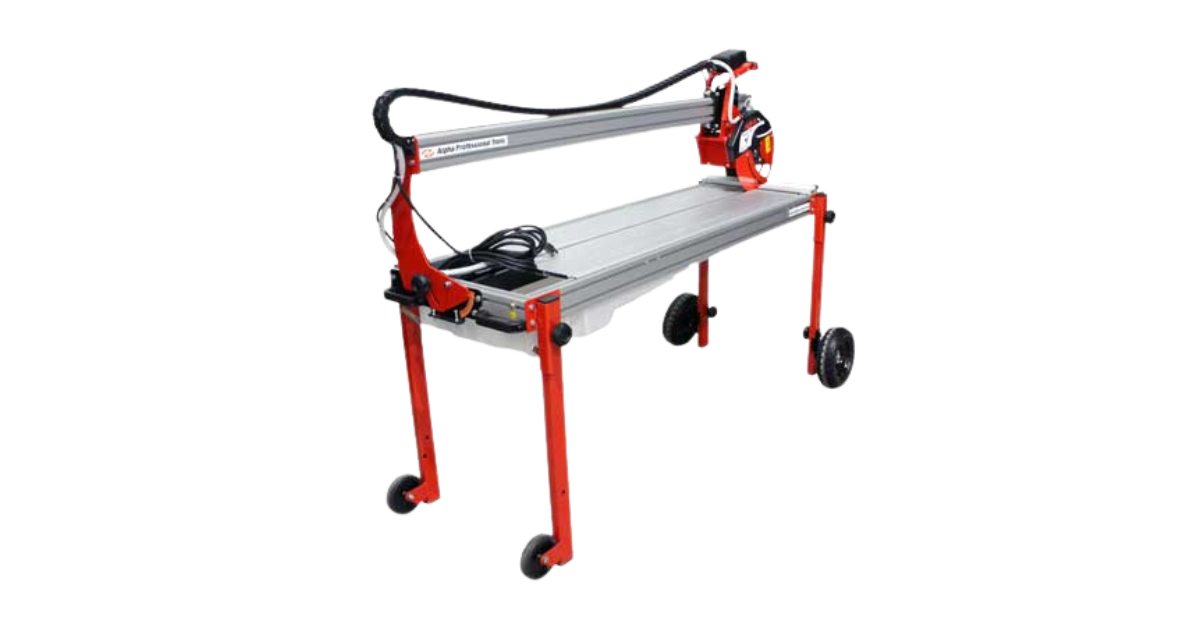

The Alpha Black Belt Rail Saw is a tough and reliable tool, perfect for tile installers, stone fabricators, and hardscape contractors. This saw is designed with many great features to make your work easier and more efficient.>more

Key Features

Sturdy Design: Built with a strong aluminum table chassis, this saw ensures stable operation and a long lifespan.
Powerful Motor: It runs on a 115V-60HZ, 9.6AMP, 2HP (1.5KW) motor with 2,800 RPM and a direct drive shaft for powerful performance.
Blade Compatibility: Supports 10” and 12” blades with 1” and 60mm arbors.
Cutting Depth: Can cut up to 2-1/4” deep in one go, and up to 3-3/8” with a step cut.
Adjustable Cutting Head: The mechanical vertical tilting system lets you adjust cutting depth easily.
Smooth Operation: Features stainless steel head rails and adjustable armored ball bearings for precise movement.
Versatile Cutting: Side tilt capability allows cuts up to 45 degrees, perfect for miter cuts.
Water Management: Includes a maintenance-free magnetic-induction water pump that provides ample water to both sides of the blade.
Portable Design: Retractable legs with a fall-protection device, plus table handles and heavy-duty wheels, make it easy to move around.
Safety Features: Comes with front, back, and side blade guards to minimize exposure and reduce water splash.

Cutting Capacity

Rip Cuts: Up to 51" (130cm)
Diagonal Cuts: Up to 33" (84cm)
Maximum Load: 400lbs (180kgs)

Additional Information

Weight: 128lbs (58kg)
Warranty: One-year tool warranty* (*See manual for details)

With its professional quality and user-friendly features, the Alpha Black Belt Rail Saw is the ideal choice for cutting ceramics, porcelain, glass panels, and other materials.

Product Details

Specification	Data
Model	BBS-012
Rating	115Volts
Frequency	Single-phase AC, 60Hz
Amperage	9.6A
Power	1200W
Max. RPM	2,800 RPM
Max. HP	2.0 HP (1.5KW)
Weight	128 lbs (58 kgs)
Arbor	1" (25.4mm) & 60mm
Cutting Disc Diameter	10" / 12" (250mm / 300mm)
Max. Cutting Depth	2-1/4” Single Pass, 3-3/8” Step Cut
Max. Cutting Length	Straight 51" (130cm), Diagonal 33" (84cm)
Cord	16.4ft (5m) Single Phase
Plug Type	16A 120V ~ 2P+T
