Alpha CNC Core Bits for Porcelain & Sintered Slabs
Alpha CNC Core Bits for Porcelain & Sintered Slabs
Regular price
$80.37 USD
Regular price
Sale price
$80.37 USD
Unit price
per
Shipping calculated at checkout.
SKU:DND01250
Couldn't load pickup availability

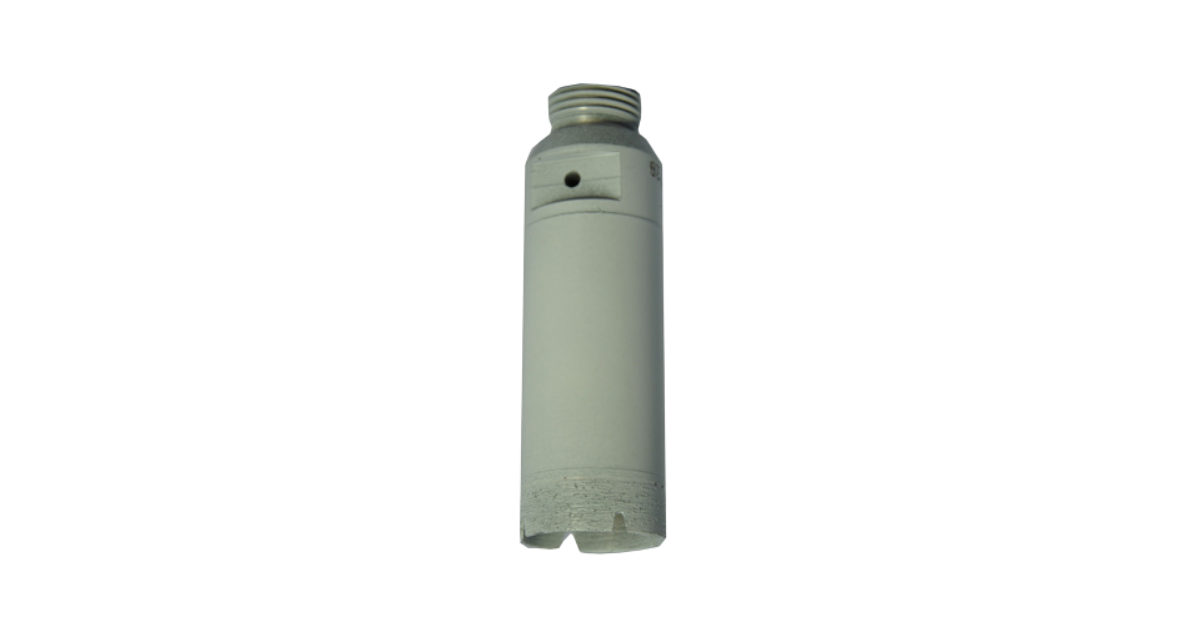

Alpha® introduces a Wet Core Drill Bit for CNC Machines and Radial Arm workstations for cutting Porcelain and Sintered Slabs, Dekton®, Neolith®, Crystallized Glass and other vitreous materials. This Core Bit comes with a 1/2” Gas Thread, designed for the tool holder. The diamonds and matrix have been selected to minimize blow-out at the bottom of the stone, since most CNC Router fabrication is done upside-down. This new Core Bit utilizes the superior technology that has made the Alpha® Wet and Dry Core Bits the best in the industry.
- Wet Core Drill Bit Designed for CNC Machines and Radial Arm Workstations
- Designed for Dekton®, Crystallized Glass and Other Vitreous Materials
- Comes with A 1/2” Gas Thread for Tool Holders
- Diamonds and Matrix Minimize Blow-Out
- Utilizes The Superior Technology
Application(s)
| Product Details |
|---|
| Specification | Data |
|---|---|
| Recommended Working Parameters* | DND01250/DND01375 |
| RPM | 4,000 |
| Traverse Speed | 1-1/4” (30mm)/Min. |
| Traverse Exit Speed | 5/8” (15mm)/Min. |
| *Based on 3/4" (2cm) thick materials |
| Part No. | Diameter | Maximum RPM | Recommended For | Threads |
|---|---|---|---|---|
| DND01250 | 1-1/4" | 4,000 | Porcelain/Sintered Slabs, Dekton®, Neolith® | 1/2" Gas Thread |
| DND01375 | 1-3/8" | 4,000 | Porcelain/Sintered Slabs, Dekton®, Neolith® | 1/2" Gas Thread |
