Alpha

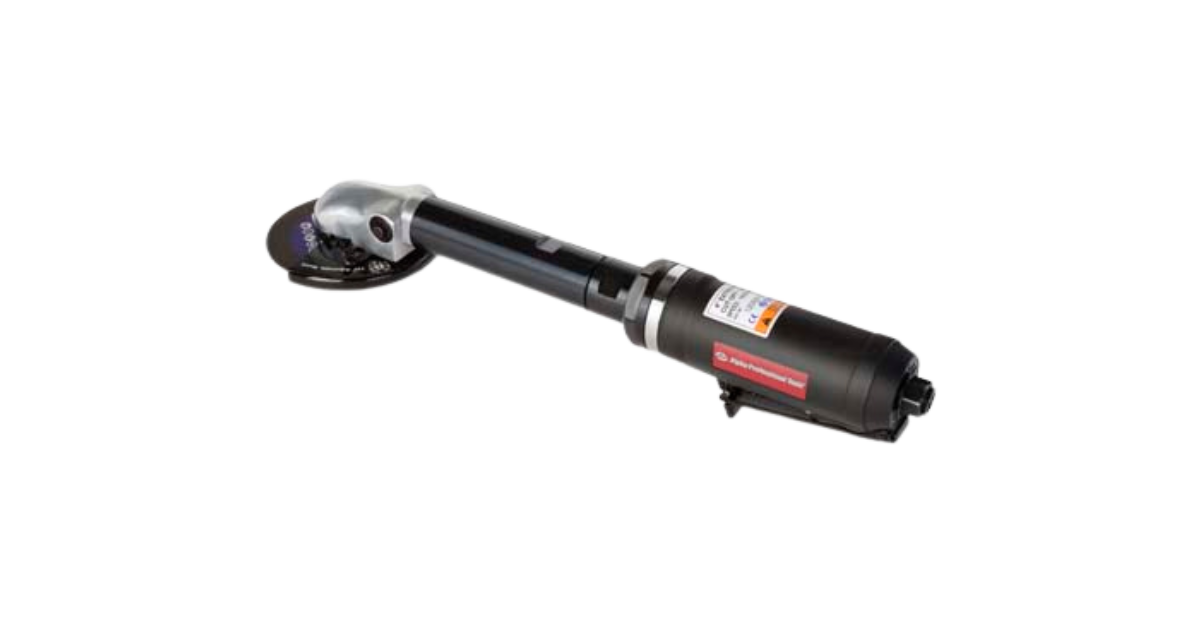

Alpha COTE-04 Pneumatic Extended Cut-Off Tool

Alpha COTE-04 Pneumatic Extended Cut-Off Tool

Regular price $259.00 USD
Regular price $275.00 USD Sale price $259.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:COTE-04

Cut-Off tools are must-have items for most metal fabricators and automotive restoration shops. There are typically three different types available: In-Line Cut-Off Tool which is more or less the same idea as using a grinder to cut stone; a Standard Cut-Off Tool that is similar to a straight grinder with a safety guard for the general cutting applications; an Extended Cut-Off Tool that is designed to use for difficult to reach areas. Alpha® introduces the COTE-04 Extended Cut-Off Tool. This cut-off tool is 14-3/4” in length and has a newly designed gear head with the spindle lock that has a very low profile to reach the tight and hard-to-reach areas. The COTE-04 comes with a Push-to-Adjust swivel safety guard that changes into 11 positions (126 degree adjustable). The operation is also comfortable with a Built-in Cushion Grip and a rear exhaust design. This tool boasts the industry’s strongest motor: a 1.0 HP that enhances the capacity of the Ultracut ABM series blade.

  • Built-In Spindle Lock
  • Rear Exhaust
  • Built-In Cushion Grip
  • Push to Adjust Safety Guard
  • 11 Position Adjustable Swivel Guard (126° Adjustable Range)
  • Powerful Motor (1.0 HP/0.7KW)
  • One year tool warranty* (*See manual for details)

Product Details
Specification Data
Model COTE-04
Free Speed 14,000 RPM
Cutting Disc Dimensions 4” (100mm) x 3/8” (10mm)
Air Inlet 1/4” NPT
Hose Size ID 3/8” (10mm)
Air Consumption 4 CFM (113L/min)
Length 14-3/4” (377mm)
Weight

3.7 lbs (1.7 kgs)



Equipment Included
Item Quantity
Ultracut ABM 4" (ABM0438) 1
Hex Key Wrench (4mm) 1


Manual: COTE-04 v1
Manual: COTE-04 v2
