Alpha

Alpha Countertop Trim Kit for the ESC-125

Alpha Countertop Trim Kit for the ESC-125

Regular price $698.39 USD
Regular price Sale price $698.39 USD
Sale Sold out
Shipping calculated at checkout.

SKU:5480-4150

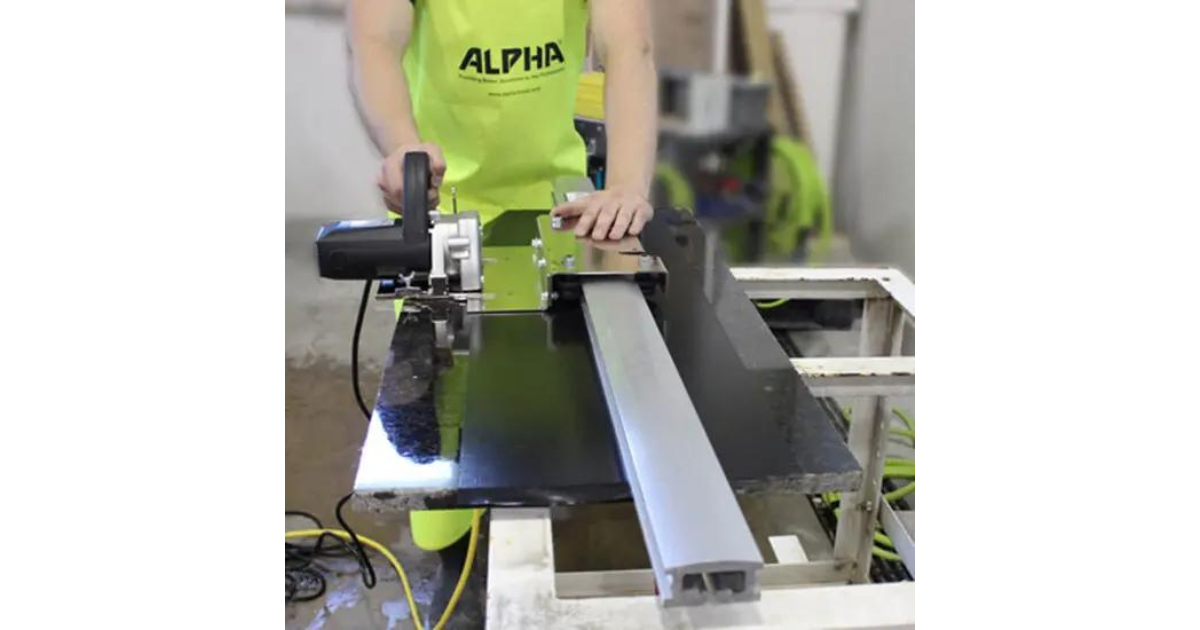

Alpha® introduces our second generation Countertop Trim Kit that incorporates our newest stone cutter, for those who work with pre-fabricated countertops or have the need to trim stone for a custom fit. The kit combines our ESC-125 Wet/Dry Stone Cutter with a carriage assembly and a 4’ guide rail to create a clean, straight cut. All of the products are made of high-quality construction and are easy to setup and operate. A must for anyone that may be cutting and trimming slabs!

  • Recommended for Hard Surfaces
  • Eclipse II Blade has 8mm Tall Diamond Layer for a Long Life
  • Perfect for your Stone Tile Application
  • High-End General Purpose Turbo Blade for Stone Fabricators
  • Consistent Performance without Chipping

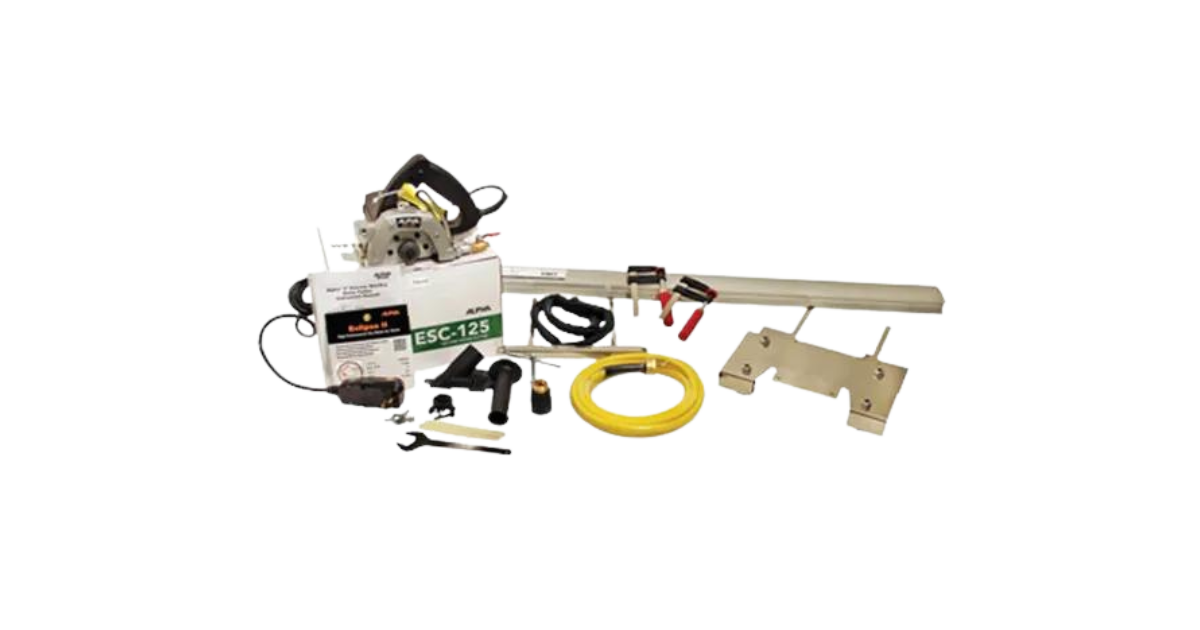

  • Kit Contains: ESC-125 Stone Cutter, 5” Carriage Assembly, 5” Eclipse II Blade and 4’ Guide Rail
  • One Year Tool Warranty* (*See manual for details)
Product Details
Specification Data

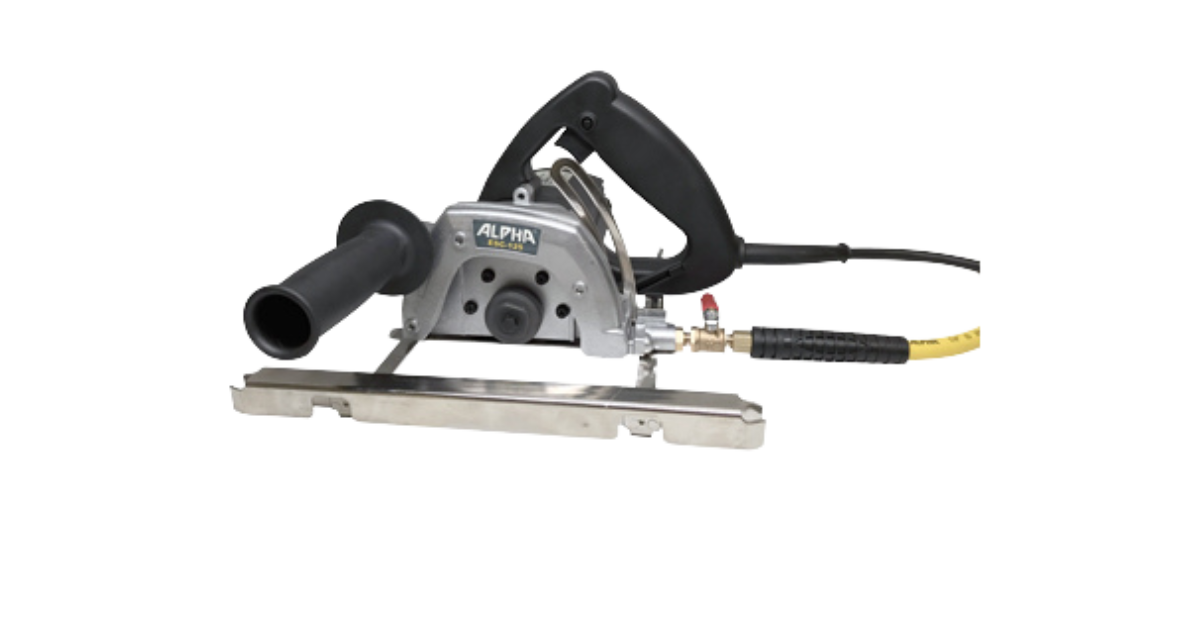

Model 5480-4150 (ESC-125)
Rating 110/220 Volts
Amperage 11.2A
Power 1200W
No Load Speed (min-1) 12,000 RPM
Weight 8.9 lbs (4.0 kgs) (Tool Only)
Arbor 7/8" (22.23mm)
Cutting Disc Diameter 5" (125mm)
Max. Cutting Depth 1-5/8" (41mm)
Cord 15ft (4.5m) Single Phase
Plug Type

A (110V)



Equipment Included
Item Quantity
ESC-125 1
5” Carriage Assembly (ASC-5CSM) 1
Alpha® Eclipse II 5" (DEE005) 1
Guide Rail 4' (1.2m) (ASC-GR04) 1
ESC-125 Standard Accessories 1



Manual: ASC-5CSM Carriage
Manual: ESC-125 v1
Parts Schematic: ESC-125/ESC-225 Parts/Schematic
