Alpha
Alpha Countertop Trim Kit for the ESC-150
Alpha Countertop Trim Kit for the ESC-150
Regular price
$868.53 USD
Regular price
Sale price
$868.53 USD
Unit price
per
Shipping calculated at checkout.
SKU:5480-4250
Couldn't load pickup availability

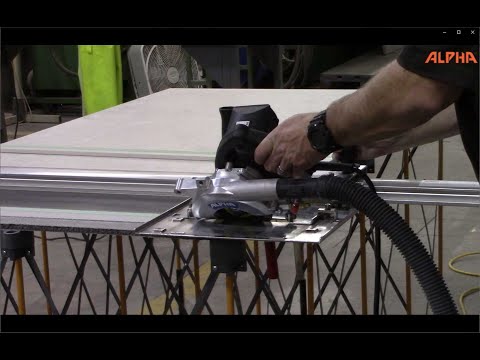

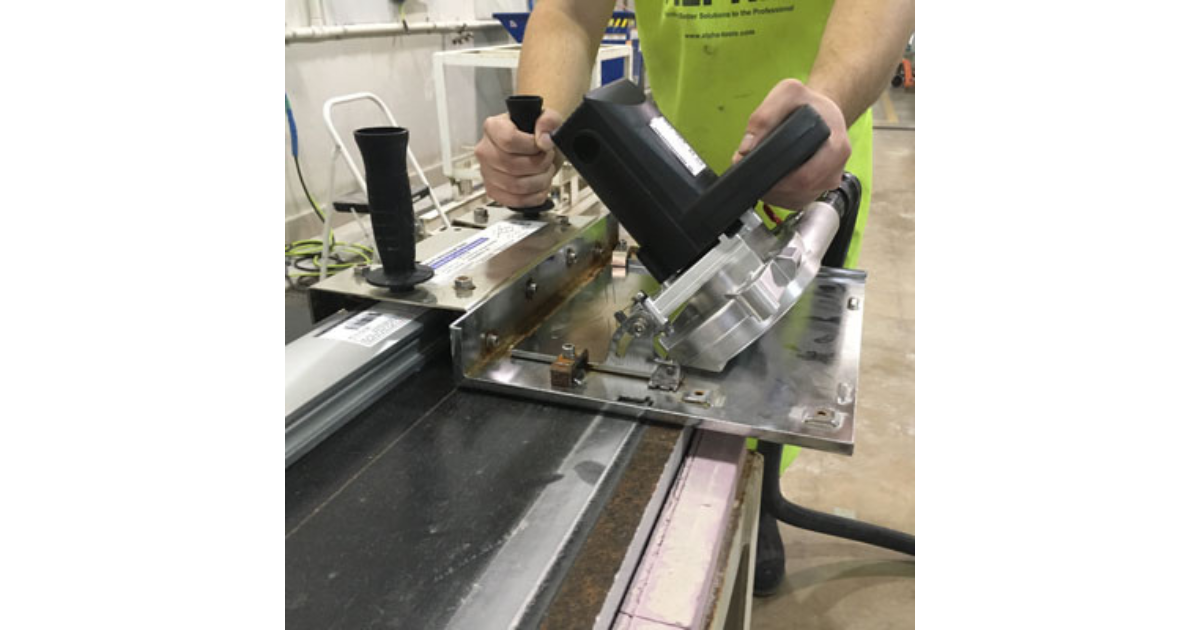

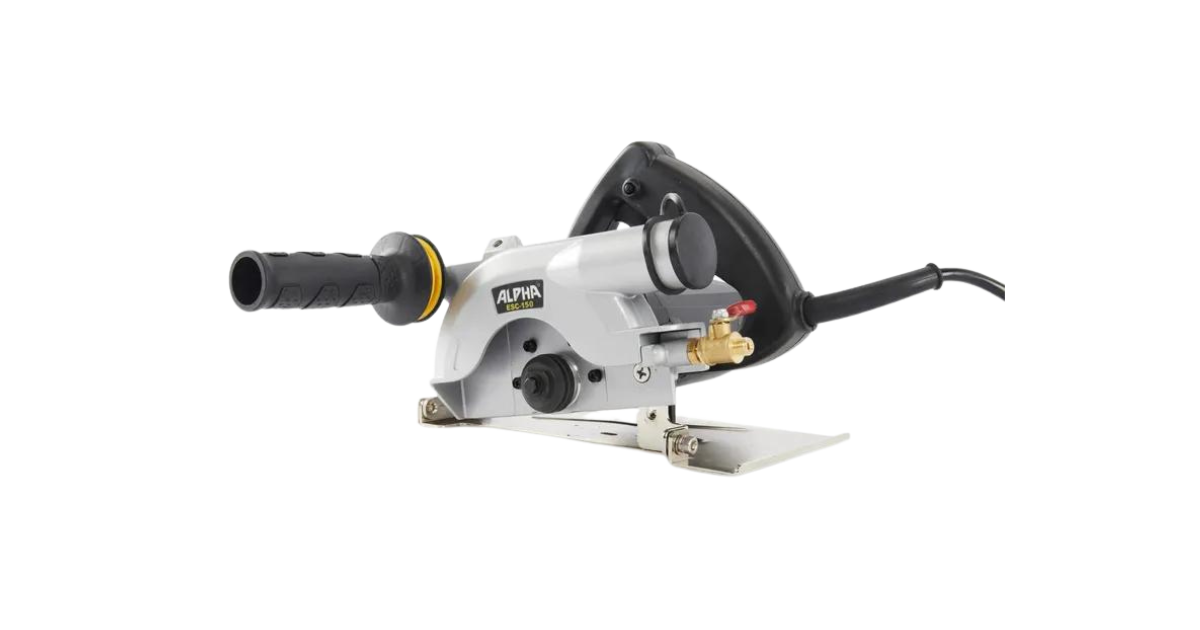

Introducing the ESC-150 Countertop Trim Kit... It starts with the new ESC-150 Electric Stone Cutter, which is equipped with a powerful motor capable cutting 1-1/4” (3cm) stone slabs in one pass. It comes with a Carriage Assembly (ASC-6CSM) which fits on the 4’ Guide Rail a stable application. It also contains an Eclipse II blade (DEE006) for cutting natural and engineered stones. This system can cut up to 1-1/4” (3cm) materials with ease and is perfect for making precise cuts for trimming countertops.
- Recommended for Hard Surfaces
- Eclipse II Blade has 8mm Tall Diamond Layer for a Long Life
- Perfect for your Stone Tile Application
- High-End General Purpose Turbo Blade for Stone Fabricators
- Consistent Performance without Chipping

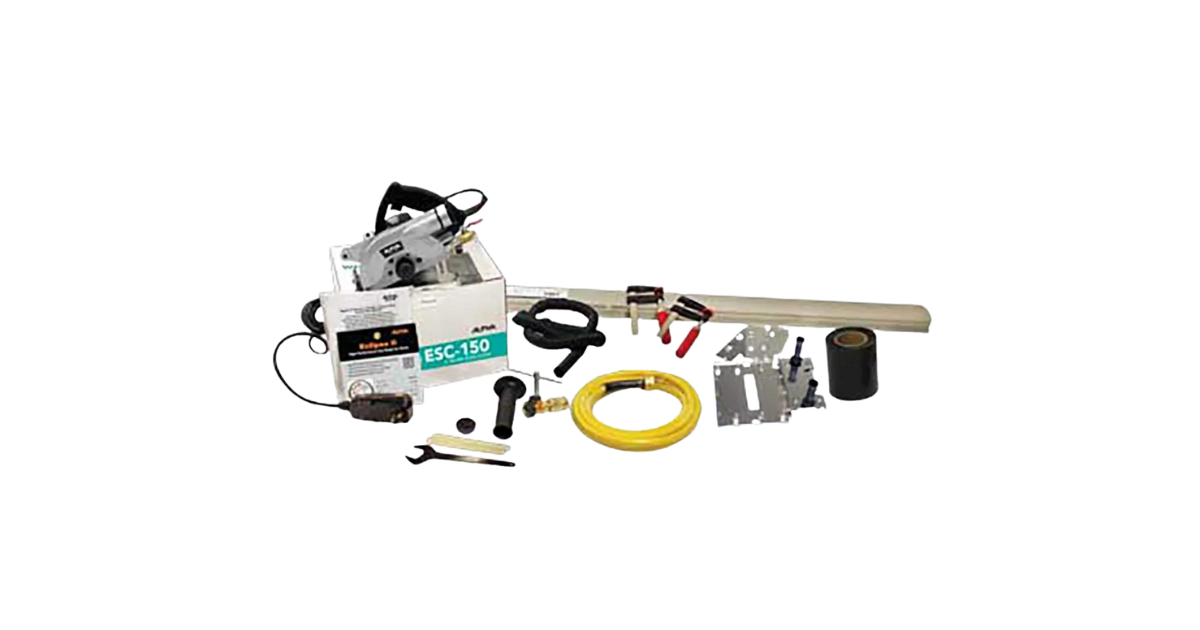

- Kit Contains: ESC-150 Stone Cutter, 6” Carriage Assembly, 6” Eclipse II Blade, 4’ Guide Rail and Surface Protection Tape
- One Year Tool Warranty* (*See manual for details)
| Product Details |
|---|
| Specification | Data |
|---|---|
| Model | 5480-4250 (ESC-150) |
| Rating | 110/ Volts |
| Amperage | 11.2A |
| Power | 1200W |
| No Load Speed (min-1) | 10,000 RPM |
| Weight | 11.30 lbs (5.12 kgs) (Tool Only) |
| Arbor | 7/8" (22.23mm) |
| Cutting Disc Diameter | 6" (150mm) |
| Max. Cutting Depth | 2" (50.88mm) |
| Cord | 15ft (4.5m) Single Phase |
| Plug Type | A (110V) |
| Equipment Included |
|---|
| Item | Quantity |
|---|---|
| ESC-150 Wet/Dry Stone Cutter | 1 |
| 6” Carriage Assembly (ASC-6CSM) | 1 |
| Alpha® Eclipse II 6" (DEE006) | 1 |
| Guide Rail 4' (1.2m) (ASC-GR04) | 1 |
| Surface Protection Tape (BAB0650) | 1 |
| ESC-150 Standard Accessories | 1 |
| Manual: | ESC-150/250 Manual v0721 |
| Parts Schematic: | ESC-150/250 Parts/Schematic v0121 |
